Six Monitor Arm Mount - Up to 32" Displays
Product ID
6-MONITOR-ARM-A
3
1
2
5
For additional self-service support options and community forums, please visit: www.StarTech.com/support
4
6

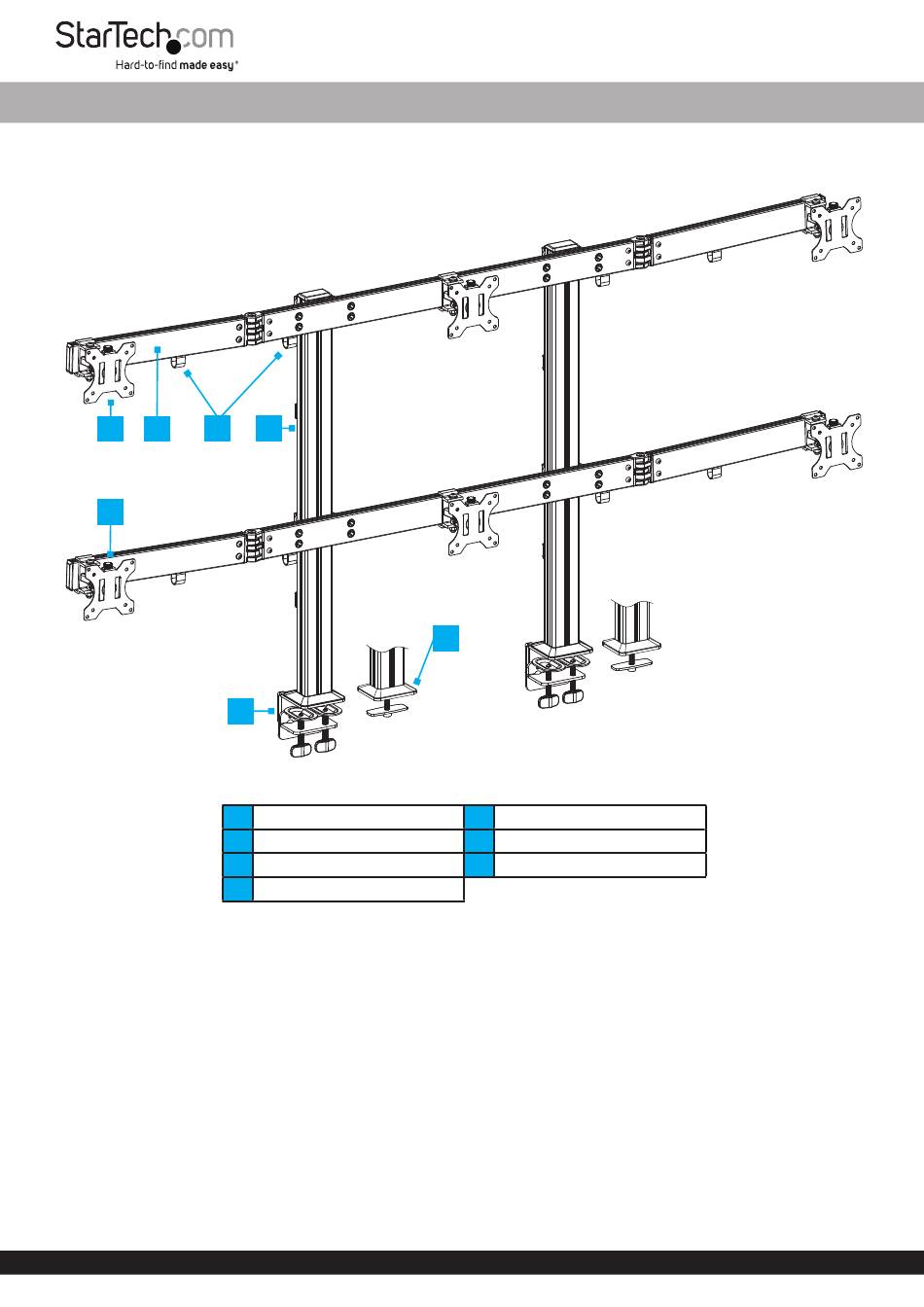

1
VESA Plates x 6
2
Crossbars x 6
3
Cable Management Clips x 8
4
Columns x 2
7
5
VESA Plates Screws x 6
6
Desk Clamps x 2
7
Grommet Clamps x 2
Quick-Start Guide
*Product may vary from image
Revision: February 12, 2025
