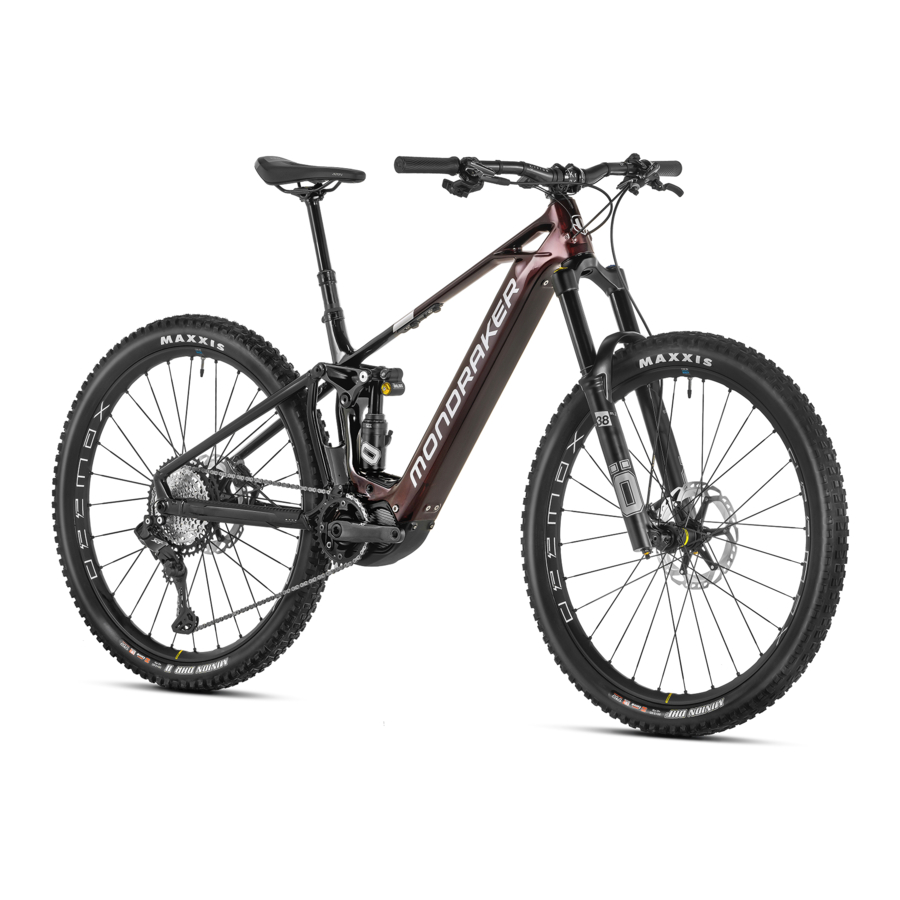

Mondraker Crusher RR Manual
Also See for Crusher RR:

Advertisement

Mondraker Crusher RR Manual

SAFETY AND GENERAL INSTRUCTIONS

Please, be aware that the following 3 icons may appear in this technical guide. Each one indicates to take the following precautions:

Not keeping to the indications or following unsafe practices may result in serious injuries or even death. The tasks involve technical difficulty and if they are badly developed, they could damage your bicycle or result in a void warranty.

Not keeping to the indications or following unsafe practices may result in light injuries. The tasks involve technical difficulty and if they are badly developed, they could damage your bicycle or result in a void warranty.
information INFORMATION
Information which is essential for a proper execution of the task and therefore, avoid any possible damage to your bicycle or losing the warranty, but does not involve any risk for the rider.

CONSIDERATIONS

  • Using non-original spare parts may result in damage, malfunctions and accidents which may lead to severe consequences.
  • Please note that to perform some of the steps described in this manual, skills beyond the average bicycle user are required. In the event of not being qualified to follow any of these steps, please take your bicycle to a Mondraker authorized technical service for maintenance and replacement of its components. The incorrect installation of spare parts can result in malfunctions, accidents, injuries, and warranty void.

warningFor further installation details regarding electrical components, motor, display and control remote, please refer to Shimano manuals. https://si.shimano.com/#/

CLEANING & CARE

  • Once the pieces are disassembled, it is recommended to clean, grease, and put threadlocker (if necessary) on the components which are going to be re-used.

GEOMETRY

GEOMETRY OVERVIEW

SIZE S M L XL
A Seat Tube Length 380mm 420mm 450mm 490mm
B Top Tube Length 605mm 625mm 650mm 670mm
C Bottom Braket Drop -25mm -25mm -25mm -25mm
D Bottom Braket Height 350mm 350mm 350mm 350mm
E Chainstay Length 455mm 455mm 455mm 455mm
F Seat Tube Angle, Actual 73.5º 73.5º 73.5º 73.5º
G Seat Tube Angle, Effective 76.0º 76.0º 76.0º 76.0º
H Headtube Angle 65.0º 65.0º 65.0º 65.0º
I Fork Offset 44mm 44mm 44mm 44mm
J Wheelbase 1236mm 1256mm 1285mm 1305mm
K Headtube Length 110mm 110mm 130mm 140mm
L Reach 450mm 470mm 490mm 510mm
M Stack 632mm 632mm 645mm 645mm

FRAME TECHNICAL SPECIFICATIONS

FRAME SIZES S / M / L / XL
FRONT WHEEL SIZE 29"
FRONT HUB 110mm x 15mm
REAR WHEEL SIZE 29"
REAR HUB 148mm x 12mm (BOOST)
REAR AXLE L180mm M12 PITCH 1.75, HEAD DIAMETER 19mm
TOTAL WATER BOTTLE / RANGE EXTENDERS MOUNTS 1 INTEGRATED FIDLOCK POCKET + 1 WATER BOTTLE CAGE MOUNT
MOTOR Shimano STEPS EP801
BOTTOM BRACKET Shimano
BATTERY SIZE 720Wh
RANGE EXTENDER COMPATIBLE YES, 500ml WATER BOTTLE SIZE
REAR TRAVEL 150mm
REAR SHOCK 205 x 65mm TRUNNION, 25 x 10mm BOTTOM BUSHINGS
FRONT TRAVEL 160mm, 170mm MAX
SEATPOST DIAMETER 31.6mm (37mm seatpost clamp)
CHAINLINE 55mm
HEADSET UPPER: IS52 1 1/8", LOWER ZS56 BLOCKLOCK 1.5"
MAX CHAINRING 34T
REAR BRAKE POST MOUNT, DIRECT 200mm
MAX REAR TIRE WIDTH 66mm, 29 x 2.6"

SEAT POST INSERTION DEPTH

SEAT POST INSERTION DEPTH

FRAME SIZE MIN. (mm) MAX. (mm)
XL 100 285
L 100 245
M 100 215
S 100 175

INTERNAL ROUTING

INTERNAL ROUTING

CABLE CONNECTION DIAGRAM

CABLE CONNECTION DIAGRAM

DRIVE UNIT

  1. REMOVE COVER

STEP 1
Unscrew 4 screws and remove cover.
REMOVE COVER - Step 1

STEP 2
Remove cover.
REMOVE COVER - Step 2

  1. REMOVE DRIVE UNIT

STEP 1
Unscrew 4 screws and remove motor bracket.
REMOVE DRIVE UNIT - Step 1
REMOVE DRIVE UNIT - Step 2

STEP 2
Rotate motor slightly and unplug connections
REMOVE DRIVE UNIT - Step 3

STEP 3
Unscrew 2 screws and remove motor
REMOVE DRIVE UNIT - Step 4

warningAlways use Shimano TL-EW300 tool to plug and unplug cables into connections. Cables are extremely fragile and not using the correct tool will break the cable. For further information please refer to Shimano manuals. https://si.shimano.com/#/

warningBe sure to attach dummy plugs to any unused E-TUBE ports.

BATTERY DISASSEMBLY

Follow steps 6.1 and 6.2

STEP 1
Unscrew 4 screws
BATTERY DISASSEMBLY - Step 1

STEP 2
Unplug connection
BATTERY DISASSEMBLY - Step 2

STEP 3
Extract battery
BATTERY DISASSEMBLY - Step 3

CONNECT A LIGHT (OPTIONAL)

information This bicycle comes with connection port for optional front and rear lighting

information Always use Shimano TL-EW300 tool to plug and unplug cables into connections. Cables are extremely fragile and not using the correct tool will break the cable.

information For further information regarding connections, please refer to Shimano manuals. https://si.shimano.com/#/

STEP 0
Follow steps 6.1 and 6.2 in order to leave drive unit with the connectors accessible.
CONNECT A LIGHT - Step 1

STEP 1
Route light cable through top right entry hole.
CONNECT A LIGHT - Step 2

STEP 2
Connect the wires connected to the front light to the drive unit following shimano instructions. https://si.shimano.com/#/
CONNECT A LIGHT - Step 3

CHAIN GUIDE

CHAIN GUIDE

RIGHT SIDE MOTOR COVER

RIGHT SIDE MOTOR COVER

ROUTING CABLE GUIDE

ROUTING CABLE GUIDE

INTERNAL ROUTING INLET

INTERNAL ROUTING INLET

CHARGING PORT COVER

CHARGING PORT COVER

FIDLOCK COVER

FIDLOCK COVER

information To reach rear triangle bolts, shock absorber must be removed or use a stubby hex wrench set.

information For Rear shock removal, first release all air pressure.

UPPER LINK INSTALLATION GUIDE - Step 1

warningFor main bolts apply grease to shaft and Loctite 243 or similar to threads.
UPPER LINK INSTALLATION GUIDE - Step 2
warningApply grease to all bearings and spacers.

LOWER LINK INSTALLATION GUIDE - Step 1

warning For main bolts apply grease to shaft and Loctite 243 or similar to threads.
LOWER LINK INSTALLATION GUIDE - Step 2
warningApply grease to all bearings and spacers.

SWITCH UNIT

The Shimano remote control SW-EN600-L has the following functions.
SWITCH UNIT

FINE ADJUSTMENT OF THE REAR DERAILLEUR

  1. Turn your bike on.
  2. Shift the rear derailleur to the 5th sprocket position.
  3. Access Setting menu by long pressing Display scroll button.
  4. Navigate to Setting > Adjust
  5. While turning the front chainwheel use shifting switch levers to micro adjust the derailleur.
  6. Confirm settings and Exit Setting menu.

CONNECTIVITY

PAIRING YOUR SMARTPHONE

information Before first ride it is recommended to fully charge your bike. With the smartphone application E-TUBE PROJECT Cyclist, you will be able to customize settings of your Mondraker Crusher as well as performing maintenance tasks.

A more detail user manual is available in Shiamno Website. Search for E-TUBE PROJECT Cyclist to download latest version.

STEP 1
Tap + icon and power your bike.

STEP 2
Select it from the list.

STEP 3
Allow connections.

STEP 4
Your Bike is connected!

PAIRING YOUR GPS UNIT

  1. To connect your bike to a GPS bicycle computer you first need to turn on your bike.
  2. Turn on your GPS unit and select in the menu "Add Sensors" > "Search All".
  3. Select at "Shimano STEPS" sensor.
  4. You Cycle computer is now linked to your Mondraker Crusher!

SETTINGS

CHANGE DISPLAY LANGUAGE, INFO AND UNITS

 CHANGE DISPLAY LANGUAGE, INFO AND UNITS

  1. Turn on your bike and connect your bike to your smartphone.
  2. Tap on your previously saved bike.
  3. Select CUSTOMIZE menu
  4. Scroll down and select Cycle Computer
  5. Select your preferred Units, Display Brightness and Language.

CONFIGURE ASSIST MODES AND PROFILES

CONFIGURE ASSIST MODES AND PROFILES

Shimano has the option to customize the power input by the drive unit allowing user to create different assist modes and 2 profiles.

  1. Select CUSTOMIZE menu
  2. Tap on Assist
  3. Configure each Profile
  4. Apply to save changes and send them to your bicycle.

CHANGE BETWEEN PROFILES

Once profiles are loaded, you can choose in your bike to ride on Profile 1 or Profile 2. To select them:
CHANGE BETWEEN PROFILES - Step 1
CHANGE BETWEEN PROFILES - Step 2

  1. Turn your bike on.
  2. Access Setting menu by long pressing Display scroll button.
  3. Navigate to Assist Mode by pressing Down Button 8 times.
  4. Enter Assist Mode by pressing Display mode.
  5. Choose between Profiles and press Display Button to validate selection.

AUTO SHIFT

By pressing Shift mode button you will cycle between Manual Mode, Auto 1 and Auto 2.
AUTO SHIFT

SPARE PARTS

SPARE PARTS

ITEM No. DESCRIPTION QTY. PART NUMBER TORQUE
1 UPPER LINK 1 099.20039
2 REAR TRIANGLE 1
3 FRONT TRIANGLE 1
6 LOWER LINK 1 099.20040
7 HEADTUBE CABLE CLAMP 2 SET 6
8 BOLT M5x12L-R11F 1 3Nm
9 RT CABLE GUIDE 1 099.22064
10 CHAINGUIDE SLIDING MOUNT 1 SET 10
11 CHAINGUIDE SCREW M5x12L 2 SET 10 3Nm
12 CHAINGUIDE SLIDING NUT 1 SET 10
13 MOTOR BOLT 18MM 4 SET 8 15Nm
14 MOTOR BOLT 36MM 2 SET 8 15Nm
15 BEARING 30x17x7 4 SET 1
16 BEARING 28x15x7 2 SET 1
17 BEARING 22x10x6 2 SET 1
18 BEARING 24x15x5 4 SET 1
19 LOWER LINK SPACER 22x17x30L 2 SET 4
20 LOWER LINK SHIELD 27x15x2 4 SET 4
21 LOWER LINK COLLET BOLT 2 SET 4 12Nm
22 LOWER SHOCK BOLT 1 099.21012 / SET 2 16Nm
23 TAPER NUT 2 SET 4
24 BOLT M6x25L-P11M 2 SET 4 10Nm
25 UPPER LINK THREADED 1 SET 3
26 BEARING SPACER 22x15x3 2 SET 3
27 UPPER LINK SEATTUBE AXLE 2 SET 3 11Nm
28 UPPER SHOCK BOLT 2 SET 2 8Nm
29 SHOCK SPACER 17x10x6 2 SET 2
30 BEARING SPACER 19x15x2 2 SET 3
31 BEARING SPACER 24x15x2 4 SET 3
32 UPPER LINK RT BOLT 2 SET 3
33 UPPER LINK RT BOLT 2 SET 3 12Nm
34 BOLT M5x10L-P-S 12 3Nm
35 BOLT M3x10L-M-S 10 SET 6 2Nm
36 BATTERY BRACKET SCREW 4 SET 9 6Nm
37 HANGER 1 SET 5
38 HANGER NUT 1 SET 5 4Nm
39 SIMPLO 720 Wh BRAKET 2 099.24056
40 EP801 LOWER MOTOR COVER 1 099.23050
41 EP801 RIGHT SIDE MOTOR COVER 1 099.24005
45 CHAIN GUIDE BOLT 1 099.20010A 4Nm
46 COLLET WASHER SPACER 2 SET 4
47 LOW PROFILE BOLT 2 099.24007 3Nm
48 CHARGING PORT COVER 1 099.24006
49 MOTOR SPACER 2 SET 7
50 MOTOR BRACKET 1 SET 7
51 GROMMET 1 989.13010
52 REAR AXLE 12x148 P1.75 L180 1 112.90022
53 CHAIN PROTECTOR 1 099.20017
54 ROTOR MAGNET SPEED SENSOR 1 124.20401
55 YOKE PROTECTOR 1 099.20056
56 SPONGE MOTOR PROTECTOR 1 099.20086

PART NUMBER DESCRIPTION COMPONENTS
099.20101 SET 1: ZERO BEARING KIT 20 BEARING 6903V-2RS, 30x17x7 (x4) / BEARING 6802V-2RS, 24x15x5 (x 4) / BEARING 6902V-2RS, 28x15x7 (x2) / BEARING 6900V-2RS, 10x22x6 (x2)
099.20201 SET 2: SHOCK HARDWARE KIT 13 SHOCK BOLT (x2) / SPACER, 10x17x6 (x2) / SHOCK BOLT (x1)
099.20301 SET 3: UPPER LINK KIT 26 SPACER, 15x19x2t (x2) / SPACER, 15x24x2 (x4) / M8 THREAD AXLE (x1) / LINK AXLE (x2) / PIVOT AXLE, 26MM (x2) / PIVOT AXLE, M12 (x2) / SPACER, 15x22x3 (x2)
099.20401 SET 4: LOWER LINK KIT 24 TAPER NUT (x2) / SPACER (x2) / SCREW BOLT (x2) / SPACER, 15x27x2 (x4) / MAIN PIVOT AXLE, 17X60 (x2) / SPACER, 17x22x30L (x2)
099.00055 SET 5: HANGER M068 + NUT HANGER (x1), HANGER NUT (x1)
099.24001 SET 6: GUIA CABLE KIT CRUSHER HEADTUBE INTERNAL CABLE CLAMP (x2) / SCREW BOLT (x2)
099.24002 SET 7: MOTOR SPACERS & BRACKET SET MOTOR MOUNT FRONT BOLT SPACER (x2) / SKID PLATE MOUNTING BRAKET (x1)
099.24003 SET 8: MOTOR BOLTS SET MOTOR MOUNTING BOLT, 18MM (x4) / MOTOR MOUNTING BOLT, 36MM (x2)
099.24004 SET 9: BATTERY BOLTS SET BATTERY BRAKET FIXING SCREW (x4)
099.20081 SET 10: CHAIN GUIDE PLATE + BOTLS CHAINGUIDE SLIDING MOUNT (x1) / CHAINGUIDE MOUNTING SCREW CSUNK (x2) / CHAINGUIDE SLIDING NUT (x1)

FAQs

WHICH SHOCKS ARE COMPATIBLE WITH CRUSHER?
Crusher is compatible with all coil sprung, air, inline or piggyback shocks such as the stock Fox Float, Float DPS, Float X, Float DPX2, RockShox Deluxe, Vivid, Super Deluxe Air or Coil as well as Float X2, DHX2 or Öhlins TTX Air or TTX22. Crusher feature metric sized 205 x 65 mm shocks with Trunnion upper mount and 25 x 10 mm bottom hardware.

WHICH IS THE MAXIMUM FORK TRAVEL I CAN RIDE ON CRUSHER?
Crusher is compatible with forks up to 170 mm travel.

HOW DOES THE CRUSHER FRAME DIFFER FROM THE CRAFTY CARBON?
Geometry, suspension kinematics and travel are all the same, although Crusher uses an aluminium rear swingarm instead of carbon like Crafty Carbon.

IS IT POSSIBLE TO FIT A RANGE EXTENDER ON THE FRAME?
Crusher does not have specific brackets for installing a range extender and cannot be installed.

CAN I MAKE CHANGES TO THE BIKE SUCH AS GEARING OR TIRES FOR INSTANCE?
Bikes are hand-assembled at our Mondraker Headquarters and each bike's technical parameters and programming are also set by us to ensure its perfect performance and all relevant homologation. Wheel size and tire size, number of speeds and its different sprocket numbers etc., are defined into each bike's setting program for proper performance. Any modification or system firmware update must be carried out by an official Mondraker Dealer.

IS IT POSSIBLE TO REMOVE THE BATTERY FROM CRUSHER?
Crusher is focused on pure performance and designed with the lightest possible weight in mind so the battery is internal and non removable. To charge the battery you'll need to plug the charger directly to the battery port below the main tube. If, by any chance a battery removal is needed, any Mondraker Dealer will be able to take out the battery removing the motor first.

HOW LONG DOES IT TAKE TO FULLY CHARGE THE BATTERY?
If the battery is fully drained to 0%, with the original charger it takes about 5 hours to fully charge the battery to 100%. WHICH SIZE SHOULD I BUY? Sizes differ from one rider to other. Personal preferences are very unique and how you ride your bike is also important when choosing the correct size. This is a standard size chart you can use as a guideline: S 1.58 - 1.68 M 1.67 - 1.76 L 1.75 - 1.86 XL 1.85 - 1.95

WHICH MAXIMUM DROPPER POST LENGTH CAN I USE ON THE CRUSHER?
See table on SEAT POST INSERTION DEPTH section of this manual.

WHICH TYPE OF MAINTENANCE OR SAFETY CHECKS DO MOTORS REQUIRE?
Absolutely none. Nor is it required to lubricate any parts in the drive unit nor disassemble it... All you have to do is taking care for it as a traditional mountain bike. It is important to mention, however, as a precaution applicable to any mountain bike: electronic parts and, specifically, the bottom bracket area of the drive unit should never be cleaned with any high-pressure cleaning machine. Therefore, it is not recommended to use high-pressure water jet to clean the cranks axle directly as the electronic parts of the drive unit can be seriously damaged.
