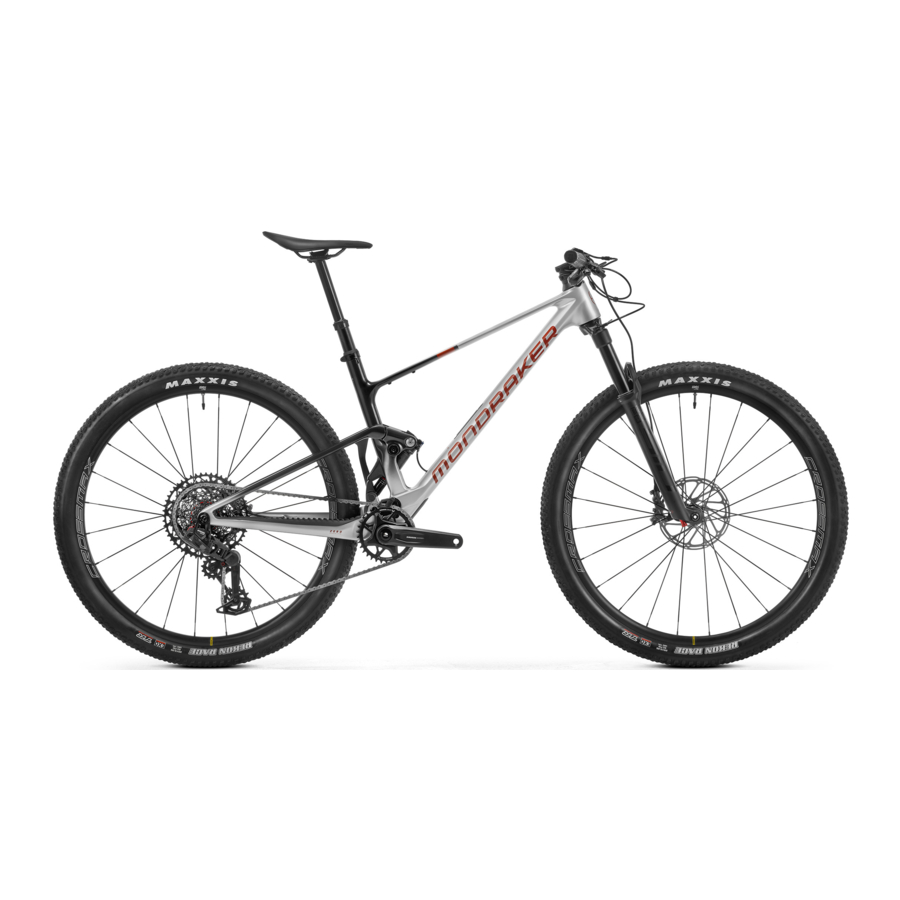

Mondraker F-Podium Manual

SAFETY AND GENERAL INSTRUCTIONS

Please, be aware that the following 3 icons may appear in this technical guide. Each one indicates to take the following precautions:

Not keeping to the indications or following unsafe practices may result in serious injuries or even death. The tasks involve technical difficulty and if they are badly developed, they could damage your bicycle or result in a void warranty.

Not keeping to the indications or following unsafe practices may result in light injuries. The tasks involve technical difficulty and if they are badly developed, they could damage your bicycle or result in a void warranty.
INFORMATION
Information which is essential for a proper execution of the task and therefore, avoid any possible damage to your bicycle or loosing the warranty, but does not involve any risk for the person.

CONSIDERATIONS

• Using non-original spare parts may result in damage, malfunctions and accidents which may lead to severe consequences.
• Please note that to perform some of the steps described in this manual, skills beyond the average bicycle user are required. In the event of not being qualified to follow any of these steps, please take your bicycle to a Mondraker authorized technical service for maintenance and replacement of its components. The incorrect installation of spare parts can result in malfunctions, accidents, injuries, and warranty void.

CLEANING & CARE

• Once the pieces are disassembled, it is recommended to clean, grease, and put threadlocker (if necessary) on the components which are going to be re-used.

GEOMETRY

FRAME TECHNICAL SPECIFICATIONS

SEAT POST INSERTION DEPTH

INTERNAL ROUTING

DROPPER POST

FENDERS AND MUDGUARDS

CHAIN STAY PROTECTOR

CHAINGUIDE

WATER BOTTLE CAGES

Remove base to install compatible fidlock base.

Maximum screw length is 10mm. Inserting la screw longer may damage your frame.

UPPER LINK INSTALLATION GUIDE

For main bolts apply grease to shaft and Loctite 243 or similar to threads.

LOWER LINK INSTALLATION GUIDE

For main bolts apply grease to shaft and Loctite 243 or similar to threads.

Apply grease.

SHOCK INSTALLATION GUIDE

Unplug rubber plug to access shock screw.

SPARE PARTS

FAQs

WHICH SHOCKS ARE COMPATIBLE WITH F-PODIUM?
You can fit any in-line type of shock such as FOX Float SL or RockShox SID Luxe that come stock on our bikes, or similar in 165x45mm metric sized Trunnion upper mount and 30x8mm bottom hardware.

WHICH IS THE MAXIMUM FORK TRAVEL I CAN USE ON F-PODIUM?
F-Podium is compatible with forks up to 120mm travel (stock forks on all F-Podium models). Mondraker does not recommend it, but it is possible to ride forks with less travel, 110mm or 100mm, taking into account that the steering angle will be steepened 0.5º every 10mm of shorter fork travel and the bottom bracket height to the ground will be reduced.

WHICH IS THE MAXIMUM TIRE WIDTH I CAN FIT ON F-PODIUM?
With a maximum recommended internal rim width of 30mm the maximum recommended tire you can fit is 29 x 2.4" which guarantees proper clearance to shed mud.

WHICH IS THE BIGGEST CHAINRING I CAN USE ON F-PODIUM?
F-Podium is only compatible with 1X drivetrains up to a 38T round-standard type ring or 36T oval ring.

HOW MANY WATER BOTTLES CAN I INSTALL ON F-PODIUM?
You can install two water bottles cages. One under the top tube with the precaution of using small screws of suitable thread length and the other one in the usual position on the down tube.

WHICH SIZE SHOULD I BUY?
Sizes differ from one rider to the other. Personal preferences are very unique and how you ride your bike is also important when choosing the correct size. This is a standard size chart you can use as a guideline.
S 1.58 - 1.68
M 1.67 - 1.76
L 1.75 - 1.86
XL 1.85 - 1.95

WHICH MAXIMUM DROPPER POST LENGTH CAN I USE ON THE F-PODIUM CARBON?
