MANUALS & DOCUMENTS
DUNE 2024 / EN
Rev. 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dune Carbon XR and is the answer not in the manual?

Questions and answers

Related Manuals for Mondraker Dune Carbon XR

Summary of Contents for Mondraker Dune Carbon XR

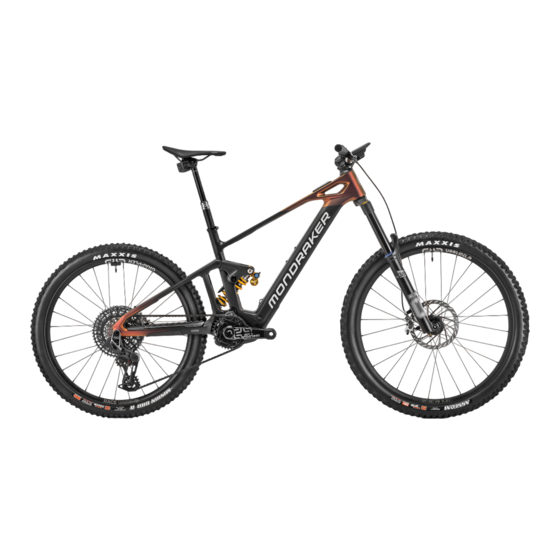

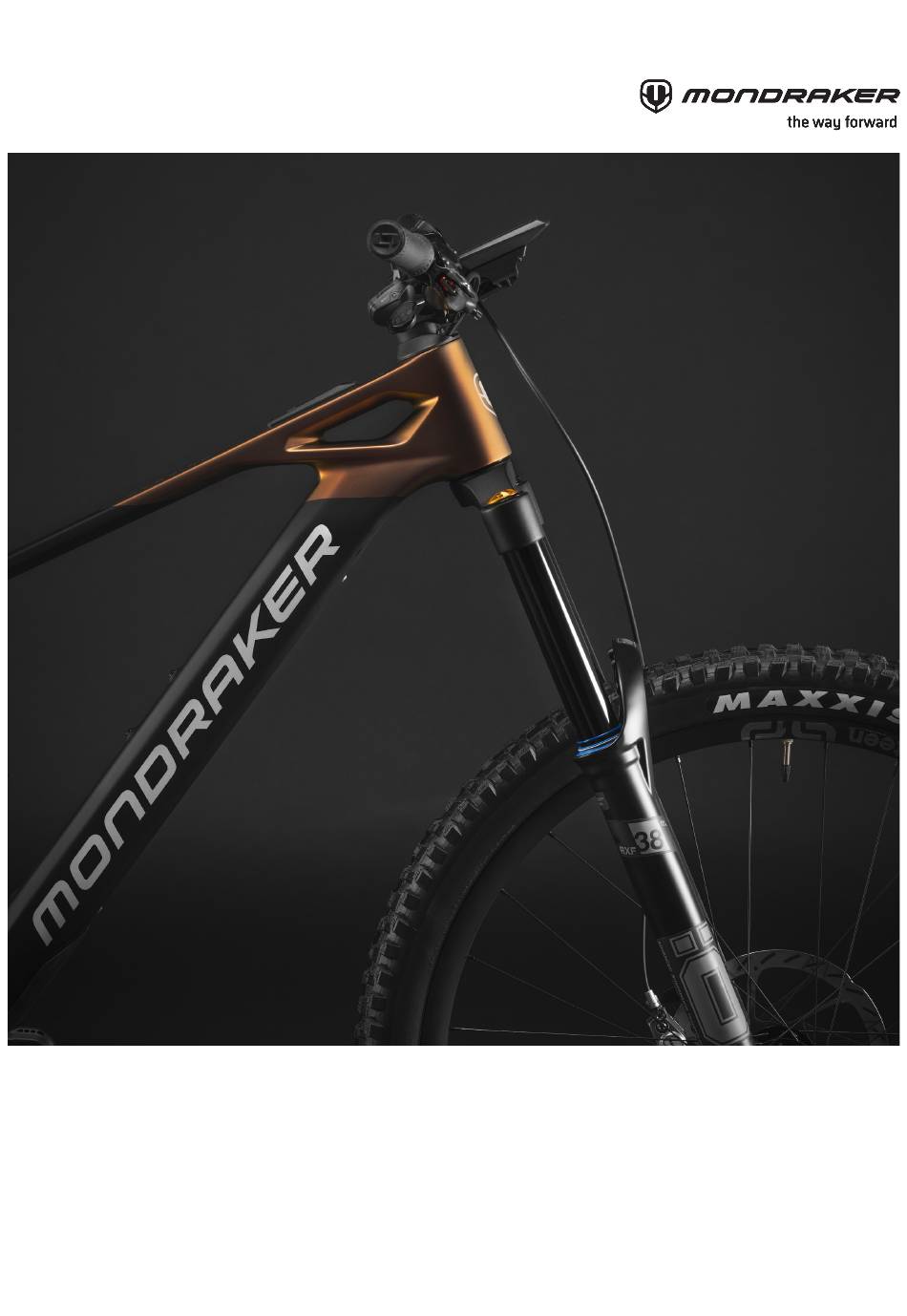

  • Page 1 MANUALS & DOCUMENTS DUNE 2024 / EN Rev. 01...

  • Page 2: Further Considerations

    • Some of the steps described in this manual require skills beyond those of the average bicycle user. If you are unable to follow any of these steps, please arrange for your bicycle to be serviced and replaced at an authorized Mondraker service centre. Installing spare parts incorrectly may result in malfunctions, accidents, injuries and void the warranty.
  • Page 3 DUNE Manuals & Documents 1. DIMENSIONS Dune Carbon XR FRAME SIZE Seattube length 380mm 420mm 450mm 490mm Toptube length 580mm 600mm 625mm 650mm Bottom bracket drop -18/+3mm -18/+3mm -18/+3mm -18/+3mm Bottom bracket height 353mm 353mm 353mm 353mm Chainstay length 445mm...
  • Page 4 DUNE Manuals & Documents 1. DIMENSIONS Dune Carbon RR / R FRAME SIZE Seattube length 380mm 420mm 450mm 490mm Toptube length 580mm 600mm 625mm 650mm Bottom bracket drop -21/0mm -21/0mm -21/0mm -21/0mm Bottom bracket height 350mm 350mm 350mm 350mm Chainstay length 445mm 445mm 445mm...
  • Page 5 DUNE Manuals & Documents 2. FRAME TECHNICAL SPECIFICATIONS FRAME SIZES S / M / L / XL FRONT WHEEL SIZE 29” FRONT AXLE 110mm x 15mm REAR WHEEL SIZE 29” REAR AXLE 148mm x 12mm (BOOST) REAR SHAFT L180mm M12 PASO 1.0, 19mm NUMBER OF BOTTLE CAGES 1 FIDLOCK POCKET + 1 BOTTLE CAGE / RANGE EXTENDER DIRVE UNIT...

  • Page 6: Drive Components

    DUNE Manuals & Documents 4. DRIVE COMPONENTS 4. 1. CHAIN GUIDE 4. 2. CHAINRING 5. BATTERY REMOVAL 5. 1. MOTOR COVER 1N.m 1N.m...
  • Page 7 DUNE Manuals & Documents 5. BATTERY REMOVAL 5. 2. MOTOR REMOVAL 30N.m Do not use Loctitte 243 30N.m 5. 3. MOTOR CONNECTIONS Bosch Multi Power port Display / Bosch System Controller port Battery Connection port Charging port Motor port...
  • Page 8 DUNE Manuals & Documents 5. BATTERY REMOVAL 5. 4. CHARGING PORT REMOVAL 1N.m The two metal Release the cover sideways bases slide out from the inside of the diagonal tube...
  • Page 9 DUNE Manuals & Documents 5. BATTERY REMOVAL 5. 5. LOOSEN BATTERY SCREWS Use Loctite 243 4N.m...

  • Page 10: Internal Cable Routing

    DUNE Manuals & Documents 6. INTERNAL CABLE ROUTING MOTOR - SYSTEM CONTROLLER - DISPLAY DROPPER POST BRAKE DERAILLEUR DISPLAY DROPPER POST DERAILLEUR BRAKE DROPPER POST Dropper post cable runs through the right side of the seatpost CONEXIÓN PUERTO DE CARGA BATTERY CONNECTION...

  • Page 11: Chainstay Protector

    DUNE Manuals & Documents 7. BOSCH SYSTEM CONTROLLER 8. BOSCH MINI REMOTE Pila CR1620 0.5N.m 0,5N.m 9. CHAINSTAY PROTECTOR The chainstay protectors come without a hole for mechanical or cable-operated derailleurs. There is a mark on the rear for piercing the cable outlet. For best results, we recommend using punch pliers.
  • Page 12 DUNE Manuals & Documents 11. RANGE EXTENDER BOSCH POWER MORE KIT EU28, CH, NO, AUS, NZ EU28, CH, NO, AUS, NZ US, CANADA US, CANADA POWER MORE 250 KIT (BBP3625 US, CAN) incl. POWER MORE 250 KIT (BBP3620 EU28,CH,NO,AUS,NZ ) battery holder, bottle holder, screws, IBD packaging incl.
  • Page 13 DUNE Manuals & Documents 12. MUDGUARDS 1N.m 1N.m 13. SEATPOST LOCK We recommend using carbon friction paste on the seatpost 5-6N.m...
  • Page 14 DUNE Manuals & Documents 14. UPPER LINK INSTALLATION GUIDE 12N.m 12N.m 12N.m 8N.m 8N.m Apply grease to the shaft for the main screws and Loctite 243 or similar to the threads. Apply grease.
  • Page 15 DUNE Manuals & Documents 15. LOWER LINK INSTALLATION GUIDE 12N.m 8N.m 12N.m 8N.m Apply grease to the shaft for the main screws and Loctite 243 or similar to the threads. Apply grease.

  • Page 16: Smartphone Connection

    DUNE Manuals & Documents 16. SMARTPHONE CONNECTION eBike Flow app Switch on the bike. After switching on, press and hold the Power HOLD DOWN button for 5 seconds until a blue LED starts flashing. Then, open the eBike Flow app and follow the pairing instructions on your phone.

  • Page 17: Spare Parts

    DUNE Manuals & Documents 17. SPARE PARTS Grease Threadlocker Grease + Threadlocker Apply grease to the shaft, and locker to the threads DETAIL 01 DETAIL 02 ITEM No. DESCRIPTION QTY. PART NUMBER TORQUE ITEM No. DESCRIPTION QTY. PART NUMBER TORQUE FRONT TRIANGLE DT PROTECTOR 099.24066...
  • Page 18 DUNE Manuals & Documents DETAIL 01 DETAIL 02 SET 4 SET 5 SET 1 SET 2 SET 3 ZERO BEARING KIT 26 SHOCK HARDWARE KIT 18 UPPER LINK KIT 30 LOWER LINK KIT 36 CHAIN GUIDE PLATE + BOLTS PART NUMBER DESCRIPTION COMPONENTS 099.22101...
  • Page 19 IS DUNE COMPATIBLE WITH 29” REAR WHEEL? Mondraker do not approve the use of a wheel diameter different from the stock 27.5” one. A larger 29” rear wheel technically fits but the bike has not been designed to ride a 29” setup and the motor would not offer the optimum performance as wheel diameter is altered.
  • Page 20 DUNE Manuals & Documents 18. FAQS RIDING WITH THE POWERMORE RANGE EXTENDER, WHICH BATTERY IS DISCHARGED FIRST, THE INTERNAL ONE OR THE EXTENDER? To maintain the proper power output from the motor, both batteries discharge at the same time. This is key for proper battery life and constant motor assistance.
  • Page 21 Manuals & Documents All information and pictures on this document is provided for information purposes only and does not constitute a legal contract between Mondraker and any person or entity. Specifications, geometries or any other technical information published is subject to change without prior notice.

This manual is also suitable for:

Dune carbon rrDune carbon r
