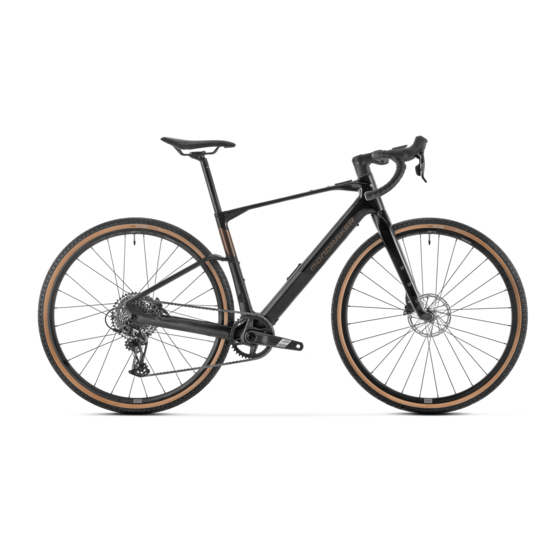

- Page 1 MANUALS & DOCUMENTS DUSTY 2023 / EN Rev. 01...
-
Page 2: Safety And General Instructions
In the event of not being qualified to follow any of these steps, please take your bicycle to a Mondraker authorized technical service for maintenance and replacement of its components. The incorrect installation of spare parts can result in malfunctions, accidents, injuries, and warranty void. - Page 3 DUSTY 2023 Manuals & Documents GEOMETRY SIZE Seat Tube Length 440 mm 460 mm 500 mm 530 mm Top Tube Length 550 mm 570 mm 595 mm 620 mm Bottom Braket Drop 70 mm 70 mm 70 mm 70 mm...
- Page 4 DUSTY 2023 Manuals & Documents REAR WHEEL ASSEMBLY / DISASSEMBLY INSTALLATION GUIDE Before wheel assembly or disassembly loose the hanger so it can pivot. LOOSE When attaching the wheel to the frame, please take great precaution to avoid damaging the motor connection pins.
- Page 5 DUSTY 2023 Manuals & Documents BOTTOM BRACKET INSTALLATION GUIDE ALIGN Align and insert bottom bracket non drive side first. The alignment must be between the bottom bracket mark and the rear wheel axel. This process requires special tools, please refer to Mahle for further ±...
-
Page 6: Headset Assembly
DUSTY 2023 Manuals & Documents INTERNAL CABLE ROUTING HEADSET INSTALLATION GUIDE REAR BRAKE FRONT BRAKE DERAILLEUR E-SHIFTER E-SHIFTER Follow routing order to avoid cable crossing. HEADSET ASSEMBLY Kit No. DESCRIPTION PART NUMBER HS BEARINGS + CR DUSTY 23 020.23990 HS BEARING SEALS 23 020.23991... -
Page 7: Spare Parts
DUSTY 2023 Manuals & Documents SPARE PARTS Grease Threadlocker Grease + Threadlocker * Apply grease to the shaft, and locker to the threads. ITEM No. DESCRIPTION QTY. PART NUMBER TORQUE FRAME BATTERY BOLT + WASHER M5x16L 099.23011 BATTERY COVER SET 6... - Page 8 Yes, the e-Shifters remote controls located on both sides of the handlebars that allow you to change the support modes of the X20 motor can be repositioned. In fact, Mondraker does not assemble them as a standard equi- pment on the bike so that the owner himself, at the dealer floor, can fit them where he considers convenient or deems appropriate.
- Page 9 WOULD IT BE POSSIBLE TO ADD A RANGE EXTENDER TO RIDE LONGER? At Mondraker we offer an Range Extender e185 from Mahle “water-bottle” mount style which offers 171Wh. It weighs 1.1 kilogram and, additionally, you will enjoy greater 50% longer range compared to the internal 350Wh battery.
- Page 10 BAG CREATED FOR ITS VERY SPECIAL DESIGN? For this purpose, at Mondraker we have created two models of bags from the brand Apidura that have been customized for the Dusty’s design. One of them can be fitted on the front of the top tube and the other on the inner front side of the main triangle.
- Page 11 All information and pictures on this document is provided for information purposes only and does not constitute a legal contract between Mondraker and any person or entity. Specifications, geometries or any other technical information published is subject to change without prior notice.
