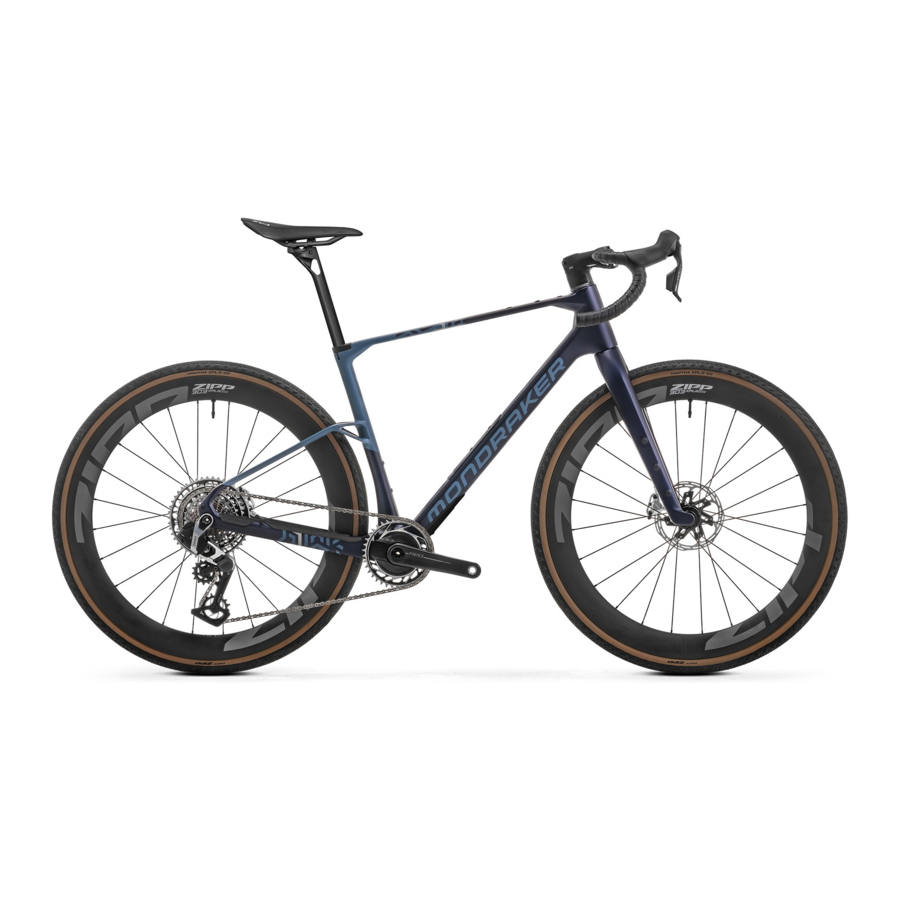

Mondraker Arid Carbon Manual

GENERAL AND SAFETY INSTRUCTIONS

This technical guide may use the following 3 icons. Each icon denotes that the following precautions should be taken:


Improper use or failure to follow directions may result in serious injury or death. These tasks are technically difficult and, if not performed properly, could cause damage to your bicycle or void your warranty.


Improper use or failure to follow directions may result in minor injuries. These tasks are technically difficult and, if not performed properly, could cause damage to your bicycle or void your warranty.

information INFORMATION
Essential information to correctly perform this task in order to avoid any damage to the bicycle or void the warranty, without any risk to people.

FURTHER CONSIDERATIONS

  • Using non-original spare parts can lead to damage, malfunctions and accidents with potentially serious consequences.
  • Some of the steps described in this manual require skills beyond those of the average bicycle user. If you are unable to follow any of these steps, please arrange for your bicycle to be serviced and replaced at an authorized Mondraker service centre. Installing spare parts incorrectly may result in malfunctions, accidents, injuries and void the warranty.

CLEANING AND MAINTENANCE

  • Once the parts have been disassembled, components to be reused should be cleaned, greased and thread sealed (if necessary).

SYMBOL LEGEND

Medium grade threadlocker. Loctite 243 or similar.

Quality synthetic assembly grease.

Special carbon friction grease.

DIMENSIONS

DIMENSIONS

FRAME SIZE S M M/L L XL
A Seat Tube Length 410mm 450mm 480mm 510mm 540mm
B Top Tube Length 520mm 550mm 580mm 600mm 630mm
C Bottom Braket Drop -75 -75 -75 -75 -75
D Bottom Braket Height 269mm 269mm 269mm 269mm 269mm
E Chainstay Length 425mm 425mm 425mm 425mm 425mm
F Seat Tube Angle, Actual 73° 73° 73° 73° 73°
G Seat Tube Angle, Effective 74° 74° 74° 74° 74°
H Headtube Angle 70° 70° 70° 70° 70°
I Fork Offset 45mm 45mm 45mm 45mm 45mm
J Wheelbase 1003mm 1035mm 1067mm 1089mm 1121mm
K Headtube Length 100mm 125mm 145mm 175mm 200mm
L Reach 363mm 386mm 411mm 423mm 446mm
M Stack 548mm 572mm 591mm 619mm 642mm
N Stem Length 60mm 70mm 70mm 80mm 90mm
O Fork Height 420mm 420mm 420mm 420mm 420mm

FRAME TECHNICAL SPECIFICATIONS

FRONT WHEEL SIZE 700
FRONT AXLE 100mm x 12mm
REAR WHEEL SIZE 700
REAR AXLE 142 mm x 12mm
REAR SHAFT L173 mm M12 PITCH 1.0, HEAD DIAMETER 19mm
PEDAL AXLE T47 I.B
SEATPOST DIAMETER 27.2 mm (30.2 mm seatpost clamp)
CHAIN LINE 47.5 mm
STEERING IS52 1-1/2"
MAXIMUM PLATE SIZE 46 T
REAR BRAKE FLAT MOUNT, DIRECT 160mm
MAXIMUM COMPATIBLE WHEEL SIZE 700x50c

SEATPOST INSERTION DEPTH

SEATPOST INSERTION DEPTH

FRAME SIZE MIN. (mm) MAX. (mm)
XL 100 300
L 100 280
ML 100 240
M 100 220
S 100 180

INTERNAL CABLE ROUTING

INTERNAL CABLE ROUTING - Step 1
INTERNAL CABLE ROUTING - Step 2

CABLE INSTALLATION

Insert rear brake and mechanical gear cables.
CABLE INSTALLATION

STORAGE COMPARTMENT

Hinged mechanism. *The chassis may come with the hinge pre-installed.
STORAGE COMPARTMENT - Step 1

When positioning the hinge, make sure that the notch is positioned as shown below.

Use an 8mm spanner to tighten the upper part. This screw determines how stiffly the cover opens.

Retighten the locking screw.

Chassis installation
Chassis installation

*Locking mechanism may be fitted to the cover.

STORAGE COMPARTMENT - Step 2
Attach bottle cages.
STORAGE COMPARTMENT - Step 3

INTERNAL CABLE ROUTING FOR EACH HANDLEBAR

INTERNAL CABLE ROUTING FOR EACH HANDLEBAR

SPARE PARTS

SPARE PARTS

ITEM No. DESCRIPTION QTY. PART NUMBER TORQUE
1 FRAME 1
2 HANGER SRAM UDH 1 SRAM UDH
3 CLAMP 30mm 1 099.25034
4 SCREW, M5X25 1 6Nm
5 REAR AXLE 1 112.90030 12 Nm
6 CS RUBBER PROTECTOR 1 099.25019
7 DT RUBBER PROTECTOR 1 099.25020
8 DT-BOTTLECAGE REST 1 099.25021
9 DT STORAGE BRACKET 1 099.25022
10 SCREW, M5x8 6
11 SCREW, M3x8 1 099.20068 1Nm
12 FORK 1 099.23010
13 AXLE FORK 1 099.23008 12 Nm
14 CARBON COVER 1
15 PLASTIC DOOR HANDLE 1 099.25027
16 SCREW, M3x5 5 099.25028 1Nm
17 SYSTEM AXLE 1 SET 1
18 NUT FOR SYSTEM 1 SET 1
19 SCREW, M2x7 1 SET 1 1Nm
20 PLASTIC BASE + RUBBER SEAL 1 099.25030
21 SCREW, M3x8 5 099.20068 1Nm
22 SCREW HOLDER 1 099.25032
23 SCREW HOLDER 1 099.25033
24 SCREW, M4x10 2
25 PLUG FOR DUSTY TOP TUBE/FORK 6 099.23045
26 M5 CLOSE PLUG 5 099.23054
PART NUMBER DESCRIPTION COMPONENTS
099.25029 SET 1: CAGE COVER HINGE KIT SYSTEM AXLE (x1) / SYSTEM NUT (x1) / SCREW BOLT (x1)

FREQUENTLY ASKED QUESTIONS

IS IT POSSIBLE TO CHANGE THE DRIVETRAIN ON THE ARID?
Arid models have been designed around a 1X 40T ring crankset. You can alter the ring tooth size with a maximum 46T or 44T for an oval ring. Arid are not 2X compatible. BB type is T47 (inner bearing) Q-Factor is 150mm and chain line is 47,5mm.

IS IT POSSIBLE TO ALTER THE BAR HEIGHT?
The handlebar height on the four Arid models has 5 or 10mm of adjustment, modifying the position of the steerer tube spacers for a total of 20mm height adjustment.

WHICH ARE THE HANDLEBAR WIDTHS BEING USED?
Arid is equipped with 440mm width handlebars in sizes S and M and 460mm in ML, L and XL sizes. The "flare" or handlebar drop-out is 16mm, making it an ideal option on our Arid for a comfortable position while maintaining good contact with the brake-shift levers.

CAN I INSTALL A DROPPER POST?
Yes, you can install a 27.2mm diameter dropper post.

CAN I PUT A KICKSTAND ON THE ARID?
No, Arid do not feature kickstand specific mount for this matter.

IS IT POSSIBLE TO CARRY A TRAILER WITH THE ARID?

No, Arid are not intended to carry or tow any cargo vehicle or trailer.

WHICH IS THE MAXIMUM TIRE WIDTH I CAN RUN ON THE ARID?
To guarantee the proper clearance on both fork and frame, maximum recommended width should not exceed 700x50c.

IS IT POSSIBLE TO INSTALL A SUSPENSION FORK ON ARID?
It is possible to install dedicated suspension forks for gravel bikes with up to 40mm of travel due to the change in geometry. The length of the standard rigid fork is 420mm. A 30mm or 40mm travel suspension like the RockShox Rudy XPLR in 30mm or 40mm (425mm or 435mm axle to crown) can be used. The Fox TC32 model with 40mm of travel can be used, but we do not recommend the 50mm travel option with an axle to crown of 445mm that would excessively modify the geometry. Recommended fork offset is 45mm.

IS IT POSSIBLE TO INSTALL MUDGUARDS AND TRANSPORT BAGS FOR GRAVEL BIKES?
On Arid models it is possible to fit specific bags for gravel bikes, either attached to the main frame or a bag on the handlebars or a dedicated one on the back under the saddle. In addition, Arid allows up to 6 water bottles to be carried simultaneously, four on the main triangle and two on both sides of the fork. It is also possible to install mudguards as Arid has the necessary mounts for their possible installation.

WHAT THINGS CAN I CARRY INSIDE THE MAIN TUBE OF THE ARID?
Arid models have been designed with a specific storage compartment that we have dubbed Carry-On where, inside, you will find 3 specific and independent storage bags to carry spare inner tubes and tire levers in one of them, CO2 cartridges and/or mini-pump in another one, and multi-tool, tire plugs, chain tool... in the last one. These bags have been specifically designed for this purpose and are included in the original equipment when purchasing any Arid gravel model.

WHICH IS THE MAXIMUM RECOMMENDED RIDER WEIGHT WITH EQUIPMENT ARID MODELS ARE ABLE TO SUPPORT, IN OTHER WORDS, THE SYSTEM WEIGHT (BIKE+RIDER+EQUIPMENT)?
System weight (Bike + rider + total equipment) weight limit is 130 kg.

WHICH SIZE SHOULD I BUY?
Sizes differ from one rider to other. Personal preferences are very unique and how you ride your bike is also important when choosing the correct size. This is a standard size chart you can use as a guideline.
S= 410mm seat tube 1.55 - 1.67
M= 450mm seat tube 1.65 - 1.77
ML=480 seat tube 1.72 – 1.84
L= 510mm seat tube 1.82 - 1.94
XL= 540mm seat tube 1.92 - 2.05

WHICH IS THE MINIMUM AND MAXIMUM SEATPOST INSERTION ON ARID MODELS?
This chart illustrates the measurements for seatpost insertion for either standard or dropper models.

FRAME SIZE MIN. (mm) MAX. (mm)
XL 100 300
L 100 280
ML 100 240
M 100 220
S 100 180
