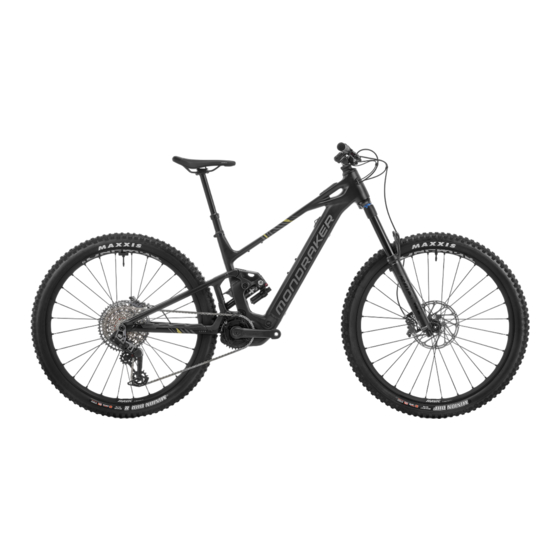

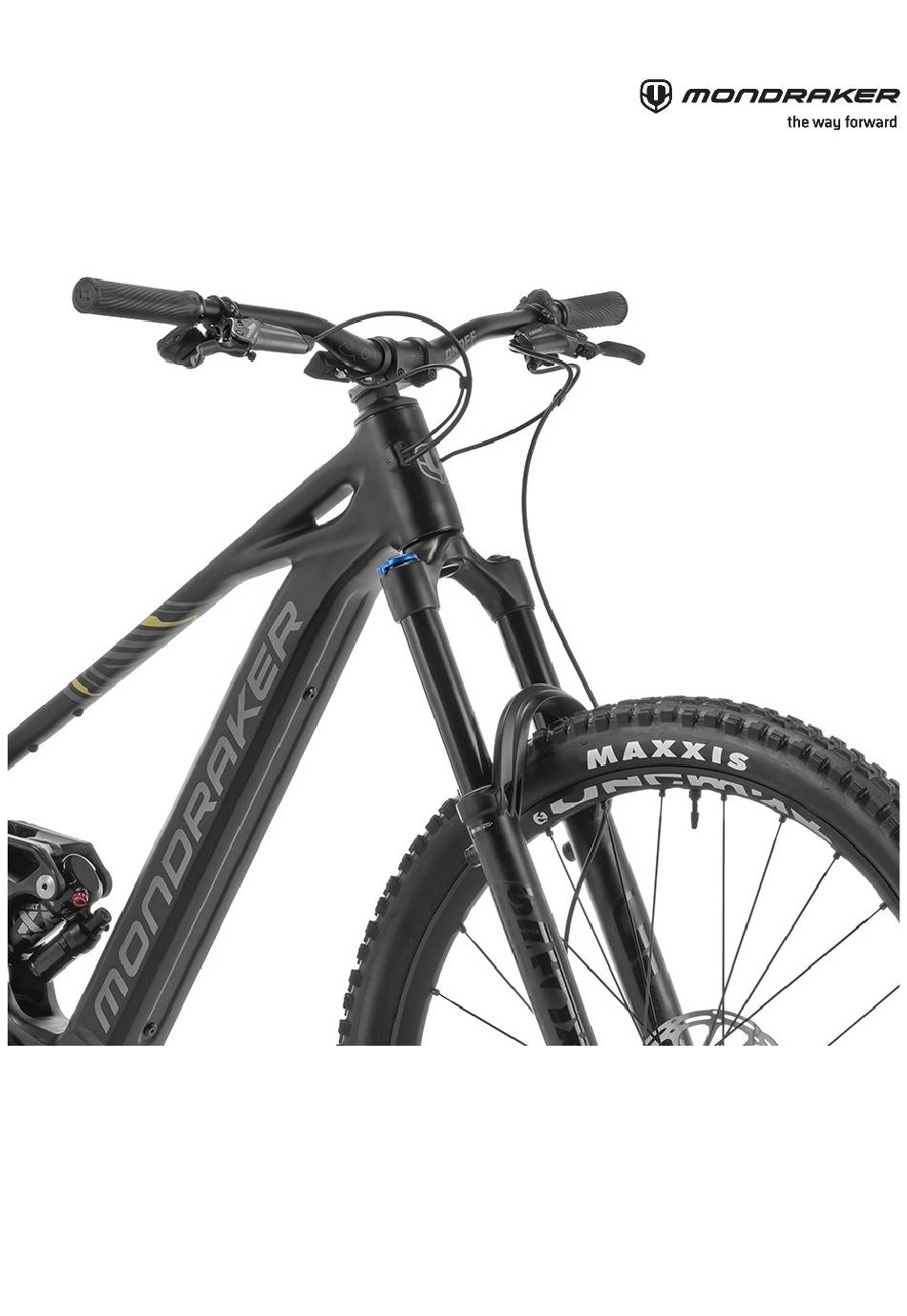

- Page 1 MANUALS & DOCUMENTS SLY / EN Rev. 01...
-
Page 2: Further Considerations
• Some of the steps described in this manual require skills beyond those of the average bicycle user. If you are unable to follow any of these steps, please arrange for your bicycle to be serviced and replaced at an authorized Mondraker service centre. Installing spare parts incorrectly may result in malfunctions, accidents, injuries and void the warranty. - Page 3 Manuals & Documents 1. DIMENSIONS Sly R / Sly RR FRAME SIZE Seattube length 380mm 420mm 450mm 490mm 490mm Toptube length 580mm 600mm 625mm 650mm 650mm Bottom bracket drop -18/+3mm -18/+3mm -18/+3mm -18/+3mm -18/+3mm Bottom bracket height 353mm 353mm 353mm...
- Page 4 Manuals & Documents 2. FRAME TECHNICAL SPECIFICATIONS FRAME SIZES S / M / ML / L / XL FRONT WHEEL SIZE 29” FRONT AXLE 110mm x 15mm REAR WHEEL SIZE 29” REAR AXLE 148mm x 12mm (BOOST) REAR SHAFT L180mm M12 - 1.0, 19mm NUMBER OF BOTTLE CAGES 1 BOTTLE CAGE / RANGE EXTENDER DIRVE UNIT...
-
Page 5: Drive Components
Manuals & Documents 4. DRIVE COMPONENTS 4. 1. CHAIN GUIDE 4. 2. CHAINRING 5. BATTERY REMOVAL 5. 1. MOTOR COVER 1N.m 1N.m... - Page 6 Manuals & Documents 5. BATTERY REMOVAL 5. 2. MOTOR REMOVAL 30N.m Do not use Loctitte 243 30N.m 5. 3. MOTOR CONNECTIONS Bosch Multi Power port Display / Bosch System Controller port Battery Connection port Charging port Motor port...
- Page 7 Manuals & Documents 5. BATTERY REMOVAL 5. 4. CHARGING PORT REMOVAL 1N.m The two metal Release the cover sideways bases slide out from the inside of the diagonal tube...
- Page 8 Manuals & Documents 5. BATTERY REMOVAL 5. 5. LOOSEN BATTERY SCREWS Use Loctite 243 4N.m...
-
Page 9: Internal Cable Routing
Manuals & Documents 6. INTERNAL CABLE ROUTING MOTOR - SYSTEM CONTROLLER - DISPLAY DROPPER POST BRAKE CHARGING PORT CONNECTION BATTERY CONNECTION DERAILLEUR BRAKE DROPPER POST DISPLAY DROPPER POST DERAILLEUR Dropper post cable runs through the left side of the seatpost CHARGING PORT CONNECTION BATTERY CONNECTION... -
Page 10: Chainstay Protector
Manuals & Documents 7. BOSCH SYSTEM CONTROLLER 8. BOSCH MINI REMOTE Battery CR1620 0.5N.m 0,5N.m 9. CHAINSTAY PROTECTOR The chainstay protectors come without a hole for mechanical or cable-operated derailleurs. There is a mark on the rear for piercing the cable outlet. For best results, we recommend using punch pliers. - Page 11 Manuals & Documents 11. RANGE EXTENDER BOSCH POWER MORE KIT EU28, CH, NO, AUS, NZ EU28, CH, NO, AUS, NZ US, CANADA US, CANADA POWER MORE 250 KIT (BBP3625 US, CAN) incl. POWER MORE 250 KIT (BBP3620 EU28,CH,NO,AUS,NZ ) battery holder, bottle holder, screws, IBD packaging incl.
-
Page 12: Seatpost Clamp
Manuals & Documents 12. MUDGUARDS 1N.m 1N.m 13. SEATPOST CLAMP We recommend using carbon friction paste on the seatpost 5-6N.m... - Page 13 Manuals & Documents 14. UPPER LINK INSTALLATION GUIDE 12N.m 12N.m 12N.m 8N.m 8N.m Apply grease to the shaft for the main screws and Loctite 243 or similar to the threads. Apply grease.
- Page 14 Manuals & Documents 15. LOWER LINK INSTALLATION GUIDE 12N.m 8N.m 12N.m 12N.m 8N.m Apply grease to the shaft for the main screws and Loctite 243 or similar to the threads. Apply grease.
-
Page 15: Smartphone Connection
Manuals & Documents 16. SMARTPHONE CONNECTION eBike Flow app Switch on the bike. After switching on, press and hold the Power HOLD DOWN button for 5 seconds until a blue LED starts flashing. Then, open the eBike Flow app and follow the pairing instructions on your phone. -
Page 16: Spare Parts
Manuals & Documents 17. SPARE PARTS Grease Threadlocker Grease + Threadlocker Apply grease to the shaft, and locker to the threads DETAIL 01 DETAIL 02 ITEM No. DESCRIPTION QTY. PART NUMBER TORQUE ITEM No. DESCRIPTION QTY. PART NUMBER TORQUE FRONT TRIANGLE CHARGE PLUG SET 099.25012 REAR TRIANGLE... - Page 17 Manuals & Documents DETAIL 01 DETAIL 02 SET 8 CABLE GUIDE KIT SET 4 SET 5 SET 1 SET 2 SET 3 ZERO BEARING KIT 26 SHOCK HARDWARE KIT 18 UPPER LINK KIT 30 LOWER LINK KIT 36 CHAIN GUIDE PLATE + BOLTS PART NUMBER DESCRIPTION COMPONENTS...
- Page 18 27.5 x 2.5” rear wheel and tire combination will reduce cut-off speed by about 1 or 2 km/h. Geometry will be heavily compromised as well and Mondraker does not cover the warranty riding anything different from the stock 29” rear wheel.
- Page 19 Manuals & Documents 18. FAQS ARE THERE ANY SPECIAL DIRECTIONS OR CONSIDERATIONS FOR THE BATTERY? Nothing special. You can control the remaining battery life at the Purion 400 display on the screen or through the 5 led bars at the System Controller on the top tube. Each led equals to 20% range and when any led turns white means 10% consumption has been reached on any of the remaining bars.
- Page 20 Manuals & Documents 18. FAQS WHICH TYPE OF MAINTENANCE OR SAFETY CHECKS DO BOSCH PERFORMANCE SX MOTOR REQUIRE? Absolutely none. Nor is it required to lubricate any parts in the drive unit nor disassemble it... all you have to do is taking care for it as a traditional mountain bike. It is important to mention, however, as a precaution applicable to any mountain bike: electronic parts and, specifically, the bottom bracket area of the drive unit should never be cleaned with any high-pressure cleaning machine.
- Page 21 Manuals & Documents All information and pictures on this document is provided for information purposes only and does not constitute a legal contract between Mondraker and any person or entity. Specifications, geometries or any other technical information published is subject to change without prior notice.
