Flycam FLCM-FLN-PA-01 Assembly Manual

Flowline starter for camera & gimbals w placid stabilizing arm
Hide thumbs Also See for FLCM-FLN-PA-01:
Table of Contents

Advertisement

Quick Links

Download this manual

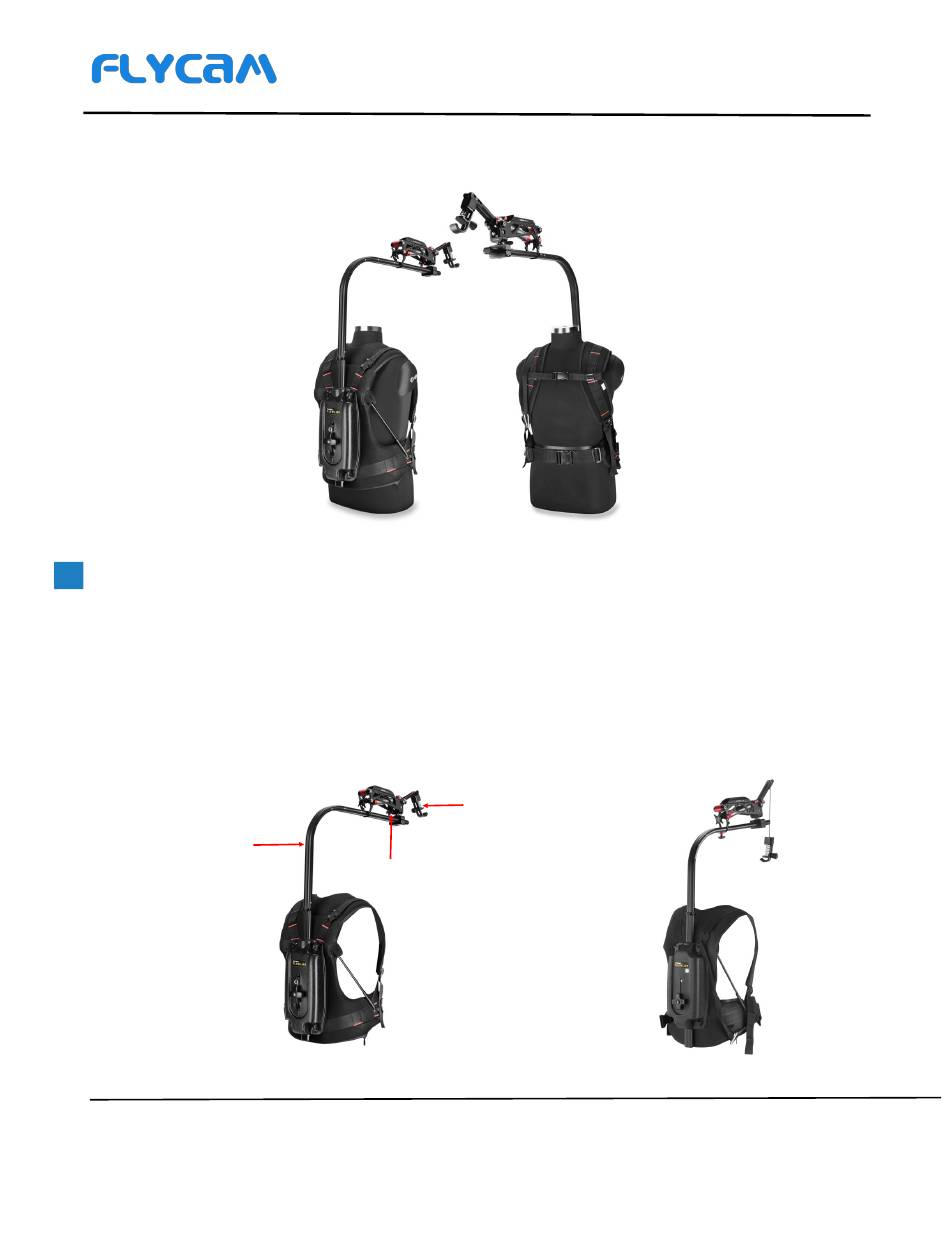

1
Flowline Starter for Camera & Gimbals w Placid
Stabilizing Arm
(FLCM-FLN-PA-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
NOTE: The back mechanism of the support rig may come equipped with either a lever or knob
mechanism based on current availability. Rest assured, whether you receive a vest with a lever or
knob mechanism, there is no change in functionality.
Hook
Support Bar
Flowline Placid
OR
Body Support (With Lever)
Body Support (With Knob)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLCM-FLN-PA-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Flycam FLCM-FLN-PA-01

Summary of Contents for Flycam FLCM-FLN-PA-01

  • Page 1 Flowline Starter for Camera & Gimbals w Placid Stabilizing Arm (FLCM-FLN-PA-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

  • Page 2: Table Of Contents

    Particulars Page No. Flycam Flowline Starter (With Lever) Scenario 1 Flycam Flowline Starter when placid arm is not attached to the support bar Flipping the front Extension Section Remove Camera Hook from Support Bar Attached Camera Hook to the Placid Arm...
  • Page 3 Scenario 2 Flycam Flowline Starter when placid arm is attached to the support bar Support Bar Assembly Front Extension Section Assembly Support Bar Height Adjustment Camera Mounting Flycam Flowline Starter (With Knob) Support Bar Assembly Placid Arm Mounting Support Bar Height Adjustment...

  • Page 4: Flycam Flowline Starter (With Lever)

    Flycam Flowline Starter (With Lever) NOTE: It is recommended to attach the minimum required weight (3kg / 6.6 lb) for pulling down the balancing rope to ensure proper operation of your Flycam Flowline system. Scenario 1 Flycam Flowline Starter when Placid Arm is not attached to the support Bar...

  • Page 5: Remove Camera Hook From Support Bar

    • Carefully remove the front section of the Support bar. • Then, flip the front section upside down and attach it to the Support bar. • Now, insert both the knobs and tighten them securely. Remove Camera Hook from support Bar •...

  • Page 6: Attached Camera Hook To The Placid Arm

    • Similarly, separate the Cord from the Cap. Attach Camera Hook to the Placid Arm • Insert the cord into the placid adapter from the bottom and move it across. • Now, insert the cord into the placid arm from the bottom and move it across the top.

  • Page 7: Camera Hook Attachment To The Cord

    Camera Hook Attachment to the cord • Insert the cord into the cap and pull out from the other side. • Insert the cord in the Cord Lock. • After inserting the cord into the Cap, secure it with the Cord Lock. •...

  • Page 8: Placid Arm Mounting

    • Fold the rope over the bearing pulley and insert the pulley into the flowline extension arm. • Insert the bolts and securely tighten them using a 4mm Allen key (Not Included). • Now Camera Hook is securely attached to the Placid Arm.

  • Page 9: Flycam Flowline Starter When Placid Arm Is

    Secure the Placid on the Flowline Arm with safety shock chord to ensure slip-free connection. NOTE: This gives the arm stability to handle constant tension and stress placed on it. Scenario 2 When you Receive Flycam Flowline Starter with Attached Placid Arm...

  • Page 10: Support Bar Assembly

    Support Bar Assembly • Join support bar with body support by push-fit technique. Front Extension Section Assembly • Remove both the knobs from the Support Bar. • Then, attach the Front section to the support bar. • Now, insert both the knobs and re-tighten them securely.

  • Page 11: Support Bar Height Adjustment

    Support Bar Height Adjustment • Loosen all four Adjustment Knobs provided on the back of Support Jacket. • Then, adjust height (Upward/ Downward) of the Support Bar. • Once the support bar is at a desired height re-tighten all four Adjustment Knobs to secure it.

  • Page 12: Camera Mounting

    NOTE: It is recommended to attach the minimum required weight (3kg/6.6lb) for pulling down the balancing rope to ensure proper operation of your Flycam Flowline system.
  • Page 13 Use the lever at the back of the body support to release rope tension as required. • Use the Knob at the back of the body support to tighten the tension of the rope as required. Flycam Flowline Starter (With Lever)

  • Page 14: Flycam Flowline Starter (With Knob)

    Flycam Flowline Starter (With Knob) Support Bar Assembly • Join support bar with body support by push-fit technique. Placid Arm Mounting • Loosen the Allen bolt of the Placid Adapter using a 4mm Allen Key (Not Included). • Slide the Placid Adapter onto the Support Bar.

  • Page 15: Support Bar Height Adjustment

    Support Bar Height Adjustment • Loosen all four Adjustment Knobs provided on the back of the Support Jacket. • Then adjust height (Upward/ Downward) of Support Bar. • Once the Support bar is at a desired height re-tighten all four Adjustment Knobs. Height Adjustable Support Bar Height Adjustable Knobs...

  • Page 16: Camera Mounting

    NOTE: It is recommended to attach the minimum required weight (3kg/6.6lb) for pulling down the balancing rope to ensure proper operation of your Flycam Flowline system. • Use knob at back of the body support to adjust tension of rope as per your...
  • Page 17 NOTE: The knob shown in the given image would only work without the use of placid. It would work only when the camera would be assembled with the rope coming out from the support bar. Install Flycam Flowline Placid and change the Spring, Follow this https://bit.ly/3Ae0t7a...

  • Page 18: Final Setup

    YOUR FLYCAM FLOWLINE STARTER FOR CAMERA GIMBALS ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer a one-year warranty for our products from the date of purchase. Within this period, we will repair it without charge for labor or parts. The warranty doesn’t cover transportation costs, nor does it cover a product subjected to misuse or accidental damage.
