Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
seiltechnik@huck.net • www.huck.net

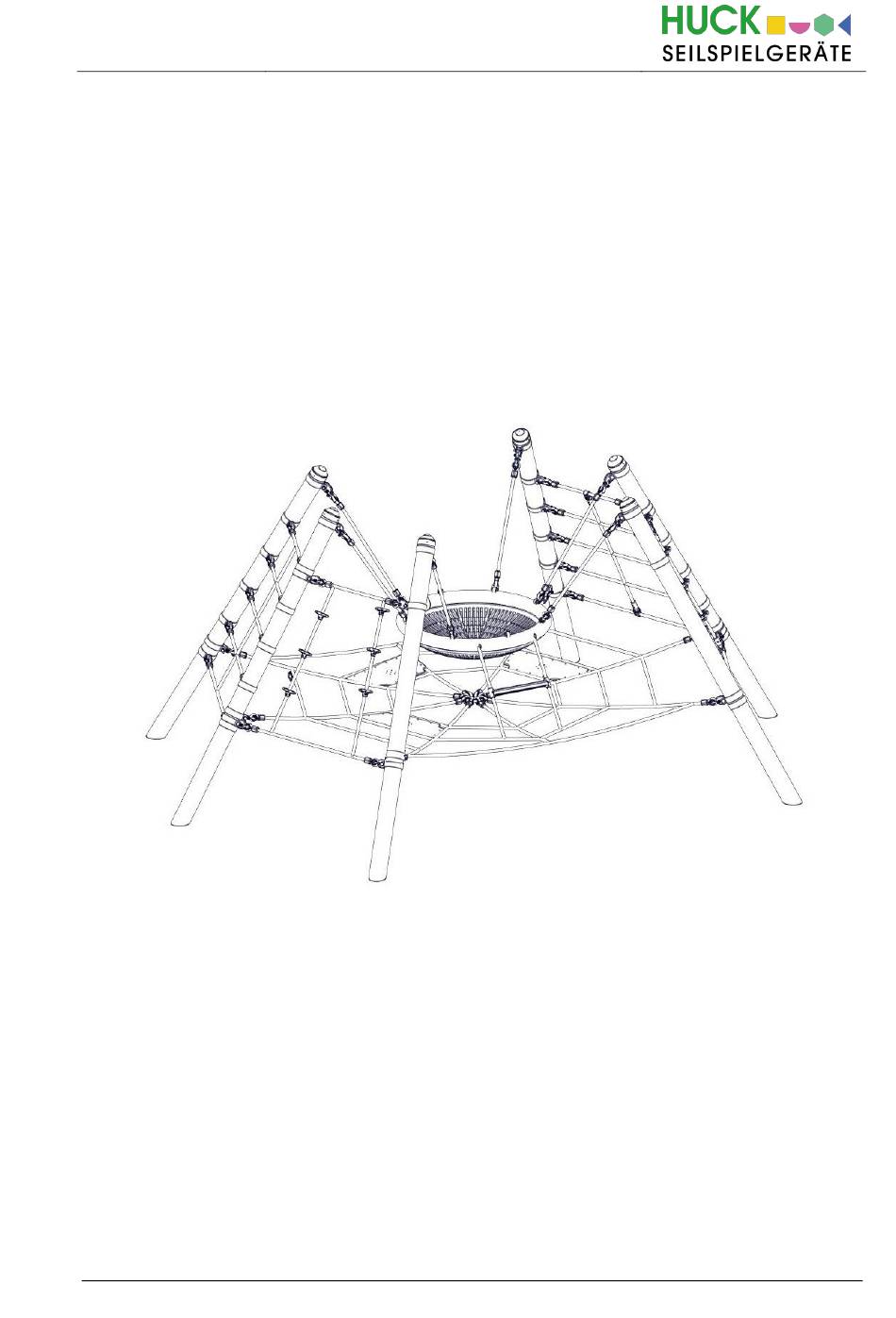

A Assembly instruction
Bird's Nest Spider, Art. 4597-10
Attention! Only use the assembly instructions included in the scope of delivery
for the assembly, installation and maintenance of the respective equipment!
Operator:___________________________________________________________
Location:
_________________________________________________________
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Huck Bird's Nest Spider
Summary of Contents for Huck Bird's Nest Spider
-
Page 1: A Assembly Instruction Bird's Nest Spider, Art. 4597-10
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net A Assembly instruction Bird's Nest Spider, Art. 4597-10 Attention! Only use the assembly instructions included in the scope of delivery for the assembly, installation and maintenance of the respective equipment! - Page 2 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Revision history First allowed version Revision 0 – 2022-30-03 FH Assembly instructions Revision 0 – 2022-30-03 All Rights Reserved © Copyright 2022 Huck Seiltechnik GmbH - 2 -...
-
Page 3: Table Of Contents
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Contents Assembly instruction Bird's Nest Spider, Art. 4597-10 .............. 1 Introduction Assembling ....................... 4 Datasheet Bird's Nest Spider, Art. 4597-10 .................. 6 Delivery contents (parts list with part numbers) ................. 8 Install instructions ........................ -
Page 4: Introduction Assembling
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 1 Introduction Assembling General information This equipment should be installed, inspected, maintained and operated in accordance with EN1176-7 guidelines. Before installation work commences, please check that you have all of the equipment and fixation components in the parts list provided (see Tables 3-1 and 3-2). - Page 5 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Drawings / Views All optical drawings are showing only the measurements/dimensions and are no mandatory technical views of the complete item. We reserve the right to change technical details of our articles which are serving for the further development of our articles and are reasonable for the customer.
-
Page 6: Datasheet Bird's Nest Spider, Art. 4597-10
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Datasheet: Bird's Nest Spider, article 4597-10 Space requirement 4.10 m x 2.90 m Safety zone 6.30 m x 5.30 m height of fall 1.46 m Equipment high: 1,85 m Fallprotection area: 28 m²... - Page 7 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Foundation edges must be rounded off Sizes of fundations are designed for soils class“4-5” (natural ground). Soil class 3: Non-cohesive to low-cohesive plasticity, sand, gravel and sand-gravel- mixtures, with very low portion of stones portion of stones (portion > 30%...
-
Page 8: Delivery Contents (Parts List With Part Numbers)
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Delivery contents (parts list with part numbers) In words Table 3-1: Delivery contents, in words Pos. Quantity Size O.K. Missing Element / Description Steel pots Ø 101,6 x 5 mm,... -
Page 9: Table 3-2: Delivery Contents, In Symbols
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net In symbols Table 3-2: Delivery contents, in symbols Pos. Stück- Symbol zahl Steel pots ground anchor pipe clamps bird nest basket with ladder - 9 -... - Page 10 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Pos. Stück- Symbol zahl Spider web climbing net rope with climbing aids red covering caps - 10 -...
- Page 11 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Pos. Stück- Symbol zahl flathead sleeves flat head screw Self-tapping screw Roof battens (on site / from customer) - 11 -...
- Page 12 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net The legally prescribed setting periods must be observed! C25/30 concrete (for foundations) ³ Q.ty required:5,3 m Roof battens for aligning the posts (on site/ by the customer) Fall protection Minimum space including security area ~ 28,0 m²...
-
Page 13: Install Instructions
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Install instructions - 13 -... - Page 14 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Screw lock! All screws, nuts (except stop nuts) and sleeves must be and sleeves must be secured with Loctite! (e.g. Torx sleeves M12 x 40 with at least 5 drops!)
- Page 15 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 15 -...
- Page 16 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 16 -...
- Page 17 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 17 -...
- Page 18 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 18 -...
- Page 19 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 19 -...
- Page 20 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 20 -...
- Page 21 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 21 -...
- Page 22 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 22 -...
- Page 23 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 23 -...
-
Page 24: Post Installation Checks
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth • Labelling the posts to show the depth of material provided as fall protection (i.e. -
Page 25: B Maintenance Instructions Bird's Nest Spider, Art. 4597-10
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net B Maintenance instructions Bird's Nest Spider, Art. 4597-10... - Page 26 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Revisionshistorie First allowed version Revision 0 – 2022-30-03 FH Maintenance instructions Revision 0 – 2022-30-03 All Rights Reserved © Copyright 2022 Huck Seiltechnik GmbH - 26 -...
-
Page 27: Introduction Maintenance
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Introduction Maintenance General informations This equipment should be installed, inspected, maintained and operated in accordance with EN 1176-7 guidelines. Please note: Providing any necessary repairs are carried out, a piece of play equipment that is inspected regularly cannot become so damaged that it is dangerous. -
Page 28: General Maintenance Information
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more frequent inspections and/or maintenance are required if the play equipment is subject to intensive use. - Page 29 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 6.10 Loose screws Loose screws always cause quality problems and put safety at risk. Therefore, loose screws should always be tightened and checks carried out to ensure that there are no missing screws (e.g. look out for holes you can see through).
-
Page 30: Maintenance Timetable
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Maintenance timetable Special advices 7.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious vandalism cause wear and tear that compromises the safety and function of the equipment. -
Page 31: Regular Maintenan
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Regular maintenan... -
Page 32: Monthly Maintenance
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Regular maintenance Monthly maintenance Check the spaces between the equipment and the ground (clearance and height of fall). Check the ground surface in the area with fall protection for hard objects and loose foundations. -
Page 33: Half Yearly Maintenance
Zinc paint should be applied to corroded areas and scratches. The equipment must be inspected by someone with the necessary expertise in strict compliance with the instructions issued by Huck Seiltechnik GmbH. A copy of the inspection record should be given to the operator,... -
Page 35: Maintenance Printout
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 13 Maintenance printout Name of item: Bird's Nest Spider (registered design) / Art. No. 4597-10 _______________________________________ Location: _______________________________________________________________________________________ Customer or operator: _____________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K. -
Page 37: Hand Over Document
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 14 Hand over document After the installation of the equipment pass the installation and maintenance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier.
