HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen
Wichtelwald complete part no. 4594-50
Version:
Attention! Only use the assembly instructions included in the scope of delivery
for the assembly, installation and maintenance of the respective equipment
Operator:__________________________________________
Location:__________________________________________
\\CAD1\Standard\4594-50\Montageanleitung\Wichtelwald_komplett_4594_50_PS_B_L_1_GBR.doc
seiltechnik@huck.net
-
www.huck.net
A

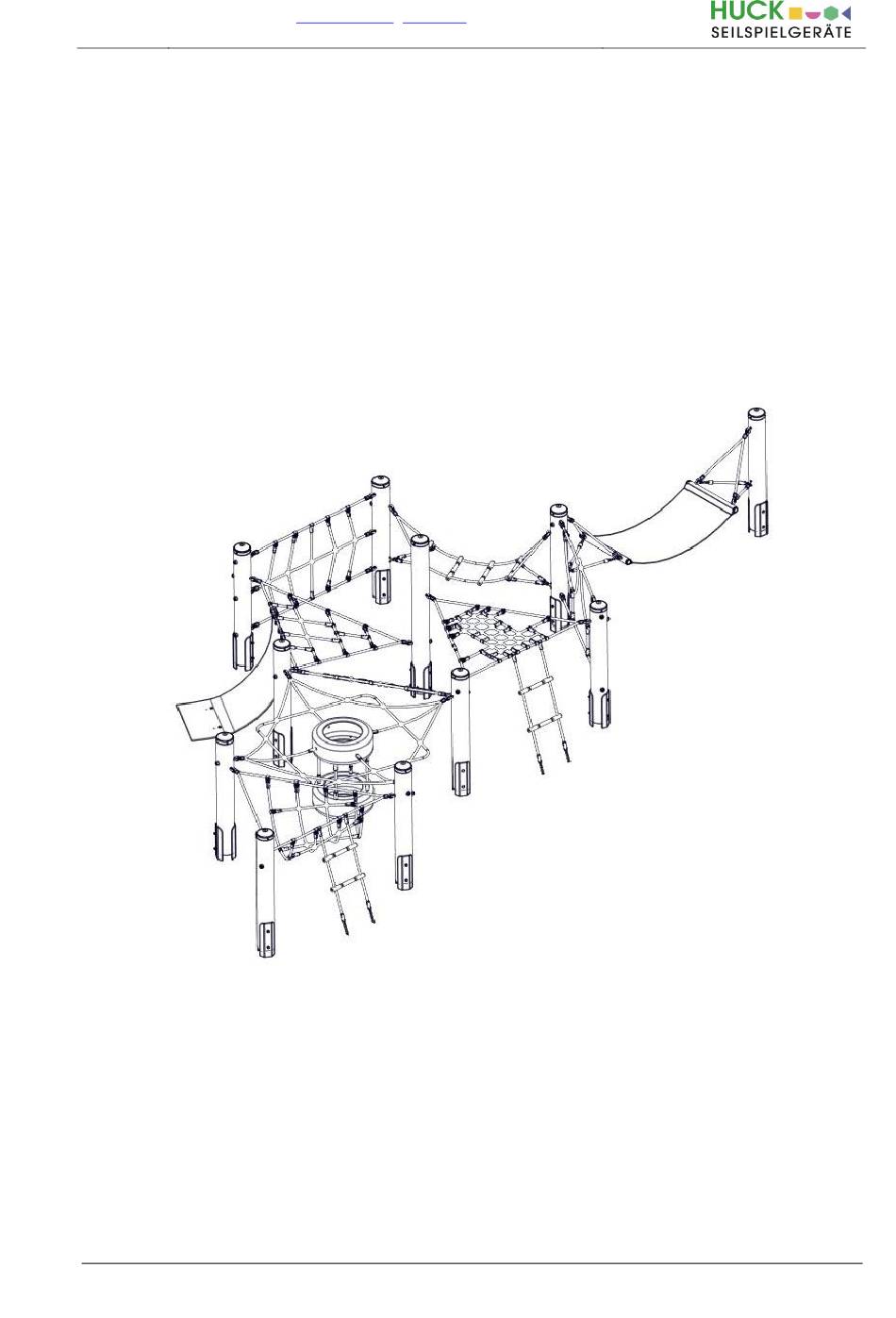

Assembly instruction
Douglas fir posts Ø16 cm (with post shoes)
(photo without post shoes)
- 1 -
