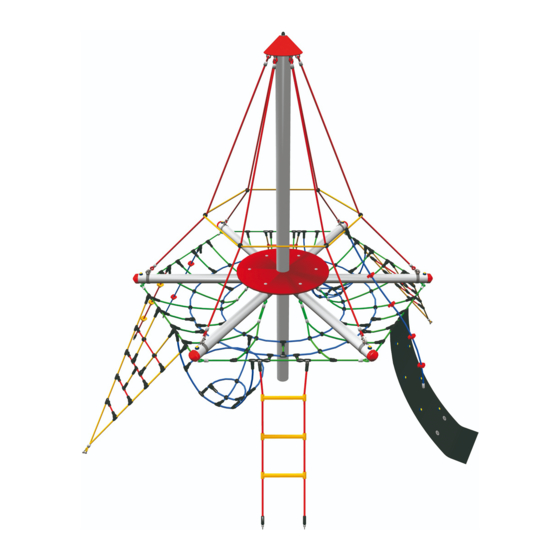

- Page 1 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Installation Instructions Mini Pirate Tower Art. 4687-30 (set in concrete) \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 2 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Revision history Revision 0 – 2006-22-06 The first allowed version Assembly instruction Revision 3 – 2012-08-15 alle Netze fixieren FH All rights rewerved © Copyright 2006 Huck Seiltechnik GmbH...
-
Page 3: Table Of Contents
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Contents Assembly instruction “Mini” Pirate Tower Art. 4687-30 (to set into concrete) ......0 Introduction Assembling.........................0 Datasheet “Mini” Pirate Tower, Art. 4687-30.................0 Delivery contents (parts list with part numbers) ................0 Erection instructions ........................0... -
Page 4: Introduction Assembling
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 1 Introduction Assembling General information This equipment should be installed, inspected, maintained and operated in accordance with EN1176-7 guidelines. Before installation work commences, please check that you have all of the equipment and fixation components in the parts list provided (see Tables 3-1 and 3-2). -
Page 5: Datasheet "Mini" Pirate Tower, Art. 4687-30
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Datasheet “Mini” Pirate Tower, Art. 4687-30 Space requirement: ø 4.70 m and/or ø 7.70 m including safety zone, height of fall 1.50 m Required safety surface: Surface material Description... -
Page 6: Delivery Contents (Parts List With Part Numbers)
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 3 Delivery contents (parts list with part numbers) In words Table 3-1: Delivery contents, in words Pos. Quantity Element / Size O.K. Missing Description Steel pole with 6 pipe brackets Ø... - Page 7 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Pos. Quantity Element / Size O.K. Missing Description Loctite 116 2 117 1 Threaded rod M12 x 200 galv. 118 2 Hexagonal nut M12 DIN 934 galv. Assembly instructions...
-
Page 8: Table 3-2: Delivery Contents, In Symbols
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net In symbols Table 3-2: Delivery contents, in symbols Pos. Quantity Symbol Ø 159 mm, L. 4.7 m Ø 101.6 mm x 2.9 mm x 1500 mm Ø 1000 mm x 23 thick Ø... - Page 9 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Pos. Quantity Symbol M12 galvanised for M12 galv M12 VA for M12 Ø 13.0 galv. DIN 125 M12 VA DIN 985 M10 x 20 galvanised M16 x 165 VA...
- Page 10 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Pos. Quantity Symbol M16 DIN 934 galv. Ø 350 mm x 140 high Ø 17.0 DIN 9021 galv M16 VA DIN 985 for M16 3.5 x 20 galv. Loctite M12 x 200 galv.
-
Page 11: Erection Instructions
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Erection instructions \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc... - Page 12 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 13 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 14 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 15 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 16 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 17 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 18 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 19 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 20 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 21 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 22 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 23 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc...
- Page 24 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net “Mini” Pirate Tower (Stargazer) Setting time min. 4-5 days aNf ! fix all nets with torx-screw 4,5 x 25 mm Concrete C25/30 (for foundations) Q.ty required: 1.2 m Detail...
-
Page 25: Post Installation Checks
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth • Labelling the posts to show the depth of material provided as fall protection (i.e. - Page 27 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net A Maintenance instructions “Mini” Pirate tower Art. 4687-30 (set in concrete) \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4687_30-01-en-003.doc - 0 -...
- Page 28 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Revision history Revision 0 – 2006-22-06 The first allowed version Maiantanance instruction Revision 3 – 2012-08-15 alle Netze fixieren FH All rights reserved © Copyright 2006 Huck Seiltechnik GmbH...
-
Page 29: Introduction Maintenance
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Introduction Maintenance General informations This equipment should be installed, inspected, maintained and operated in accordance with EN 1176-7 guidelines. Please note: Providing any necessary repairs are carried out, a piece of play equipment that is inspected regularly cannot become so damaged that it is dangerous. -
Page 30: General Maintenance Information
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more frequent inspections and/or maintenance are required if the play equipment is subject to intensive use. -
Page 31: Specific Maintenance Advice
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 7.10 Faults Faults must be repaired as soon as they are detected. If serious defects that compromise safety cannot be repaired straight away, the public must be prevented from using the equipment with immediate effect. -
Page 32: Maintenance Timetable
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Maintenance timetable Special advices 9.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious vandalism cause wear and tear that compromises the safety and function of the equipment. -
Page 33: Monthly Maintenance
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 10 Monthly maintenance • Check the spaces between the equipment and the ground (clearance and height of fall). • Check the ground surface in the area with fall protection for hard objects and loose foundations. -
Page 34: Annual Maintenance
The equipment must be inspected by someone with the necessary expertise in strict compliance with the instructions issued by Huck Seiltechnik GmbH. A copy of the inspection record should be given to the operator, who must confirm receipt. - Page 35 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 14 Maintenance printout Name of item: “Mini” Pirate Tower ________________ / Art. No. 4687-30 _____________________________________ Location: ________________________________________________________________________________________ Customer or operator: ______________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K.
-
Page 37: Maintenance Printout
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 15 Hand over document After the installation of the equipment pass the installation and maintenance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier.
