Assembly Instructions

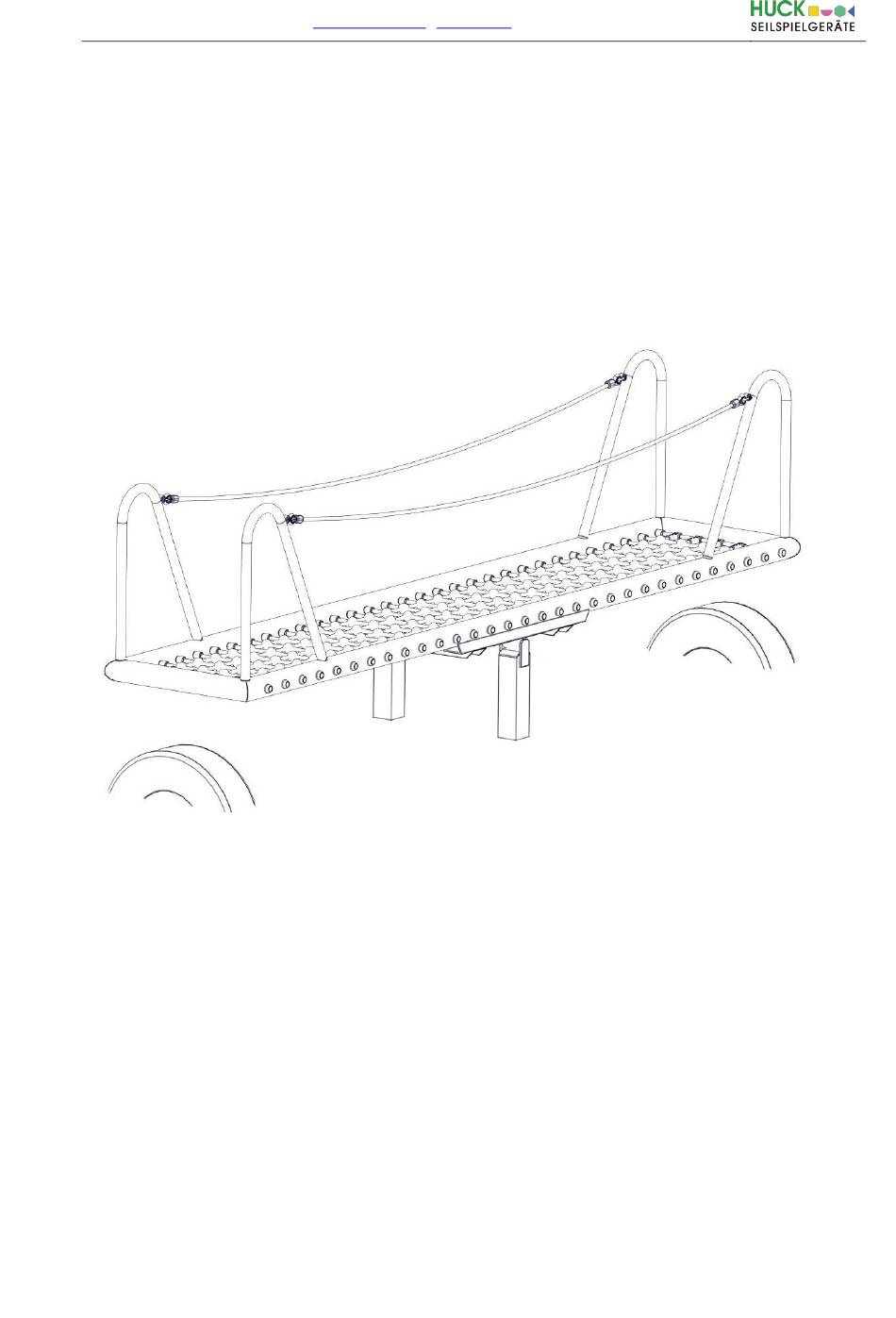

Net see-saw Art.-No. 4587S
1
Advertisement
Table of Contents
Related Manuals for Huck 4587S
Summary of Contents for Huck 4587S
-
Page 1: A Assembly Instructions Net See-Saw Art.-No. 4587S
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Assembly Instructions Net see-saw Art.-No. 4587S Attention! Only use the assembly instructions included in the scope of delivery for the assembly, installation and maintenance of the respective equipment! Operator:... - Page 2 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Revision 0 – 2016-08-16 Erste freigegebene Version Montageanleitung FH Revision 4 – 2023-01-16 Neue form der Anleitung Alle Rechte vorbehalten © Copyright 2016 Huck Seiltechnik GmbH \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc...
-
Page 3: Table Of Contents
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Please note the explanations and abbreviations and notes. For any queries please contact the manufacturer Contents Assembly Instructions Net see-saw Art.-No. 4587S ..........1 Introduction Assembling ....................4 Datasheet: Net see-saw Art.-No. 4587S ..............5 Delivery contents (parts list with part numbers) ............ -
Page 4: Introduction Assembling
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Introduction Assembling General information This equipment should be installed, inspected, maintained and operated in accordance with EN1176-7 guidelines. Before installation work commences, please check that you have all of the equipment and fixation components in the parts list provided (see Tables 3-1 and 3-2). -
Page 5: Datasheet: Net See-Saw Art.-No. 4587S
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Datasheet: Net see-saw Art.-No. 4587S 1. Space requirement: 4.35 m x 0.80 m Safety zone: 7.35 m x 3.80 m Heigth of equipment: 1.40 Height of fall: ≤ 1.16 m Fall protection area: 26 m²... - Page 6 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Assembly time, once foundations complete: After completion of concrete foundations approx. 7 hours Required assistance: 3 persons. Required tools: wheel excavator or similar with a lifting height of approx. 4 m height ladder approx.
- Page 7 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Drawings / Views All optical drawings are showing only the measurements/dimensions and are no mandatory technical views of the complete item. We reserve the right to change technical details of our articles which are serving for the further development of our articles and are reasonable for the customer.
- Page 8 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Abbreviations The legally prescribed setting periods must be observed! C25 / 30 concrete for foundations Detail Soil / ground Fall protection 300 mm (+ 100 mm Soil) Drainage layer...
-
Page 9: Delivery Contents (Parts List With Part Numbers)
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Delivery contents (parts list with part numbers) 3.1. In words Table 3-1: Delivery contents, in words Element / Mis- Pos. Quantity Size O.K. Description sing Steel post with rocker... -
Page 10: Table 3-2: Delivery Contents, In Symbols
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net 3.2. In symbols Table 3-2: Delivery contents, in symbols Quanti- Pos. Symbol Steel post with rocker mechanism See-saw 4,20 m, long (VO) Tires Ø 750 mm \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc... - Page 11 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Table 3-2: Delivery contents, in symbols Quanti- Pos. Symbol hexagon bolts M12 x 40 mm Washer for M12 Loctite \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc...
- Page 12 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Screw locking device! Glue all screws, nuts and sleeves with loctite. (not less than 5 drops!) (except for lock nut) \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc...
- Page 13 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Assembly instructions \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc...
- Page 14 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc...
- Page 15 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc...
- Page 16 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc...
- Page 17 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc...
- Page 18 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc...
-
Page 19: Post Installation Checks
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth Labelling the posts to show the depth of material provided as fall protection (i.e. -
Page 21: B Maintenance Instructions Net See-Saw, Art.-No. 4587S
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Maintenance instructions Net see-saw, Art.-No. 4587S \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc... - Page 22 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Revision 0 – 2016-08-16 Erste freigegebene Version Montageanleitung FH Revision 4 – 2020-12-09 Neuer Sicherheitsbereich Alle Rechte vorbehalten © Copyright 2016 Huck Seiltechnik GmbH \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc...
-
Page 23: Introduction Maintenance
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Introduction Maintenance General informations This equipment should be installed, inspected, maintained and operated in accordance with EN 1176-7 guidelines. Please note: Providing any necessary repairs are carried out, a piece of play equipment that is inspected regularly cannot become so damaged that it is dangerous. -
Page 24: General Maintenance Information
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more fre- quent inspections and/or maintenance are required if the play equipment is subject to intensive use. - Page 25 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Faults Faults must be repaired as soon as they are detected. If serious defects that compromise safety cannot be repaired straight away, the public must be prevented from using the equipment with immediate effect.
-
Page 26: Maintenance Timetable
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Maintenance timetable Special advices 6.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious van- dalism cause wear and tear that compromises the safety and function of the equipment. -
Page 27: Regular Maintenance
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Regular maintenance \\CAD1\Standard\4587S\Montageanleitung\4587S_Netzwippe_ST_B_L_04_GBR.doc... -
Page 28: Monthly Maintenance
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Regular maintenance Monthly maintenance Check the spaces between the equipment and the ground (clearance and height of fall). Check the ground surface in the area with fall protection for hard objects and loose foundations. -
Page 29: Half Yearly Maintenance
Zinc paint should be applied to corroded areas and scratches. The equipment must be inspected by someone with the necessary expertise in strict compliance with the instructions issued by Huck Seiltechnik GmbH. A copy of the inspection record should be given to the operator, who must confirm receipt. -
Page 31: Maintenance Printout
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net www.huck.net Maintenance printout Name of item: Net see-saw Art.-No.4587S Location: _______________________________________________________________________________________ Customer or operator: _____________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K. Accessible Barriered Defects Repaired Date inspection Please copy and return once a year after main inspection has been carried out to the manufacturer by Telefax +49 6443 83 11-79 Place the confirmation form in your existing play equipment files. -
Page 33: Hand Over Document
After the installation of the equipment pass the installation and mainte- nance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier Huck Seiltechnik GmbH per Telefax +49 6443 8311-79 Art.-No.:...
