Huck 4631-50 Assembly Instruction Manual

Hexagonal tower for setting in concrete
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
• www.huck.net
seiltechnik@huck.net

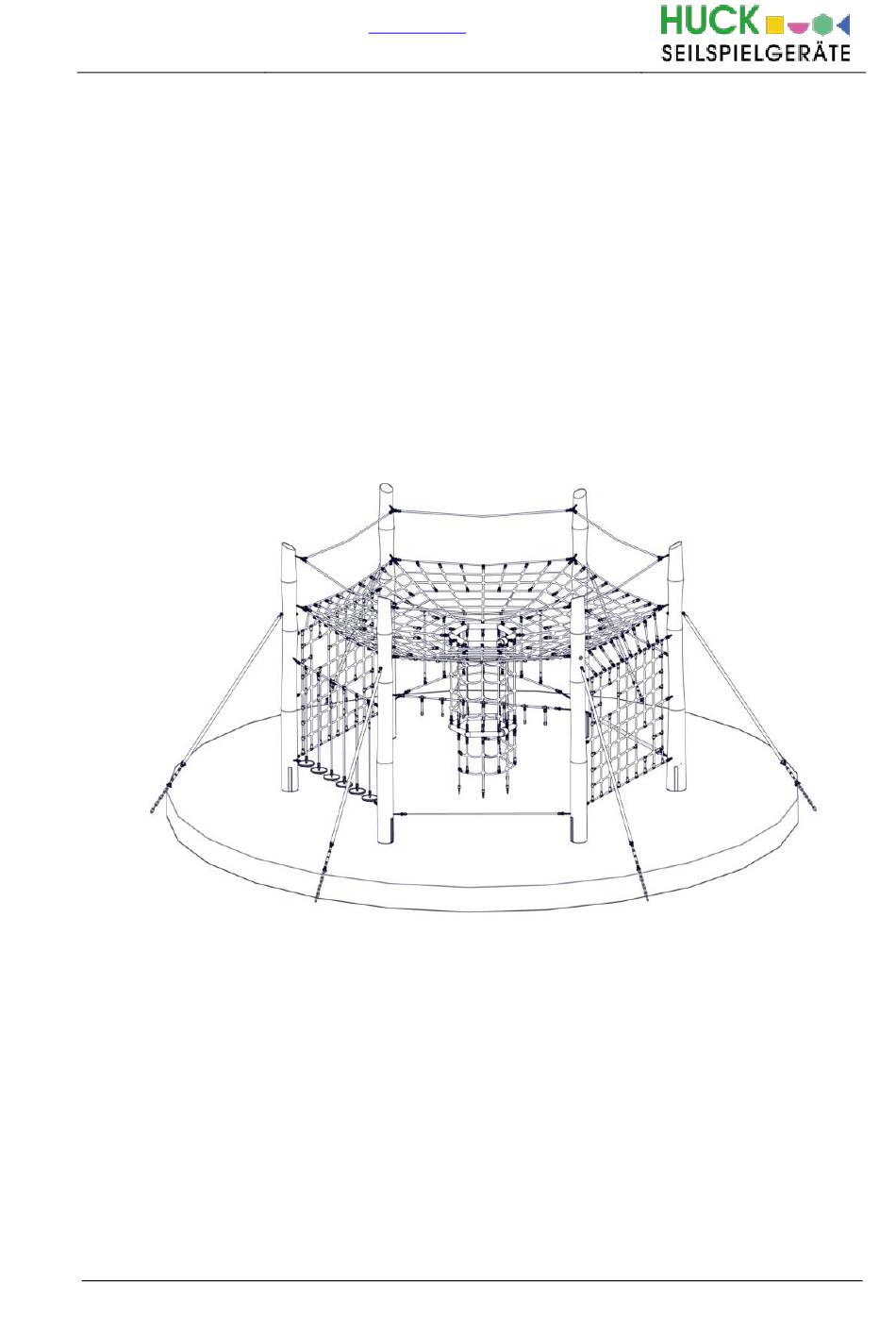

A Assembly instruction
Hexagonal tower item no. 4631-50
for setting in concrete
Attention! Only use the assembly instructions included in the scope of delivery
for the assembly, installation and maintenance of the respective equipment!
Operator:______________________________________________
Location:______________________________________________
\\CAD1\Standard\4631-50\Montageanleitung\Sechseck_Tower_4631_50_ST_B_L_02_GBR.doc
- 1 -
