Huck Bird's nest tree Assembly Instructions Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany

A Assembly instructions

Betreiber:

______________________________________________

Standort:

______________________________________________

• www.huck.net

seiltechnik@huck.net

Bird's nest tree

Art. 4652S

- 1 -

Table of Contents

Need help?

Do you have a question about the Bird's nest tree and is the answer not in the manual?

Questions and answers

Summary of Contents for Huck Bird's nest tree

Page 1: A Assembly Instructions Bird's Nest Tree Art. 4652S

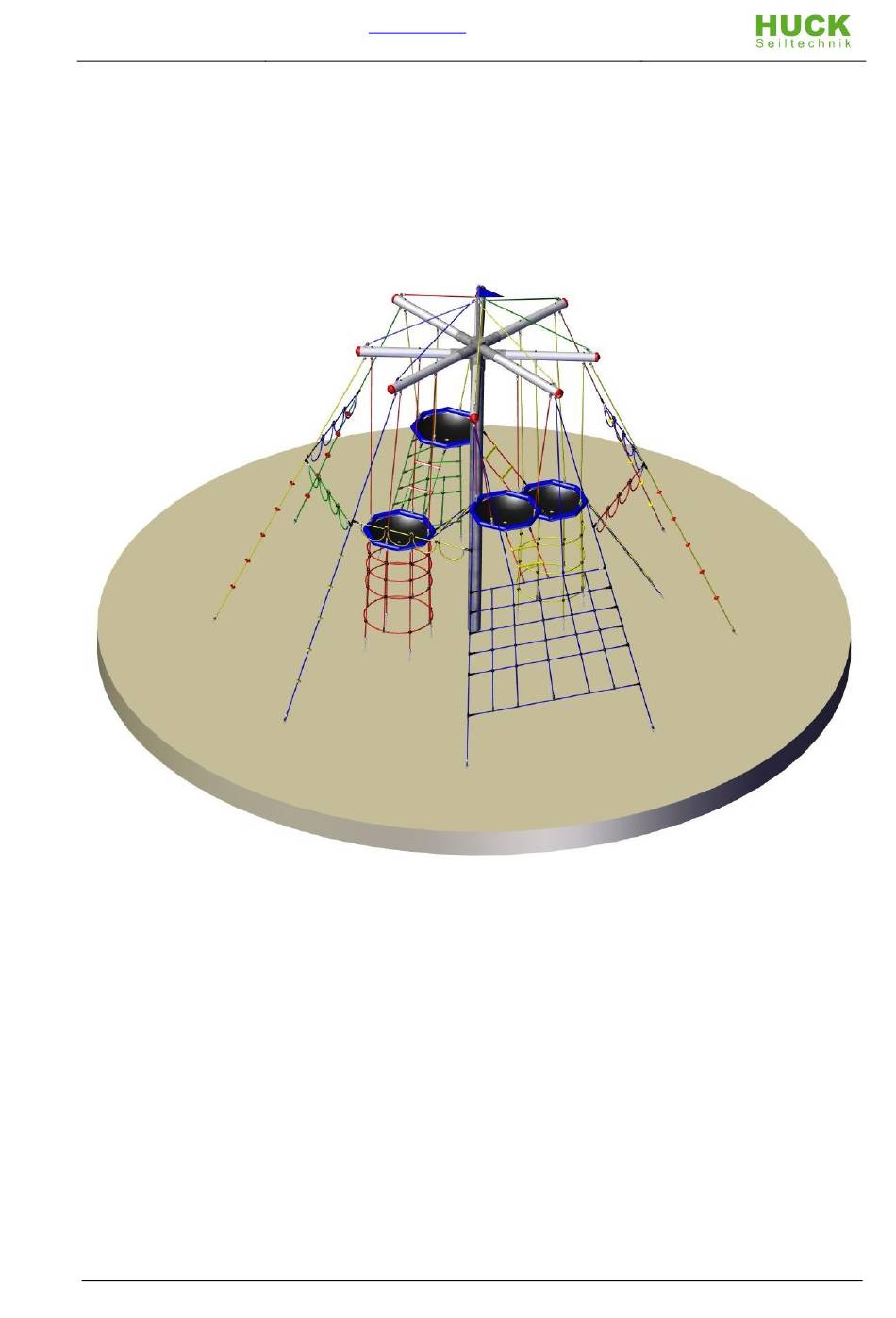

Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net A Assembly instructions Bird’s nest tree Art. 4652S Betreiber: ______________________________________________ Standort: ______________________________________________ - 1 -...
Page 2 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Revision history Revision 0 – 2010-09-16 The first allowed version Revision 11 -2019-09-13 Einschraubanker statt Fundamenteisen PM Assembly instruction All rights reserved © Copyright 2010 Huck Seiltechnik GmbH - 2 -...
Page 3: Table Of Contents
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Contents Assembly instructions Bird’s nest tree Art. 4652S ..............1 Introduction Assembling ....................... 4 Datasheet Bird’s nest tree, article 4652S ..................6 Delivery contents (parts list with part numbers) ................. 8 Abbreviations ..........................
Page 4: Introduction Assembling
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 1 Introduction Assembling General information This equipment should be installed, inspected, maintained and operated in accordance with EN1176-7 guidelines. Before installation work commences, please check that you have all of the equipment and fixation components in the parts list provided (see Tables 3-1 and 3-2).
Page 5 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Drawings / Views All optical drawings are showing only the measurements/dimensions and are no mandatory technical views of the complete item. We reserve the right to change technical details of our articles which are serving for the further development of our articles and are reasonable for the customer.
Page 6: Datasheet Bird's Nest Tree, Article 4652S
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Datasheet Bird’s nest tree, article 4652S Equipment space: Ø 8420 mm safety zone: Ø 11000 mm height of fall: 2800 mm Required safety surface: Surface material Description Minimum Maximum...
Page 7 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Round off foundation edges (min.R = 100 mm)! Sizes of fundations are “4-5” (natural ground). Soil class 4: soft to medium plasticity, interleave bound, with minor portion of stone (portion < 30% with bigger diameter of 63 mm grain size).
Page 8: Delivery Contents (Parts List With Part Numbers)
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 3 Delivery contents (parts list with part numbers) In words Table 3-1: Delivery contents, in words Pos. Quantity Element / Size O.K. Missing Description Ø 193,7 mm / Steel post 6200 mm lg.
Page 9: Table 3-2: Delivery Contents, In Symbols
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net In symbols Table 3-2: Delivery contents, in symbols Pos. Quantity Symbol Ø 193.7 mm / 6200 mm lg. Play part (nets and bird’s nests) Ø 219,1 mm / 1240 mm lg.
Page 10 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 1850 mm lg. (pre-assembled on Pos. 03) 365 mm lg. (1x pre-assembled) Ø 139 mm - 10 -...
Page 11 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 5,5 x 25 mm M10 x 175 mm 3 ml M12 x 25 mm 500 x 500 mm (1x pre-assembled) Ø400 / 850 mm lg. (Provided by customer) - 11 -...
Page 12: Abbreviations
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Abbreviations Setting time min. 7-8 days C25/30 concrete (for foundations) Q.ty required: 3.2 m Fill in around the central mast with concrete. D.be. (between drainage tube and central mast) Detail turn the ground anchor in to foundation / don’t press...
Page 13 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Securing bolts and nuts Alle bolts, nuts, etc. must be secured With at least 5 drops of Loctite! (except for Nyloc nuts) - 13 -...
Page 14: Assembly Instructions
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Assembly instructions - 14 -...
Page 15 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 15 -...
Page 16 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 16 -...
Page 17 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 17 -...
Page 18 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 18 -...
Page 19 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 19 -...
Page 20 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 20 -...
Page 21 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 21 -...
Page 22 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 22 -...
Page 23 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 23 -...
Page 24 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 24 -...
Page 25 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 25 -...
Page 26 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net - 26 -...
Page 27: Post Installation Checks
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth • Labelling the posts to show the depth of material provided as fall protection (i.e.
Page 29: B Maintenance Instructions Bird's Nest Tree Art. 4652S
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net B Maintenance instructions Bird’s nest tree Art. 4652S - 29 -...
Page 30 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Revision history Revision 0 – 2010-09-16 The first allowed version Revision 11 -2019-09-13 Einschraubanker statt Fundamenteisen PM Maintenance instructions All rights reserved © Copyright 2010 Huck Seiltechnik GmbH - 30 -...
Page 31: Introduction Maintenance
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Introduction Maintenance General information This equipment should be installed, inspected, maintained and operated in accordance with EN 1176-7 guidelines. Please note: Providing any necessary repairs are carried out, a piece of play equipment that is inspected regularly cannot become so damaged that it is dangerous.
Page 32: General Maintenance Information
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more frequent inspections and/or maintenance are required if the play equipment is subject to intensive use.
Page 33 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 8.10 Faults Faults must be repaired as soon as they are detected. If serious defects that compromise safety cannot be repaired straight away, the public must be prevented from using the equipment with immediate effect.
Page 34: Maintenance Timetable
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Maintenance timetable Special advices 9.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious vandalism cause wear and tear that compromises the safety and function of the equipment.
Page 35: Regular Maintenance
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 10 Regular maintenance - 35 -...
Page 36 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 10.1 Regular maintenance (Text) m = monthly j = 1/4 quarterly j = 1/2 half-yearly ¼ j ½ j Check ground in fall and protection area for hard objects and loose foundations.
Page 37: Monthly Maintenance
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 11 Monthly maintenance • Check the spaces between the equipment and the ground (clearance and height of fall). • Check the ground surface in the area with fall protection for hard objects and loose foundations.
Page 38: Half Yearly Maintenance
Zinc paint should be applied to corroded areas and scratches. The equipment must be inspected by someone with the necessary expertise in strict compliance with the instructions issued by Huck Seiltechnik GmbH. A copy of the inspection record should be given to the operator, who must confirm receipt.
Page 39: Maintenance Printout
Huck Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 15 Maintenance printout Name of item: Bird’s nest tree / Art. No. 4652S _____________ Location: _______________________________________________________________________________________ Customer or operator: _____________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K.
Page 41: Hand Over Document
Huck Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 16 Hand over document After the installation of the equipment pass the installation and maintenance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier.
