HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen
seiltechnik@huck.net - www.huck.net
A
Assembly Instructions

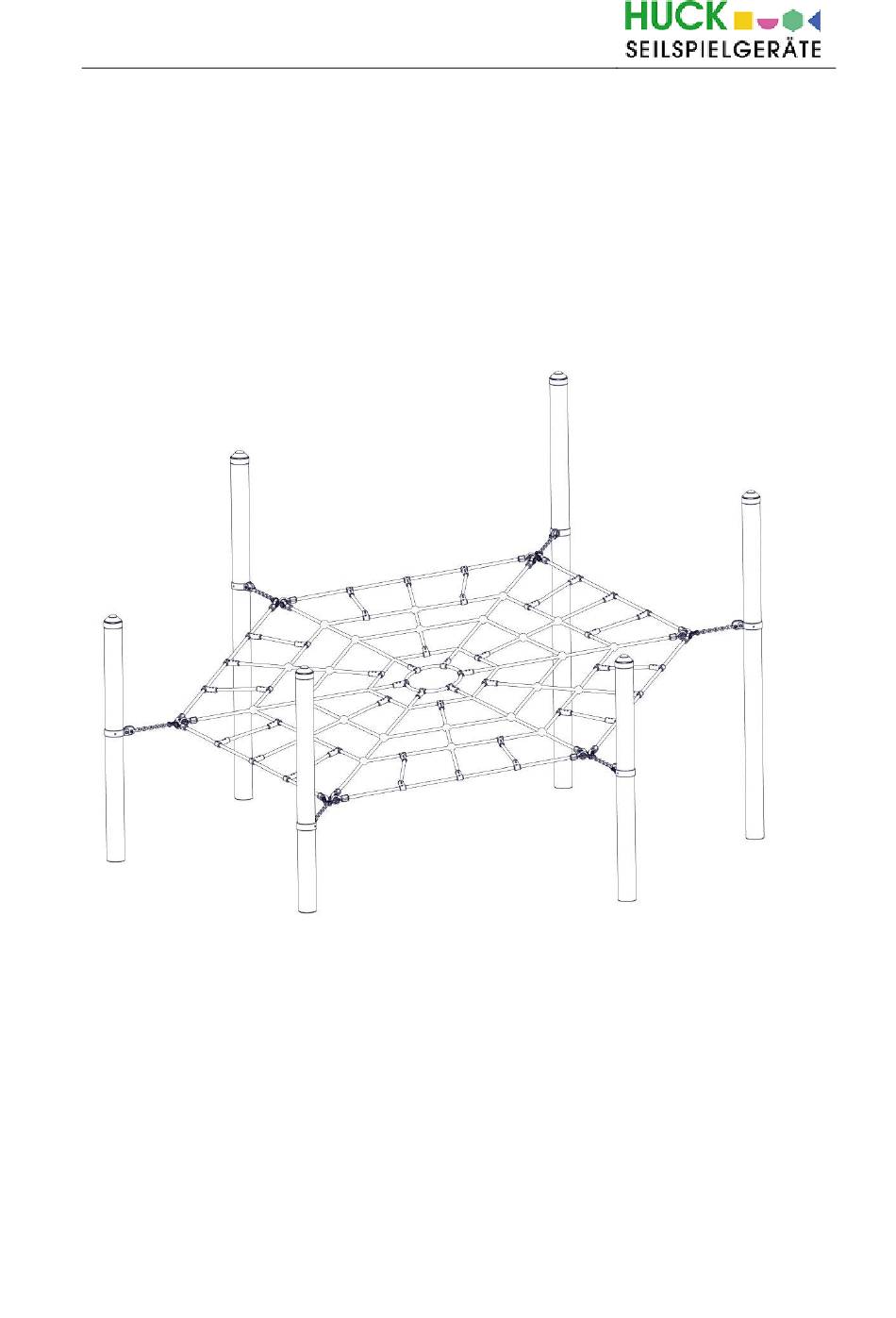

"Steindorf" spider´s web
Art.-No. 4597S
Attention! Only use the assembly instructions included in the scope of delivery
for the assembly, installation and maintenance of the respective equipment!
Operator: _________________________________________________________
Location: _________________________________________________________
\\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Huck Steindorf spider's web
Summary of Contents for Huck Steindorf spider's web
-
Page 1: A Assembly Instructions "Steindorf" Spider´s Web Art.-No. 4597S
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Assembly Instructions “Steindorf” spider´s web Art.-No. 4597S Attention! Only use the assembly instructions included in the scope of delivery for the assembly, installation and maintenance of the respective equipment! - Page 2 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Revisionshistorie Revision 0 – 2020-10-06 Erste freigegebene Version Montageanleitung FH Rev 02 2022-08-25 PR Neue Form der Anleitung Alle Rechte vorbehalten © Copyright 2020 Huck Seiltechnik GmbH \\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc...
-
Page 3: Table Of Contents
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Please note the explanations and abbreviations and notes. For any queries please contact the manufacturer Contents Assembly Instructions “Steindorf” spider´s web Art.-No. 4597S ......1 Introduction Assembling ....................4 Datasheet: “Steindorf”... -
Page 4: Introduction Assembling
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Introduction Assembling General information This equipment should be installed, inspected, maintained and operated in accordance with EN1176-7 guidelines. Before installation work commences, please check that you have all of the equipment and fixation components in the parts list provided (see Tables 3-1 and 3-2). -
Page 5: Datasheet: "Steindorf" Spider´s Web Art.-No. 4597S
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Datasheet: “Steindorf” spider´s web Art.-No. 4597S 1. Component zone: Ø 3,95m safty zone: 5,65 m x 6,00 m height of equipment: 2,44 m height of fall: 1,50 m fall protection area: 26,6 m²... - Page 6 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Foundation edges must be rounded off (min.R = 100 mm)! Sizes of fundations are designed for soils class“4-5” (natural ground). Soil class 3: Non-cohesive to low-cohesive plasticity, sand, gravel and sand-gravel- mixtures, with very low portion of stones portion of stones (portion >...
- Page 7 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Drawings / Views All optical drawings are showing only the measurements/dimensions and are no mandatory technical views of the complete item. We reserve the right to change technical details of our articles which are serving for the further development of our articles and are reasonable for the customer.
-
Page 8: Delivery Contents (Parts List With Part Numbers)
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Delivery contents (parts list with part numbers) 3.1. In words Table 3-1: Delivery contents, in words Element / Mis- Pos. Quantity Size O.K. Description sing Ø 101.6 mm – 3.40 m... -
Page 9: Table 3-2: Delivery Contents, In Symbols
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net 3.2. In symbols Table 3-2: Delivery contents, in symbols Quanti- Pos. Symbol Steel post 3,40 m, Ø 101,6 x 2,9 mm Steel post 3,00 m, Ø 101,6 x 2,9 mm Steel post 2,4 m, Ø... - Page 10 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Table 3-2: Delivery contents, in symbols Quanti- Pos. Symbol red Cover caps for Ø 101,6 mm self-tapping screws 5,5 x 25 mm \\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc...
- Page 11 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Explanations of the abbreviations and symbols: Version: “Steindorf” Spider´s web Art.- No. 4597S The legally prescribed setting periods must be observed! C25/30 concrete (for foundations) ³ Q.ty required: 2,0 m...
- Page 12 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Screw locking device! glue all screws, nuts and sleeves with loctite. (not less than 5 drops!) (except for lock nut) \\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc...
- Page 13 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Assembly instructions \\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc...
- Page 14 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net \\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc...
- Page 15 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net \\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc...
- Page 16 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net \\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc...
-
Page 17: Post Installation Checks
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth Labelling the posts to show the depth of material provided as fall protection (i.e. -
Page 19: B Maintenance Instructions "Steindorf" Spider´s Web Art.-No. 4597S
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Maintenance instructions “Steindorf” Spider´s web Art.-No. 4597S \\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc... - Page 20 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Revisionshistorie Revision 0 – 2020-10-06 Erste freigegebene Version Montageanleitung Alle Rechte vorbehalten © Copyright 2020 Huck Seiltechnik GmbH \\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc...
-
Page 21: Introduction Maintenance
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Introduction Maintenance General informations This equipment should be installed, inspected, maintained and operated in accordance with EN 1176-7 guidelines. Please note: Providing any necessary repairs are carried out, a piece of play equipment that is inspected regularly cannot become so damaged that it is dangerous. -
Page 22: General Maintenance Information
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more fre- quent inspections and/or maintenance are required if the play equipment is subject to intensive use. - Page 23 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Faults Faults must be repaired as soon as they are detected. If serious defects that compromise safety cannot be repaired straight away, the public must be prevented from using the equipment with immediate effect.
-
Page 24: Maintenance Timetable
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Maintenance timetable Special advices 7.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious van- dalism cause wear and tear that compromises the safety and function of the equipment. -
Page 25: Regular Maintenance
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Regular maintenance \\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc... -
Page 26: Monthly Maintenance
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Regular maintenance Monthly maintenance Check the spaces between the equipment and the ground (clearance and height of fall). Check the ground surface in the area with fall protection for hard objects and loose foundations. - Page 27 HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net \\CAD1\Standard\4597\Montageanleitung\Spinnennetz_Steindorf_4597_ST_B_L_2_GBR.doc...
-
Page 28: Half Yearly Maintenance
Zinc paint should be applied to corroded areas and scratches. The equipment must be inspected by someone with the necessary expertise in strict compliance with the instructions issued by Huck Seiltechnik GmbH. A copy of the inspection record should be given to the operator, who must confirm receipt. -
Page 29: Maintenance Printout
HUCK Seiltechnik GmbH • Dillerberg 3 • D-35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Maintenance printout Name of item: “Steindorf” Spider´s web / Art.-Nr. 4597S__________________________________________________ Location: _______________________________________________________________________________________ Customer or operator: _____________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K. Accessible Barriered Defects... -
Page 31: Hand Over Document
After the installation of the equipment pass the installation and mainte- nance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier Huck Seiltechnik GmbH per Telefax +49 6443 8311-79 Art.-No.: 4597S “Steindorf”...
