Crestron Digital Graphics Engine 1000 Product Manual page 25

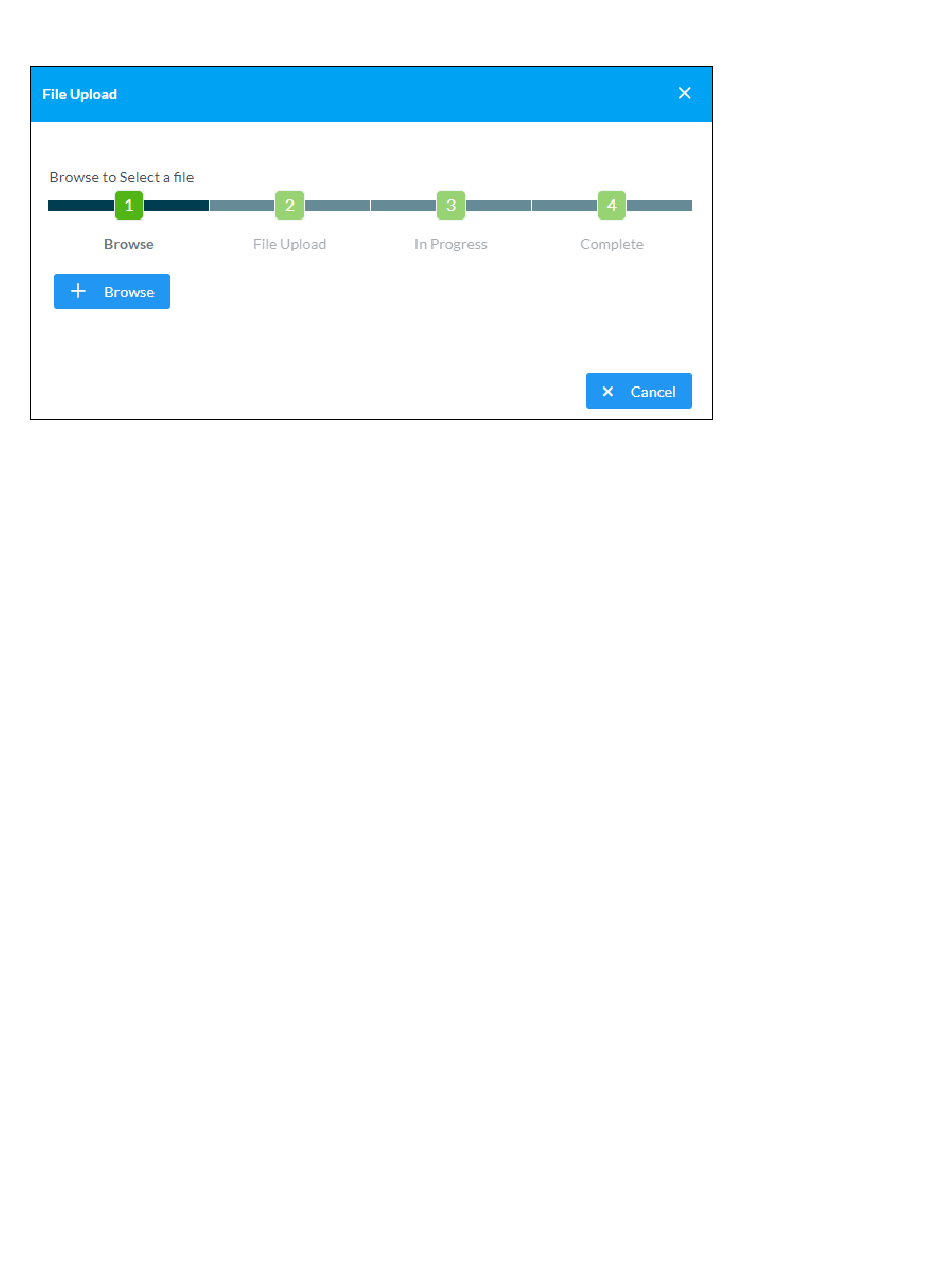

File Upload Dialog Box
To upload an EDID file:
1. Select Browse.
2. Navigate to the EDID file on the host computer.
3. Select the EDID file, and then select Open.
4. Select Load to load the EDID file to the device. The upload progress is shown in the dialog box.
5. Once the device completes the upload, select OK.
Select the x button to close the File Upload dialog box at any time during the upload process. Selecting
the x button before the file is uploaded to the device cancels the uploading.
Select Cancel to cancel the Manage EDIDs window.
Product Manual — Doc. 9462A DGE-1000 • 22
