DO
GUIDE
TSD-2220

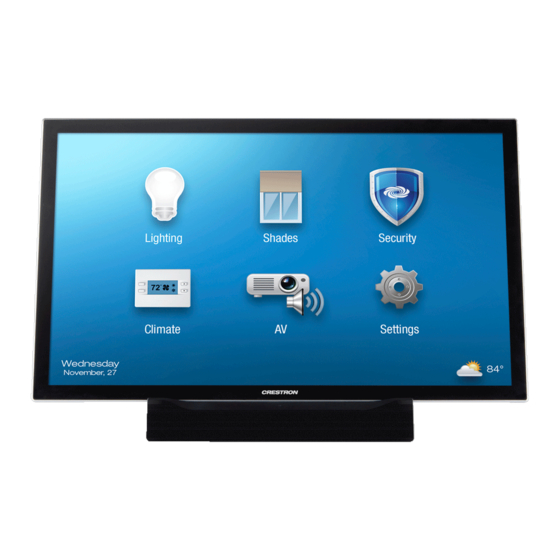

21.5" HD Touch Screen Display
The Crestron
TSD-2220 is a 21.5" (546 mm) HD touch screen display that can be used with the
®
Crestron DGE-100 or DM-DGE-200-C digital graphic engine (each sold separately) to provide
a powerful touch screen control solution. The TSD-2220 also can be used as a high-definition
display for a television or a computer.
NOTE: For more information about installing and configuring the DGE-100 or DM-DGE-200-C,
refer to the DGE-100/DM-DGE-200-C DO Guide (Doc. 7695) and DGE-100/DM-DGE-200-C
Supplemental Guide (Doc. 7696) at www.crestron.com/manuals.
DO
Install the TSD-2220
The TSD-2220 can be installed using a variety of VESA compliant mounting accessories,
including wall-mount brackets, desk stands, and articulating arms. The TSD-2220 is compatible
with VESA 100 x 100 mm and VESA 200 x 100 mm brackets (not included).
CAUTION: Ensure that the chosen VESA mount is rated for the size and weight of the
TSD-2220. Refer to the table of specifications on the product webpage for more information.

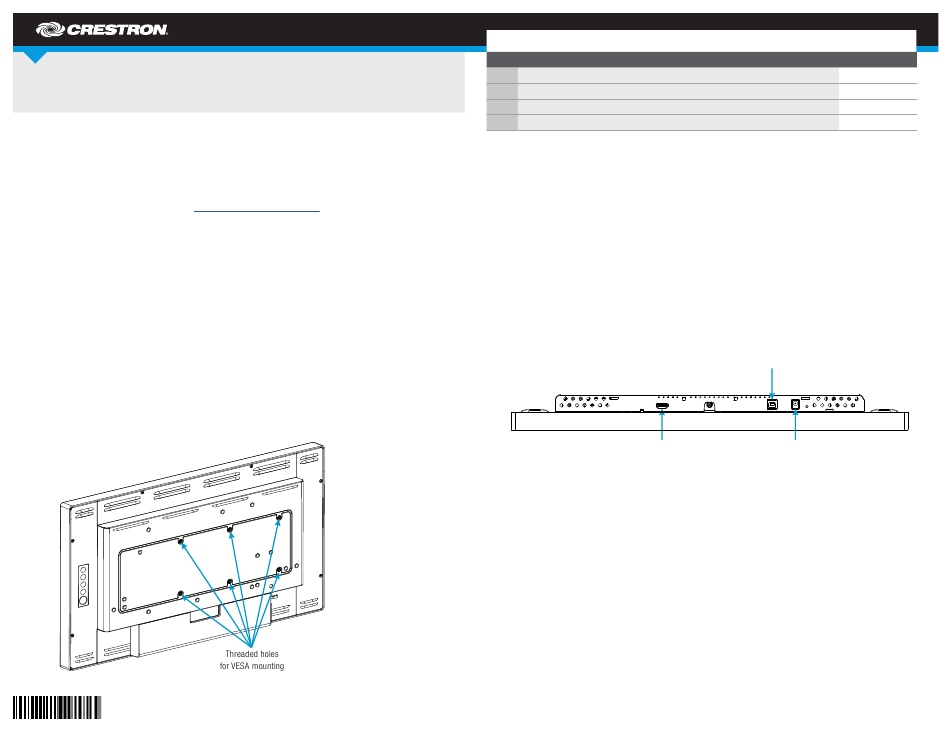

To install the TSD-2220 using a VESA mount, align the threaded holes in the rear of the
TSD-2220 with the appropriate holes in the mounting bracket. (Refer to the illustration below.)
The TSD-2220 supports 100 x 100 mm center mounting, 100 x 100 mm edge mounting, and
200 x 100 mm mounting.
• For 100 x 100 mm center mounting, use the four center threaded holes.
• For 100 x 100 mm edge mounting, use the four rightmost threaded holes.
• For 200 x 100 mm mounting, use all six threaded holes.
DO
Check the Box
QTY PRODUCT
1
Cable, USB 2.0, A - B, 6' (1.83 m)
1
Power Cord, 6' 7" (2 m)
1
Power Pack, 12 Vdc 4.16 A, 100-240 Vac
1
Screw, M3 x 6 mm, Pan Head, Phillips
Once the TSD-2220 is aligned with the mounting bracket, use a screwdriver and the appropriate
number of M4 mounting screws to attach the TSD-2220 to the bracket.
DO
Connect the Device
1. Locate the cable cover on the rear of the TSD-2220. Remove the cover by gently pushing in
the two tabs that secure the cover to the touch screen until the cover is disengaged.
2. Make any necessary connections to the TSD-2220 as shown in the following illustration.
NOTE:
Power should be supplied to the touch screen using only the included 12 Vdc
power pack. Apply power after all connections have been made.
NOTE:
The HDMI
input requires an appropriate adapter or an interface cable to
®
accommodate a DVI signal. Crestron CBL-HD-DVI cables are sold separately.
HDMI:
From HDMI output
on digital graphics engine
or computer console
COLOR
PART NUM.
2048150
2025416
2048149
2013272
USB:
From USB port
on digital graphics engine
or computer console
12 Vdc:
From power
supply
