Preparing the Site

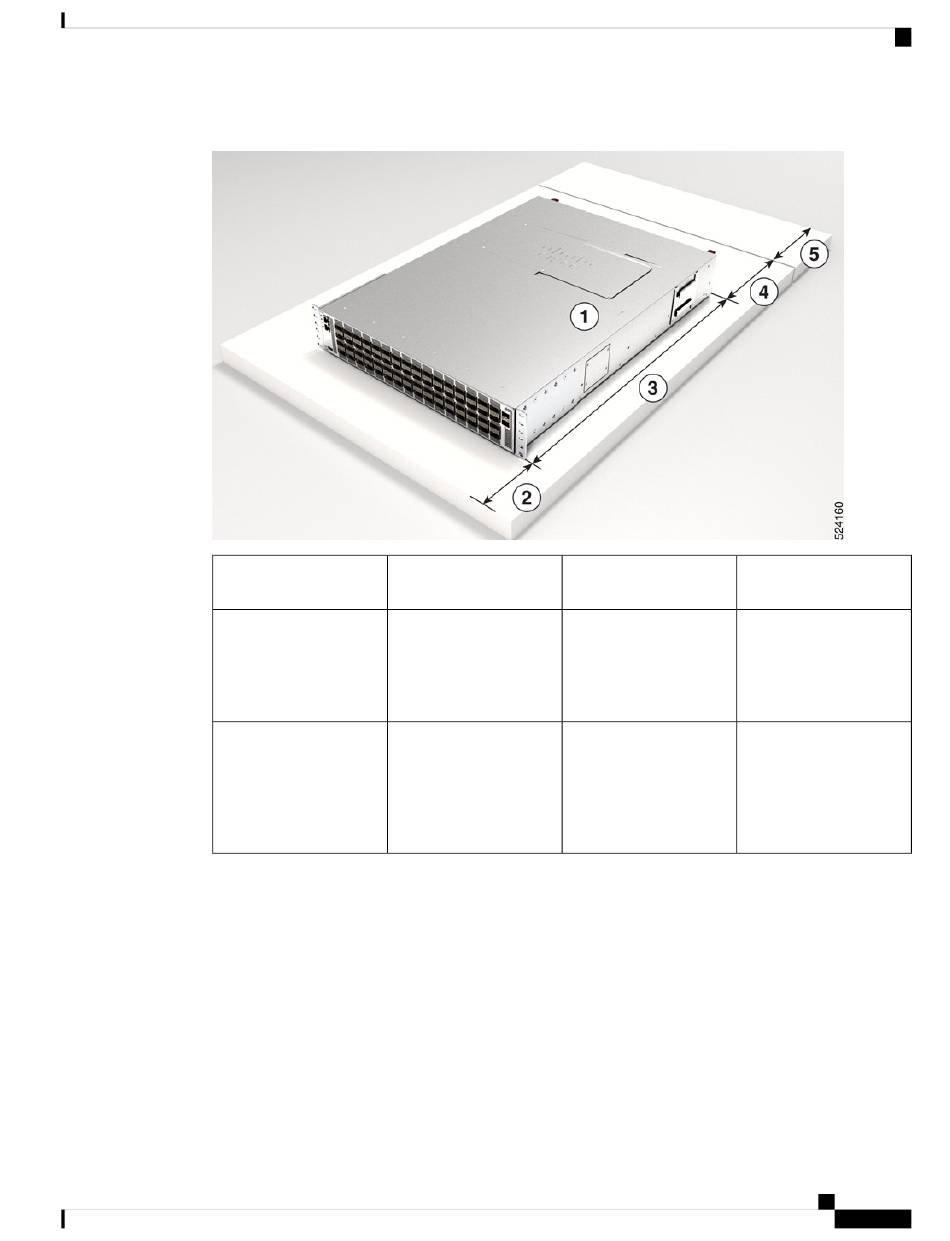

Figure 3: Clearance Required around the Chassis for Cisco Nexus N9364E-SG2-Q
1
2
3
Chassis
6.0 in. (15.24 cm) front
clearance for air intake
Chassis dimensions: 17.2
in. (43.94 cm) width,
26.26 in. (66.70 cm) with
Fan Module and Power
Supply depth, 3.43 in
(8.71 cm) height
Cisco Nexus 9364E-SG2 (N9364E-SG2-Q) NX-OS-Mode Switch Hardware Installation Guide
4 6.0 in. (15.24 cm) rear
clearance for air exhaust
5 Additional 6.0 in. (15.24
cm) rear clearance for
removal and installation
of power supplies and fan
modules
