Clearance Requirements
Clearance Requirements

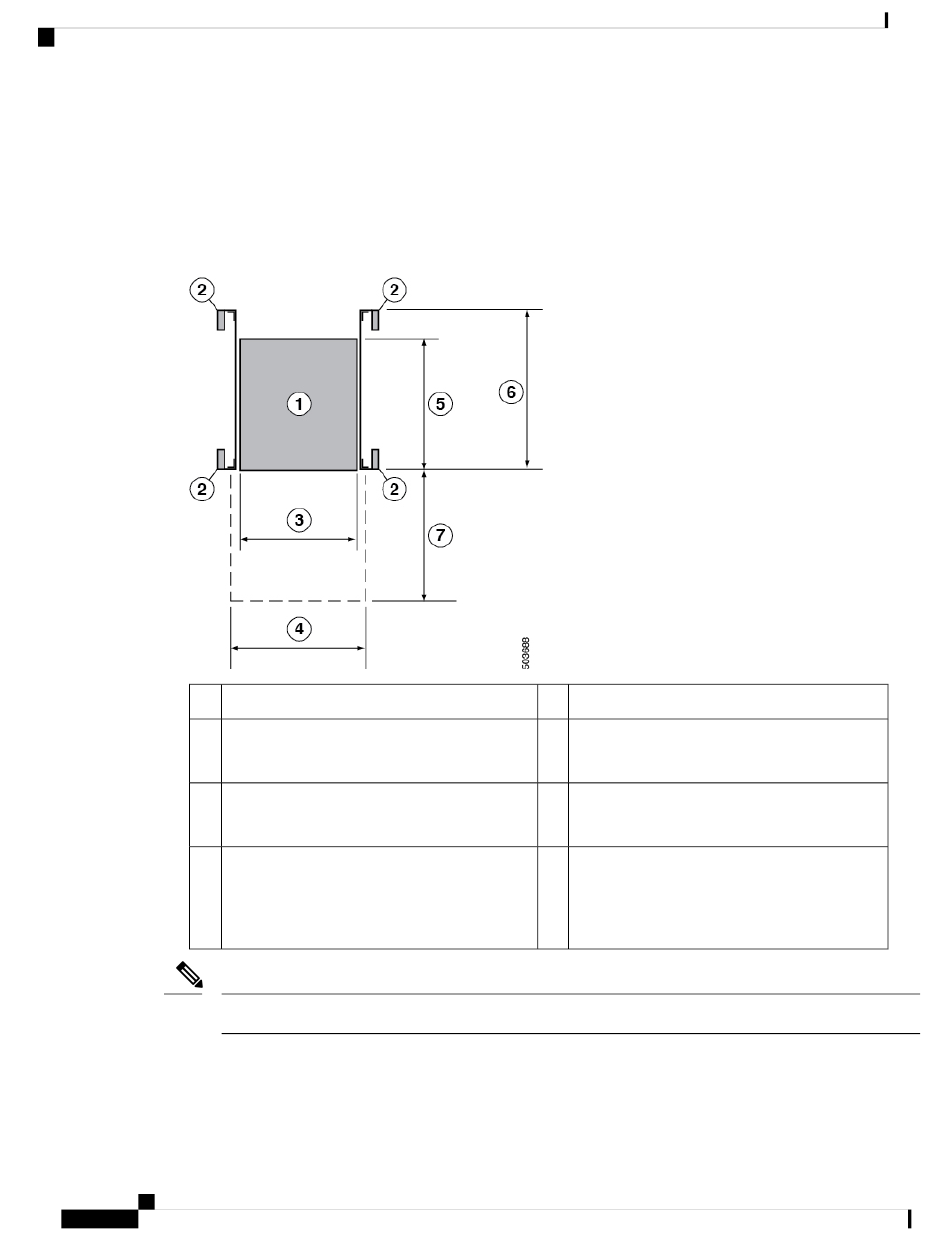

Provide the chassis with adequate clearance between the chassis and any other rack, device, or structure so
that you can properly install the switch. Provide the chassis with adequate clearance to route cables, provide
airflow, and maintain the switch. For the clearances required for an installation of this chassis in a four-post
rack, see the figure.
1
2
3
4
Note
Cisco Nexus 9364E-SG2 (N9364E-SG2-Q) NX-OS-Mode Switch Hardware Installation Guide
10
Chassis
Vertical rack-mount posts and rails
Chassis width
17.3 in (43.9 cm)
Width of the front clearance area (equal to the
width of the chassis with two rack-mount
brackets that are attached to it).
19.0 in (48.3 cm)
Both the front and rear of the chassis must be open to both aisles for airflow.
5 Depth of the chassis
6 Maximum extension of the bottom-support rails
36.0 in (91.4 cm)
7 Depth of the front clearance area (equal to the
depth of the chassis).
Preparing the Site
