Summary of Contents for Cisco Nexus 9364C-GX
- Page 1 Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide First Published: 2019-12-23 Americas Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 527-0883...
- Page 2 Any products and features described herein as in development or available at a future date remain in varying stages of development and will be offered on a when-and if-available basis. Any such product or feature roadmaps are subject to change at the sole discretion of Cisco and Cisco will have no liability for delay in the delivery or failure to deliver any products or feature roadmap items that may be set forth in this document.
-
Page 3: Table Of Contents
Rack and Cabinet Requirements Clearance Requirements C H A P T E R 3 Installing the Chassis Installation Options with Rack-Mount Kits Install a Rack Unpacking and Inspecting a New Switch Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... - Page 4 General Requirements for Cabinets and Racks Requirements Specific to Standard Open Racks Requirements Specific to Perforated Cabinets Cable Management Guidelines A P P E N D I X B System Specifications Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
- Page 5 A P P E N D I X C LEDs Switch Chassis LEDs Fan Module LEDs Power Supply LED A P P E N D I X D Additional Kits Rack Mount Kit N9K-C9300-RMK Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
- Page 6 Contents Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
-
Page 7: Preface
Braces and a vertical bar within square brackets indicate a required choice within an optional element. Indicates a variable for which you supply values, in context where italics variable cannot be used. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 8: Documentation Feedback
What's New in Cisco Product Documentation, at: https://www.cisco.com/warp/public/687/Directory/DirTAC.shtml. Subscribe to What's New in Cisco Product Documentation, which lists all new and revised Cisco technical documentation as an RSS feed and delivers content directly to your desktop using a reader application. The RSS feeds are a free service. -
Page 9: Overview

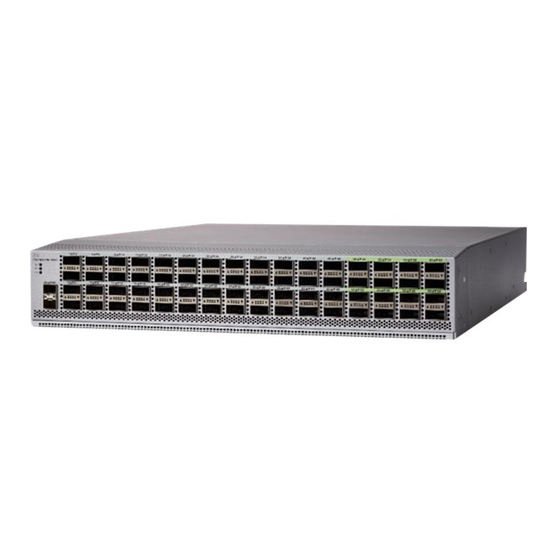

Overview • Overview, on page 1 Overview The Cisco Nexus 9364C-GX switch (N9K-C9364C-GX) is a 2-rack unit (RU), fixed-port switch designed for deployment in data centers. This switch has the following ports: • 64 100-Gigabit QSFP28 ports • Two management ports (one RJ-45 port and one SFP port) •... - Page 10 The following figure shows the switch features on the power supply side of the chassis. USB port (1) Management port (1—SFP optical port) Console port (1) Fan modules (4) with slots numbered from 1 (left) to 4 (right) Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
- Page 11 If the switch has port-side exhaust airflow (blue coloring for fan modules), you must locate the ports in the hot aisle. If you locate the air intake in a hot aisle, the switch can overheat and shut down. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
- Page 12 Overview Overview Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
-
Page 13: Preparing The Site
Altitude Requirements Altitude rating is 10,000 ft (3048 m). For China, it is 6,562 ft (2000 m). Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 14: Dust And Particulate Requirements
The wiring is unlikely to emit radio interference if you use a twisted-pair cable with a good distribution of grounding conductors. If you exceed the recommended distances, use a high-quality twisted-pair cable with one ground conductor for each data signal when applicable. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 15: Shock And Vibration Requirements
Planning for Power Requirements The switch includes two power supplies (1-to-1 redundancy with current sharing) in one of the following combinations: • Two 2000-W AC power supplies • Two 2000-W HVAC/HVDC power supplies Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 16: Airflow Requirements
To identify the airflow options for your switch, see the user-replaceable components in the Overview section of this document. You must have fan and power supply modules that move the coolant air from the cold aisle to the hot aisle in one of the following ways: Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 17: Rack And Cabinet Requirements
Statement 1048 Rack Stabilization The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before installation or servicing. Failure to stabilize the rack can cause bodily injury. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 18: Clearance Requirements
19.0 in (43.3 cm) Note Both the front and rear of the chassis must be open to both aisles for airflow. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 19: Installing The Chassis
You can install the switch using the following rack-mount options: • Rack-mount kit (N9K-C9300-RMK) which you can order from Cisco. For four post racks. The rack or cabinet that you use must meet the requirements listed the in... -
Page 20: Unpacking And Inspecting A New Switch
• Two power supplies (any combination of the following with the airflow direction being the same as for the fan modules): • fan modules (all fan and power supply modules must have the same airflow direction) • Switch accessory kit Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 21: Planning How To Position The Chassis In The Rack
Installing the Chassis in a Four-Post Rack Before you install the chassis, be sure that the rack is fully secured to the data center floor. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 22: Installing The Switch Using The N9K-C9300-Rmk Rack-Mount Kit
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack. • If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... - Page 23 2 screws holding the front end of the bottom-support bracket to the rear of the rack bracket to the front side of the rack Chassis stop on the expanding bottom-support bracket Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
-
Page 24: Attaching Front-Mount Brackets To The Chassis
You need to slide the chassis onto the bottom-support rails so that the power supply end locks onto the chassis stops at the end of the rails and so that the front-mount brackets on the chassis come into contact with the front-mount rails on the rack. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... - Page 25 Be sure that the sides of the chassis by the power supplies clips into the chassis stops on the bottom-support rails and the front-mount brackets come in contact with the rack (see the following figure). Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
-
Page 26: Grounding The Chassis
Warning Statement 1046 Installing or Replacing the Unit To reduce risk of electric shock, when installing or replacing the unit, the ground connection must always be made first and disconnected last. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 27: Starting The Switch
This equipment is designed to boot up in less than 30 minutes, dependent on its neighboring devices being fully up and running. Before you begin • The switch must be installed and secured to a rack or cabinet. • The switch must be adequately grounded. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... - Page 28 Verify that the power cable wires from the power source are connected to a connector block. c) Insert the connector block into the receptacle on the power supply. Make sure that the connector block clicks when fully inserted in the receptacle and does not pull out. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
- Page 29 A setup utility automatically launches the first time that you access the switch and guides you through the basic configuration. For instructions on how to configure the switch and check module connectivity, see the appropriate Cisco Nexus 9000 Series configuration guide.
- Page 30 Installing the Chassis Starting the Switch Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
-
Page 31: Connecting The Switch To The Network
When running cables in overhead or subfloor cable trays, we strongly recommend that you locate power cables and other potential noise sources as far away as practical from network cabling that terminates on Cisco equipment. In situations where long parallel cable runs cannot be separated by at least 3.3 feet (1 meter), we recommend that you shield any potential noise sources by housing them in a grounded metallic conduit. - Page 32 Connect the other end of the RJ-45 rollover cable to the console or to a modem. What to do next You are ready to create the initial switch configuration (see Creating the Initial Switch Configuration, on page 25). Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
-
Page 33: Creating The Initial Switch Configuration
To connect the switch to the network, you can use the default choices for each configuration except the IP address, which you must provide. You can perform the other configurations later as described in the Cisco Nexus 9000 Series NX-OS Fundamentals Configuration Guide. -
Page 34: Setting Up The Management Interface
Use only one of these management ports—the switch does not support the use of both management ports. Step 2 Connect the other end of the cable to a 10/100/1000 or SFP port on a network device. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 35: Connecting Interface Ports To Other Devices
When removing transceivers from the switch, it is best to remove the optical cable first and then remove the transceiver. To determine which transceivers, adapters, and cables are supported by this switch, see the Cisco Transceiver Modules Compatibility Information document. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... - Page 36 Connecting the Switch to the Network Connecting Interface Ports to Other Devices Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
-
Page 37: Replacing Components
Remove the fan module that you need to replace as follows: a) Press the two colored sides of the fan module handle towards each other and pull the handle to slide the module out of the chassis. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 38: Replacing A Power Supply Module
If the STS LED does not turn on, slide the module out of the chassis, and visually check the electrical connectors on the back side of the chassis for damage. If damaged, contact Cisco Technical Assistance for help. If undamaged, repeat the previous step to reinstall the module. -
Page 39: Removing An Ac Power Supply
Grasp the power supply handle while pressing the release latch towards the power supply handle. Step 4 Place your other hand under the power supply to support it while you slide it out of the chassis. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 40: Removing A Dc Power Supply
If you are using n+n power redundancy, there must be a separate power source for each power supply installed in the chassis. Otherwise, only one power source is required. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 41: Installing An Hvac/Hvdc Power Supply
• There must be an earth ground connection to the chassis that you are installing the replacement module. Typically, the chassis is grounded by its metal-to-metal connection to a grounded rack. If you need to ground this chassis by another means, see Grounding the Chassis, on page Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 42: Installing A Dc Power Supply
(the end with the electrical connections) to the open power supply slot before carefully sliding the power supply all the way into the slot until it clicks into place. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... - Page 43 Turn on the circuit breaker for the DC power source connected to the power supply. Step 4 Verify that the power supply is operational by making sure that the power supply LED is green. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
- Page 44 Replacing Components Installing a DC Power Supply Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
-
Page 45: Rack Specifications
• Standard 19-inch (48.3 cm) (two- or four-post EIA cabinet or rack, with mounting rails that conform to English universal hole spacing per section 1 of ANSI/EIA-310-D-1992). For more information, see Requirements Specific to Perforated Cabinets, on page Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 46: Requirements Specific To Standard Open Racks
To help with cable management, you might want to allow additional space in the rack above and below the chassis to make it easier to route all of the fiber optic or copper cables through the rack. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 47: System Specifications
Altitude Operating 0 to 13,123 feet (0 to 4,000 meters) Switch Dimensions Switch Width Depth Height Cisco Nexus 9364C-GX 17.41 inches (44.23 22.59 inches (57.4 cm) 3.39 inches (8.61 cm) (2 Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 48: Switch And Module Weights And Quantities
Switch Typical Power Maximum Power Heat Dissipation Consumption (AC or DC) Consumption (AC or Requirement Cisco Nexus 9364C-GX 811 W 1622 W 5534.494 BTUs per hour Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 49: Power Specifications
Efficiency 90% or greater (20 to 100% load) Redundancy Modes Combined, n+1, and n+n RoHS Compliance Hot Swappable 2000-W DC Power Supply Specifications These specifications apply to the NXA-PDC-2KW power supplies. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 50: Power Cable Specifications
Power Cord Jumper, C13-C14 Connectors, 9.8 feet (3.0 m) Israel CAB-250V-10A-IS 250 V, 10 A, 8.2 feet (2.5 m) Italy CAB-9K10A-IT 250 VAC, 10 A, CEI 23-16/VII plug, 8.2 feet (2.5 m) Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 51: Power Cables For Nxa-Pac-2Kw Power Supplies
Power Cables for NXA-PAC-2KW Power Supplies Cable Description Illustration CAB-TA-NA North America AC Type A Power Cable CAB-TA-UK United Kingdom AC Type A Power Cable CAB-TA-250V-JP Japan 250V AC Type A Power Cable Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 52: Hvac/Hvdc Power Cables Supported By Aci-Mode And Nx-Os Mode Switches
Israel AC Type A Power Cable HVAC/HVDC Power Cables Supported by ACI-Mode and NX-OS Mode Switches Part Number Cord Set Description Photo CAB-HVAC-SD-0.6M HVAC 2-foot (0.6 m) cable with Saf-D-Grid and SD connectors 277V AC Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... - Page 53 (+200/-200 V DC) NO-POWER-CORD All except Argentina, Not applicable Brazil, and Japan No power cord included with switch Table 1: HVAC/HVDC Power Cables Callout Table Connect this end to the power supply unit. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
-
Page 54: Dc Power Cable Specifications
• CAN/CSA-C22.2 No. 60950-1 Second Edition • CAN/CSA-C22.2 No. 62368-1-19 Third Edition • ANZI/UL 60950-1 Second edition • IEC 62368-1 • EN 62368-1 • AS/NZS 62368-1 • GB4943 • UL 62368-1 Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... - Page 55 • CNS13438 Class A EMC: Immunity • EN55024 • CISPR24 • EN300386 • KN 61000-4 series RoHS The product is RoH-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
- Page 56 System Specifications System Specifications Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
-
Page 57: Leds
Amber Port admin state is 'Disabled, or the SFP is absent, or both. Port admin state is 'Enabled' and SFP is present, but interface is not connected. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 58: Fan Module Leds
Warning events where the power supply continues to operate (high temperature, high power and slow fan). 2Hz blinking amber Input present / Standby mode (PSON_L-High). Solid green Output 12V main and 12V standby in regulation. Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... -
Page 59: Additional Kits
Rack Mount Kit N9K-C9300-RMK The following table lists and illustrates the contents for the 2-RU rack-mount kit (N9K-C9300-RMK). Illustration Description Quantity Rack-mount kit • Bottom support rails (2) • Front-mount brackets (2) Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide... - Page 60 Additional Kits Additional Kits Cisco Nexus 9364C-GX NX-OS Mode Switch Hardware Installation Guide...
