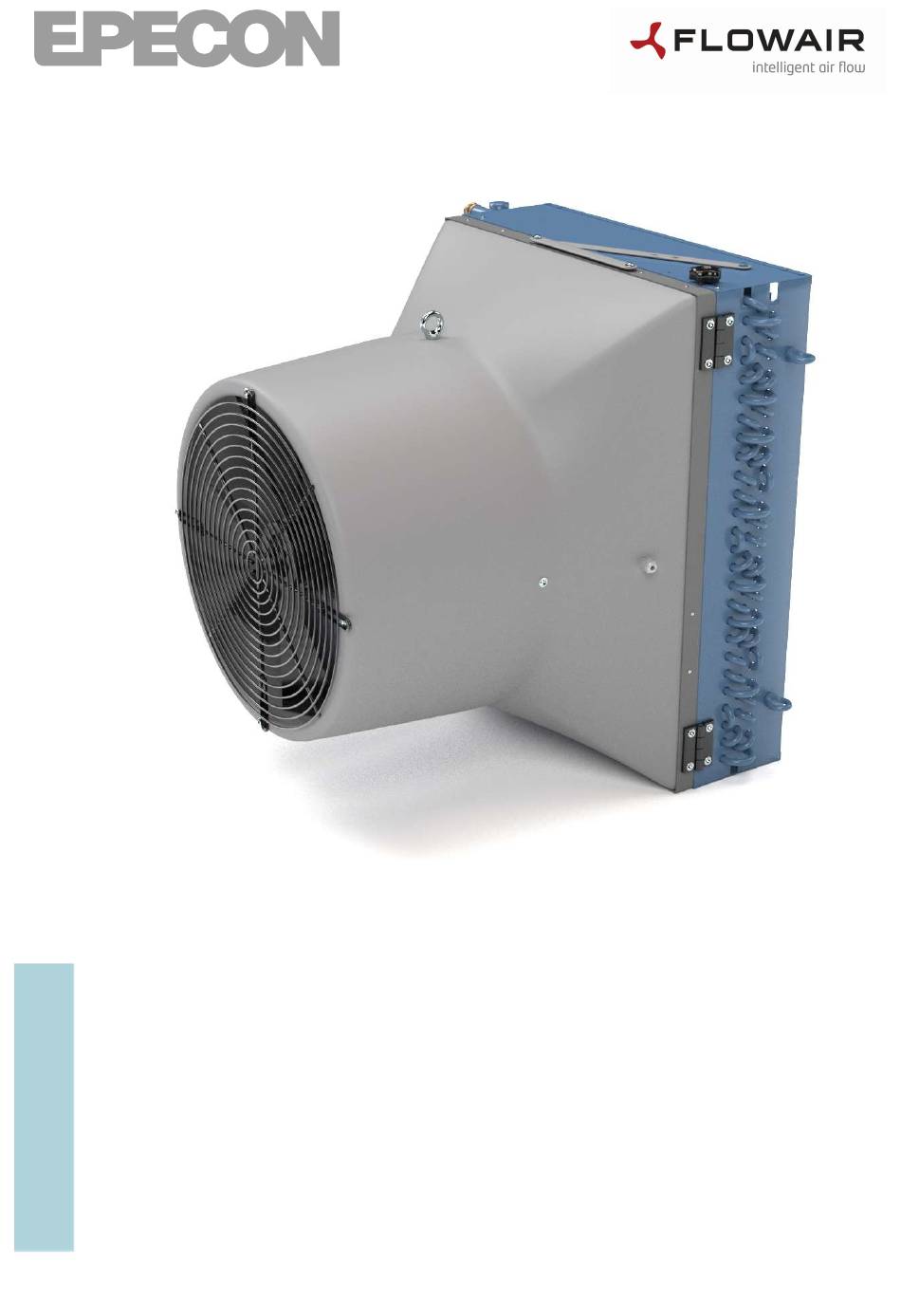

- Page 1 LEO INDUSTRY Hydronic Fan Heater Technical Documentation...
-
Page 2: Table Of Contents
Contents Important information ....................................... 3 General information and purpose ..................................4 Aqua Aero coating resistance chart ................................5 Technical data and general dimensions ..............................6 4.1. General dimensions..................................6 4.2. Technical data ....................................6 Installation and air ranges ....................................7 5.1. Recommended distances ................................7 5.2. -
Page 3: Important Information
1. Important information In this manual you will find important safety information and tips marked as below: WARNING CAUTION ADVICE Dangerous practices which may result in Unsafe practices which, if not avoided, may Useful tips for the user and serious injury or death. Read all warnings result in damage to property or minor injuries. -
Page 4: General Information And Purpose
2. General information and purpose The Leo Industry hydronic fan heater is an executive element of a decentralized heating system for agricultural and industrial buildings. Using the principle of forced convection, powered by a heating medium, it heats the ambient air through recirculation. Designed for heating facilities of various sizes. -
Page 5: Aqua Aero Coating Resistance Chart
3. Aqua Aero coating resistance chart Inorganic acids Max. concentration [ppm] Organic acids Max. concentration [ppm] Arsenic acid <10 Acetic acid <100 Boric acid <100 Benzoic acid Hydrogen carbonate Lactic acid Chromic acid <100 Phenols Bromic acid Citric acid <100 <10 Hydrochloric acid Fatty acids... -
Page 6: Technical Data And General Dimensions
4. Technical data and general dimensions 4.1. General dimensions 4.2. Technical data Device LEO Industry 5000 Airflow [m Heating power (80/60/20 33.6 Outlet temperature [ 40,5 230 V / 50 Supply [V/Hz] Current consumption [A] 2,35 Power consumption [W] 63,0 Acoustic pressure level [dB(A)] Acoustic power level [dB(A)] 84.4... -
Page 7: Installation And Air Ranges
5. Installation and air ranges 5.1. Recommended distances Heaters can be mounted to vertical and horizontal partitions. During installation, maintain the recommended distances from the partitions presented below. 5.2. Air stream speed and range Isothermal range Distance from the heater [m] Version V1.0... -
Page 8: Rotating Console Installation
5.3. Rotating console installation The bracket makes it possible to: Mount the device on the wall in vertical position, mount the device under the ceiling in horizontal position. It is possible to rotate it along the points of the bracket connection with the unit. The bracket is not standard equipment of the heater. -
Page 9: Connecting The Hydraulic System
6. Connecting the hydraulic system 6.1. Notes on hydraulic connections Disconnect the heater power supply before connecting the water system. The connection should be made without stress. It is recommended to use flexible ducts supplying the heating medium. Water supply should be connected to the connector marked with red arrow. -
Page 10: Heating Medium Parameters
6.2. Heating medium parameters The water heat exchanger can be supplied with water or glycol solutions up to 60%. The heat exchanger tubes are made of copper, so heating medium should not cause corrosion of this material. In particular, the parameters as below should be provided: Parameter Value... -
Page 11: Electrical Diagrams
7. Electrical diagrams 7.1. TRA (AC IP66) control diagram OPTIONAL (not needed with climate computer) R55 and Tra/TRd controllers are not supplied standard and they are not built in the heater WARNING Version V1.0... -
Page 12: Start-Up, Operation And Maintenance
8. Start-up, operation and maintenance 8.1. Start-up Before connecting the power supply check the correctness of connection of the fan motor and the controllers. These connections should be executed in accordance with their technical documentation. Before connecting the power supply check whether the mains voltage is in ... -
Page 13: Periodic Inspections
8.3. Periodic inspections To keep proper technical parameters it is recommended to make periodic service of fan heaters on behalf of the user, Check whether the heat exchanger is not clogged with dirt and dust. Coil filled with dirt has lower heating output and decreases the air flow. If necessary - use pressurized air stream or pressurized water to clean the exchanger’s lamellas, WARNING... -
Page 14: Conformity With Weee Directive 2012/19/Ue
Running a business without harming the environment and observing the rules of proper handling of waste electrical and electronic equipment is a priority for FLOWAIR. The symbol of the crossed out wheeled bin placed on the equipment, packaging or documents attached means that the product must not be disposed of with other wastes. -
Page 15: Declaration Of Conformity
➂ 05.02.2025 ➀ Water heaters ➁ LEO Industry DECLARATION OF CONFORMITY UE ➃ FLOWAIR hereby confirms that fan heaters: ➁ LEO Industry ➄ were produced in accordance to the following Europeans Directives: 2014/30/UE Electromagnetic Compatibility (EMC)
