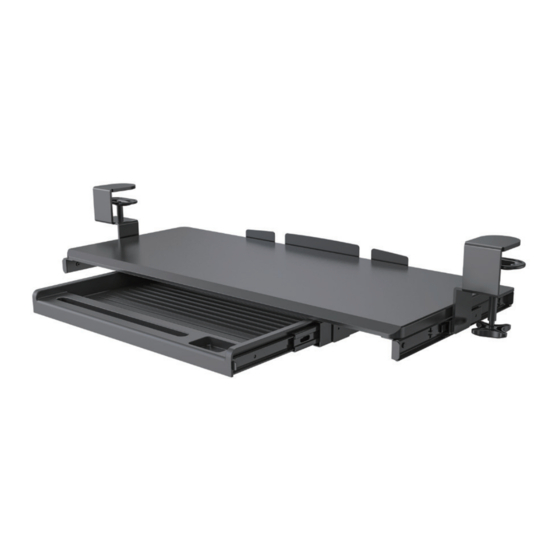

Clamp-on Keyboard Tray with Pencil Drawer
Instruction Manual
SKU: MOUNT-KB05-4D
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-kb05-4d
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-KB05-4D and is the answer not in the manual?

Questions and answers

Related Manuals for Vivo MOUNT-KB05-4D

Summary of Contents for Vivo MOUNT-KB05-4D

  • Page 1 Clamp-on Keyboard Tray with Pencil Drawer Instruction Manual SKU: MOUNT-KB05-4D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-kb05-4d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 ASSEMBLY STEPS STEP 1 Assemble slider brackets (F) to the clamps (G) using M4x7 bolts (A). Tighten with a Phillips screwdriver. ALLATION Right Left...
  • Page 4 STEP 2 Assemble the slider brackets with clamps to the keyboard tray (E) using M5x12 bolts (B), and tighten with a Phillips screwdriver. The clamps must be on the opposite end from the center cable guide. Right Left...
  • Page 5 STEP 3 Slide the pencil drawer (H) back into the open ends of the drawer sliders (I) until parts are latched together. ATION...
  • Page 6 STEP 4 Mount the assembled pencil drawer (H) to the underside of the keyboard tray (E) using M5x12 screws (D) with a Phillips screwdriver.
  • Page 7 STEP 5 Place pads (C) on the underside of each clamp. Place the assembled keyboard mount on the edge of the desk and tighten clamps. NOTE: To ensure keyboard tray is level, do not over-tighten the clamps. Slide the keyboard tray and pencil drawer forward/back to the desired position.
  • Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
