PLS1000
HACK SQUAT
MODEL PLS1000
(MAN-PLS1000 REV06)
SCAN FOR UP-TO-DATE
OWNER'S MANUAL
SCAN FOR
ASSEMBLY VIDEO
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLS1000 and is the answer not in the manual?

Questions and answers

Related Manuals for True Fitness PLS1000

Summary of Contents for True Fitness PLS1000

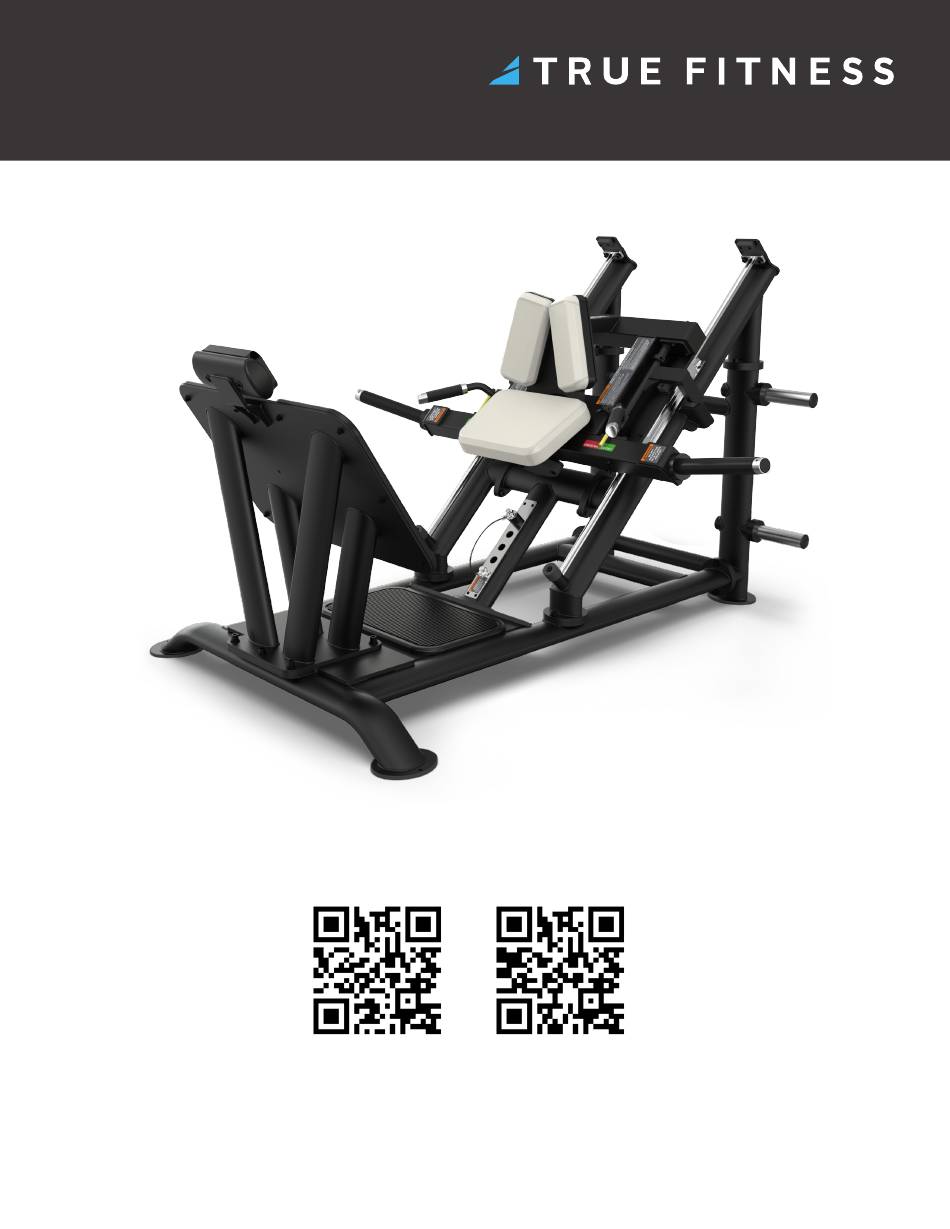

  • Page 1 PLS1000 HACK SQUAT SCAN FOR UP-TO-DATE SCAN FOR OWNER’S MANUAL ASSEMBLY VIDEO OWNER’S MODEL PLS1000 MANUAL (MAN-PLS1000 REV06)

  • Page 2: Important-Please Read

    IMPORTANT—PLEASE READ All products shown are prototype. Actual product delivered may vary. Product specifications, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://truefitness.com/services-support/user-manuals/ CONTACTING OUR SUPPORT TEAM To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST): •...

  • Page 3: Reporting Freight Claims Or Parts Damage

    REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS..................5 GENERAL CARE AND MAINTENANCE............................7 COMMERCIAL MAINTENANCE SCHEDULE..........................8 COMPLIANCES..................................8 DIMENSIONS AND WEIGHTS..............................9 LABEL LOCATIONS.................................10 WARNING AND INTENDED USE LABELS..........................10 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST..............................12 ASSEMBLY STEPS..................................14 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE..........................26 WEEKLY INSPECTION AND MAINTENANCE.........................26 OTHER SCHEDULED PREVENTATIVE MAINTENANCE......................26 CLEANING THE EQUIPMENT..............................27...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS FACILITY AND USER SAFETY PRECAUTIONS • Review and understand all of the warning labels affixed to this machine and on the facility safety sign. • Be certain that the machine operation is understood before it is used. Refer to the instructional procedure label affixed to the machine.

  • Page 6: Installation Safety Precautions

    INSTALLATION SAFETY PRECAUTIONS • Read this installation manual entirely before assembling this equipment. • Verify that there is adequate space surrounding this piece of equipment for safe access and operation. Installation must meet ADA requirements for accessibility. • Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defined and required by local building and architectural codes.) •...

  • Page 7: General Care And Maintenance

    GENERAL CARE AND MAINTENANCE IMPORTANT Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the SAFETY section of this document and the items that follow here, should be included in your maintenance program.

  • Page 8: Commercial Maintenance Schedule

    COMMERCIAL MAINTENANCE SCHEDULE Commercial Maintenance Schedule Daily Weekly Monthly 6 Months Annually Inspect all nuts and bolts and tighten if needed. Inspect safety catches, stop rods, and their fasteners. Replace at the first sign of wear. Inspect all anti-slip surfaces and replace as needed. Inspect all adjustment pins, set screws, and gas shocks if equipped.

  • Page 9: Dimensions And Weights

    DIMENSIONS AND WEIGHTS • ASSEMBLED DIMENSIONS (W X D X H) 70.5" x 76” x 49” / 179.1 cm x 193 cm x 124.5 cm HEIGHT 49” 124.5 cm DEPTH 76” WIDTH 193 cm 70.5" 179.1 cm • PRODUCT WEIGHT 670 lbs / 304 kg •...

  • Page 10: Label Locations

    LBL-ADJ-PLS1000R LABEL, ARM ADJ LBL-ADJ-PLS1000L LABEL, ADJ POSITION LBL-WRN-PLS005 WARNING LABEL LBL-WRN-PLS007 LABEL, STOP WARNING LBL-PRO-PLS1000 LABEL, PLS1000 PROCEDURE LBL-WRN-PLS1000 WARNING LABEL LBL-MTN-PLS001 LABEL, MAINTENANCE LBL-LOG-010BK LABEL, 10" NEW TRUE LOGO, WHITE SPL-00-LBLSN LABEL, SERIAL NUMBER SERIOUS CRIPPLING INJURY CAN OCCUR IF THE LIFTING CARRIAGE DROPS SUDDENLY.
  • Page 11 SERIOUS CRIPPLING INJURY CAN OCCUR IF THE LIFTING CARRIAGE DROPS SUDDENLY. TO AVOID INJURY FOLLOW THESE PRECAUTIONS. TRUE FITNESS TECHNOLOGY, INC 1. BEFORE USING: Read all of the warnings and obtain instruction on the use of this 8. ALWAYS use spotters.

  • Page 12: Assembly Instructions

    ASSEMBLY INSTRUCTIONS NOTE: Supplemental video available @TRUEFitnessServiceVids: https://youtu.be/7wHIbMta7w8 PREASSEMBLY CHECKLIST CAUTION: Use caution when assembling this product. Unpacking and assembling this product requires two or more people. Use caution when unpacking this product. Avoid damage to the product and product pads. DO NOT use a box cutter.
  • Page 13 THIS PRODUCT SHIPS IN MULTIPLE CARTONS. ENSURE YOU HAVE ALL PARTS SHOWN BEFORE ASSEMBLING THE EQUIPMENT. BOX CONTENTS BOX CONTENTS Item Image Item Image Base Frame Left Rail Assembly Assembly Center Frame Assembly Right Rail Assembly Wood Rail Spacers Rear Frame Assembly Lower Storage Weight Post...

  • Page 14: Assembly Steps

    Tools Used in this Step Parts Used in this Step 3/8" Allen Wrench ITEM PART# DESCRIPTION (ball end PLS-10-BFR100X PLS1000 BASE FRAME ASSEMBLY recommended) PLS-10-RFR100X ASSEMBLY, PLS1000 REAR FRAME C 640A SHCS, 1/2"-13 X 1", BLK C 750B LOCK WASHER, 1/2MED.SPLIT, BLACK BED Using two people, remove and set aside the 2.
  • Page 15 (ball end recommended) PLS-10-BFR100X PLS1000 BASE FRAME ASSEMBLY PLS-10-RFR100X ASSEMBLY, PLS1000 REAR FRAME PLS-10-MFR210X ASSEMBLY, PLS1000 USER LEFT LINEAR RAIL PLS-10-MFR260X ASSEMBLY, PLS1000 USER RIGHT LINEAR RAIL C 640A SHCS, 1/2"-13 X 1", BLK C 750B LOCK WASHER, 1/2MED.SPLIT, BLACK BED A.
  • Page 16 STEP 2—ASSEMBLE SIDE FRAMES AND BASE FRAME CONTINUED B. Doing one side at a time, line up and attach the linear rail assemblies to the base and rear frame assemblies using the previously removed socket head cap screws and lock washers. DO NOT fully tighten the hardware until step 3.
  • Page 17 3/8" Allen Wrench ITEM PART# DESCRIPTION (ball end recommended) PLS-10-BFR100X PLS1000 BASE FRAME ASSEMBLY PLS-10-MFR210X ASSEMBLY, PLS1000 USER LEFT LINEAR RAIL PLS-10-MFR260X ASSEMBLY, PLS1000 USER RIGHT LINEAR RAIL PLS-10-ALG000 ASSEMBLY, PLS1000 RAIL ALIGNMENT PLS-10-CBR210X CTR BRACE X ASSY C 640A SHCS, 1/2"-13 X 1", BLK...
  • Page 18 STEP 3—ASSEMBLE CENTER FRAME TO BASE AND SIDE FRAME ASSEMBLIES CONTINUED B. Once all the hardware is finger tight and both of the wooden alignment pieces are on each rail, use a 3/8" ball end allen wrench to fully tighten all frame hardware.
  • Page 19 ITEM PART# DESCRIPTION (long extension, ball SEAT FRAME ASSEMBLY end bit, and ratchet recommended) PLS-10-MFR210X ASSEMBLY, PLS1000 USER LEFT LINEAR RAIL PLS-10-MFR260X ASSEMBLY, PLS1000 USER RIGHT LINEAR RAIL PLS-10-ALG000 ASSEMBLY, PLS1000 RAIL ALIGNMENT D 312M BEARING, PILLOW BLOCK 25MM C1059...
  • Page 20 STEP 4—ASSEMBLE SEAT FRAME TO RAIL ASSEMBLIES CONTINUED C. Using at least two people, carefully set the seat frame D. Using at least two people, remove the wooden assembly onto the rails, making sure to rest the seat alignment piece and slide the bearing assemblies on the bottom bumpers.
  • Page 21 Tools Used in this Step Parts Used in this Step 3/8" Allen Wrench ITEM PART# DESCRIPTION (ball end PLS-10-BFR100X PLS1000 BASE FRAME ASSEMBLY recommended) PLS-10-FPT000X ASSEMBLY, FOOT PLATE C 640A SHCS, 1/2"-13 X 1", BLK C 755B WASHER, FLAT, 1/2" SAE Z.P.
  • Page 22 STEP 6—ATTACH WEIGHT POST ASSEMBLIES Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench ITEM PART# DESCRIPTION (ball end PLS-00-PST030X ASSEMBLY, LOWER WEIGHT HORN (STORAGE) recommended) PLS-10-PST000X ASSEMBLY, UPPER WEIGHT HORN (STORAGE) PLS-00-CAP005 ARM BOLT CAP C 749B LOCK WASHER, 3/8", BLK ZP Rubber Mallet...
  • Page 23 Parts Used in this Step Tools Used in this Step ITEM PART# DESCRIPTION 5/16" Allen Wrench (ball end PLS1000 PAD KIT PAD KIT recommended) PAD KIT HARDWARE C 749B LOCK WASHER, 3/8", BLK ZP C 754B WASHER, FLAT, 3/8" SAE, BLK C 624A SHCS, 3/8"-16 X 1-1/4"...
  • Page 24 STEP 8—GREASE RAILS Tools Used in this Step Magnalube Grease and ® Cloth (recommended) Grease the Rails Apply grease to both the right and left rails and use a clean cloth to wipe away excess. left rail right rail...
  • Page 25 STEP 9—VERIFY ALL ADJUSTMENTS FUNCTION AS INTENDED Verify Adjustments • Rotate both the right and left side adjustment handles to place them in the unlocked or locked position. • Grab both handles and place them in the unlocked position when you want to perform the exercise. •...

  • Page 26: Preventative Maintenance

    PREVENTATIVE MAINTENANCE Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the Safety Instructions section of this document and the items that follow here, should be included in your maintenance program.

  • Page 27: Cleaning The Equipment

    CLEANING THE EQUIPMENT Daily Cleaning Wipe all machines with a water dampened cloth and dry completely. This includes painted parts, chrome plated parts (except guide rods), plastic parts, and upholstered pads. It is important not to leave parts damp. This will increase the potential for corrosion to occur.

  • Page 28: Warranty Information

    TRUE. **Labor warranty is available for equipment located within United States. TRUE Fitness equipment is automatically covered under a 6-month Limited Labor Warranty. This 6-month Limited Labor Warranty begins from the date of purchase shown by a valid receipt.

  • Page 29: Warranty Details

    WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original product purchaser and the parts of the TRUE product (the “Product”) listed below. During the applicable Warranty Period, the Product, under normal use and service, shall be free of manufacturing defects in workmanship and materials.

  • Page 30: Warranty Registration

    QR Code: base serial Scan the QR code below with your smartphone to be number location taken directly to the registration page. TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA • By Mail: MODEL NO: PLSXXXX...
  • Page 32 1.800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-PLS1000 Owner’s Manual, Assembly Guide, and Warranty Card REV06 © 2025 TRUE Fitness All Rights Reserved...
