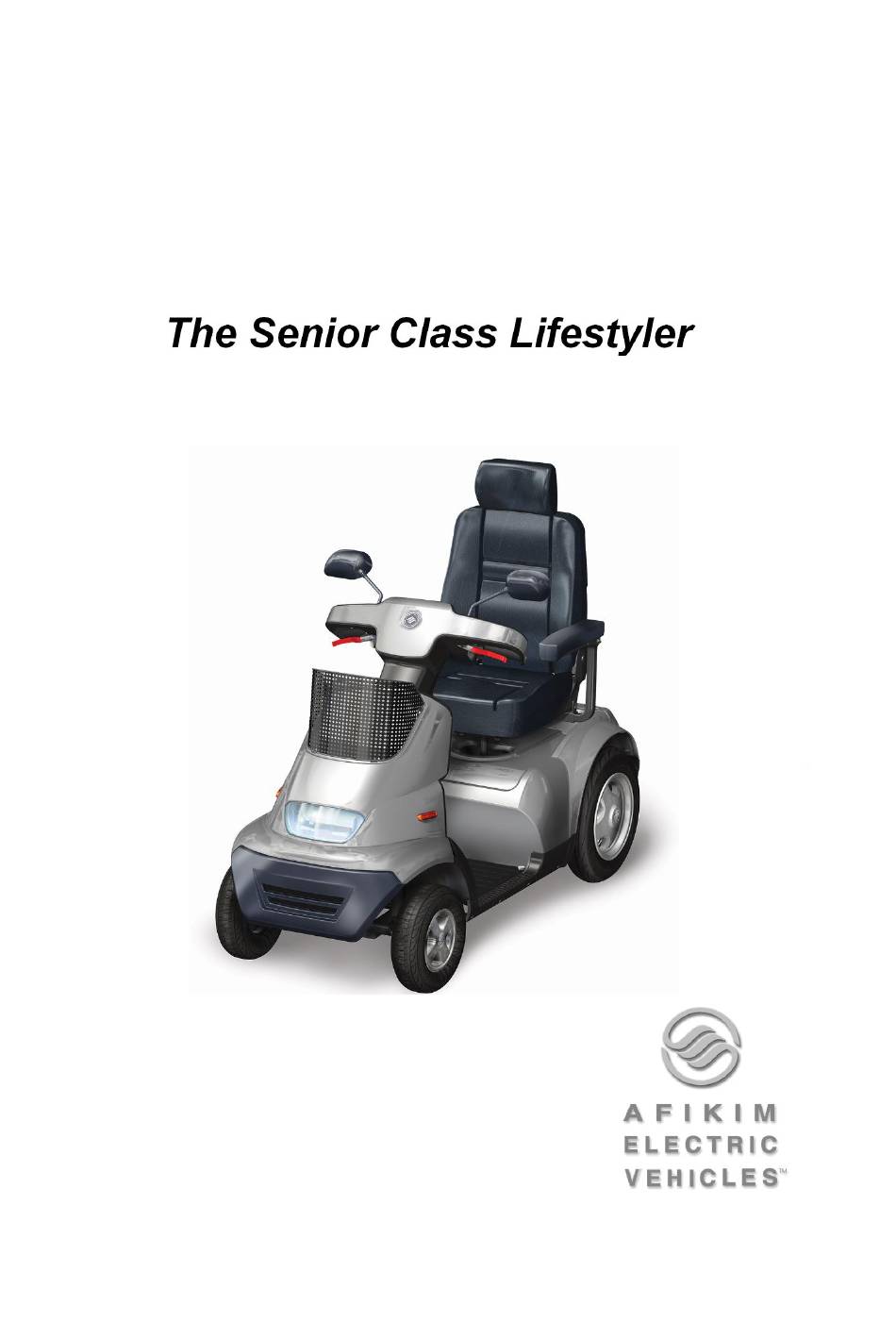

- Page 1 - Revision 03, 25/07/2017 - I:\RD\S+\User manual\AFISCOOTER S+ User-Manual (Ed02-Rev02)-English.docx Afiscooter S USER Manual...
-
Page 2: Warranty
AFISCOOTER S. (See 4.6 in figure 3, page 18) WARRANTY AFIKIM ELECTRIC VEHICLES strives continuously to improve its products, their quality and reliability, in constant effort to ensure its customers’ satisfaction as well as its place in the market. -
Page 3: Table Of Contents
CONTENTS CHAPTER 1 – OVERVIEW OF THE AFISCOOTER S (MAIN FEATURES) CHAPTER 2 – SAFETY SYMBOLS FOR THE AFISCOOTER S CHAPTER 3 – SAFETY INSTRUCTIONS for AFISCOOTER S CHAPTER 4 – GENERAL DESCRIPTION OF THE AFISCOOTER S CHAPTER 5 – ADJUSTMENT INSTRUCTIONS CHAPTER 6 –... -
Page 4: Chapter 1 - Overview Of The Afiscooter S (Main Features)
CHAPTER 1 – OVERVIEW OF THE AFISCOOTER S (MAIN FEATURES) Congratulations on choosing the AFISCOOTER S as your electrically powered scooter. AFISCOOTER S is a scooter for elderly and disabled persons, and for fun and sport. Scooter classification: Class C in accordance with EN12184. AFISCOOTER S is designed for a maximum occupant mass of 160 kg (352 lbs) with 3 wheels, and 200Kg (440 lbs) with 4 Wheels. -
Page 5: Chapter 2 - Safety Symbols For The Afiscooter S
CHAPTER 2 – SAFETY SYMBOLS FOR THE AFISCOOTER S WARNING! An authorized supplier or qualified technician must perform the initial setup of this scooter, and must perform all of the procedures in this manual. The symbols below are used throughout this user’s manual and on the scooter to identify warnings and important information. - Page 6 Never put your hands, fingers, or legs into any moving parts or under any protective cover, since moving parts and hot surfaces are under those covers. When making adjustments (folding the seat back, adjusting the armrest, moving the seat forward or backward, adjusting the tiller distance), as well as when squeezing the throttle control lever or handbrake, always take care that your hands and fingers are not trapped between any of the moving parts.
- Page 7 If the AFISCOOTER S is involved in any kind of an accident in which parts are damaged, you must get a qualified technician to examine it before continuing to use it. Batteries contain lead and acid, which is very corrosive. Batteries must be handled and disposed of in accordance with proper procedures.
- Page 8 Since your seat upholstery is fire resistant, do not cover it or replace with any upholstery other than upholstery of the same kind. When removing the battery cover, watch out for hot parts. The motor, axle, EMB, electronic cards and electronic controller might be hot, Do not touch them until you have checked their temperature.
- Page 9 Wear safety glasses. Contains lead. The battery charger is for indoor use only. Flammable material. Do not expose to open flame. At the rear of the AFISCOOTER S is the manual release lever of the EMB. When using this lever, be careful not to touch the surface of the motor, as it could be very hot and cause injury.
-
Page 10: Chapter 3 - Safety Instructions For Afiscooter S
CHAPTER 3 – SAFETY INSTRUCTIONS for AFISCOOTER S GENERAL MANDATORY! Do not operate your new AFISCOOTER S scooter for the first time without reading and understanding this user manual completely. Your AFISCOOTER S is a state-of-the-art life-enhancement device designed to increase mobility. We provide an extensive range of products to best fit the individual needs of the user. -
Page 11: Tyre Inflation
PINCHING POINTS In the AFISCOOTER S there are some points that have potential to be pinching points. These refers mainly to moving parts such parts such as wheels throttle level etc. Never put your hands, fingers, or legs into any moving parts. -
Page 12: Incline Information
INCLINE INFORMATION More and more buildings have ramps with specified degrees of inclination, designed for easy and safe access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering skills on your AFISCOOTER S Proceed with extreme caution as you approach the downgrade of a ramp or incline. -
Page 13: Cornering Information
These tests were conducted with the AFISCOOTER S seat in the highest position and in its farthest rearward position. Use this information as a guideline. Your AFISCOOTER S ability to travel up inclines is affected by your weight, scooter speed, your angle of approach to the incline, and your AFISCOOTER S setup. -
Page 14: Public Streets And Roadways
OUTDOOR DRIVING SURFACES Your AFISCOOTER S is designed to provide optimum stability under normal driving conditions, on dry, level surfaces of concrete, tarmac, or asphalt. However, we recognize that there will be times when you will encounter other surfaces. For this reason, your AFISCOOTER S is designed to perform well on packed soil, grass, and gravel. -
Page 15: Freewheel Mode
FREEWHEEL MODE Your AFISCOOTER S is equipped with a manual freewheel lever that, when pushed forward, allows the AFISCOOTER S to be pushed. For more information about how to place your AFISCOOTER S in and out of freewheel mode, see Chapter 4 – General description of the AFISCOOTER S. WARNING! When your AFISCOOTER S is in freewheel mode, the parking system is disengaged. - Page 16 LIFTS/ELEVATION PRODUCTS If you travel with your AFISCOOTER S, you may find it necessary to use a lift or elevation product to aid in transportation. We recommend that you closely review the manufacturer’s instructions, specifications, and safety information before using the lift/elevation product. WARNING! Never sit on your AFISCOOTER S when it is being used with any type of lift/elevation product.
-
Page 17: Prescription Drugs/Physical Limitations
WARNING! Do not sit on your AFISCOOTER S while it is in a moving vehicle. WARNING! Ensure your AFISCOOTER S and its batteries are properly secured during transportation. PREVENTING UNINTENDED TRAVEL WARNING! If you anticipate being stationary for an extended period of time, turn off the power. - Page 18 The AFISCOOTER S user must exercise care and common sense when operating the AFISCOOTER S. This includes awareness of safety issues while under the influence of alcohol, or while smoking. WARNING! Do not operate your AFISCOOTER S while you are under the influence of alcohol, as this may impair your ability to operate the AFISCOOTER S in a safe manner.
-
Page 19: Chapter 4 - General Description Of The Afiscooter S
CHAPTER 4 – GENERAL DESCRIPTION OF THE AFISCOOTER S Note: The numbers in parentheses refer to the parts illustrated on Figures 1, 2, and 3. Figure 1 Figure 2 Figure 3 Pockets (4.5) Right & Left Serial number and manufacturer’s data are on a Plate with serial number and manufacturer’s data (4.6) plate on the mud guard in front of your foot. - Page 20 Handlebar adjustment lever The handlebar can be adjusted forward or (1.10) backward. Release the lever, make the adjustment, and return the lever to the locked position. USB Charging socket (1.18) Used to connect Cell Phone\other electronic instrument for Charging (Up to 2Amp). Front basket (4.1) For carrying parcels and personal effects.
-
Page 21: Chapter 5 - Adjustment Instructions
CHAPTER 5 – ADJUSTMENT INSTRUCTIONS (Numbers refer to Figures 4 and 5) Adjusting the tiller Adjust the angle of the tiller as follows: Release the tiller adjustment lever (1.10), by pushing it angle (1.7) down. Release the lever at the desired place. Adjusting the Handlebar height can be adjusted about 40mm by a technician. -
Page 22: Chapter 6 - Operating Instructions
CHAPTER 6 – OPERATING INSTRUCTIONS 6.1 GENERAL Figure 6 (Numbers refer to Figures 6 and 7) The main key switch is located at the top of the tiller box (1). Key switch (1.11) The key switch has two positions: ... -
Page 23: Lcd Display Use
Depending on the model, a buzzer may also sound (subject to local regulations). To turn off the indicator, press the button again. Buzzer buttons Push one of the 2 Buttons (1.9) to activate the buzzer. (1.9) The buzzer sounds automatically under the following conditions (except where prohibited by law),: 1. - Page 24 (Numbers refer to Figures 6 and 7) LCD Display When driving and operating the AFISCOOTER S, all the required information is displayed on the LCD screen (1.1). See details below. Battery status The Battery Capacity Indicator (5.5) on the LCD screen, displays Indicator the remaining battery capacity.
-
Page 25: Driving And General Use
Clock setup When changing to clock mode with the MODE button, press it for 7 seconds and you will enter the Setup mode of the clock. Adjusting the clock : Use the left Setup button and the right Mode button as follows: Every push on Mode changes the time unit and the selected unit flashes. - Page 26 Performance A performance check is highly recommended when you first receive check your AFISCOOTER S or after a period of not using the AFISCOOTER S, as follows: 1. Turn on the key switch. 2. Verify that the LCD display is ON. 3.
-
Page 27: Chapter 7 - Charging
CHAPTER 7 – CHARGING Read the charger manual before using it. Warning: If you use a charger other than the one supplied with your AFISCOOTER S ask your dealer for instructions. CHARGING BATTERIES (See figure10) 1. Insert the charger plug (8) in the charging socket (9) located on the right side of the tiller column. -
Page 28: Chapter 8 - Maintenance
CHAPTER 8 – MAINTENANCE Note: 1. Maintenance Manual is available for trained technicians. 2. The numbers in parentheses refer to the parts illustrated in figure 11. Although the AFISCOOTER S requires very little maintenance, do not neglect it. The expected service life is of the AFISCOOTER S is 7 years and it will extend much longer provided care and maintenance procedures are carefully followed. - Page 29 User Weekly Checks Throttle: Put the throttle to the full speed forward position and switch the scooter on. The scooter should not move. show you that you have switched the scooter on with the throttle already pushed, the LCD display will display Error code 7. If the scooter does move, contact your service agent.
-
Page 30: Chapter 9 - Storage
Type of Service Frequency Replace batteries Note! Batteries must be replaced by trained professionals only. Warning! Batteries contain high energy and can spark, resulting in a possible fire hazard. Warning! Working with batteries can cause damage and Injury if not done properly. In this procedure, refer to Figure 12. -
Page 31: Chapter 10 - Troubleshooting And Repair
CHAPTER 10 – TROUBLESHOOTING AND REPAIR The following table provides troubleshooting and repair instructions for problems that may be encountered when operating the . as well as the best way to correct the AFISCOOTER S problem. The table contains three columns: Symptom Probable Cause Remedy... - Page 32 Controller Fault codes shown on the display: The display can show the controllers fault code in two different ways, set by parameter 8 in the display settings: 1. Error code displayed on alphanumeric display: ERR01 – bad connection to the battery. ERR02 –...
-
Page 33: Chapter 11 - Emi Warning
CHAPTER 11 – EMI WARNING All types of electrically powered vehicles, such as powered wheelchairs and motorized scooters (in this text all types will be referred to as “powered vehicles”) may be susceptible to electromagnetic interference (EMI). This is from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones. -
Page 34: Appendix A - Specification Sheet
Appendix A – Specification Sheet Type: AFISCOOTER S4 Manufacturer: Kibbutz Afikim 15148, Israel Maximum occupant mass: kg (for the tests, a dummy according ISO 7176-11 was used, 150kg supplemented by 50 kg weights distributed approximately proportional to the dummy’s weight distribution)
