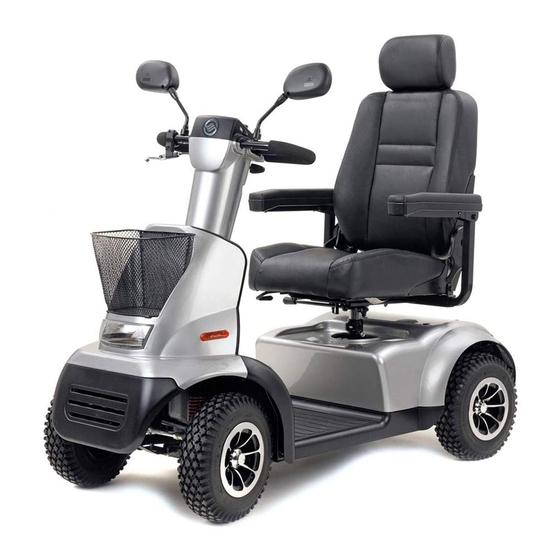

Afikim breeze-c User Manual

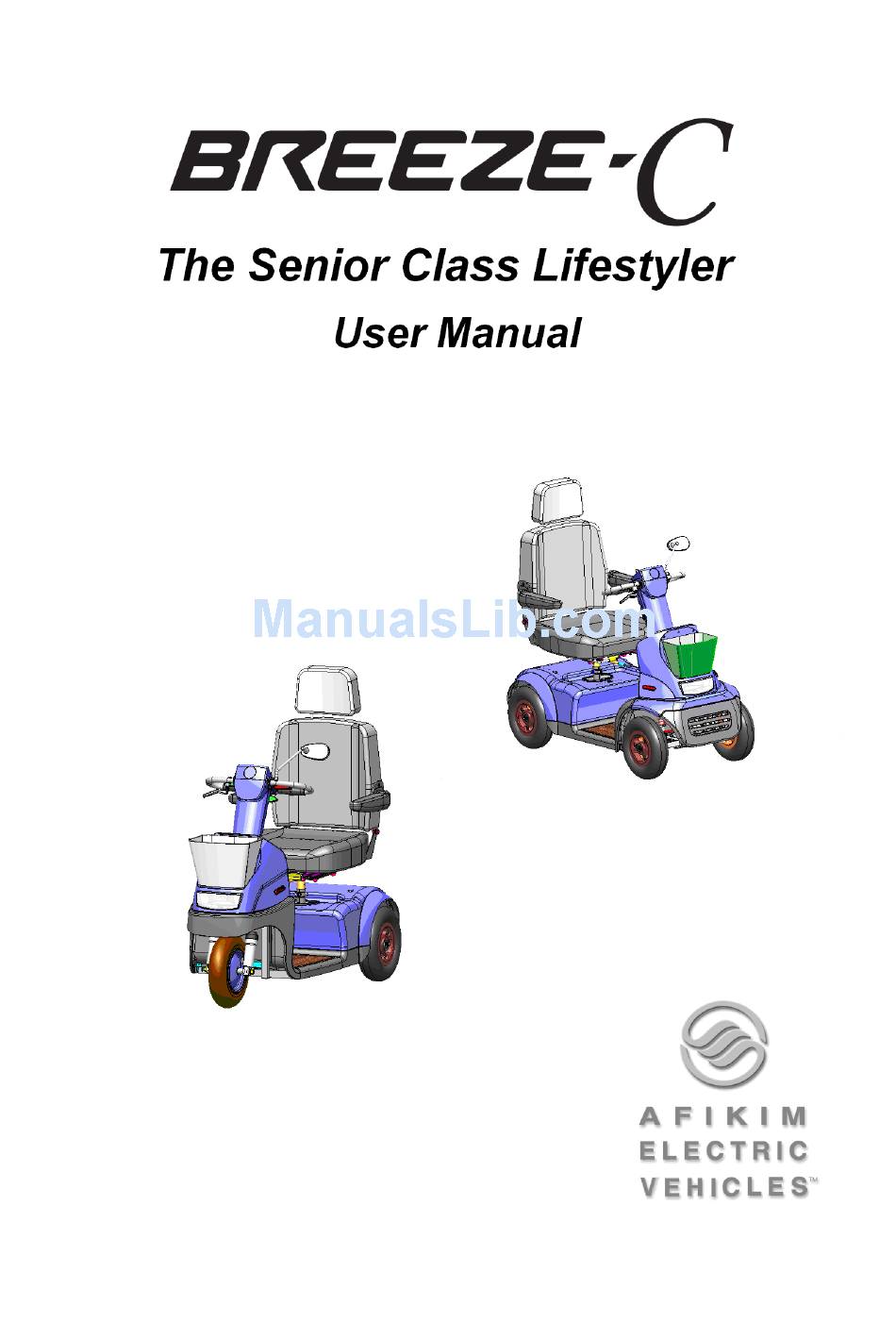

Senior class lifestyler
Hide thumbs Also See for breeze-c:

Advertisement

Table of Contents

See also: Maintenance Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the breeze-c and is the answer not in the manual?

Questions and answers

michael wells
February 15, 2025

will not start light flashing

0
1 comments:
Mr. Anderson
February 15, 2025

The Afikim Breeze-C is not starting and the display is flashing due to a "Controller Coded Fault." The recommended solution is to ask for technical assistance.

This answer is automatically generated

0

Related Manuals for Afikim breeze-c

Summary of Contents for Afikim breeze-c

  • Page 2 Mud Guard cover on the metal Label of the Breeze C. WARRANTY AFIKIM ELECTRIC VEHICLES strives continuously to improve its products, their quality and reliability in an incessant effort to ensure its customers’ satisfaction as well as its place on the market.

  • Page 3: Table Of Contents

    CONTENTS CHAPTER 1 – OVER VIEW OF THE Breeze C (MAIN FEATURES) CHAPTER 2 – SAFETY Symbols for Breeze C CHAPTER 2 – SAFETY INSTRUCTIONS for Breeze C CHAPTER 3 – GENERAL DESCRIPTION OF THE Breeze C CHAPTER 4 – ADJUSTMENTS INSTRUCTIONS CHAPTER 5 –...

  • Page 4: Chapter 1 - Over View Of The Breeze C (Main Features)

    CHAPTER 1 – OVER VIEW OF THE Breeze C (MAIN FEATURES) Congratulations on choosing the Breeze C as your electrically powered Scooter. The Breeze C is a scooter for Elderly and Disabled persons, Fun and Sport. Scooter classification: Class B with according to EN12184. The Breeze C is designed to a Maximum occupant mass of 150 Kg (352lbs).

  • Page 5: Chapter 2 - Safety Symbols For Breeze C

    CHAPTER 2 – SAFETY Symbols for Breeze C WARNING! An authorized supplier or qualified technician must perform the initial setup of this scooter and must perform all of the procedures in this manual. The symbols below are used throughout this owner's manual and on the scooter to identify warnings and important information.
  • Page 6 brake, always be careful that your hands and fingers will not be trapped between any of the moving parts. Beware from trapping your fingers in the tiller mechanism, when adjusting the tiller – Forward / Reverse. Never load the Breeze C total loads (User weight and all other loads combined) more than 150Kg (330lbs) or 135Kg (297lbs) depend on the model including all the baskets.
  • Page 7 Use Lead Acid maintenance free / sealed batteries only. WARNING !!! Special care must be taken to prevent children from operating the Breeze C. Do not allow unsupervised children to play near the Breeze C scooter while the batteries are charging. Always drive carefully, adjust the speed according the limitation of the road.
  • Page 8 Do not connect an extension cord to the AC/DC converter or the battery charger. Keep tools and other metal objects away from battery terminals. Contact with tools can cause electrical shock. Do not sit on the mobility product when it is being used in connection with any type of lift/elevation product.

  • Page 9: Chapter 2 - Safety Instructions For Breeze C

    CHAPTER 2 – SAFETY INSTRUCTIONS for Breeze C GENERAL MANDATORY! Do not operate your new Breeze C scooter for the first time without completely reading and understanding this owner’s manual. Your Breeze C is a state-of-the-art life-enhancement device designed to increase mobility.
  • Page 10 TIRE INFLATION Your Breeze C scooter is equipped with pneumatic tires, you should check or have the air pressure checked at least once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of your Breeze C scooter.
  • Page 11  Breeze C speed 15 km/hr:  Breeze C speed 12 km/hr:  Breeze C speed 10 km/hr: IFigure A. Maximum Recommended Incline Angle When climbing an incline, try to keep your Breeze C scooter moving. If you must stop, start up again slowly, and then accelerate cautiously.
  • Page 12 Figure A illustrates your Breeze C Scooter’s stability and its ability to climb grades under various weight loads and under controlled testing conditions. These tests were conducted with the Breeze C Scooter’s seat in the highest position and adjusted rearward on the seat base to its farthest rearward position. Use this information as a guideline.
  • Page 13 OUTDOOR DRIVING SURFACES  Your Breeze C scooter is designed to provide optimum stability under normal driving conditions- dry, level surfaces composed of concrete, blacktop, or asphalt. However, We recognizes that there will be times when you will encounter other surface types.
  • Page 14 FREEWHEEL MODE Your Breeze C Scooter is equipped with a manual freewheel lever that, when pushed Upward, allows the Breeze C scooter to be pushed. For more information about how to place your Breeze C scooter into and out of freewheel mode, see 3. “General description of your Breeze C scooter.”...
  • Page 15 LIFT/ELEVATION PRODUCTS If you will be traveling with your Breeze C scooter, you may find it necessary to use a lift/elevation product to aid in transportation. We recommends that you closely review the instructions, specifications, and safety information set forth by the manufacturer of the lift/elevation product before using that product.
  • Page 16 PREVENTING UNINTENDED MOVEMENT WARNING! If you anticipate being seated in a stationary position for an extended period of time, turn off the power. This will prevent unexpected motion from inadvertent throttle control lever contact. GETTING ONTO AND OFF OF YOUR Breeze C SCOOTER Getting onto and off of your Breeze C scooter requires a good sense of balance.
  • Page 17 ALCOHOL/SMOKING The Breeze C scooter user must exercise care and common sense when operating his/her Breeze C scooter. This includes awareness of safety issues while under the influence of alcohol, or while smoking. WARNING! Do not operate your Breeze C Scooter while you are under the influence of Alcohol, as this may impair your ability to operate the Breeze C scooter in a safe manner.

  • Page 18: Chapter 3 - General Description Of The Breeze C

    CHAPTER 3 – GENERAL DESCRIPTION OF THE Breeze C Note: The numbers in parentheses refer to the parts illustrated on Figure 1+2+3. Figure 1: Breeze C4 Figure 2: Breeze C3 Handlebars (1) Your Breeze C is designed for both hand operation, But it is delivered to you with right-hand controls.
  • Page 19 Seat (3) The Breeze C seat is equipped with folding armrests (3.4) to allow convenient access to the Seat. The Seat itself can be rotated to allow easy access. Seat Forward / Reverse The Lever is used to change the seat position Forward Lever (3.1) and Reverse, to fit the driver mostly.

  • Page 20: Chapter 4 - Adjustments Instructions

    CHAPTER 4 – ADJUSTMENTS INSTRUCTIONS (Reference numbers refer to the figures #4 and #5) Adjusting the Adjust height/ distance of handlebars as follows:  Release the Handlebars Adjusting Lever (1.5), which fixes the Handlebars (1) handlebars in place, by pushing the lever to the left. ...

  • Page 21: Chapter 5 - Operating Instructions

    CHAPTER 5 – OPERATING INSTRUCTIONS (Numbers in the table refers to figure no.6 and figure no.7) Key Switch Breeze C has a Main Key Switch (1.17) - located at the top of the Tiller Box (1). The Main Key Switch has two positions: “OFF”...
  • Page 22 Wig Wag To start driving, squeeze the operating Wig Wag Lever (1.3a) or Operating (1.3b) gently until you reach the desired speed. The speed is directly Lever and proportional to the deflection of this Lever. Manual Hand To drive forward use one of the two (1.3a) Wig Wag levers. Brake To drive backward us one of the two (1.3b) Wig Wag levers.
  • Page 23 (Numbers in the table refers to figure no.7 and figure no.6) Parking After stopping, turn the Main Key Switch (1.17) to OFF and remove the key. The ON lights will turn OFF. The Electromagnetic Brake is engaged (locked). Note: The Electromagnetic Brake is automatically locked whenever the Operating Lever is released and after the Breeze stops completely.
  • Page 24 engaging. 5. Make a check of all the buttons functions on the handlebar. 6. Switch off the main key switch. Your Breeze C is now ready to drive. Pre-use The user should know his weight and all other loads are lower than measures the maximum of 135 Kg (297 lbs) / 150 Kg (330 lbs) depend on the model.

  • Page 25: Chapter 6 - Charging

    CHAPTER 6 – CHARGING Read Charger’s manual before using the charger. Warning: If you use a different charger, ask your dealer for instructions. CHARGING BATTERIES (See figure 9) 1. Insert first the Charging Plug (8) to the Charging Socket (10) located at the right side of the tiller box.

  • Page 26: Chapter 7 - Maintenance

    CHAPTER 7 – MAINTENANCE Note: 1. Maintenance Manual is available for trained technicians. 2. The numbers in parentheses refer to the parts illustrated in figure 11. Although the Breeze C requires minimal maintenance, do not neglect it. When servicing the Breeze C, make sure that it stands on a level surface and that the key is not inserted. ...
  • Page 27 Replace Remove batteries terminal insulating cap. Each time remove only one cap. Batteries Unsecure the screw of the wiring terminal from battery terminal using 8 mm key. Make sure your 8 mm key is not touching any other terminal or metal part.

  • Page 28: Chapter 8 - Troubleshooting And Fault Repair

    CHAPTER 8 – TROUBLESHOOTING AND FAULT REPAIR The following table provides troubleshooting and repair instructions for symptoms encountered when operating the Breeze C. It presents the best ways to handle the faults. The table contains three columns: The Symptom - describes the functional problem that results from the fault. Probable Cause - lists all probable causes for the relevant symptom.
  • Page 29 TROUBLESHOOTING AND FAULT REPAIR (Cont.) Symptom Probable Causes Remedy  Low air pressure.  Pump to normal pressure. Flat tire and unstable  Puncture.  Repair the tire. driving.   Ask for technical The Display Flashes and Controller Coded Assistance.

  • Page 30: Chapter 9 - Emi Warning

    CHAPTER 9 – EMI WARNING All types of electrically powered vehicles, such as powered wheelchairs and motorized scooters (in this text all types will be referred to as “powered vehicles”) may be susceptible to electromagnetic interference (EMI). This is from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones.

  • Page 31: Appendix A - Specifications Sheet

    Appendix A – Specifications Sheet Type: BREEZE C4 Manufacturer: Kibuutz Afikim 14148, Israel Maximum occupant mass: 150 kg (For the tests a 100kg dummy according ISO 7176-11 was used, added by 50 kg masses distributed approximately proportional to the dummy weight distribution)
