Summary of Contents for Afikim Afiscooter-C

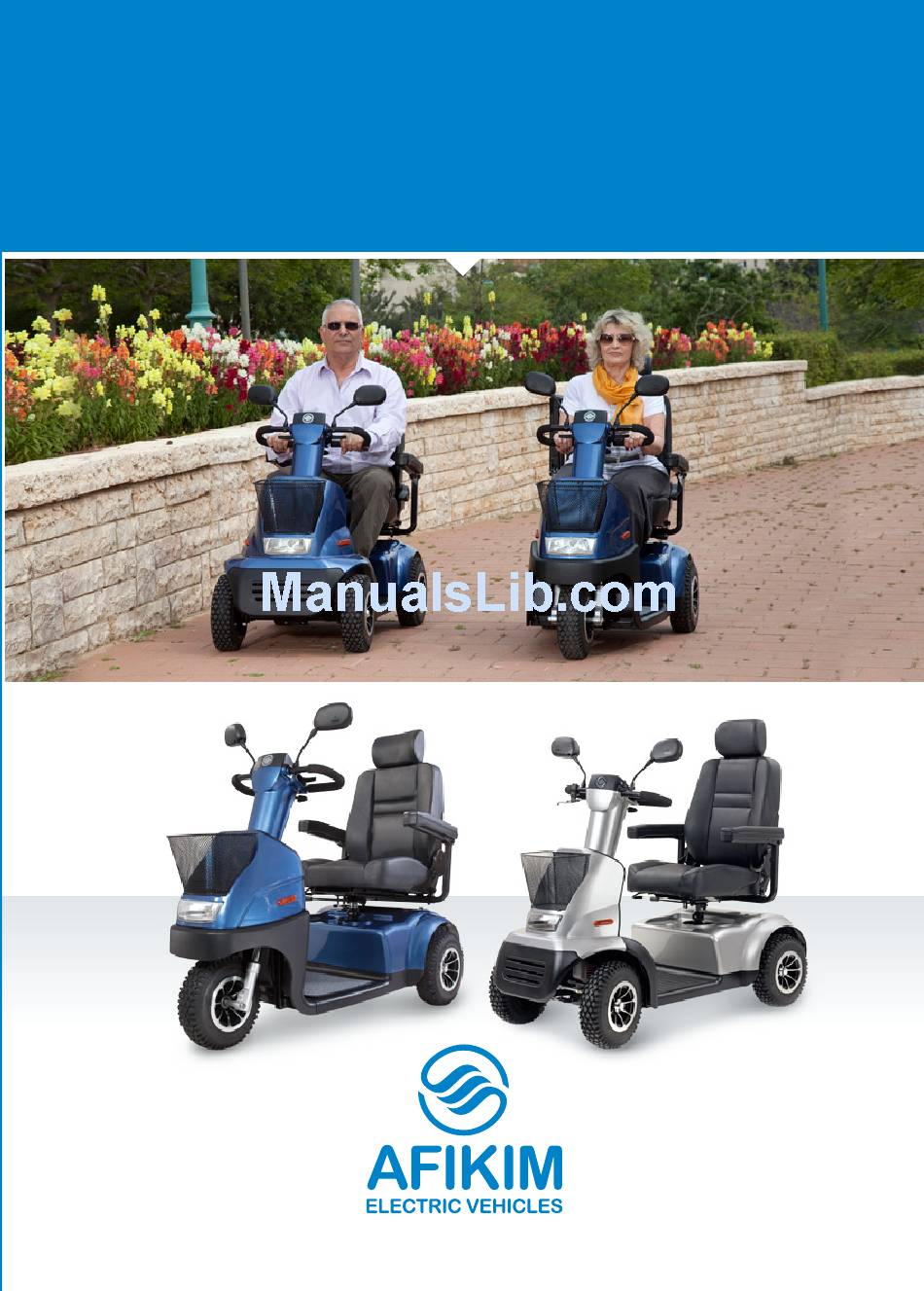

  • Page 1 Afiscooter-C Afiscooter User Manual...
  • Page 2 AFISCOOTER C WARRANTY AFIKIM ELECTRIC VEHICLES strives continuously to improve its products, their quality and reliability, in constant effort to ensure its customers’ satisfaction as well as its place in the market. Warranty for is subject to your local distributor's warranty.

  • Page 3: Table Of Contents

    CONTENTS CHAPTER 1 – OVERVIEW OF AFISCOOTER C (MAIN FEATURES) CHAPTER 2 – SAFETY SYMBOLS FOR AFISCOOTER C CHAPTER 3 – SAFETY INSTRUCTIONS FOR AFISCOOTER C CHAPTER 4 – GENERAL DESCRIPTION OF AFISCOOTER C CHAPTER 5 – ADJUSTMENT INSTRUCTIONS CHAPTER 6 – OPERATING INSTRUCTIONS CHAPTER 7 –...

  • Page 4: Afiscooter C

    CHAPTER 1 – OVERVIEW OF AFISCOOTER C MAIN FEATURES) Congratulations on choosing as your electrically powered scooter. AFISCOOTER C is a scooter for elderly and disabled persons, and for fun and sport. AFISCOOTER C Scooter classification: Class B in accordance with EN12184. is designed for a maximum occupant mass of up to 135kg AFISCOOTER C (300 lbs, 3W) / 150kg (330 lbs, 4W).
  • Page 5 CHAPTER 2 – SAFETY SYMBOLS FOR AFISCOOTER C WARNING! An authorized supplier or qualified technician must perform the initial setup of this scooter, and must perform all of the procedures in this manual. The symbols below are used throughout this user’s manual and on the scooter to identify warnings and important information.
  • Page 6 Never put your hands, fingers, or legs into any moving parts or under any protective cover, since moving parts and hot surfaces are under those covers. When making adjustments (folding the seat back, adjusting the armrest, moving the seat forward or backward, adjusting the tiller distance), as well as when squeezing the throttle control lever or handbrake, always take care that your hands and fingers are not trapped between any of the moving parts.
  • Page 7 Batteries contain lead and acid, which is very corrosive. Batteries must be disposed of in accordance with proper procedures. When driving, always make sure that the backrest is in its fully upright position. Use lead acid maintenance-free sealed batteries only. WARNING!!! Special care must be taken to prevent children from operating AFISCOOTER C Do not allow unsupervised children to play near...
  • Page 8 Make sure your fingers are not squeezed between the levers and the rubber grip. Do not use a cell phone, walkie-talkie, laptop, or other radio transmitter while operating AFISCOOTER C Removal of the grounding prong can create electrical hazard. If it is necessary to use a 2-pronged electrical outlet, properly install an approved 3-pronged adapter.
  • Page 9 The battery charger is for indoor use only. Flammable material. Do not expose to open flame. At the rear of is the manual release lever of the EMB. When AFISCOOTER C using this lever, be careful not to touch the internal surface of the motor, as it could be very hot and cause injury.
  • Page 10 CHAPTER 3 – SAFETY INSTRUCTIONS for AFISCOOTER C GENERAL MANDATORY! Do not operate your new scooter for the first AFISCOOTER C time without reading and understanding this user manual completely. Your is a state-of-the-art life-enhancement device designed to AFISCOOTER C increase mobility.
  • Page 11 TIRE INFLATION Your is equipped with pneumatic tires. Check the tire pressure AFISCOOTER C at least once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of your AFISCOOTER C WARNING! It is critically important that the psi/bar/kPa air pressure indicated on each tire is maintained at all times.
  • Page 12  speed 12 km/hr: (450W) AFISCOOTER C  speed 10 km/hr: (450W) AFISCOOTER C  speed 15 km/hr: (950W) AFISCOOTER C  speed 12 km/hr: (950W) AFISCOOTER C  speed 10 km/hr: (950W) AFISCOOTER C Figure A: Maximum Recommended Incline Angles When driving up an incline, try to keep your moving.
  • Page 13 WARNING! Do not drive your scooter across an incline or diagonally up or AFISCOOTER C down an incline; if possible, do not stop while driving up or down an incline. WARNING! Do not drive up or down a potentially hazardous incline (e.g., areas covered with snow, ice, cut grass, or wet leaves).
  • Page 14 WARNING! When cornering sharply, reduce your speed and maintain a stable centre of gravity. When using your at higher speeds, do not corner sharply. This AFISCOOTER C greatly reduces the possibility of a tip or fall. Always exercise your common sense when cornering.
  • Page 15 FREEWHEEL MODE Your is equipped with a manual freewheel lever that, when AFISCOOTER C pushed forward, allows to be pushed. For more information AFISCOOTER C about how to place your in and out of freewheel mode, see AFISCOOTER C Chapter 4 – General description of the AFISCOOTER C WARNING! When your is in freewheel mode, the parking...
  • Page 16 NOTE: Sometimes manoeuvring your may be difficult in elevators and AFISCOOTER C building entrances. Use caution when attempting to manoeuvre your AFISCOOTER C small spaces, and avoid areas that might pose a problem. LIFTS/ELEVATION PRODUCTS If you travel with your , you may find it necessary to use a lift or elevation AFISCOOTER C product to aid in transportation.
  • Page 17 PREVENTING UNINTENDED TRAVEL WARNING! If you anticipate being stationary for an extended period of time, turn off the power. This will prevent unexpected travel caused by accidentally touching the throttle control lever. GETTING ONTO AND OFF YOUR AFISCOOTER C Getting onto and off your requires a good sense of balance.
  • Page 18 WARNING! The manufacturer strongly recommends that you do not smoke while seated on your , although seat has passed the necessary testing AFISCOOTER C AFISCOOTER C requirements for cigarette smoking. You must adhere to the following safety guidelines if you decide to smoke cigarettes while seated on your AFISCOOTER C ...
  • Page 19 CHAPTER 4 – GENERAL DESCRIPTION OF AFISCOOTER C Note: The numbers in parentheses refer to the parts illustrated on Figures 1, 2, and 3. (1.12 is optional) (1.12 is optional) Figure 1: Figure 2: AFISCOOTER C4 AFISCOOTER C3 (1.12 is optional) Figure 3...
  • Page 20 Tiller/Handlebars (1) Your is designed for either hand AFISCOOTER C operation, but it is delivered with right-hand controls. Left-hand controls can be set up by your dealer. Serial number and manufacturer’s data are on a plate, Plate with serial number and manufacturer’s data on the mud guard, in front of your foot.
  • Page 21 CHAPTER 5 – ADJUSTMENT INSTRUCTIONS (Numbers refer to Figures 4 and 5) Adjusting the Adjust the position of the handlebars (height and distance) as follows: handlebars (1) 1. Release the handlebar adjustment lever (1.5) (which locks the (option) handlebars in place), by pushing it to the left. 2.
  • Page 22 CHAPTER 6 – OPERATING INSTRUCTIONS Figure 6 (1.12 is optional) Figure 7 (Numbers refer to Figures 6 and 7)  Key switch (1.17) The main key switch is located on the tiller panel at the top of the handlebar column (1). The key switch has two positions: ...
  • Page 23 (Numbers refer to Figures 6 and 7) Adjusting the The handbrake cable mechanism can be adjusted by an authorized handbrake (1.12) technician or dealer, or by any authorized professional AFISCOOTER C to adjust handbrakes mounted on bicycles or motorcycles. The handbrake is part of your safety system. DO NOT adjust it yourself—get professional assistance! The handbrake is optional.
  • Page 24 (Numbers refer to Figures 6 and 7) Hazard button The Hazard button activates the hazard lights (i.e., both indicators (1.16) and the front and rear blinkers). When the hazard lights are activated, all three LEDs (5.3, 5.4, 5.6) flash. To turn off the hazard lights, press the button again. Lock-out while When is being charged it is in lock-out mode.
  • Page 25 (Numbers refer to Figures 6 and 7) Performance A performance check is highly recommended when you first receive check your , or after a period of not using , as AFISCOOTER C AFISCOOTER C follows: 1. Turn on the key switch. 2.

  • Page 26: Afiscooter C Batteries

    CHAPTER 7 – CHARGING AFISCOOTER C BATTERIES Read the charger manual before using it. Warning: If you use a charger other than the one supplied with your AFISCOOTER C ask your dealer for instructions. CHARGING BATTERIES (see Figure 9) 1. Insert the charger plug (8) in the charging socket (10) located on the right side of the tiller column.
  • Page 27 CHAPTER 8 – MAINTENANCE Note: A Maintenance Manual is available for trained technicians. Although requires very little maintenance, do not neglect it. When AFISCOOTER C performing maintenance procedures on , make sure that it stands on a level AFISCOOTER C surface and that the key is not inserted.
  • Page 28 (Numbers refer to Figure 10) Removing To remove the battery cover, unscrew the screws (2.3) holding it in place, and replacing then lift it until it clears the seat-mounting post (4). the battery To replace the battery cover, re-install it over the seat-mounting post and cover (2) make sure it is seated properly, then secure it with the screws.

  • Page 29: Replacement Parts

    CHAPTER 9 – TROUBLESHOOTING AND REPAIR The following table provides troubleshooting and repair instructions for problems that may be encountered when operating , as well as the best way to correct the AFISCOOTER C problem. The table contains three columns: Symptom Probable Cause Remedy...
  • Page 30 CHAPTER 10 – EMI WARNING All types of electrically powered vehicles, such as powered wheelchairs and motorized scooters (in this text all types will be referred to as “powered vehicles”) may be susceptible to electromagnetic interference (EMI). This is from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones.
  • Page 31 Appendix A – Specification Sheet Type: AFISCOOTER C3/C4 Manufacturer: Kibbutz Afikim 15148, Israel Maximum occupant mass: 150 kg (for the tests, a 100kg (220 lbs) dummy according ISO 7176-11 was used, supplemented by 50kg(110lbs) weights distributed approximately proportional to the dummy’s weight distrib.)
