- Page 1 Afiscooter-S Afiscooter User Manual...
- Page 2 AFISCOOTER S. (See 4.6 in figure 3, page 18) WARRANTY AFIKIM ELECTRIC VEHICLES strives continuously to improve its products, their quality and reliability, in constant effort to ensure its customers’ satisfaction as well as its place in the market.
-
Page 3: Table Of Contents
CONTENTS CHAPTER 1 – OVERVIEW OF AFISCOOTER S (MAIN FEATURES) CHAPTER 2 – SAFETY SYMBOLS FOR AFISCOOTER S CHAPTER 3 – SAFETY INSTRUCTIONS FOR AFISCOOTER S CHAPTER 4 – GENERAL DESCRIPTION OF THE AFISCOOTER S CHAPTER 5 – ADJUSTMENT INSTRUCTIONS CHAPTER 6 –... -
Page 4: Chapter 1 - Overview Of Afiscooter S (Main Features)

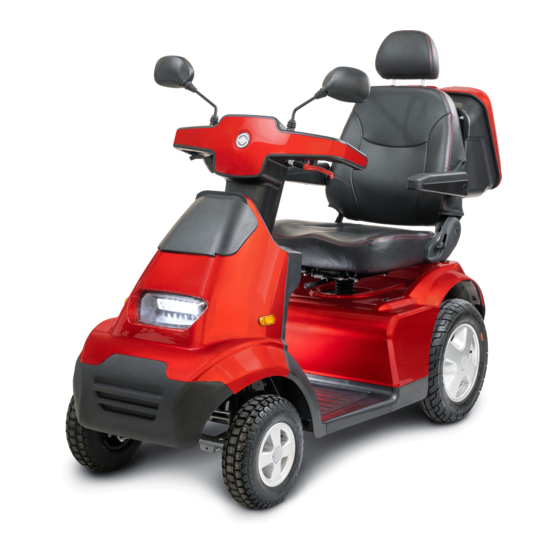

CHAPTER 1 – OVERVIEW OF THE AFISCOOTER S (MAIN FEATURES) Congratulations on choosing the AFISCOOTER S as your electrically powered scooter. AFISCOOTER S is a scooter for elderly and disabled persons, and for fun and sport. Scooter classification: Class B in accordance with EN12184. AFISCOOTER S is designed for a maximum occupant mass of 160 kg (352 lbs) with 3 wheels, and 200Kg (440 lbs) with 4 Wheels.). -
Page 5: Chapter 2 - Safety Symbols For Afiscooter S
CHAPTER 2 – SAFETY SYMBOLS FOR THE AFISCOOTER S WARNING! An authorized supplier or qualified technician must perform the initial setup of this scooter, and must perform all of the procedures in this manual. The symbols below are used throughout this user’s manual and on the scooter to identify warnings and important information. - Page 6 Never remove any of the AFISCOOTER S safety parts such as fenders, plastic covers or emergency brake lever. Never remove any of the Warning labels. If any of the Warning labels is removed, gets worn off or painted over, etc. ask your dealer to supply you with a new label.
- Page 7 The seat weighs 20 kg (44 lbs). Each battery weighs a minimum of 23 kg (50.6 lbs). Be careful when lifting the seat and the batteries. See instruction for lifting the seat and the batteries in Chapter 8: Maintenance, and Chapter 9: Troubleshooting and Repair. Always lift using your knees and legs, not your back.
- Page 8 The lights of AFISCOOTER S should be on when visibility is reduced, day or night. Since your seat upholstery is fire resistant, do not cover it or replace with any upholstery other than upholstery of the same kind. When removing the battery cover, watch out for hot parts. The motor, axle, EMB, electronic cards and electronic controller might be hot, Do not touch them until you have checked their temperature.
- Page 9 Disposal and recycling: Contact your authorized dealer for information on proper disposal of your AFISCOOTER S and its packaging. Wear safety glasses. Contains lead. The battery charger is for indoor use only. Flammable material. Do not expose to open flame. At the rear of the AFISCOOTER S is the manual release lever of the EMB.
-
Page 10: Chapter 3 - Safety Instructions For Afiscooter S
CHAPTER 3 – SAFETY INSTRUCTIONS for AFISCOOTER S GENERAL MANDATORY! Do not operate your new AFISCOOTER S scooter for the first time without reading and understanding this user manual completely. Your AFISCOOTER S is a state-of-the-art life-enhancement device designed to increase mobility. We provide an extensive range of products to best fit the individual needs of the user. - Page 11 TYRE INFLATION Your AFISCOOTER S is equipped with pneumatic tyres. Check the tyre pressure at least once a week. Proper inflation pressures will prolong the life of your tyres and help ensure the smooth operation of your AFISCOOTER S. WARNING! It is critically important that the psi/bar/kPa air pressure indicated on each tyre is maintained at all times.
- Page 12 throttle control lever, then push the throttle control lever forward slightly to ensure a safely controlled descent. WARNING! When on any incline, never place the AFISCOOTER S in freewheel mode while seated on it or standing next to it. WARNING! When climbing an incline, do not zigzag or drive up at an angle Always drive your AFISCOOTER S scooter straight up the incline.
- Page 13 CORNERING INFORMATION Excessively high cornering speeds can result in tipping. Factors that affect the possibility of tipping include, but are not limited to, cornering speed, steering angle (how sharply you are turning), uneven road surfaces, inclined road surfaces, riding from an area of low traction to an area of high traction (such as passing from a grassy area to a paved area –...
- Page 14 PRECAUTIONS DURING INCLEMENT WEATHER Avoid exposing your AFISCOOTER S to inclement weather. If you are suddenly caught up in rain, snow, severe cold or heat while operating your AFISCOOTER S, proceed to shelter at the earliest opportunity. Thoroughly dry your AFISCOOTER S before storing, charging, or operating it.
- Page 15 DOORS Determine whether the door opens toward or away from you. Use your hand to turn the knob or to push the handle or push-bar. If the door opens away from you, drive your AFISCOOTER S gently and slowly forward to push the door open.
- Page 16 Anyone travelling in a motor vehicle must be properly secured in the motor vehicle seat with securely fastened seat belts. WARNING! Do not sit on your AFISCOOTER S while it is in a moving vehicle. WARNING! Always be sure your AFISCOOTER S and its batteries are properly secured when it is being transported.
- Page 17 PROHIBITED! Keep your hands away from the tyres and wheels when driving. Be aware that loose-fitting clothing can be caught in tyres and wheels. PRESCRIPTION DRUGS/PHYSICAL LIMITATIONS The AFISCOOTER S user must exercise care and common sense when operating the AFISCOOTER S.
-
Page 18: Chapter 4 - General Description Of The Afiscooter S
CHAPTER 4 – GENERAL DESCRIPTION OF THE AFISCOOTER S Note: The numbers in parentheses refer to the parts illustrated on Figures 1, 2, and 3. Figure 1 Figure 2 Figure 3 Keys/Cellphone pockets (4.5) Right & Left Serial number and manufacturer’s data are on a Plate with serial number and manufacturer’s data (4.6) plate on the mud guard in front of your foot. - Page 19 Buzzer (1.18) Used to alert the surrounding people when needed. Front basket (4.1) For carrying parcels and personal effects. Maximum load 8 kg (17.6 lbs). Headlight (4.2) and (A) Headlight for poor visibility conditions front blinkers (4.3) (B) Blinkers for turnings signals Front bumper (4.4) Battery cover (2) Protects the power unit, electronics and batteries.
-
Page 20: Chapter 5 - Adjustment Instructions
CHAPTER 5 – ADJUSTMENT INSTRUCTIONS (Numbers refer to Figures 4 and 5) Adjusting the tiller Adjust the angle of the tiller as follows: Release the tiller adjustment lever (1.10), by pushing it angle (1.7) down. Release the lever at the desired place. Adjusting the Handlebar height can be adjusted about 40mm by a technician. -
Page 21: Chapter 6 - Operating Instructions
CHAPTER 6 – OPERATING INSTRUCTIONS 6.1 GENERAL Figure 6 (Numbers refer to Figures 6 and 7) The main key switch is located at the top of the tiller box (1). Key switch (1.11) The key switch has two positions: ... -
Page 22: Lcd Display Use
Buzzer buttons Push one of the 2 Buttons (1.9) to activate the buzzer. The buzzer sounds automatically under the following conditions (except (1.9) where prohibited by law),: 1. When reversing 2. When operating the left or right indicator Remark: It is possible to change the Buzzer functionality by changing a dip switch in the front board .This needs to be done by an authorized technician. - Page 23 (Numbers refer to Figures 6 and 7) LCD Display When driving and operating the AFISCOOTER S, all the required information is displayed on the LCD screen (1.1). See details below. Battery status The Battery Capacity Indicator (5.5) on the LCD screen, displays the Indicator remaining battery capacity.
-
Page 24: Driving And General Use
Clock setup When changing to clock mode with the MODE button, press it for 7 seconds and you will enter the Setup mode of the clock. Adjusting the clock : Use the left Setup button and the right Mode button as follows: Every push on Mode changes the time unit and the selected unit flashes. - Page 25 Performance A performance check is highly recommended when you first receive your check AFISCOOTER S or after a period of not using the AFISCOOTER S, as follows: 1. Turn on the key switch. 2. Verify that the LCD display is ON. 3.
-
Page 26: Chapter 7 - Charging
CHAPTER 7 – CHARGING Read the charger manual before using it. Warning: If you use a charger other than the one supplied with your AFISCOOTER S ask your dealer for instructions. CHARGING BATTERIES (See figure10) 1. Insert the charger plug (8) in the charging socket (9) located on the right side of the tiller column. - Page 27 Figure 10...
-
Page 28: Chapter 8 - Maintenance
CHAPTER 8 – MAINTENANCE Note: 1. Maintenance Manual is available for trained technicians. 2. The numbers in parentheses refer to the parts illustrated in figure 11. Although the requires very little maintenance, do not neglect it. When AFISCOOTER S performing maintenance procedures on the , make sure that it stands on a AFISCOOTER S level surface and that the key is not inserted. - Page 29 Removing and To replace the battery cover, re-install it over the seat-mounting replacing the battery post and make sure it is seated properly, then secure it with the cover (2) four screws (2.6). Batteries Each battery weighs 23 kg (50.6 lbs). The batteries must be lifted by two people or by an adequate lifting equipment.
- Page 30 Figure 11 Figure 12...
-
Page 31: Chapter 9 - Troubleshooting And Repair
CHAPTER 9 – TROUBLESHOOTING AND REPAIR The following table provides troubleshooting and repair instructions for problems that may be encountered when operating the . as well as the best way to correct the AFISCOOTER S problem. The table contains three columns: Symptom Probable Cause Remedy... -
Page 32: Chapter 10 - Emi Warning
CHAPTER 10 – EMI WARNING All types of electrically powered vehicles, such as powered wheelchairs and motorized scooters (in this text all types will be referred to as “powered vehicles”) may be susceptible to electromagnetic interference (EMI). This is from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones. -
Page 33: Appendix A - Specification Sheet
Appendix A – Specification Sheet Type: AFISCOOTER S Manufacturer: Kibbutz Afikim 15148, Israel Maximum occupant mass: kg (for the tests, a dummy according ISO 7176-11 was used, 150kg supplemented by 50 kg weights distributed approximately proportional to the dummy’s weight distribution)
