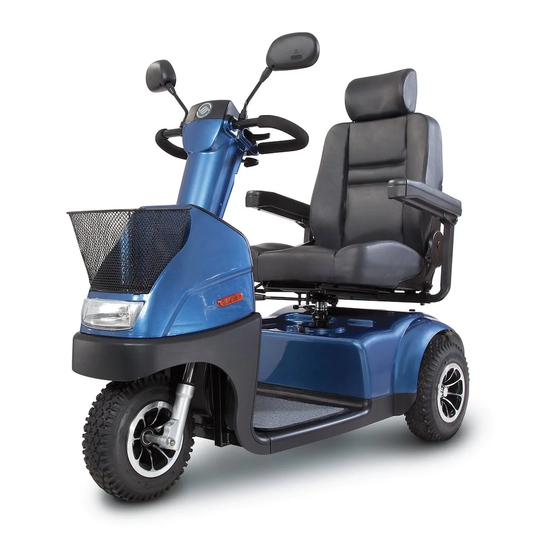

Afikim Breeze C3 User Manual

The senior class lifestyler
Hide thumbs

Advertisement

Table of Contents

The Senior Class Lifestyler
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Breeze C3 and is the answer not in the manual?

Questions and answers

Wayne Shorrock
April 25, 2025

on switch stays on in off position

0
1 comments:
Mr. Anderson
May 12, 2025

The switch on the Afikim Breeze C3 does not stay on in the off position. It stays in the ON position when turned clockwise, allowing the scooter to operate. The switch is used to operate the Breeze C3, not for locking.

This answer is automatically generated

0

Related Manuals for Afikim Breeze C3

Summary of Contents for Afikim Breeze C3

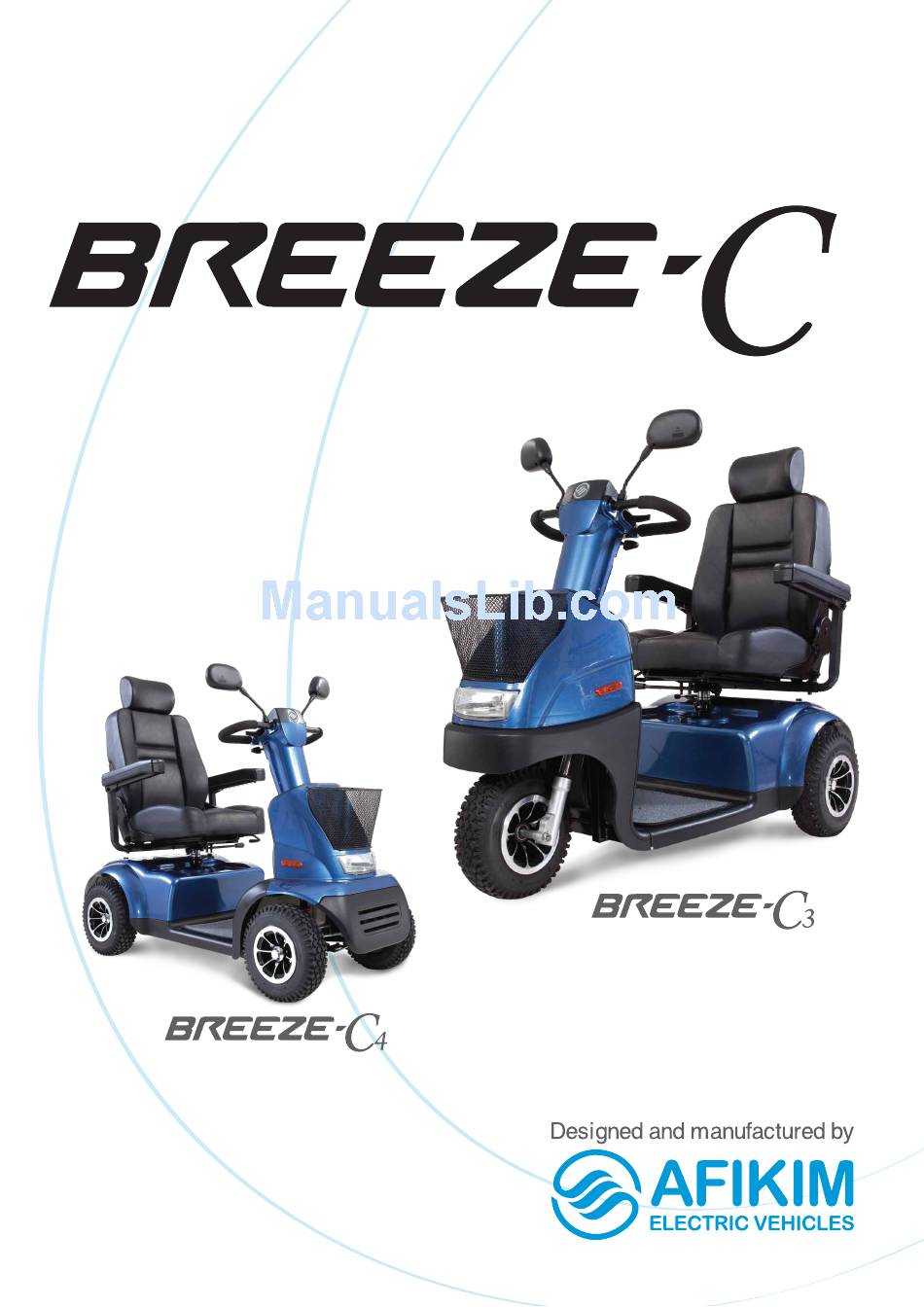

  • Page 1 The Senior Class Lifestyler User Manual...
  • Page 2 Breeze C. WARRANTY AFIKIM ELECTRIC VEHICLES strives continuously to improve its products, their quality and reliability, in constant effort to ensure its customers’ satisfaction as well as its place in the market.

  • Page 3: Table Of Contents

    CONTENTS CHAPTER 1 – OVERVIEW OF THE Breeze C (MAIN FEATURES) CHAPTER 2 – SAFETY SYMBOLS FOR THE Breeze C CHAPTER 3 – SAFETY INSTRUCTIONS for Breeze C CHAPTER 4 – GENERAL DESCRIPTION OF THE Breeze C CHAPTER 5 – ADJUSTMENT INSTRUCTIONS CHAPTER 6 –...

  • Page 4: Chapter 1 - Overview Of The Breeze C (Main Features)

    CHAPTER 1 – OVERVIEW OF THE Breeze C (MAIN FEATURES) Congratulations on choosing the Breeze C as your electrically powered scooter. The Breeze C is a scooter for elderly and disabled persons, and for fun and sport. Scooter classification: Class B in accordance with EN12184. The Breeze C is designed for a maximum occupant mass of 150 kg (330 lbs).

  • Page 5: Chapter 2 - Safety Symbols For The Breeze C

    CHAPTER 2 – SAFETY SYMBOLS FOR THE Breeze C WARNING! An authorized supplier or qualified technician must perform the initial setup of this scooter, and must perform all of the procedures in this manual. The symbols below are used throughout this user’s manual and on the scooter to identify warnings and important information.
  • Page 6 Never put your hands, fingers, or legs into any moving parts or under any protective cover, since moving parts and hot surfaces are under those covers. When making adjustments (folding the seat back, adjusting the armrest, moving the seat forward or backward, adjusting the tiller distance), as well as when squeezing the throttle control lever or handbrake, always take care that your hands and fingers are not trapped between any of the moving parts.
  • Page 7 Batteries contain lead and acid, which is very corrosive. Batteries must be disposed of in accordance with proper procedures. When driving, always make sure that the backrest is in its fully upright position. Use lead acid maintenance-free sealed batteries only. WARNING!!! Special care must be taken to prevent children from operating the Breeze C.
  • Page 8 Make sure your fingers are not squeezed between the levers and the rubber grip. Do not use a cell phone, walkie-talkie, laptop, or other radio transmitter while operating the Breeze C. Removal of the grounding prong can create electrical hazard. If it is necessary to use a 2-pronged electrical outlet, properly install an approved 3-pronged adapter.
  • Page 9 The battery charger is for indoor use only. Flammable material. Do not expose to open flame. At the rear of the Breeze C is the manual release lever of the EMB. When using this lever, be careful not to touch the internal surface of the motor, as it could be very hot and cause injury.

  • Page 10: Chapter 3 - Safety Instructions For Breeze C

    CHAPTER 3 – SAFETY INSTRUCTIONS for Breeze C GENERAL MANDATORY! Do not operate your new Breeze C scooter for the first time without reading and understanding this user manual completely. Your Breeze C is a state-of-the-art life-enhancement device designed to increase mobility.
  • Page 11 TYRE INFLATION Your Breeze C is equipped with pneumatic tyres. Check the tyre pressure at least once a week. Proper inflation pressures will prolong the life of your tyres and help ensure the smooth operation of your Breeze C. WARNING! It is critically important that the psi/bar/kPa air pressure indicated on each tyre is maintained at all times.
  • Page 12  Breeze C speed 12 km/hr: (450W)  Breeze C speed 10 km/hr: (450W)  Breeze C speed 15 km/hr: (950W)  Breeze C speed 12 km/hr: (950W)  Breeze C speed 10 km/hr: (950W) Figure A: Maximum Recommended Incline Angles When driving up an incline, try to keep your Breeze C moving.
  • Page 13 WARNING! Do not drive your Breeze C scooter across an incline or diagonally up or down an incline; if possible, do not stop while driving up or down an incline. WARNING! Do not drive up or down a potentially hazardous incline (e.g., areas covered with snow, ice, cut grass, or wet leaves).
  • Page 14 WARNING! When cornering sharply, reduce your speed and maintain a stable centre of gravity. When using your Breeze C at higher speeds, do not corner sharply. This greatly reduces the possibility of a tip or fall. Always exercise your common sense when cornering.
  • Page 15 FREEWHEEL MODE Your Breeze C is equipped with a manual freewheel lever that, when pushed forward, allows the Breeze C to be pushed. For more information about how to place your Breeze C in and out of freewheel mode, see Chapter 4 – General description of the Breeze C.
  • Page 16 LIFTS/ELEVATION PRODUCTS If you travel with your Breeze C, you may find it necessary to use a lift or elevation product to aid in transportation. We recommend that you closely review the manufacturer’s instructions, specifications, and safety information before using the lift/elevation product. WARNING! Never sit on your Breeze C when it is being used with any type of lift/elevation product.
  • Page 17 PREVENTING UNINTENDED TRAVEL WARNING! If you anticipate being stationary for an extended period of time, turn off the power. This will prevent unexpected travel caused by accidentally touching the throttle control lever. GETTING ONTO AND OFF YOUR Breeze C Getting onto and off your Breeze C requires a good sense of balance. Please observe the following safety tips when getting on and off your Breeze C: ...
  • Page 18 requirements for cigarette smoking. You must adhere to the following safety guidelines if you decide to smoke cigarettes while seated on your Breeze C.  Do not leave lit cigarettes unattended.  Keep ashtrays a safe distance from the seat cushions. ...

  • Page 19: Chapter 4 - General Description Of The Breeze C

    CHAPTER 4 – GENERAL DESCRIPTION OF THE Breeze C Note: The numbers in parentheses refer to the parts illustrated on Figures 1, 2, and 3. Figure 1: Breeze C4 Figure 2: Breeze C3 Figure 3...
  • Page 20 Tiller/Handlebars (1) Your Breeze C is designed for either hand operation, but it is delivered with right-hand controls. Left-hand controls can be set up by your dealer. Serial number and manufacturer’s data are on a plate Plate with serial number and manufacturer’s data on the mud guard in front of your foot.

  • Page 21: Chapter 5 - Adjustment Instructions

    Use the seat rotation lever (3.2) to rotate the seat sideways, and raise the armrest (3.4) to give you easy access to the seat. Use the seat forward/reverse lever (3.1) to adjust the location of the seat. Figure 4: Breeze C4 Figure 5: Breeze C3...

  • Page 22: Chapter 6 - Operating Instructions

    CHAPTER 6 – OPERATING INSTRUCTIONS Figure 6 Figure 7 (Numbers refer to Figures 6 and 7)  Key switch The main key switch is located on the tiller panel at the top of the (1.17) handlebar column (1). The key switch has two positions: ...
  • Page 23 (Numbers refer to Figures 6 and 7) Adjusting the The handbrake cable mechanism can be adjusted by an authorized handbrake Breeze technician or dealer, or by any professional authorized to adjust (1.12) handbrakes mounted on bicycles or motorcycles. The handbrake is part of your safety system. DO NOT adjust it yourself—get professional assistance! The handbrake is optional.
  • Page 24 (Numbers refer to Figures 6 and 7) Hazard button The Hazard button activates the hazard lights (i.e., both indicators and (1.16) the front and rear blinkers). When the hazard lights are activated, all three LEDs (5.3, 5.4, 5.6) flash. To turn off the hazard lights, press the button again. Lock-out while When the Breeze C is being charged it is in lock-out mode.
  • Page 25 (Numbers refer to Figures 6 and 7) Performance A performance check is highly recommended when you first receive check your Breeze C or after a period of not using the Breeze C, as follows: 1. Turn on the key switch. 2.

  • Page 26: Chapter 7 - Charging The Breeze C Batteries

    CHAPTER 7 – CHARGING THE Breeze C BATTERIES Read the charger manual before using it. Warning: If you use a charger other than the one supplied with your Breeze C, ask your dealer for instructions. CHARGING BATTERIES (see Figure 9) 1.

  • Page 27: Chapter 8 - Maintenance

    CHAPTER 8 – MAINTENANCE Note: A Maintenance Manual is available for trained technicians. Although the Breeze C requires very little maintenance, do not neglect it. When performing maintenance procedures on the Breeze C, make sure that it stands on a level surface and that the key is not inserted.
  • Page 28 (Numbers refer to Figure 10) Removing To remove the battery cover, unscrew the five screws (2.3) holding it in and replacing place, then lift it until it clears the seat-mounting post (4). the battery To replace the battery cover, re-install it over the seat-mounting post and cover (2) make sure it is seated properly, then secure it with the five screws.

  • Page 29: Chapter 9 - Troubleshooting And Repair

    CHAPTER 9 – TROUBLESHOOTING AND REPAIR The following table provides troubleshooting and repair instructions for problems that may be encountered when operating the Breeze C. as well as the best way to correct the problem. The table contains three columns: Symptom Probable Cause Remedy...

  • Page 30: Chapter 10 - Emi Warning

    CHAPTER 10 – EMI WARNING All types of electrically powered vehicles, such as powered wheelchairs and motorized scooters (in this text all types will be referred to as “powered vehicles”) may be susceptible to electromagnetic interference (EMI). This is from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones.

  • Page 31: Appendix A - Specification Sheet

    ** The maximum speed in every country is limited according local traffic regulations. Date: June 2011 Edition: Revision Products: Breeze C, 4-Wheel and 3-Wheel P/N of the user manual: PRC4001 File : I:\RD\Breeze C\Breeze C User Manual\Breeze C3 & C4-User-Manual-English -rev10 (17-8-2010) A4 format.doc...
  • Page 32 Kibbutz Afikim Jordan Valley 15148 Israel Tel: 972-4 6754814 Fax: 972-4 6751456 Email: mainbox@af iscooters.com www.afiscooters.com Distributed by:...

This manual is also suitable for:

Breeze c4Breeze-c3
