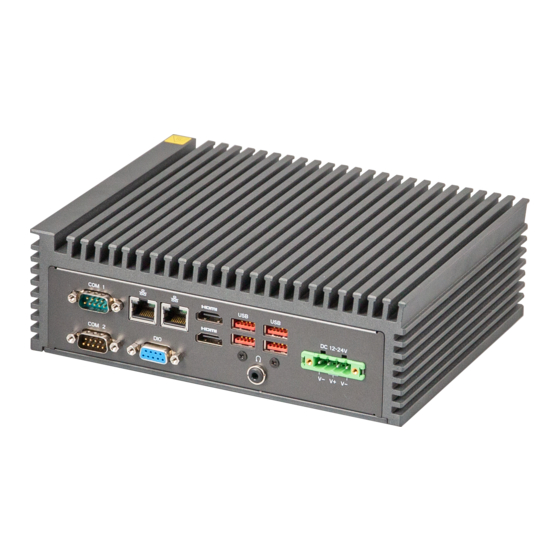

Page 1: Qbix-Expert Industrial Embedded System
QBiX-Expert-TGLA1165G7H-A1 QBiX-Expert-TGLA1135G7H-A1 QBiX-Expert-TGLA1115G4EH-A1 QBiX-Expert Industrial Embedded System Quick Start Guide www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Item Quantity System kit Terminal Blocks Male Plug (25IO0-2ESDV0-D2R) 2.5” HDD screw, M3x4L (25984G-1C014-S00) Thermal pad for Memory (25ST3-200086-T5R) If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. 19. This equipment and PoE’s peripheral device are restricted for indoor usage. www.gigaipc.com...
-
Page 8: Fcc Statement
Skilled person have to pay special attention or take special protection. Only authorized by well trained professional person can access the restrict access location. (2) External metal parts are hot!! Before touching it, special attention or protection is necessary www.gigaipc.com... -
Page 9: Table Of Contents
(Wireless Module inclusion may vary based on local distribution) ..............20 B) Memory Installation: DDR4 SO-DIMM ....21 Antenna Installation (Antenna inclusion may vary based on local distribution) ............ 22 Cable Pin-define ............23 Support ................ 24 Safety and Regulatory Information ....... 25 www.gigaipc.com... - Page 10 3.2.15 FP_AUDIO (Front Audio connector) ......43 3.2.16 PCIEX1 (PCIe Gen3 x1 connector) ......... 44 3.2.17 ME (ME Enable jumper) ..........45 3.2.18 SPK_OUT (Speaker out connector) ....... 46 3.2.19 BKL_CN (Back light brightness control header) .... 47 3.2.20 LVDS (LVDS connector) ..........48 www.gigaipc.com...
- Page 11 4.3.7 Network Stack Configuration ........63 4.3.8 NVMe Configuration ............. 64 4.3.9 Offboard SATA Controller Configuration ...... 65 4.3.10 Digital IO Port Configuration ........66 Chipset ................67 Security ................. 68 Boot ................71 Save & Exit ..............72 www.gigaipc.com...
-
Page 12: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 13 www.gigaipc.com...
-
Page 14: Specifications
2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1 1 x COM Port (RS-232/422/485 & RI/5V/12V) Rear I/O 1 x COM Port (RS-232/422/485) 1 x GPIO (8 bits) 1 x Headphone Jack 1 x 4-pin Terminal Block www.gigaipc.com... - Page 15 (Box packing) NOTE : When using 12V Power DC in, total PoE could support to 35W. When using 19V Power DC in, total PoE could support t0 45W. When using 24V Power DC in, total PoE could support to 50W. www.gigaipc.com...
-
Page 16: Chapter 2 - Qbix-Expert Industrial System Kit
Chapter 2 Chapter 2 – QBiX-Expert Industrial System Kit www.gigaipc.com... -
Page 17: Dimension
Dimension www.gigaipc.com... -
Page 18: Getting Familiar With Your Unit
2 x RJ45 LAN Ports 1 x COM Port (RS-232/422/485 & 2 x HDMI RI/5V/12V) 4 x USB 3.2 Gen 2x1 1 x 4-pin 1 x GPIO (8-bits) Terminal Block 1 x COM Port 1 x Headphone Jack (RS-232/422/485) www.gigaipc.com... - Page 19 2 x DDR4 SO-DIMM sockets, DDR4 1 x M.2 slot (Support NGFF-2280) 3200 MHz, Max. Capacity 64 GB D 1 x M.2 slot (Support NGFF-2230) 1 x Mini PCIe slot (PCIe x1 + support 2.5’’ Hard drive/SSD USB2.0) with SIM Slot www.gigaipc.com...
-
Page 20: A) Wireless Module: How To Safely Install The Module (Wireless Module Inclusion May Vary Based On Local Distribution)
Module (Wireless Module inclusion may vary based on local distribution) Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 青山依舊在，幾度夕陽紅。慣看秋月春風。一 壺濁酒喜相逢，浪花淘盡英雄。是非成敗轉頭 Install the antenna on the left side of the connection wireless module down. 向下安裝連結於無線模組左側頂端天線。 www.gigaipc.com... -
Page 21: B) Memory Installation: Ddr4 So-Dimm
B) Memory Installation: DDR4 SO-DIMM Remove the memory bracket with 2 screws. SO-DIMM 移除記憶體散熱片與其 2 顆螺 SO-DIMM 絲。 Remove the release paper on the memory backet, and assemble the memory bracket with 2 screws. SO-DIMM 移除離形紙，並組裝記憶體散熱 片與其 2 顆螺絲。 www.gigaipc.com... -
Page 22: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)
Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com... -
Page 23: Cable Pin-Define
RS-485 DB9 Pin RS-232 Full Duplex Half Duplex TXD- TXD+ RXD+ – RXD- – – – – – – – – – 2. DBP DIO (25CR5-220601-S9R) DBP DIO Pin Pin Name GPIO-output_1 GPIO-input_1 GPIO-output_2 GPIO-input_2 GPIO-output_3 GPIO-input_3 GPIO-output_4 GPIO-input_4 www.gigaipc.com... -
Page 24: Support
Support ● For a list of tested memory, M.2, 2.5’’ SSD, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com... -
Page 25: Safety And Regulatory Information
At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com... -
Page 26: Chapter 3 - Hardware Information
Chapter 3 Chapter 3 – Hardware Information www.gigaipc.com... -
Page 27: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 28 General purpose input / ouput header FP_AUDIO Front Audio connector PCIEX1 PCIe Gen3 x1 connector ME Enable jumper SPK_OUT Speaker out connector BKL_CN Back light brightness control header LVDS LVDS connector LVDS resolution jumper M.2 Slot, SATA/PCIex2, NGFF 2280 www.gigaipc.com...
- Page 29 Code Description SODIMM1 DDR4 SO-DIMM Slot SODIMM2 Trusted Platform Module connector USB31_1 USB 3.2 Gen2x1 connector USB31_2 HDMI_21 HDMI connector LAN1, LAN2 LAN connector COM1 Serial Port www.gigaipc.com...
-
Page 30: Sys_Fan (System Fan Connector)
3.2.1 SYS_FAN (System fan connector) Pin 1 System fan Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com... -
Page 31: Cpu_Fan (Cpu Fan Connector)
3.2.2 CPU_FAN (CPU fan connector) Pin 1 CPU fan Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com... -
Page 32: Fusb1, Fusb2 (Usb2.0 Headers)
3.2.3 FUSB1, FUSB2 (USB2.0 headers) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com... -
Page 33: At_Cn (At/Atx Power Mode Select Jumper)
AT_CN (AT/ATX power mode select jumper) Pin 1 AT/ATX power mode select jumper Connector PN Vendor 220-96-03GB01 PINREX HORNGTONG PH03N2 7BAN000 Pin No. Definition AT MODE TXD5 ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com... -
Page 34: Jcom1 (Com1 Ri# Pin Ri#/5V/12V Select)
3.2.5 JCOM1 (COM1 RI# pin RI#/5V/12V Select) Pin 1 JCOM1 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: 5V (Power COM) PH06N53BAZ000 HORNGTONG 3-4 Close: RI (Stand COM) (Default-Setting) 5-6 Close: 12V (Power COM) www.gigaipc.com... -
Page 35: Sata0 (Sata 6Gb/S Connector)
3.2.6 SATA0 (SATA 6Gb/s connector) SATA Connector Connector PN Vendor WATF-07DBLBA1UW WINWIN Pin No. Definition www.gigaipc.com... -
Page 36: Satapw0 (Sata 6Gb/S Power Connector)
3.2.7 SATAPW0 (SATA 6Gb/s power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com... -
Page 37: Com2, Com3, Com4
3.2.8 COM2, COM3, COM4 (Serial port header, RS-232/422/485) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition No Connect RI/ 5V/ 12V www.gigaipc.com... -
Page 38: M2E (M.2 Slot, E-Key, Ngff2230, Wifi & Bluetooth Module)
3.2.9 M2E (M.2 Slot, E-key, NGFF2230, WiFi & Bluetooth module) 3.2.10 MPCIE (Mini PCIe full size, support 3G/4G module) www.gigaipc.com... -
Page 39: Battery (Battery Cable Connector)
3.2.11 BATTERY (Battery cable Connector) Pin 1 Battery cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com... -
Page 40: Dc_In (Dc In 1X4 Pin Power Connector)
3.2.12 DC_IN (DC IN 1x4 pin power connector) Pin 1 DC IN connector Connector PN Vendor 753-81-04TW00 PINREX 1 2 34 Pin No. Definition Power Power www.gigaipc.com... -
Page 41: Sys_Panel (Front Panel Header)
3.2.13 SYS_PANEL (Front panel header) Pin 1 System Panel Header Connector PN Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com... -
Page 42: Gpio_Cnt (General Purpose Input/Output Header)
3.2.14 GPIO_CNT (General Purpose input/output header) Pin 1 GPIO Connector Pin No. Definition SMB_DATA Connector PN Vendor Pin No. Definition 725-81-12TW00 PINREX GPO1 A2004WV-2X06P46 JOINT-TECH GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK www.gigaipc.com... -
Page 43: Fp_Audio (Front Audio Connector)
3.2.15 FP_AUDIO (Front Audio connector) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L MIC_JD FAUDIO_JD MIC_R No Connect Detect HPOUT_L HPOUT_R www.gigaipc.com... -
Page 44: Pciex1 (Pcie Gen3 X1 Connector)
3.2.16 PCIEX1 (PCIe Gen3 x1 connector) Pin 1 PCIe Gen3 x1 Connector Connector PN Vendor 115B20-100020-G4-R STARCONN Pin No. Definition Pin No. Definition SRC_DP SMDATA SRC_DN CLK_REQ# PLTRST# PEWAKE# SLP_S3# +V12A +V12A SMCLK +V12A www.gigaipc.com... -
Page 45: Me (Me Enable Jumper)
3.2.17 ME (ME Enable jumper) ME Enable Connector Connector PN Vendor 220-96-02GB01 PINREX ME Enable jumper Default Enable www.gigaipc.com... -
Page 46: Spk_Out (Speaker Out Connector)
3.2.18 SPK_OUT (Speaker out connector) Pin 1 Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com... -
Page 47: Bkl_Cn (Back Light Brightness Control Header)
3.2.19 BKL_CN (Back light brightness control header) Pin 1 Back light brightness control Connector PN Vendor connector 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com... -
Page 48: Lvds (Lvds Connector)
But below model no need to add. A0~A3 is odd channel 0~3, A4~A7 is even channel. Note: *The LVDS output connector of the unit is only intended to be connected to an UL/IEC/EN CLK2+ approval equipment with fire enclosure. CLK1+ CLK2- www.gigaipc.com... -
Page 49: Lsw (Lvds Resolution Jumper)
1024 x 600 1600 x 900 18bit 24bit 1280 x 800 1680 x 1050 18bit 24bit 1024 x 600 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com... -
Page 50: M2M (M.2 Slot, Sata/Pciex2, Ngff 2280)
3.2.22 M2M (M.2 Slot, SATA/PCIeX2, NGFF 2280) 3.2.23 SODIMM1, SODIMM2 (DDR4 SO-DIMM Slot) www.gigaipc.com... -
Page 51: Tpm (Trusted Platform Module Connector)
3.2.24 TPM (Trusted Platform Module Connector) Pin 1 TPM Module Connector Connector PN Vendor 87216-1004-06 ACES Pin No. Definition SPI_CS#2 TPM_SO TPM_RST# TPM_SI TPM_CLK +V3.3A www.gigaipc.com... -
Page 52: Chapter 4 - Bios
Chapter 4 Chapter 4 – BIOS www.gigaipc.com... -
Page 53: Introduction
Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com... -
Page 54: The Main Menu
ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com... -
Page 55: Advanced
Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com... -
Page 56: Tpm Configuration
4.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM (Default setting) TPM Device dTPM : External TPM (When using External TPM module or Selection having TPM chip on MB) www.gigaipc.com... - Page 57 Trusted Computing : Shows TPM information, and TPM module configuration setting. Item Description Security Device Enabled : Enables TPM feature (Default setting) support Disabled : Disables TPM feature www.gigaipc.com...
-
Page 58: Sata And Rst Configuration
Intel VMD feature helps you to control and manage NVMe PCIe SSD. / Enable VMD Enabled : Enables Intel VMD feature controller Disabled : Disables Intel VMD feature (Default setting) Serial ATA Port 0 shows 2.5" SATA HDD/SSD information shows M.2 SATA interface SSD information www.gigaipc.com... -
Page 59: Cpu Configuration
Enabled : Enables Intel(R) Speed Shift Technology Interrupt control (Default Interrupt control setting) Disabled : Disables Intel(R) Speed Shift Technology Interrupt control Enabled : Configure MSR 0xE2[15] , CFG Lock bit (Default setting) CFG Lock Disabled : Disables CFG Lock www.gigaipc.com... -
Page 60: It8786 Super Io Configuration
Disabled : if Disabled, displays no configuration for the serial port Device settings : Serial Port 3 Display the specified Serial Port base I/O address and IRQ Configuration COM Port Mode : Serial Port 4 Choose RS-232, RS-422, or RS-485 feature Configuration www.gigaipc.com... -
Page 61: Hardware Monitor
4.3.5 Hardware Monitor Item Description CPU Temperature Shows current CPU temperature System Shows current system temperature Temperature www.gigaipc.com... -
Page 62: S5 Rtc Wake Settings
Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com... -
Page 63: Network Stack Configuration
When Network stack is enabled : Ipv4 PXE Support Disabled : Disables Ipv4 PXE Support Enabled : Enables Ipv4 PXE Support When Network stack is enabled : Ipv6 PXE Support Disabled : Disables Ipv6 PXE Support Enabled : Enables Ipv6 PXE Support www.gigaipc.com... -
Page 64: Nvme Configuration
4.3.8 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com... -
Page 65: Offboard Sata Controller Configuration
4.3.9 Offboard SATA Controller Configuration www.gigaipc.com... -
Page 66: Digital Io Port Configuration
Enabled : If Digital IO Output value/level is modified in OS, they will be memorized and kept. SOGPO_1 (Pin 1) SOGPI_1 (Pin 2) SOGPO_2 (Pin 3) SOGPI_2 (Pin 4) Configure Digital IO Input or Output values for each pin. SOGPO_3 (Pin 5) SOGPI_3 (Pin 6) SOGPO_4 (Pin 7) SOGPI_4 (Pin 8) www.gigaipc.com... -
Page 67: Chipset
Enable/Disable XHCI Hand-off function XHCI Hand-off Enabled : Enables XHCI Hand-off function (Default setting) Disabled : Disables XHCI Hand-off function Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com... -
Page 68: Security
To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com... - Page 69 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
- Page 70 'UEFI CA' from database from DB No : Cancel to remove 'UEFI CA' from database Restore DB variables to fac tor y Restore DB defaults defaults Yes : Agree to restore DB defaults No : Cancel to restore DB defaults www.gigaipc.com...
-
Page 71: Boot
Enabled : Enables Full screen LOGO Show on POST screen LOGO Show Disabled : Disables Full screen LOGO Show on POST screen (Default setting) Boot Option #1 Shows the information of the storage that be installed in the system Boot Option #2 Choose/set the boot priority www.gigaipc.com... -
Page 72: Save & Exit
Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...
