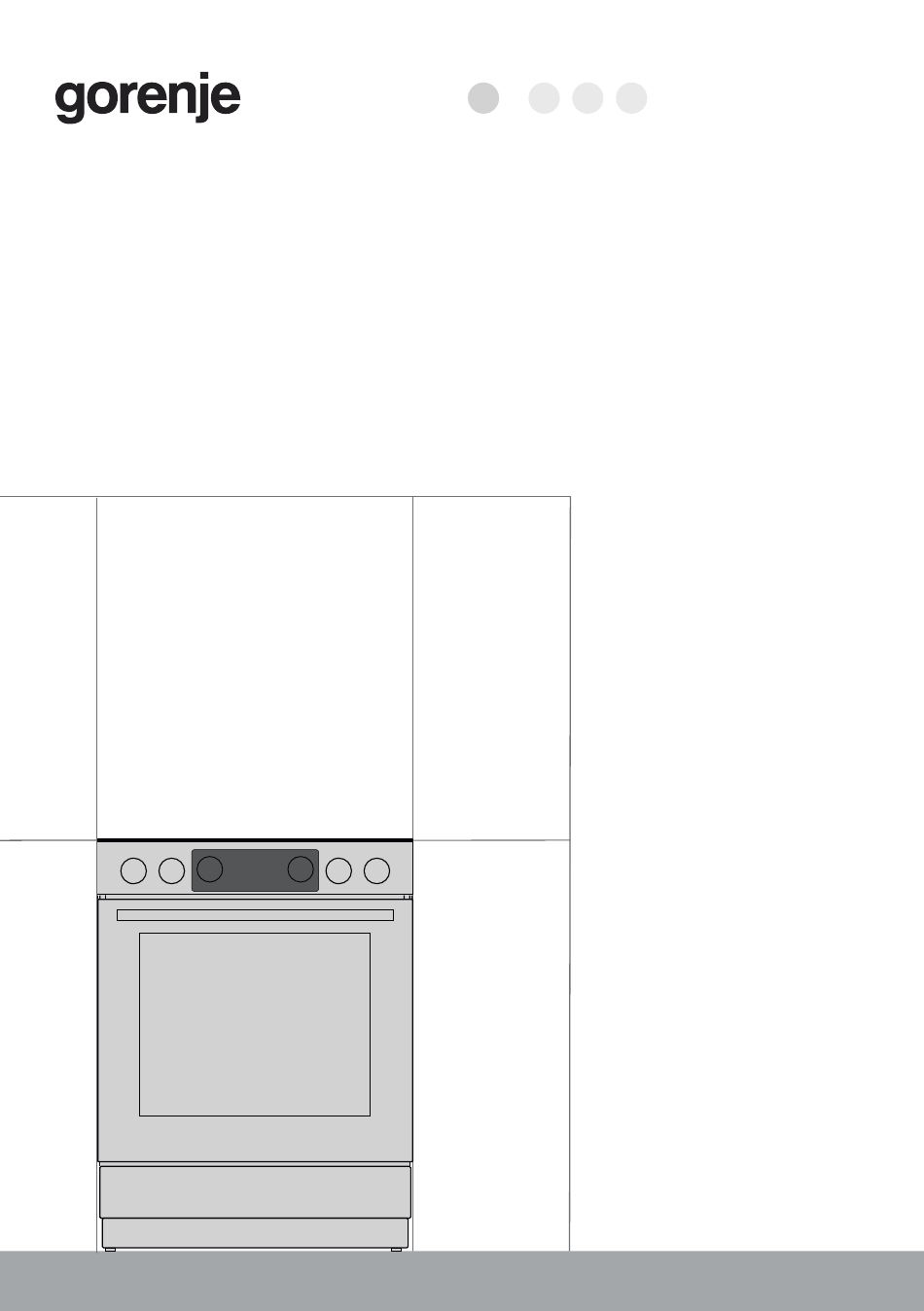

- Page 1 INSTRUCTIONS FOR USE FREE STANDING COOKER...
- Page 2 The appliance has to be connected in compliance with the effective regulations, and it may only be used in well ventilated areas. Read the instructions before connecting or using the appliance. For more detailed instructions and tips, please visit http://www.gorenje.com or scan the QR code on the rating plate.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM FOR FUTURE REFERENCE. This appliance may only be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if supervision or instructions are provided to them concerning use of the appliance in a safe way and if they understand the hazards involved.
- Page 4 CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating. The appliance may only be connected to the mains power by an authorized service technician or expert. Clamps (instead of connecting cable) should be protected by a clamp cover (see additional equipment).
-
Page 5: Before Connecting The Appliance
This is a class 1 and 2/1 appliance. The appliance may touch the adjacent cabinets on both sides when placed in a row. On one side, a tall cabinet – taller than the appliance – may be placed at a distance of at least 10 cm from the appliance. On the other side, only a cabinet of the same height may be placed. -
Page 6: Free Standing Cooker
FREE STANDING COOKER Appliance description INFORMATION! Appliance functions and equipment depend on the model. 1 lid 2 cooking hob 3 control unit 4 lighting 5 guides – cooking levels 6 rating plate 7 oven door 8 door handle 9 drawer/flip down 10 plinth 11 adjustable feets Electrical parameters (depending on the model, see appliance data plate) -
Page 7: Before Using The Appliance For The First Time
WIRE GUIDES The wire guides allow preparation of the food on four levels (please note that the levels/ guides are counted from the bottom up). Guides 3 and 4 are intended for grilling. Appliance operation is safe with and without tray guides. TELESCOPIC PULL-OUT GUIDES Telescopic pull-out guides may be fitted for the 2nd, 3rd, and 4th level. -
Page 8: Electronic Timer
ELECTRONIC TIMER User interface 1. Timer function display 2. ʺLessʺ button 3. Time button 4. ʺMoreʺ button Set the current time When you connect the appliance to the mains electricity for the first time, the display lights up. After three seconds the clock symbol and ʺ12:00ʺ... -
Page 9: Cooking Hob
Press and hold the less “ “ button for 5 seconds. ʺVolʺ appears on the display followed by several bars that are fully lit. Press the less ʺ ʺ or more ʺ ʺ button to select one of three volume levels (one, two or three bars) or no sound (Off). -
Page 10: Energy Saving Tips
Triple (three-ring) burner A Nozzle TIPS REGARDING YOUR COOKWARE • Correct choice of cookware allows optimum cooking time and gas consumption. Cookware diameter is the most important in this respect • If a pot or a pan is too small, the flames reaching over the edge of its bottom will damage it. Moreover, gas consumption will be higher. -
Page 11: Choosing The Cooking System
Single-handed ignition To ignite a gas burner, press the corresponding knob and rotate it to the maximum power position. Electric spark from the spark plug will be activated and the gas will ignite. Two-handed ignition To ignite a gas burner, press the corresponding knob and rotate it to the maximum power position. Press the spark plug button. - Page 12 After ignition, keep the knob depressed for approximately 5 more seconds until the flame is stabilized. Oven temperature is regulated by a thermostat. Immediately after ignition, the burner operates with maximum power until the set temperature is reached. Then, the thermostat automatically reduces the burner power to the level required to maintain the set temperature.
-
Page 13: Roasting Meat
ROASTING MEAT Use enamel coated, tempered glass, clay, or cast iron pan or tray. Stainless steel trays are not suitable as they strongly reflect the heat. Provide enough liquid during the cooking process to prevent the meat from burning. Turn the meat during cooking. -
Page 14: Gas Burner
Stainless steel sheet front side of the housing (depending on the model) Clean this surface only with a mild detergent (soapsuds) and a soft sponge that will not scratch the finish. Do not use abrasive cleaners or cleaners containing solvents as they may damage the housing finish. Lacquer-coated surfaces and plastic parts (depending on the model) Do not clean the knobs and buttons, door handles, stickers, and rating/type plates with abrasive cleaners or abrasive cleaning materials, alcohol-based cleaners, or with alcohol. - Page 15 REMOVING AND CLEANING WIRE AND TELESCOPIC EXTENDIBLE GUIDES Only use conventional cleaners to clean the guides. Hold the guides by the bottom side and pull them towards the center of the oven cavity. Remove them from the openings at the top. Do not clean the extendible guides in the dishwasher.
-
Page 16: Removing And Inserting The Oven Door Glass Pane
Provide these steps in reverse order at returning the door back. If the door does not open or close properly, make sure, that the hinges are correctly located on their hooks. REMOVING AND INSERTING THE OVEN DOOR GLASS PANE (depending on the model) Oven door glass pane can be cleaned from the inside, but it has to be removed first. - Page 17 INSTALLATION AND CONNECTION INSTRUCTIONS APPLIANCE PLACEMENT (mm) (depending on the model) The walls or furniture adjacent to the appliance (floor, rear kitchen wall, side walls) have to be temperature-resistant to at least 90°C. LEVELLING THE APPLIANCE AND ADDITIONAL SUPPORT (depending on the model) A) The height of the cooker is 850 mm.
- Page 18 AJUSTING THE HEIGHT OF THE COOKER (depending on the model) The height of the cooker is 900 mm. You can adjust the height of the appliance from 850 to 940 mm. Torx T20 • Put the cooker on the floor with back side. •...
-
Page 19: Connecting To The Power Mains
INSTALLATION OF THE LID (depending on the model) INSTALLATION OF THE DOOR LOCK (depending on the model) CONNECTING TO THE POWER MAINS Make sure the power cord is not located near hot parts and sharp edges. If the power cord is damaged, it should be replaced by the manufacturer or an authorized service technician, in order to avoid hazard. -
Page 20: Connecting To Gas Supply
GAS CONNECTIONS FACTORY DEFAULT SETTINGS • Gas appliances are tested and fitted with the sign. • Has appliances are supplied sealed with burners adjusted to natural gas type H or E (20 or 25 mbar), or to liquefied natural gas (50 or 30 mbar). •... - Page 21 After connection, check the operation of the burners. The flames have to burn with clearly visible blue and green core. If the flame is unstable, increase the minimum power as necessary. Explain to the user how the burners operate and review the instruction manual together.
- Page 22 Gas valve with a safety device B Minimum heat input regulation screw Copreci Sabaf Oven burner 1 Nozzle 2 Injector holder 3 Oven burner To access the parts required to adjust the oven burner to another type of gas, the oven knob, bottom panel, and oven burner have to be disassembled (undo the screws in the front part of the burner and pull out the burner).
- Page 23 Grill burner 1 Nozzle 2 Injector holder 3 Grill burner To access the parts required to adjust the oven burner to another type of gas, the control panel and oven burner have to be disassembled (undo the screws in the front part of the heater, remove the flame control device (thermo element) and pull out the heater).
- Page 24 DISPOSAL Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste.
-
Page 25: Nozzle Table
NOZZLE TABLE Gas type, pressure Auxiliary burner Normal burner Wobbe number Standard Natural gas H Nominal heat load (kW) 0,48 0,48 Wo=45,7÷54,7 MJ/m Consumption (l/h) Natural gas E, Nozzle type (1/100 mm) 72 X / 35 103 Z / 35 Natural gas E+ Nozzle ID Wo=40,9÷54,7 MJ/m... - Page 28 GORENJE gospodinjski aparati, d.o.o Partizanska cesta 12, SI-3320 Velenje, SLOVENIA info@gorenje.com...
