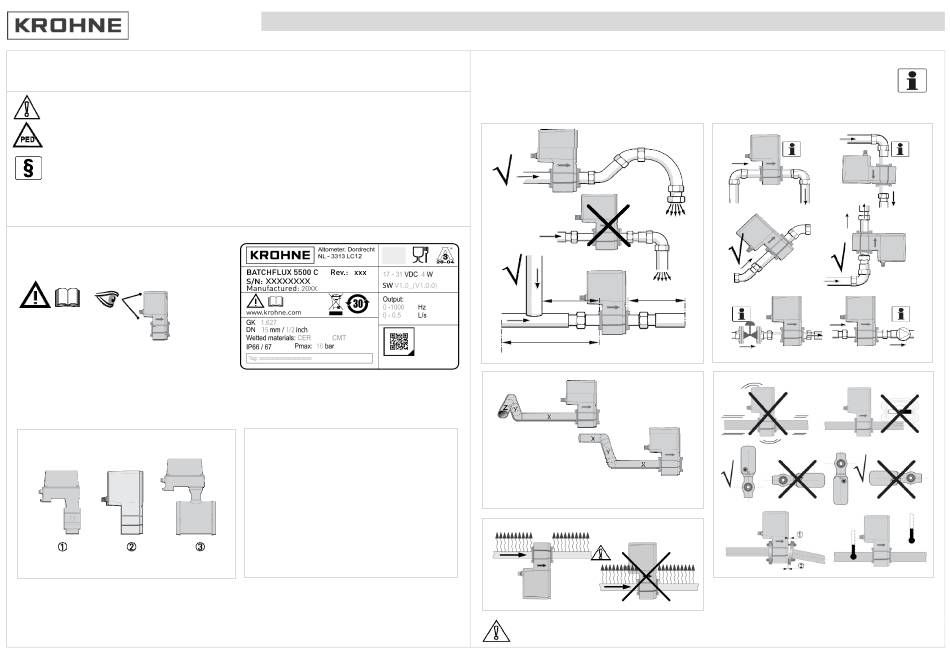

KROHNE BATCHFLUX 5500 Quick Start

Quick Start
BATCHFLUX 5500
Electromagnetic flowmeter for volumetric filling machines
Installation, assembly, start-up and maintenance may only be performed by appropriately trained personnel.
This instrument complies with the requirements of Pressure Equipment Directive. Please refer to the
nameplate for operating condition limits. Instruments must not be pressurised before reading instructions
described in the manual.
The responsibility as to the suitability, intended use and corrosion resistance of the used materials against the
measured fluid of this device rests solely with the operator.
General
Check the device nameplate to ensure
that the device is delivered according to
your order
Device version(s)
1
/ - ⅙ - ¼ "
DN2.5 - 4 - 6 |
1
10
DN10 - DN15 | ⅜ - ½ "
2
DN25 - DN40 | 1 - 1 ½ "
3
11/2023 - 4008534901 - BATCHFLUX 5500 R05 en
Device nameplate (example)
Transport
- No special requirements
- Use the original packing of the device(s) when
transporting to the installation location.
For initial set up, we strongly recommend that you also refer to the relevant manual!
1 Installation
Check the manual for more details on installation options.
Installation conditions
 

1
Depends on
2
2D/3D bends
upstream
Inlet length:
10 DN
XYZ (3D bends upstream) :
1
5 DN
2 XY (2D bends upstream) :
Installation position in case of hot fluids
General installation requirements
1 L
max
Lmax - Lmin < 0.5 mm / 0.02"
2 L
min
Temperatures depends on liner, flanges and signal converter
housing. Check de manual for details.
