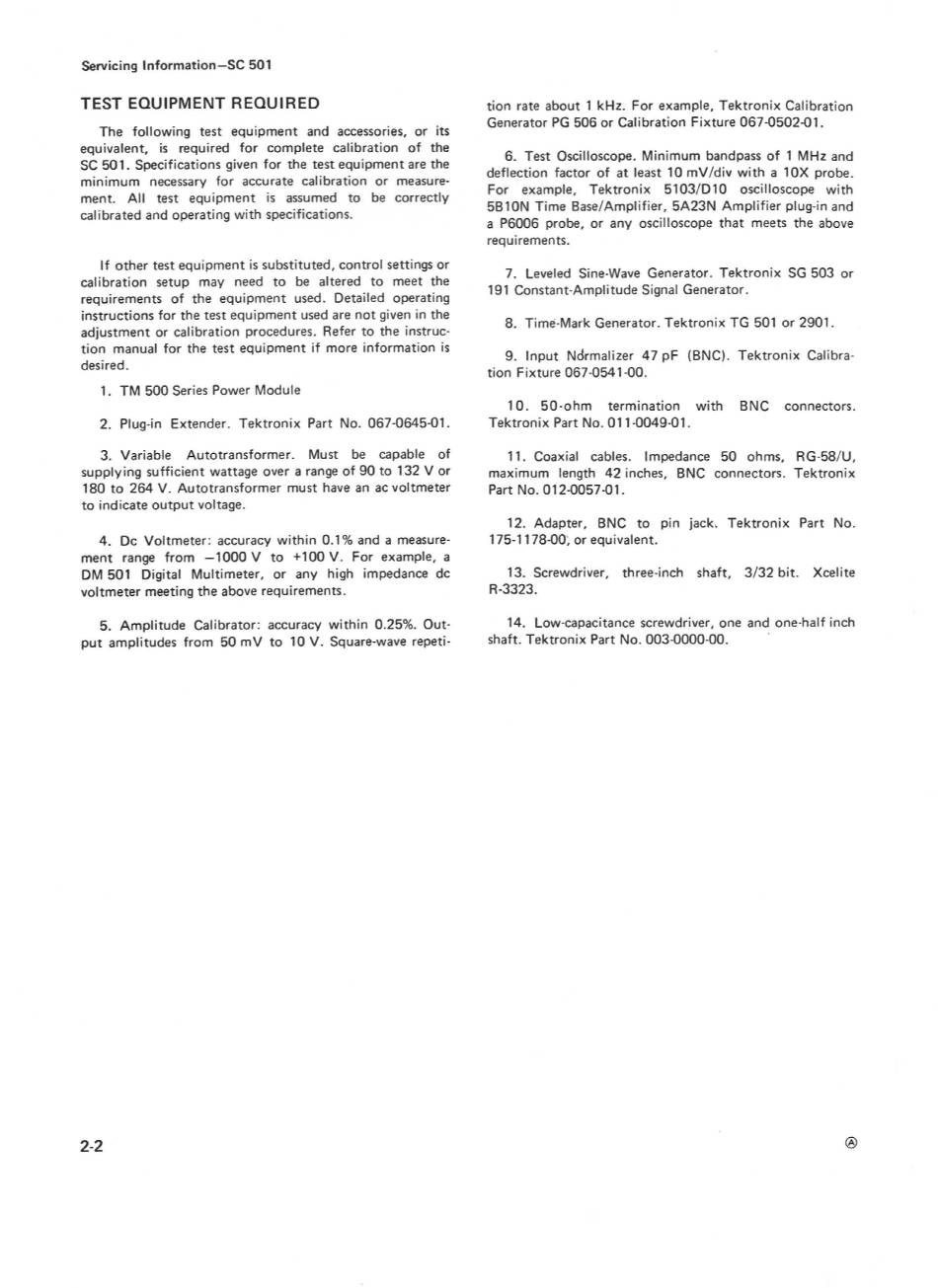

TEST EQUIPMENT REQUIRED
The following test equipment and accessories, or its
equivalent, is required for complete calibration of the
SC 501. Specifications given for the test equipment are the
minimum necessary for accurate calibration or measure-
ment. All test equipment is assumed to be correctly
calibrated and operating with specifications.
If other test equipment is substituted, control settings or
calibration setup may need to be altered to meet the
requirements of the equipment used. Detailed operating
instructions for the test equipment used are not given in the
tion manual for the test equipment if more information is
desired.
2. Plug-in Extender. Tektronix Part No. 067-0645-01.
supplying sufficient wattage over a range of 90 to 132 V or
180 to 264 V. Autotransformer must have an ac voltmeter
ment range from —1000 V to +100 V. For example, a
5. Amplitude Calibrator: accuracy within 0.25%. Out-
put amplitudes from 50 mV to 10 V. Square-wave repeti-
2-2
tion rate about 1 kHz. For example, Tektronix Calibration
Generator PG 506 or Calibration Fixture 067-0502-01.
6. Test Oscilloscope. Minimum bandpass of 1 MHz and
deflection factor of at least 10 mV/div with a 10X probe.
For example, Tektronix 5103/D10 oscilloscope with
5B10N Time Base/Amplifier, 5A23N Amplifier plug-in and
a P6006 probe, or any oscilloscope that meets the above
requirements.
7. Leveled Sine-Wave Generator. Tektronix SG 503 or
191 Constant-Amplitude Signal Generator.
8. Time-Mark Generator. Tektronix TG 501 or 2901.
9. Input Ndrmalizer 47 pF (BNC). Tektronix Calibra-
tion Fixture 067-0541-00.
10. 50-ohm termination with BNC connectors.
Tektronix Part No. 011-0049-01.
11. Coaxial cables. Impedance 50 ohms, RG-58/U,
maximum length 42 inches, BNC connectors. Tektronix
Part No. 012-0057-01.
12. Adapter, BNC to pin jack. Tektronix Part No.
175-1178-00; or equivalent.
13. Screwdriver, three-inch shaft, 3/32 bit. Xcelite
R-3323.
14. Low-capacitance screwdriver, one and one-half inch
shaft. Tektronix Part No. 003-0000-00.
