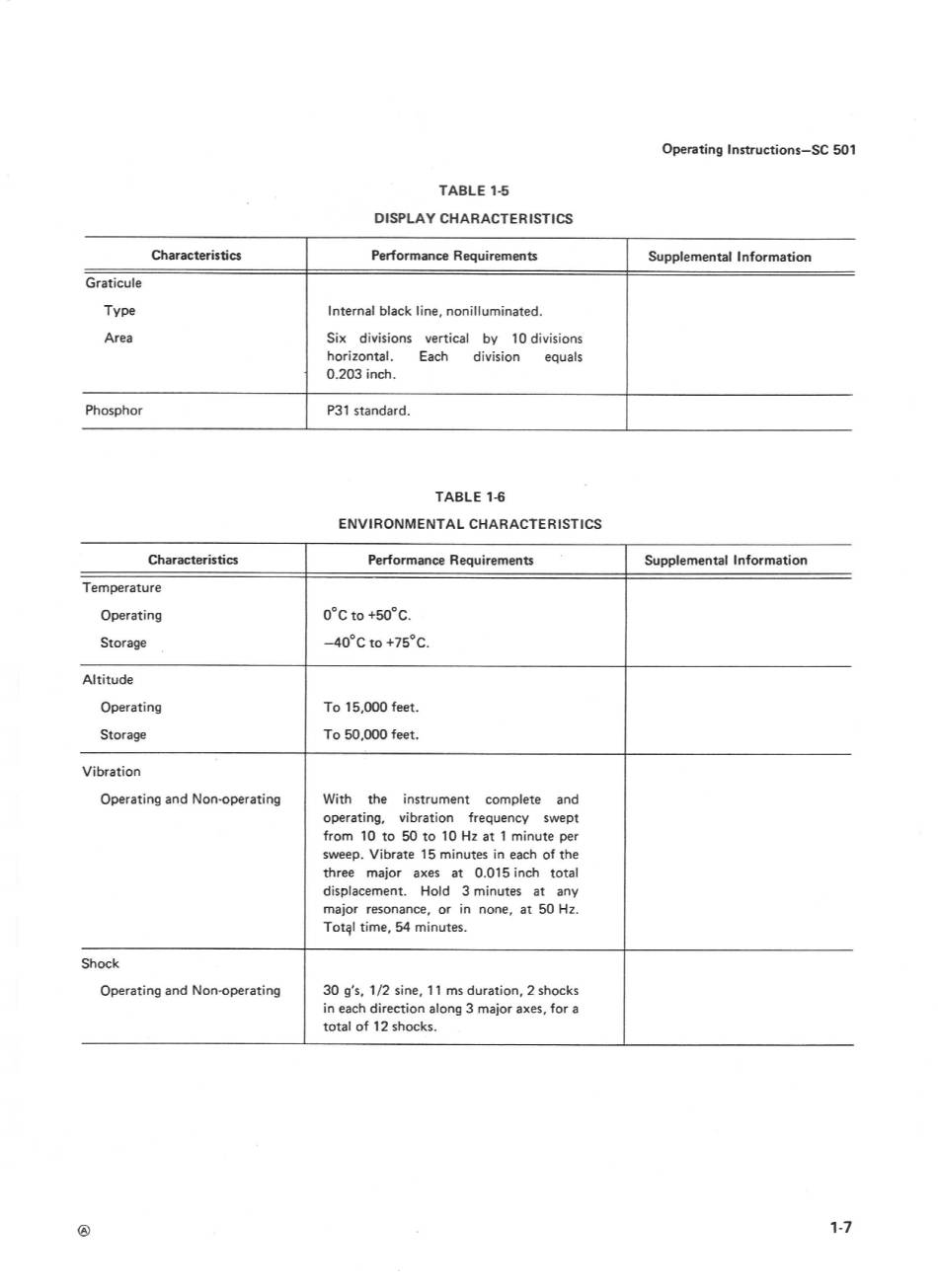

DISPLAY CHARACTERISTICS
Operating Instructions—SC 501
Characteristics Performance Requirements Supplemental Information
Graticule
Type Internal black line, nonilluminated.
Area Six divisions vertical by 10 divisions
0.203 inch.
Phosphor P31 standard.
TABLE 1-6
ENVIRONMENTAL CHARACTERISTICS
Characteristics Performance Requirements Supplemental Information
Temperature
Operating 0°C to +50°C.
Storage —40°C to +75°C.
Altitude
Operating To 15,000 feet.
Storage To 50,000 feet.
Operating and Non-operating With the instrument complete and
operating, vibration frequency swept
from 10 to 50 to 10 Hz at 1 minute per
sweep. Vibrate 15 minutes in each of the
three major axes at 0.015 inch total
displacement. Hold 3 minutes at any
major resonance, or in none, at 50 Hz.
Total time, 54 minutes.
Operating and Non-operating 30 g's, 1/2 sine, 11 ms duration, 2 shocks
in each direction along 3 major axes, for a
total of 12 shocks.
