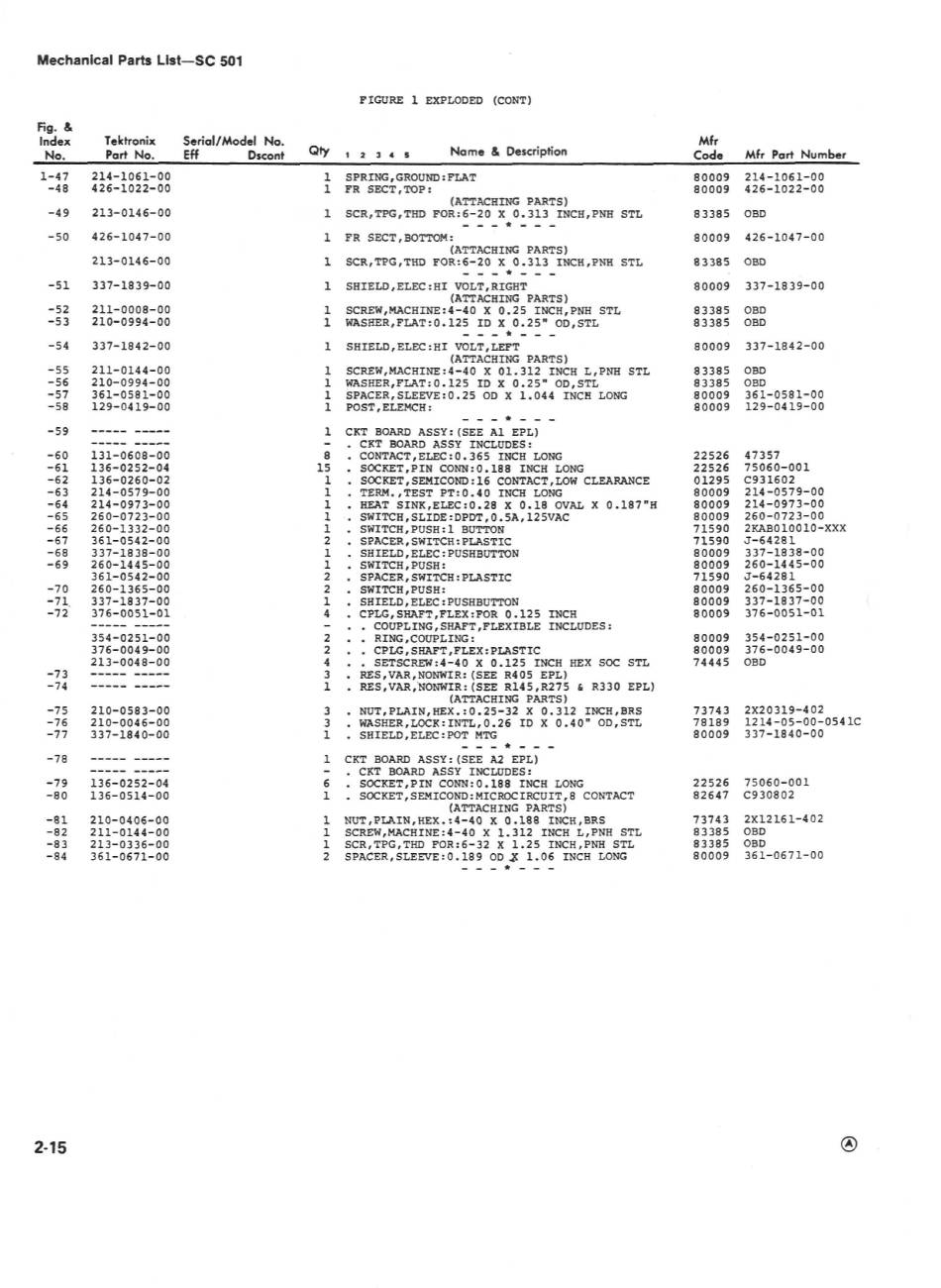

Tektronix SC 501 Instruction Manual page 25

Fig. &
Index Tektronix Serial/Model No. i. Mfr
No. Part No. Eff Dscont Qty 1.2345 Name & Description Code Mfr Part Number
1-47 214-1061-00 1 SPRING,GROUND:FLAT 80009 214-1061-00
-48 426-1022-00 1 FR SECT,TOP: 80009 426-1022-00
(ATTACHING PARTS)
-49 213-0146-00 1 SCR,TPG,THD FOR:6-20 X 0.313 INCH,PNH STL 83385 OBD
a —e@8 = & = = =
-50 426-1047-00 1 FR SECT,BOTTOM: 80009 426-1047-00
213-0146-00 1 SCR,TPG,THD FOR:6-20 X 0.313 INCH,PNH STL 83385 OBD
== = & = = = :
-51 337-1839-00 1 SHIELD,ELEC:HI VOLT,RIGHT 80009 337-1839-00
-52 211-0008-00 1 SCREW,MACHINE:4-40 X 0.25 INCH,PNH STL 83385 OBD
-53 210-0994-00 1 WASHER,FLAT:0.125 ID X 0.25" OD,STL 83385 OBD
-=—-=|- &®& = = =
-54 337-1842-00 1 SHIELD,ELEC:HI VOLT,LEFT 80009 337-1842-00
~55 211-0144-00 1 SCREW,MACHINE:4-40 X 01.312 INCH L,PNH STL 83385 OBD
~56 210-0994-00 1 WASHER,FLAT:0.125 ID X 0.25" OD,STL 83385 OBD
-57 361-0581-00 1 SPACER,SLEEVE:0.25 OD X 1.044 INCH LONG 80009 361-0581-00
-58 129-0419-00 1 POST,ELEMCH: 80009 129-0419-00
wares s---- - . CKT BOARD ASSY INCLUDES:
-60 131-0608-00 8 . CONTACT,ELEC:0.365 INCH LONG 22526 47357
-61 136-0252-04 15 . SOCKET,PIN CONN:0.188 INCH LONG 22526 75060-001
-62 136-0260-02 1 . SOCKET,SEMICOND:16 CONTACT,LOW CLEARANCE 01295 ©C931602
-63 214-0579-00 1. TERM.,TEST PT:0.40 INCH LONG 80009 214-0579-00
-64 214-0973-00 1. HEAT SINK,ELEC:0.28 X 0.18 OVAL X 0.187"H 80009 214-0973-00
-65 260-0723-00 1 =. SWITCH,SLIDE:DPDT,0.5A,125VAC 80009 260-0723-00
-66 260-1332-00 1 . SWITCH,PUSH:1 BUTTON 71590 2KABO10010-xxx
-67 361-0542-00 2 . SPACER,SWITCH: PLASTIC 71590 J-64281
-68 337-1838-00 1. SHIELD, ELEC: PUSHBUTTON 80009 337-1838-00
-69 260-1445-00 1. SWITCH, PUSH: 80009 260-1445-00
361-0542-00 2 . SPACER, SWITCH:PLASTIC 71590 J-64281
-70 260-1365-00 2 . SWITCH,PUSH: 80009 260-1365-00
-71, 337-1837-00 1. SHIELD, ELEC: PUSHBUTTON 80009 337-1837-00
-72 376-0051-01 4 . CPLG,SHAFT,FLEX:FOR 0.125 INCH 80009 376-0051-01
SS - . . COUPLING,SHAFT,FLEXIBLE INCLUDES:
354-0251-00 2 . . RING,COUPLING: 80009 354-0251-00
376-0049-00 2 =. . CPLG,SHAFT,FLEX:PLASTIC 80009 376-0049-00
213-0048-00 4 . . SETSCREW:4-40 X 0.125 INCH HEX SOC STL 74445 OBD
-73 ——- == 3 . RES,VAR,NONWIR: (SEE R405 EPL)
74000 wane = ----- 1. RES,VAR,NONWIR: (SEE R145,R275 & R330 EPL)
(ATTACHING PARTS)
-75 210-0583-00 3. . NUT,PLAIN, HEX.:0.25-32 X 0.312 INCH,BRS 73743 2X20319-402
-76 210-0046-00 3 . WASHER,LOCK:INTL,0.26 ID X 0.40" OD,STL 78189 1214-05-00-0541C
-77 337-1840-00 1 . SHIELD,ELEC:POT MTG 80009 337-1840-00
== =§ &@® @ = =
-78 0 ----- ---=-- 1 CKT BOARD ASSY:(SEE A2 EPL)
cores s---- - . CKT BOARD ASSY INCLUDES:
-79 136-0252-04 6 . SOCKET,PIN CONN:0.188 INCH LONG 22526 75060-001
-80 136-0514-00 1. SOCKET,SEMICOND:MICROCIRCUIT,8 CONTACT 82647 930802
-81 210-0406-00 1 NUT,PLAIN,HEX.:4-40 X 0.188 INCH,BRS 73743 2xX12161-402
-82 211-0144-00 1 SCREW,MACHINE:4-40 X 1.312 INCH L,PNH STL 83385 OBD
-83 213-0336-00 1 SCR,TPG,THD FOR:6-32 X 1.25 INCH,PNH STL 83385 OBD
-84 361-0671-00 2 SPACER,SLEEVE:0.189 OD X 1.06 INCH LONG 80009 361-0671-00
