Page 12: Preface
Preface Preface This manual describes how to use the Tektronix ST112 SONET Test Set. This manual is your primary source of information about how the ST112 SONET Test Set functions. This manual is divided into eight sections: Chapter 1—Introduction Describes the test set and provides a list of standard and optional accessories.
Page 13 The names of front-panel controls and menus appear in all upper case letter, for example, TRANSMIT and HELP. • Names appear in the same case in this manual as they appear on the display of the ST112, for example, Test Duration and USER DEFINED. •...
Page 14 Introduction This chapter describes the ST112 SONET Transmission Test Set and provides a list of standard optional and general safety information. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 15: Product Description

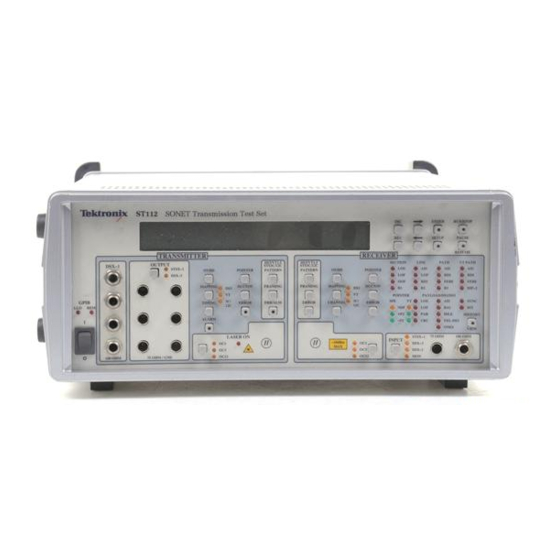

Product Description Figure 1–1 ST112 SONET Transmission Test Set The ST112 SONET Transmission Test Set is an extensive SONET STSX-1, OC-1, OC-3, OC-12, signal analyzer and generator for tributary and network testing. DSX-1 and DSX-3 Asynchronous Cross Connect Testing capabilities can be used independently or integrated with the SONET testing capabilities.
Page 16 Replace the FC Connectors with SC Connectors ST11FR4 Replace the FC Connectors with ST Connectors Bellcore CLEI and CPR Product Codes The ST112 SONET Transmission Test Set has been assigned the following Bellcore COMMON LANGUAGE Product Codes: CLEI SNTQAB36AA 674662 ST112 SONET Transmission Test Set Features and Capabilities •...
Page 17: Accessories
Network Integrity Testing • Network Performance Monitoring • Network Troubleshooting Accessories Some accessories are included with the ST112 SONET Transmission Test Set. If you wish to purchase optional accessories contact your local Tektronix Representative. Standard Accessories • User Manual •...
Page 18: Safety Instructions
Failure to do so can cause injury to the user and damage the instrument. AC Power The ST112 SONET Transmission Test Set is designed to sense and switch line voltages between 115 VAC (90 to 132 VAC) and 230 VAC (180 to 250 VAC) and to operate at a line frequency of either 50 Hz or 60 Hz (47 to 63 Hz range).
Page 19: Laser Safety
To prevent injury, ensure the following information is reviewed before operating this equipment. The ST112 SONET Transmission Test Set with Options 03, 04, and 5R are Class I laser products that comply with the United States Food and Drug Administration (FDA) Standard 21 CFR Ch.
Page 20: Functional Overview
Functional Overview This section describes ST112 SONET Transmission Test Set controls, indicators, connectors, and display elements. It includes separate sections that detail the transmitter and receiver specifics for the front and rear panels. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 21: Panel Connectors, Controls, Indicators
W A R N I N G ! Always avoid exposure to the laser beam. Before power is applied to the ST112 SONET Transmission Test Set be sure that all laser outputs are either covered with the screw cap provided or connected to the appropriate circuit.
Page 22: Getting Started
Safety Instructions in Chapters 1 and 2 before applying power to the ST112 SONET Transmission Test Set. Before using the ST112 Test Set verify that it is properly set up and powered on, as follows: 1. Remove the unit from its shipping carton and place it on a hard firm surface.
Page 23: Display, Display Controls, And Indicators
Functional Overview Display, Display Controls, and Indicators Figure 2–2 shows the ST112 SONET Transmission Test Set display and display controls. The display is a two-line by twenty-four character back-lit super twisted Nematic LCD (liquid crystal display) that provides a sharp image and increased viewing angle in all directions.
Page 24: Setup Menu System
W A R N I N G ! Before activating the LASER its output must be connected to a circuit. Figure 2–3 Setup Main Menus ST112 SONET Transmission Test Set 2–5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 25: Transmitter Description
Transmitter Description This section describes the transmitter inputs, outputs, controls and indicators. Figure 2–4 shows the ST112 SONET Transmission Test Set transmitter front panel area. W A R N I N G ! Before activating the LASER its output must be connected to a circuit.
Page 26: Configuration Keys, Tx
DS3/VT1.5/STS-3c/STS-12c area. They are as follows: OVHD (Overhead), MAPPING, TIMING, ALARM, POINTER, DCC/OW (Data Communications Channel / Orderwire), ERROR, PATTERN, FRAMING, and ERR/ALM (Error/Alarm). ST112 SONET Transmission Test Set 2–7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 27: Receiver Description
Functional Overview Receiver Description This section describes the ST112 SONET Transmission Test Set receiver front panel inputs, outputs, controls, and indicators shown in Figure 2–5. Figure 2–5 Receiver Front Panel Receiver Connectors, Front Panel The front panel has three input connectors (Figure 2–5). On the lower left side of the receiver section is an industry standard FC/PC optical output connector.
Page 28: Configuration Keys, Rx
Section Terminating Equipment (STE), Line Terminating Element (LTE) or a Regenerator. ST112 SONET Transmission Test Set 2–9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 29: Line Alarms
The Line is a transmission medium between the line signal originating Network Element (NE) and the line signal terminating Network Element. It includes one or more sections, the associated regenerators and the required Line Terminating Equipment (LTE). The ST112 SONET Transmission Test Set has four Line LED indicators, as follows: •...
Page 30: Vt Path Alarms
The BIP-2 LED indicates that VT1.5 path code violations were detected indicating an error condition in the monitored VT path between the monitor point and the upstream PTE. ST112 SONET Transmission Test Set 2–11 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 31: Pointer Indicators
DS3, VT1.5, OC-3c, or OC-12c. • BIT shows the detection of a test pattern bit error condition in the current payload. 2–12 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 32: View History Key
Releasing this key will return to the current status display within 500 milliseconds. History is cleared when a new test cycle starts. ST112 SONET Transmission Test Set 2–13 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 33: Measurement Controls And Indicators
REM LED is off when the unit is in the local mode. In the Local Lockout (LLO) mode, the ST112 SONET Transmission Test Set front panel is disabled by a remote controller that is using GPIB access commands. Front panel control can only be restored by the appropriate GPIB command or by a power initialization cycle.
Page 34: Rear Panel Description
Functional Overview Rear Panel Description Rear Panel Connectors Figure 2–11 shows the ST112 SONET Transmission Test Set rear panel connectors. Figure 2–11 Rear Panel Connectors Transmitter Connectors, Rear Panel The rear panel TRANSMITTER section shown in Figure 2-11 has eight connectors. The two TX CLOCK INPUT BNC connectors, on the left, support the STS-1 (51.84 MHz) and STS-3 (155.52...
Page 35: Receiver Connectors, Rear Panel
The standard connectors include the following: • Orderwire Handset; • DCC; • GPIB; • RS-232-C; • Parallel Printer Port; and, • Event Sync TTL output (option). 2–16 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 36 Receiver Clock (Compliment) Transmit Data (True) Receiver Data (True) Transmit Data (Compliment) Receiver Data (Compliment) Ground Ground Figure 2–12 I/O Circuit Logic ST112 SONET Transmission Test Set 2–17 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 37: Ac Power Fuse
Event SYNC is a BNC connector. Event SYNC results when an alarmed condition (SONET) is detected by the ST112. The signal is a negative TTL pulse during the alarmed period. For example, if you were to send a LOS (Loss of Signal condition) alarm <1 µs>, when the button is pressed to send the event, there would be a 1 µs negative pulse representing the start to end of the LOS alarm...
Page 38: Lcd Menus And Displays
LCD Menus and Displays This chapter describes the use of the ST112 SONET Transmission Test Set LCD menu structures and displays. In addition to the general displays and menus, there are separate sections that detail setup, receiver, and transmitter specifics.
Page 39: Functional Verification
Figure 3–1 Functional Verification Test Setup Setup Menu System Pressing the setup key at any time will cause the ST112 SONET Transmission Test Set to enter the Setup Menu System, accessing the menus and submenus shown in Figure 3–2 and Figure 3–...
Page 40 Figure 3–2, is positioned around the 3c payload—pressing the ENTER key maps four 3c payloads into an OC-12 SONET signal. In this mode, the ST112 SONET Transmission Test Set will replicate the same 3c signal four times, and the appropriate front panel rate and payload LED indicators will illuminate.
Page 41 The VIEW ANGLE can be set to one of eight integers (0 through 7). Zero should be the best view angle when the ST112 SONET Transmission Test Set is positioned below the operator and 7 is best when the operator is looking up at the Test Set front panel. The change is interactive;...
Page 42: Report/Test Time Menu
QUICK SETUP (starting) menu. Moving the cursor to OPEN and pressing the enter key will enable the communication link between the ST112 Test Set and the ST2400 2.4Gb/s SDH/SONET Test Set, expanded its capabilities to OC-48 testing. This Combined (Dual) Mode function is detailed in the Applications Chapter of this manual.
Page 43: Auxiliary Setup
They store the characteristics for BAUD rate, PARITY, CHAR (character) SIZE, END OF LINE, ECHO, and XON/XOFF (flow control). 3–6 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 44: Receiver Menus & Displays
Pressing the receiver OVHD key returns to the main overhead display. The tenth display provides the APS message, detailed in the following section of this chapter. ST112 SONET Transmission Test Set 3–7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 45 Forced Switch Invalid Lockout Protect The nomenclature SD-Lo Priority means Signal Degrade Low Priority and SF-Lo Priority means Signal Failure Low Priority. 3–8 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 46: Mapping Menus
Mapping Menus, Receiver Figure 3–6 Mapping, Receiver All of the ST112 SONET Transmission Test Set receiver payload mapping menus are shown in Figure 3–6 and detailed in the Bellcore GR-253-CORE standard. Press the receiver MAPPING key to display one of the five mapping choices shown. Then use the INC and DEC keys to display the others.
Page 47: Channel Menus
In the VT CHANNEL MAP menu the virtual tributaries can be mapped sequentially from 1 to 28 or in a 4x7 matrix—in accordance with Bellcore GR-253-CORE (see Figure 3–8 and Table 3–1). Figure 3–8 VT1.5 Structures 3–10 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 48 9,38,67 10,39,68 11,40,69 12,41,70 13,42,71 14,43,72 15,44,73 16,45,74 17,46,75 18,47,76 19,48,77 20,49,78 21,50,79 22,51,80 23,52,81 24,53,82 25,54,83 26,55,84 27,56,85 28,57,86 29,58,87 ST112 SONET Transmission Test Set 3–11 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 49 Communications between two Network Elements (NE) with no regenerators can use either a LOCAL or an EXPRESS connection. 3–12 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 50: Error Measurement Displays
Figure 3–11 SONET Error Measurement Displays, Receiver There are two ERROR Keys on the receiver side of the ST112 Test Set. This material addresses the ERROR Key in the dark gray area which is used for the SPE (Synchronous Payload Envelope) error detection.
Page 51: Optical Input Select Menu
DSX (Digital Signal Cross-Connect) panel. 3–14 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 52 LCD Menus and Displays The next LCD menu is used to obtain a configuration for the ST112 Test Set receiver. The two choices in the AUTOMATIC INPUT MODE menu are used to query and configure the receiver, each in its own way.
Page 53: Pattern Menus And Displays
The word UNKNOWN will be displayed when a pattern search is in progress, when live traffic is present, or when no pattern can be detected. 3–16 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 54: Framing
In other words, one divided by one million would equal 0.000001 or 1.0E–6 decimal. ST112 SONET Transmission Test Set 3–17 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 55 Figure 3–17 illustrates the DSX-3 Error Measurement Displays. Figure 3–18 DSX-1 Payload Error Displays, Receiver Figure 3–18 illustrates the DSX-1 Error Measurement Displays. 3–18 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 56: Transmitter Menus & Displays
Units without the OC-12 option will not have an OC-12 on their menu or an OC-12 LED on their front panel. ST112 SONET Transmission Test Set 3–19 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 57: Overhead Menus
INC and DEC, and ENTER keys to select, change, and store values. Press the OVHD key to return to the LINE APS menu. 3–20 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 58: Mapping Menus
Figure 3–22 Mapping Menus, Transmitter Press the transmitter key labeled MAPPING to display the payload mapping choices, shown in Figure 3–22. The ST112 SONET Transmission Test Set transmitter mapping conforms to ANSI and Bellcore standards. The mapping can be divided into three groups: •...
Page 59: Timing
The VT pointer menu in Figure 3–25 is only accessible in the ST112 Test Set’s VT1.5 mode. The value 78, under the PTR label, indicates the position of the V5 byte. In this Test Set all 28 VT pointers are set to the same value.
Page 60: Alarm Generation Menus
Additional alarms can be activated at the same time, simulating multiple failures. ST112 SONET Transmission Test Set 3–23 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 61: Error Generation Menus
DCC is used to transfer data between NE (network elements) and ORDERWIRE is used for voice communications. • Voice can be transmitter in either the LOCAL or EXPRESS ORDERWIRE. 3–24 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 62: Pattern Menus
The third menu on the left side of Figure 3–29 is used to access the TX STRESS PATTERN menus for DSX-1 network testing. Press the ENTER key to access the first of nine TX STRESS ST112 SONET Transmission Test Set 3–25...
Page 63 STANDARD PATTERN of this example. TX Stress Patterns The ST112 SONET Transmission Test Set includes additional patterns to provide more ways to stress-test DS1 circuits. Telecommunications research notes that the QRW (Quasi Random Word) test pattern, universally used for out-of-service testing of DS1 circuits, is not up to the task of determining the true performance of DS1 circuits used for the transport of digital services.
Page 64: Framing Menu
The three dashed lines shown in the top right field of the top left menu, in Figure 3–32, indicate that the receiver section of the ST112 Test Set is not configured for a DS1 payload. That field will ST112 SONET Transmission Test Set 3–27...
Page 65 1.5E–3. An ERROR RATE OUT OF RANGE message will be displayed when the enter key is pressed for any out of range setting and the nearest valid setting will be forced. 3–28 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 66 AIS, the Alarm Indication Signal, generates a unframed 1111... sequence in the DS1 payload. • RAI generates a Remote Alarm Indication in the DS1 payload. The term YELLOW preceded the RAI designation. ST112 SONET Transmission Test Set 3–29 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 67 In other words, one divided by one million would equal 0.000001 or 1.0E–6 decimal. 3–30 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 68: Virtual Front Panel (Vfp)
Virtual Front Panel This chapter describes the use of ST112 SONET Transmission Test Set terminal displayed menu structures, accessed by using a VT100 or VT100 terminal emulator. These full screen displays provide more information than individual LCD displays and can be used with a remote or local terminal.
Page 69 Chapter 3 (LCD Menus and Displays) details the port settings. RS-232-C Port Settings Use the Quick Set-up menus detailed in Chapter 3 LCD Menus and Displays to set the ST112 SONET Transmission Test Set RS-232C port as follows:...
Page 70 If it does not, or if a message appears, indicating that the input was lost, verify the port parameter settings for the ST112 SONET Transmission Test Set and the terminal. Verify that the Test Set RS-232 ECHO is enabled using the setup LCD menu. Verify that the RS-232C interface cable is properly connected.
Page 71 The m key returns it to the top center display after using any other menu. The ST112 SONET Transmission Test Set front panel status LED indicators are replicated on the right side of the display (Figure 4–2). The Section, Line, Path, VT Path, and Payload indicators are preceded by an asterisk, period, or the letter H indicating their respective status—...
Page 72 CTRL-Q exits the Virtual Front Panel program. Refreshing the display or exiting the VFP will not alter any of the ST112 SONET Transmission Test Set settings. If the receiver test cycle was running when the VFP session ended, it will still be running the same test cycle when the VT100 Virtual Front Panel is reentered.
Page 73 Virtual Front Panel Configuration Submenus After starting the ST112 SONET Transmission Test Set Virtual Front Panel software, press the CTRL T keys to access the SETUP menu list, shown on the left side Figure 4–2. The CURRENT CONFIGURATION and RX ERROR SUMMARY displays, center of Figure 4–2, will change with the selections made in the appropriate setup menus and described later in this chapter.
Page 74 DSX-1 signals with either AMI (Alternate Mark Inversion) or B8ZS (Bipolar 8 Zero Substitution) line codes. Both can be used to test T-1 compatible networks and network elements. ST112 SONET Transmission Test Set 4–7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 75 NAME menu item, where the name can be changed, or added, if none were assigned. 4–8 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 76 The maximum test time supported is 9 days, 23 hours, 59 minutes, and 59 seconds. All changes are immediately entered into a battery backed memory, and will be retained even when the Test Set is powered off. ST112 SONET Transmission Test Set 4–9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 77 REPRINT CONTROL: Is used to print the previous error log ON ERROR, the previous end of test summary PREV–EOT, or the current error log CURR if it exist. 4–10 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 78 • ANALYSIS: SPE Pointer (o); VT Pointer (p); TOH/POH (s); J1 Trace Message (g); APS Bytes (h); VT Channel Scan (j); and, Trouble Scan (n). ST112 SONET Transmission Test Set 4–11 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 79 • DCC ACCESS is used to transfer data to and from a device connected to the ST112 Test Set’s rear panel DCC connector, and to and from network elements. The data can be transferred in either the SECTION or LINE DCC channel.
Page 80 It provides four choices for OC-1 (OC1), OC-3 (OC3), OC-12 (OC12), and OC-48 (OC48). The OC-48 setting is only active when the ST112 SONET Transmission Test Set is used in the Combined (Dual) Mode, with an ST2400 2.4 Gb/s SDH/SONET Test Set. (The Combined (Dual) Mode Operation is detailed in the Applications Chapter of this manual.) Use the arrow keys...
Page 81 Use the arrow keys to position the reverse video cursor, and the enter key to activate the menu choice. Figure 4–14 VT1.5 Structures VT1.5/DSX-1 Configuration Menu, Receiver 4–14 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 82 CBIT (C-BIT) or the UNFRM (Unframed) configurations. Additional Patterns include 2E23 Pseudo Random Bit Sequence and the 8 bit WORD. ST112 SONET Transmission Test Set 4–15 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 83 PJ are zero in this example. They show the total count of the positive and negative justifications recorded during the test cycle. 4–16 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 84 The TOH/POH (s) Receiver Overhead display shown in Figure 4–20 is used to monitor the overhead bytes in the first STS-1 of the SONET frame. ST112 SONET Transmission Test Set 4–17 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 85 Switch Line (the line that the Request Line wants to switch to) can be any decimal number from 0 to 15. 4–18 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 86 24 Bit Fixed Word D4 (SF) 2E15 PRBS 2E23 PRBS SLC96 Quasi-Random Word Unknown Signal Unknown (probably Live Traffic) DS1 Alarm Indication Signal ST112 SONET Transmission Test Set 4–19 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 87 Pressing the F3 (RESULTS) function key will display the read-only receiver error summary menu, shown in Figure 4–25. The large RX ERROR SUMMARY display area does not list any 4–20 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 88 SETUP Screen section of this chapter. The list of submenus on the upper left side of Figure 4–26 now begin with Output/Optics (q), Timing (w), Mapping (r), and end with the STS- 3c Cfg (i). ST112 SONET Transmission Test Set 4–21 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 89 The OPTICS section has five choices, OFF and four rates. The OC-48 (OC48) rate can only be activated when the ST112 SONET Transmission Test Set is being used in the Combined (Dual) Mode with an ST2400 2.4 Gb/s SDH/SONET Test Set. The Combined (Dual) Mode is detailed in the Applications Chapter of this manual.
Page 90 Virtual Front Panel Figure 4–28 VFP Timing Transmitter Configuration The ST112 SONET Transmission Test Set provides for five TIMING sources, detailed below. Switching, disconnecting, or any other loss of timing can cause a TX: LOSS OF SONET CLOCK message to appear momentarily or periodically switch on and off.
Page 91 The ENTER key is used to activate menu items. One of the three yellow LED indicators (DS3, VT, or 3c/12c) identify which mapping is active. 4–24 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 92 Changing the pointer value will change the CURRENT SPE POINTER number at the top of the display (Figure 4–30). ST112 SONET Transmission Test Set 4–25 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 93 Changing the pointer value will change the CURRENT VT POINTER number at the top of the display (Figure 4–31). 4–26 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 94 RDI (Remote Defect Indication) for the Line, Path, and Virtual Tributary; LOP (Loss Of Pointer) for the Path and Virtual Tributary; and, OORP (Out Of Range Pointer) for the Synchronous Payload Envelope. ST112 SONET Transmission Test Set 4–27 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 95 The last SONET ALARMS selection is LOSS OF SIGNAL, shown in Figure 4–34. It can be set from 1 to 150 microseconds. Pressing the F4 key, during the test cycle, will execute the alarm. 4–28 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 96 1.0E–9 and generate (ENABLE—ON) the VT1.5 payload parity errors at that rate. The ST112 SONET Transmission Test Set transmitter must be configured for the VT1.5 payload in the SONET signal. Use the arrow keys to position the reverse video cursor and the enter key to execute the set error rate.
Page 97 Each SONET byte designator is to the left of the equal sign, and the byte value is to the right, A1 = F6, in this example. 4–30 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 98 CLEAR MESSAGE (00). Press the F4 key to clear the trace message. Actually the trace message will be filled with all zeros. ST112 SONET Transmission Test Set 4–31 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 99 28. When this happens, the CHANNEL number will reset and the message will remain until the enter key is pressed. 4–32 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 100 The third menu section is used to access the DSX-1 (DSX1) STRESS PATTERN that can be used for DSX-1 network testing. The selected stress pattern is active during the test cycle. ST112 SONET Transmission Test Set 4–33 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 101 Virtual Front Panel TX Stress Patterns The ST112 SONET Transmission Test Set includes additional patterns to provide more ways to stress-test DS1 circuits. Telecommunications research notes that the QRW test pattern, universally used for out-of-service testing of DS1 circuits, is not up to the task of determining the true performance of DS1 circuits used for the transport of digital services.
Page 102 Use the up and down keys to move the cursor between heading and sections, use the left and right arrow keys to move within each section. Use the Enter key to active individual sections. ST112 SONET Transmission Test Set 4–35...
Page 103 DS3 Payload is selected. Make the appropriate choices from the QUICK SETUP menu (CTRL T menu q). Use the arrow keys to navigate through the menu and the enter key to enable the selections. 4–36 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 104 Where the left and right arrow keys and the enter key can be used to enable (ON) or disable (OFF) this error generator. Errors will only be counted during the test cycle. ST112 SONET Transmission Test Set 4–37 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 105 The DSX-3 (DSX3) LOSS OF SIGNAL alarm can be set for a period from 1 to 150 microseconds. The hidden F4 key will be displayed, and used, to execute this function when pressed. 4–38 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 106 Pressing the F4 function key will inject a single error when the SINGLE ERROR INJECT heading is selected—as shown in this example. ST112 SONET Transmission Test Set 4–39 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 107 Pressing the F4 function key will inject a single error when the SINGLE ERROR INJECT heading is selected—as shown in this example. 4–40 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 108 Applications and Use This section provides common examples of telecommunication network applications. It details how the ST112 SONET Transmission Test Set can be used for: • Passive Monitoring • Active Analysis • Circuit Pack Testing • VT Channel Scan—ADM and E-DCS Testing •...
Page 109: Applications
Applications and Use Applications The ST112 SONET Transmission Test Set basic applications include Passive Monitoring, Active Analysis, Circuit Pack Testing, ADM (Add-Drop Multiplexer) Testing, and E-DCS (Electronic-Digital Cross-connect System) Testing. The Advanced Applications include the Combined (Dual) Mode and Trouble Scan in the Combined (Dual) Mode. Specific applications for field service troubleshooting, engineering analysis, production test, and maintenance test are the same or similar.
Page 110: Active Analysis
One DSX-1 input connector for either normal or a low level monitor input signal. In this application the ST112 SONET Transmission Test Set can be used with the ST2400 transceiver, which is actively inserted into the signal path. The Test Set provides a variety of signal and analysis options for complete testing of the OC-48 signal.
Page 111: Circuit Pack Testing
STSX-1 outputs could be used with signal splitters to test an OC-12 Circuit Pack. Payload and overhead manipulation, as detailed in Chapters 3 and 4, can be used to analyze the Circuit Pack. 5–4 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 112: Vt1.5 Channel Scan-Adm And E-Dcs Testing
4x7 mapping is selected if the terminal consists of seven line cards, each having four channels. The 1x28 mapping is used for configurations having one or more line cards with sequential numbered channels. ST112 SONET Transmission Test Set 5–5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 113 The test setup illustrated in Figure 5–7 is used to verify provisioning. The test setup can be done with a single ST112 SONET Transmission Test Set and Terminal because each Test Set has both the Transmitter and Receiver Sections required to analyze the NE (Network Element) under test.
Page 114 Applications and Use VT Channel Scan Setup Before running the VT Channel Scan mode the ST112 SONET Transmission Test Set Receiver Section Mapping (r), VT1.5 Channel (t), and VT1.5/DSX1 Configuration (y) must be configured for the incoming signal. Error indications (such as BIT, SYNC, and LOF) may occur when these settings are incorrect.
Page 115 Figure 5–9 ST112 SONET Transmission Test Set ADM and E-DOS Testing Figure 5–9 illustrates the ST112 SONET Transmission Test Set VT1.5 Channel Scan test display taken from a NE being tested to verify its provisioning. The 4x7 channel numbering is used and the Unframed Quasi-Random Word (U/QW) has been detected on channel 12 of the first STS-1 tributary in the OC-12 frame.
Page 116 VT slot in both configurations, as can be seen in Figure 5–8 and Table 5–1. ST112 SONET Transmission Test Set 5–9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 117 VT Channel (t) select the numbering (1x28 or 4x7). Under VT1.5/DSX1 Cfg (y) set the Framing for UNFRM, and the Pattern for QRW. 5–10 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 118: Combined (Dual) Mode Setup And Verification
Figure 5–12 illustrates the front panel cabling connections, not the positioning of the equipment. Always allow for adequate air flow when installing, positioning, or mounting equipment. ST112 SONET Transmission Test Set 5–11 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 119 • Connect the RS-232 cable between the ST112 SONET Transmission Test Set and the ST2400. The cable is a straight through DB-9 socket to DB-25 plug. The DB-9 socket connects to the ST2400 plug labeled ST112 SONET Transmission Test Set RS-232. The DB-25 plug connects to the ST112 SONET Transmission Test Set labeled RS-232.
Page 120 ST2400 2.4Gb/s SDH/SONET Test Set GPIB port even if the ST2400 2.4Gb/s SDH/SONET Test Set is in the combined (dual) mode. The ST2400 can be used to test both SONET and SDH networks. The ST112-ST2400 Link can only be used when the ST2400 is in the SONET mode.
Page 121: Virtual Front Panel Combined (Dual) Mode
Figure illustrates the front panel cabling connections, not the positioning of the equipment. Always allow for adequate air flow when installing, positioning, or mounting equipment. 5–14 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 122 Figure 5–17. This menu is used to select the rate and payload—OC-48 and VT1.5 in this example. Figure 5–18 Quick Setup menu, Combined (Dual) Mode ST112 SONET Transmission Test Set 5–15 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 123 Test Set, either 155Mb/s (OC-3) or 622Mb/s (OC-12). The Section and Line LED Display and the B1/B2 Error Data Display can be viewed either on the ST2400 2.4Gb/s SDH/SONET Test Set at the OC-48 Rate or on the ST112 SONET Transmission Test Set at the drop rate.
Page 124: Trouble Scan Basics
Applications and Use Trouble Scan Basics The ST112 SONET Transmission Test Set Receiver can be used to scan and analyze SONET STS signals, in a hierarchical manner, with a variety of rates and payload mappings. The Trouble Scan (n) mode will provide a report of section, line, and path errors and alarms that occur during the user-selected dwell time.
Page 125 STS-3 channels. View channels are numbered sequentially from the first STS-1 (1,1) to the last (4,3). Figure 5–22 Dwell Period Event Log for VIEW CHANNEL 3 5–18 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 126 Trouble Scan is both a mode and a function. The mode can be set to ON anytime but the function only runs and logs maintenance signals (errors and alarms) during the test cycle. ST112 SONET Transmission Test Set 5–19 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 127: Trouble Scan Combined (Dual) Mode
Review Trouble Scan Basics section previously presented using Trouble Scan at the OC-48 rate. Figure 5–24 Trouble Scan VFP, Combined (Dual) Mode Trouble Scan can be run at the OC-48 rate when the ST112 SONET Transmission Test Set and the ST2400 2.4Gb/s SDH/SONET Test Set are connected in the Combined (Dual) Mode configuration, illustrated in Figure 5–12.
Page 128 Applications and Use Figure 5–25 Dwell Period Event Log, OC-48 Rate Figure 5–26 Detailed Event Log, OC-48 Rate ST112 SONET Transmission Test Set 5–21 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 129 Applications and Use 5–22 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 130: External Controllers & Printers
This chapter explains how to connect external devices to the RS-232-C, GPIB, and parallel ports. This chapter also includes port setup procedures. ST112 SONET Transmission Test Set 6–1 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 131: Remote Control Applications
External Controllers and Printers Remote Control Applications The ST112 SONET Transmission Test Set can be remotely operated from its RS-232-C, ST112, or GPIB ports in one of the following ways: • Use the RS-232-C Port manually from a VT100 terminal or VT100 emulation program, using the ST112 SONET Transmission Test Set Virtual Front Panel feature.
Page 132: Using The Rs-232C Port
The RS-232-C interface is a 9-pin D-type socket connector located on the rear-panel. The pin-out of this connector is shown in Table 6–2 below. The ST112 SONET Transmission Test Set RS- 232-C port is wired as a DCE (data communications equipment) device, it receives on pin 2 and transmits on pin 3.
Page 133 Chapter 1, Getting Started. Quick Test, RS-232-C Port You can perform a quick test of the ST112 SONET Transmission Test Set RS-232-C port using a terminal (or a PC running terminal emulation software) as follows: 1. Verify that the Test Set echo mode is on.
Page 134 GPIB port. Error Messages The ST112 SONET Transmission Test Set verifies all commands received on the RS-232-C port to make sure that they contain the appropriate mnemonics and parameters. All valid commands will be executed.
Page 135 ------------------------------------------------------------------------- Figure 6–1 Error Reports Available (Example Screen) Be sure that the ST112 SONET Transmission Test Set printer function is turned off before activating the VT100 emulator. The printer and VT100 cannot work simultaneously through the single Test Set RS-232 port. If a parallel printer is connected to the ST112 SONET Transmission Test Set parallel printer port, then the printer and VT100 remote screen can function simultaneously.
Page 136: Using The Gpib Port
Local Lock Out GPIB controllers can also put the ST112 SONET Transmission Test Set into the local lock out mode. The LLO LED (left side corner of front panel) indicates whether the Test Set is in the Local Lock Out mode (LED on) or not (LED off).
Page 137 External Controllers and Printers GPIB Interface Functions The ST112 SONET Transmission Test Set is configured as a GPIB talker/listener. It does not provide any controller functions. Table 6–4 lists the GPIB functions described in the ANSI IEEE Std. 488.2-1987 that are supported by the Test Set.
Page 138 • Each command line may contain a maximum of 80 characters. • The only ST112 SONET Transmission Test Set commands that can return more than one message unit are: *lrn?, oh_all?, oh_err_all? • Command responses are generated immediately. The Test Set will not wait for a read command before generating a response to a query command.
Page 139 ST112 SONET Transmission Test Set is powered off. Each status register has an associated enable register. Moreover, each defined bit in a status register has a corresponding defined bit in the associated enable register.
Page 140 Clear Status (*CLS) command. The SESR is automatically cleared (reset) after being queried. For more information on Test Set remote commands, see Chapter 7. The correspondence between ST112 SONET Transmission Test Set status registers, enable registers, and commands is summarized in Table 6–5.
Page 141 SRQ line on the GPIB bus. The name of each defined bit in the SBR is shown in Table 6–8. The function of each defined bit in the SBR is described in Table 6–9. Table 6–8 Status Byte Register (SBR) 6–12 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 142 The SRER contains an enable bit for the ESB and MAV bits in the SBR. However there is no enable bit for the MSS or RQS bits which are always enabled. ST112 SONET Transmission Test Set 6–13...
Page 143 External Controllers and Printers 6–14 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 144: Remote Commands
Remote Commands This chapter explains the general syntax of the ST112 SONET Transmission Test Set remote command language and defines all commands. Command definitions are grouped by function. In addition, an alphabetical list of all Test Set commands is provided with page references to individual command descriptions.
Page 145: Command Types & Syntax
Remote Commands Command Types and Syntax The ST112 SONET Transmission Test Set command set includes two basic types, set and query. The set commands are used to change current status, values, or states—to start or stop a test, for example. While query commands ask the instrument to respond with the contents of a status register, the value of a given setup parameter, a measurement result, or a current state.
Page 146: Multiple Commands
(End-Or-Identify) or EOI/LF. Responses generated by the instrument will be terminated as specified in the GPIB setup menu for End-Or-Identify and Line Feed functions (EOI or EOI/LF). ST112 SONET Transmission Test Set 7–3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 147 (configures alarm burst generator for AIS) alm_count 100 (sets alarm burst length to 100 STS-n frames) alm_enab_burst (generates one AIS alarm burst) 7–4 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 148: Table Of Commands
RS-232 prompt command ..................18 rs_xon_xoff [ on | off ] RS-232 Flow Control Set Command............. 18 rs_xon_xoff? RS-232-C Flow Control Query Command ..............19 ST112 SONET Transmission Test Set 7–5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 149 Test Report Set Command ............28 test_report? Test Report Query Command..................28 test_squelch [ on | off ] Test Squelch Set Command ................28 7–6 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 150 Receiver SPE NDF Count Query Command............. 38 rx_spe_pntr? Receiver SPE Pointer Value Query Command ............38 tx_ptr_ndf [ n ] Transmitter STS NDF Setup Command..............38 ST112 SONET Transmission Test Set 7–7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 151 Elapsed Test Cycle Time Query Command..............46 log_clear Clear Error Log Execute Command ................46 log_print Print Error Log Execute Command ................47 7–8 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 152 _random [ on | off ] DS1 Random Error Rate Set Command ..........55 ds1_bit_random? DS1 Random Error Rate Query Command............56 ST112 SONET Transmission Test Set 7–9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 153 Alarm LOF Query Command..................... 67 alm_oorp [ on | off ] Alarm OORP Set Command ................67 alm_oorp? Alarm OORP Query Command ..................67 7–10 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 154 COMBINED (DUAL) MODE COMMANDS............73 combined_mode [ on | off ] Combined Mode Set Command ............73 combined_mode? Combined Mode Query Command ..............73 ST112 SONET Transmission Test Set 7–11 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 155 *idn? Response: **** TEKTRONIX, ST112, 0, v.vv Note: v.vv will be replaced by the software version number *lrn? Learn Query Command List the ST112 current setup, except for: RS-232-C port information. Example: lrn? Response: AUTO_VOL 0; PRINT_PORT PARALLEL; VIEW_ANGLE 1;...
Page 156: Standard Register Commands
*cls Response: NONE Note: after execution the ST112 will have no data in its input and output registers, and will not be executing any command. *ese [n] Event Status Enable Register Set Command Sets the Event Status Enable Register (ESER) to the argument n...
Page 157 *OPC? [n] (n=1 indicates incomplete, n=0 indicates complete) Note: Used to determine when a group of commands have been completed. *rst Reset Command Returns the ST112 to its factory default settings and initiates the Operation Complete Idle State and Operation Complete Query Idle State. Example: *rst Response:...
Page 158: General Setup Commands
Used to recall one of the six factory default setups: Arguments: n=0 sets the ST112 to the STSX-1 factory default settings. n=1 sets the ST112 to the OC-1 factory default settings. n=2 sets the ST112 to the OC-3 factory default settings.
Page 159 Returns the current address value. Example: gpib_address? Response: GPIB_ADDRESS 15 Note: This command is only used through the RS-232-C Port connection. 7–16 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 160 Sets the default printer port to parallel or serial. Example: print_port parallel Response: NONE Note: directs all printing to the parallel (centronics) port. ST112 SONET Transmission Test Set 7–17 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 161 Response: NONE Note: When the echo is on the ST112 will echo back each ASCII character sent to the RS-232-C port (Full Duplex mode). When the echo is off the ST112 will NOT echo back ASCII characters sent to the RS-232-C port (Half Duplex mode).
Page 162 "15:30:45" Response: NONE Note: Uses 24 hours format, HH:MM:SS (Hours Minutes Seconds) time? Internal Time Clock Query Command Returns the time from the ST112 internal time of day clock. Example: time? Response: TIME "15:30:45" view_angle? Front-panel View Angle Query Command Returns a decimal integer that indicates the display angle of view.
Page 163: Receiver Setup And Mode Commands
Response: NONE Note: The ST112 receiver input jacks are located on the front panel. One is a BNC 75- ohm and the other is a 100-ohm input impedance. dsx_level? DSX/STSX Level Query Command Sets the input gain of the electrical inputs to either terminate or bridge (monitor).
Page 164 Line Order wire Channel (byte E2). Example: rx_owire local Response: NONE Note: The rear panel port is labeled ORDER WIRE ST112 SONET Transmission Test Set 7–21 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 165 Sets the Receiver VT1.5 Channel number within the STS-1 channel. Argument: n: a decimal number from 1 to 28 Example: rx_vt_chan 14 Response: NONE 7–22 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 166 Returns a character string indicating the current VT1.5 Payload Mapping selected. Example: rx_vt_map? Response: RX_VT_MAP MAP4x7 Note: VT1.5 channel numbering (mapping) can be either sequential (MAP1x28) or 4x7 interleaved (MAP4x7). ST112 SONET Transmission Test Set 7–23 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 167: Transmitter Setup And Mode Commands
DCC (D1 to D3). line: enables insertion into the line DCC (D4 to D12) off: disables insertion. Example: tx_dcc section Response: NONE 7–24 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 168 Example: tx_ocn? Response: TX_OCN OC12 Note: Transmitter optical rate can be OC-1, OC-3, or OC-12 (see Receiver Optical Rate Set Command) ST112 SONET Transmission Test Set 7–25 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 169 Selects sequential VT channel numbering 1 to 28 map4x7: Select 4 x 7 VT channel numbering. Example: tx_vt_map map4x7 Response: NONE 7–26 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 170: Test Cycle Control Commands
Example: test_print off Response: NONE ST112 SONET Transmission Test Set 7–27 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 171 Response: NONE Note: See pause_state command. The Trouble Scan Mode must be OFF before the Test State can be enabled. 7–28 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 172 This is a test. Note: The character string [s] can be up to 80 (eighty) characters long. It begins and ends with quotation marks. ST112 SONET Transmission Test Set 7–29 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 173: Payload Commands
Inverted PRBS Pattern (2 –1) word: an eight bit sequence set with the ds3_word command. Example: rx_ds3_pat word Response: NONE 7–30 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 174 Response: RX_VT_CHAN N (N = a decimal number from 1 to 28) Note: See (rx_vt_chan) Receive VT Channel Select Command. ST112 SONET Transmission Test Set 7–31 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 175 CCITT Standard Pattern Example: s12c_patt_inv invert Response: NONE Note: These patterns will be use to analyze the STS-3c or STS-12c Payloads. 7–32 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 176 Example: tx_ds3_pat? Response: TX_DS3_PAT? WORD Note: PRBS 15, PRBS 23, and WORD are the three test patterns that can be transmitted. ST112 SONET Transmission Test Set 7–33 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 177 Response: TX_VT_CHAN N (N = a decimal number from 1 to 28) Note: See (rx_vt_chan) Receive VT Channel Select Command. 7–34 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 178 Returns a character string indicating the selected transmitter VT Frame Format. Example: tx_vt_patt? Response: TX_VT_PATT? PRBS_23 Note: For Arguments see (tx_vt_patt) Tx VT Pattern Set Command. ST112 SONET Transmission Test Set 7–35 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 179 Example: vt_word? Response: VT_WORD #HAA, #H00, #HFF Note: The Example shows the 24-bit DS-1 hexadecimal word AA00FF that had been set. 7–36 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 180: Pointer Commands, Spe
Response: RX_NEG_PJ 43 Note: SPE Pointer adjustments are counted on the current STSn that was selected using the tx_sts_chan command. ST112 SONET Transmission Test Set 7–37 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 181 Returns a character string indicating the current value of the New Data Flag STS-n SPE pointer. Example: tx_spe_pntr? Response: TX_SPE_PNTR 500 Note: There is one pointer value for each STS-1 Channel received in the SONET signal. 7–38 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 182: Pointer Commands, Vt
Command, that will become the VT NDF value when the tx_vt_ndf command is executed. Example: vt_ptr_ndf? Response: VT_PTR_NDF 70 Note: There is one NDF for each VT1.5 Channel received in the SONET signal. ST112 SONET Transmission Test Set 7–39 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 183 Response: VT_NEG_PJ 78 Note: VT Pointer adjustments are counted on the current VT1.5 Channel that was selected using the tx_vt_chan command. 7–40 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 184: Receiver Overhead Query Commands
J1, B1, ..., B3, ..., D1, ..., Z5, and bytes thirty-six through thirty-nine are: V1, V2, V3, V4. The #H code after the comma is corresponding byte value in non-decimal numeric (hexadecimal). ST112 SONET Transmission Test Set 7–41 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 185 The number #H22 in the response is the non-decimal numeric (hexadecimal) value of the K2 byte. The label K2 is not entered or displayed. 7–42 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 186: Receiver Measurement Commands
B2 Error Count Query Command Returns the number of STS-n Line BIP-8 Code Violations counted in the received SONET signal. Example: b2_err? Response: B2_ERR 22325 ST112 SONET Transmission Test Set 7–43 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 187 BPV Error Count Query Command Returns the number of Bipolar Violations counted in the received STSX-1, DSX-3, or DSX-1 signal. Example: bpv_err? Response: BPV_ERR 1234 7–44 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 188 DS3 Bit Errored Seconds Query Command Returns the number of test pattern bit errored seconds counted in the selected DS3 signal. Example: ds3_bit_es? Response: DS3_BIT_ES 3394 ST112 SONET Transmission Test Set 7–45 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 189 Clear Error Log Execute Command Clears all error log reports stored in the non-volatile memory Error Log. Example: log_clear Response: NONE 7–46 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 190 Returns the number of Frame errors counted in the STS-n A1 or A2 framing bytes of the SONET signal. Example: sts_fram_err? Response: STS_FRAM_ERR 7 ST112 SONET Transmission Test Set 7–47 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 191: Receiver Led Status Commands
HIST (History): Indicates that the LED is off and historical data is available. CUR (Current): Indicates that the LED is on. 7–48 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 192 HIST (History): Indicates that the LED is off and historical data is available. CUR (Current): Indicates that the LED is on. ST112 SONET Transmission Test Set 7–49 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 193 HIST (History): Indicates that the LED is off and historical data is available. CUR (Current): Indicates that the LED is on. 7–50 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 194 HIST (History): Indicates that the LED is off and historical data is available. CUR (Current): Indicates that the LED is on. ST112 SONET Transmission Test Set 7–51 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 195 HIST (History): Indicates that the LED is off and historical data is available. CUR (Current): Indicates that the LED is on. 7–52 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 196 HIST (History): Indicates that the LED is off and historical data is available. CUR (Current): Indicates that the LED is on. ST112 SONET Transmission Test Set 7–53 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 197: Transmitter Error Commands
Returns the VT1.5 Bit Interval Parity error rate settings. Example: bip2_rate? Response: BIP2_RATE 3.2E-7 Note: The error rate is displayed as a negative exponent. 7–54 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 198 Turns the DS1-VT1.5 error rate generator off. Example: ds1_bit_random on Response: NONE Note: The error rate is a negative exponent from 1.0E-9 to 1.5E-3. ST112 SONET Transmission Test Set 7–55 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 199 DS3 Random Error Rate Query Command Returns the state of the DS3 Bit error rate random generator. Example: ds3_bit_random? Response: DS3_BIT_RANDOM ON 7–56 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 200 Response: NONE Note: These errors cause STS-n BIP-8 code violations (in the line, section, and path) and VT1.5 BIP-2 code violations. ST112 SONET Transmission Test Set 7–57 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 201 STS-n TOH or SPE bytes after the section, line, and path parity has been calculated. 7–58 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 202 Returns the current STSX-1 BPV Rate settings. Example: stx_bpv_rate? Response: STX_BPV_RATE 1.0E-6 Note: The rate is a negative exponent from 1.0E-9 to 1.5E-3. ST112 SONET Transmission Test Set 7–59 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 203 Returns the value specified in the J1 Trace message. Example: tx_j1_trace? Response: TX_J1_TRACE TEKTRONIX Note: The message can be any ASCII Text String, up to 64 Characters. 7–60 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 204 Returns status of the TOH editing session. Example: tx_oh_edit? Response: TX_OH_EDIT ON Note: The editing session can be either ON or OFF. ST112 SONET Transmission Test Set 7–61 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 205 Table 7–4 Byte Mnemonics TOH Section (Sec.) and Line Overhead Bytes POH Bytes VT Bytes Sec. Sec. Sec. Line Line Line Line Line Line 7–62 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 206 STS-1 payload errors—mapping mode dependent. A single bit error is located, at random, anywhere in the selected STS-1 channel after the section, line, and path parity has been calculated. ST112 SONET Transmission Test Set 7–63 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 207 Returns the decimal value of the (VT1.5) V-5 overhead byte. Example: tx_vt_v5? Response: TX_VT_V5 14 Note: See the Transmit V5 Byte Set Command (tx_vt_v5 [n]) 7–64 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 208 Response: NONE Note: Alarm events include all continuous alarm conditions and current burst alarm conditions if the burst is in progress. ST112 SONET Transmission Test Set 7–65 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 209 Example: alm_l_ais on Response: NONE Note: Use the alm_enab command to executed the enabled alarm condition. 7–66 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 210 Example: alm_sts_ais on Response: NONE Note: Use the alm_enab command to executed the enabled alarm condition. ST112 SONET Transmission Test Set 7–67 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 211 Example: alm_vt_ais on Response: NONE Note: Use the alm_enab command to executed the enabled alarm condition. 7–68 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 212 Activates the DS1 Yellow Alarm Condition. off: Turns both DS1 AIS and YEL alarm conditions. Example: ds1_alarms yel Response: NONE ST112 SONET Transmission Test Set 7–69 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 213 An execution error will occur if the selected DS3 frame selected for remote operation is not the same as the DS3 frame being transmitted. See the ds3_pth_ty Path Alarm Set Command. 7–70 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 214 Returns a character string indication the current state of the DS1 Alarms (AIS and YEL). Example: ds3_pth_ty? Response: ds3_pth_ty? CBIT, FEBE Note: see the DS3 Path Alarm Burst Set Command. ST112 SONET Transmission Test Set 7–71 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 215: Loss Of Signal
Disables the LOS event currently being generated. Example: los_off Response: NONE los_cont Generates a continuous LOS event. Example: los_cont Response: NONE 7–72 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 216: Combined (Dual Mode) Commands
Test Set will be controlled by the ST112 through its remote serial interface (RS-232-C port). All remote commands sent to the ST2400 through the RS-232-C port will be passed on to the ST112 for processing. The ST112 VT100 menus will include the ST2400 2.4 Gb/s SDH/SONET Test Set menus.
Page 217 Remote Commands 7–74 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 218: Specifications
Appendix A Specifications Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 219 Appendix A: Specifications This addendix documents the specifications that apply to the latest software release for the ST112 SONET Transmission Test Set, Version 4.1. Table A-1: Standard ST112 Electrical Specifications Characteristic Description Generator Output Electrical Output Data Rates DSX-1: 1.544 Mb/s DSX-3: 44.736 Mb/s...
Page 220 Signal Level Connector “BIT ERR”: “EVENT SYNC OUTPUT”: ST112 SONET Transmission Test Set A–3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 221 Payload Alarms DS3-YEL (Yellow) Continuous DS3-AIS (Alarm Indication Signal) DS3-IDLE DS1-AIS (Alarm Indication Signal) DS1-RAI (Remote Alarm Indication) Simultaneous Alarms Supported A–4 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 222 “155 Mb/s INPUT”: AC-coupled, 50 ohm, BNC “BITS DSX1 INPUT”: Balanced, 100 ohm, WECO310 jack “DSX3 INPUT”: Unbalanced, 75 ohm, BNC ST112 SONET Transmission Test Set A–5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 223 Set to a new location with the NDF being set. The range for SPE pointers is 0 to 782. The range for VT pointers is 0 to 103. A–6 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 224 Result Logging All measurements are recorded with start, stop time and date. The current and previous results are stored in memory. Utilities ST112 SONET Transmission Test Set A–7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 225 GPIB: Standard IEEE-488 socket. RS-232-C: DB-25 pin female connector used for terminals or serial printer. Parallel Printer Connector: DB-25 pin female connector. A–8 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 226 Appendix A: Specifications Table A-2 lists specifications for additional features when the ST112 is equipped with option 03. Table A-2: ST112 Option 03 Optical Specifications (OC-1 and OC-3) Characteristic Description Generator Output Optical Output Data Rates OC-1: 51.84 Mb/s OC-3: 155.52 Mb/s...
Page 227 Summary Bit only Total error counts Table A-4 lists specifications for additional features when the ST112 is equipped with option 5R. A–10 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 228 Appendix A: Specifications Table A-4: ST112 Option 5R Optical Specifications (OC-1, OC-3, and OC-12) Characteristic Description Generator Output Optical Output Data Rates OC-1: 51.84 Mb/s OC-3: 155.52 Mb/s OC-12: 622.08 Mb/s Signal Level & Wavelength 1550 nm, -1 dBm typical ±3 dBm...
Page 229 Power Requirements Line Voltage Line Frequency 110 (90 to 130) VAC 47 Hz to 63 Hz Maximum power consumption is 250 Watts. A–12 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 230: Incoming Inspection Test
Appendix B Incoming Inspection Test Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 231 Required Equipment The following equipment will be required in order to verify that the ST112 Transceiver is functioning properly. Fiber Optical Cable - must be a single mode cable and have connectors...
Page 232 LED is now on. Also, in the receiver’s section of the display, note that B1 now has a zero after it. ST112 SONET Transmission Test Set B–3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 233 18. On the transmitter side of the front panel, press ERROR until the display shows the STSX1 Random Error Rate menu. 19. Using the LEFT/RIGHT cursors, select 1.0E-3 and then press ENTER. B–4 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 234 SYNC, and BIT flashed once. Also, on the display, observe that the number after SPE is now equal to 500. 7. On the receiver side of the front panel, press POINTER. ST112 SONET Transmission Test Set B–5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 235 13. Using the LEFT/RIGHT cursors, select D8. 14. Using the INC/DEC keys and the LEFT/RIGHT cursors, change D8 to 00 and then press ENTER. B–6 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 236 LED for FERF remains lit. 9. Using the LEFT/RIGHT cursors, select OFF and then press ENTER. 10. Press RUN/STOP twice to clear all errors. ST112 SONET Transmission Test Set B–7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 237 LED for NDF remains lit. 29. Using the LEFT/RIGHT cursors, select OFF and then press ENTER. 30. Press RUN/STOP twice to clear all errors. B–8 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 238 17. On the transmitter side of the front panel, press ALARM until the display shows the Loss of VT Pointer menu. ST112 SONET Transmission Test Set B–9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 239 ERR/ALM until the top line of the display shows DS1 ALARMS. 13. Using the LEFT/RIGHT cursors, select AIS and then press ENTER. B–10 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 240 ERR/ALM until the top line of the display shows DSX3 SINGLE. 15. Using the LEFT/RIGHT cursors, select BPV & then press ENTER three times. ST112 SONET Transmission Test Set B–11 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 241 1. Connect the transmitter and the receiver together with an optical cable with an attenuator attached to one end. Connect one end of the optical cable to the optical connector on the B–12 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 242 21. On the display, observe that SPE has a value of 522 and that +PJ, -PJ, and NDF all have values equal to one. 22. Press RUN/STOP twice to clear all errors. OC3 Quick Set-Up ST112 SONET Transmission Test Set B–13 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 243 15. On the transmitter side of the front panel, press ERROR until the display shows the Tx OC3 Single Error menu. B–14 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 244 10. On the receiver side of the front panel, under the DCC/OW button, press ERROR until the top line of the display shows B1, B2, B3, and FEBE. ST112 SONET Transmission Test Set B–15 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 245: Cleaning Optical Cables
If the unit still has a problem, please call Tektronix Customer Sales and Support Center (CSSC) at 1-800-835-9433 x2400 or 503-627-2400 for assistance.
Page 246 6. Dispose of the used Kimwipe immediately. Do not reuse it. ST112 SONET Transmission Test Set B–17 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 247 Incoming Inspection Test B–18 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 248 Appendix C Calibration Verification Test Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 249 Note: The optical sections only apply if the unit has optical options. Required Equipment The following equipment will be required in order to verify that the ST112 Transceiver is calibrated properly. Tektronix CSA803A oscilloscope with sampling head**...
Page 250 The frequency shown on the counter should be 772 Khz + 7.72 Hz, which is equal to the half-rate clock. DS1 Signal Mask Verification ST112 SONET Transmission Test Set C–3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 251 1. Connect one end of the cable to the bottom left output connector on the transmitter side of the front panel. C–4 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 252 STS1 mask. The CSA803A scope, a frequency counter, an AC coupler, a 75 ohms bnc thru terminator, a 75 ohms to ground bnc terminator, a 75 ohms ST112 SONET Transmission Test Set C–5 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 253 2. Connect one end of the optical cable to the optical connector on the transmitter side of the front panel. 3. Connect the other end of the optical cable to the optical end of the Optical/Electrical converter. C–6 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 254 5. Set the vertical adjustment back to the normal position. 6. Remove all cables and attenuators from the unit and the scope. ST112 SONET Transmission Test Set C–7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 255 Transceiver. If you had any problems with the unit while performing the tests, repeat the procedure paying careful attention to the set-up of the units and the directions given. If the unit still has a problem, please call Tektronix Customer Sales and Support Center (CSSC) at 1-800- 835-9433 x2400 or 503-627-2400 for assistance.
Page 256 3. Take a clean Kimwipe from the box and dab it into the clean Alcohol. 4. Wipe the Alcohol soaked Kimwipe over the ends of the fiber optic cable gently. ST112 SONET Transmission Test Set C–9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 257 6. Dispose of the used Kimwipe immediately. Do not reuse it. C–10 ST112 SONET Transmission Test Set Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 258: Index
Index standard event status register (SESR), 6-11 status and event reporting, 6-10 —A— status byte register (SBR), 6-12 GPIB Port Setup, 3-6 AC Interlock, 2-18 AC Power, 2-18 AC Power Requirements, 1-5, 2-4 —I— Accessories, 1-4 Active, 5-3 Indicators Alarms History, 2-15 Line, 2-12 Payload, 2-14...
Page 259 —M— —S— Modem Connections, 4-3 Safety practices, 1-5 Setting the New Data Flag, 3-22, 3-23 ST2400 Prompt, 4-3 —N— ST-2400 RS-232C Port Settings, 4-2 Store/Recall, 3-4 New Data Flag, 3-22, 3-23 New Data Flag (NDF), 3-12 —T— —O— Terminal Setup, 4-3 Test Time, 3-5 Ordering Information, 1-2 Transmitter...
Page 260 STS3C Configuration, 4-39 VT1.5 Structures, 4-14, 4-33 Timing, 4-23 VT-100 terminal, 4-2 VT Errors/Alarms, 4-35 VT-100 terminal emulation, 4-2 VT Pointers, 4-26 VFP Displays, VT1.5 Channel Configuration, 4-32 —W— View History Key, 2-15 Virtual Front Panel, 4-2 Warning and caution labels, xi VT Channel Mapping, 3-10 Artisan Technology Group - Quality Instrumentation ...
Page 261 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...

Tektronix ST112 User Manual

Introduction

Functional Overview

LCD Menus and Displays

Virtual Front Panel (VFP)

Applications & Uses

External Controllers & Printers

Remote Commands

Appendices

Quick Links

Related Manuals for Tektronix ST112

Summary of Contents for Tektronix ST112

Table of Contents
