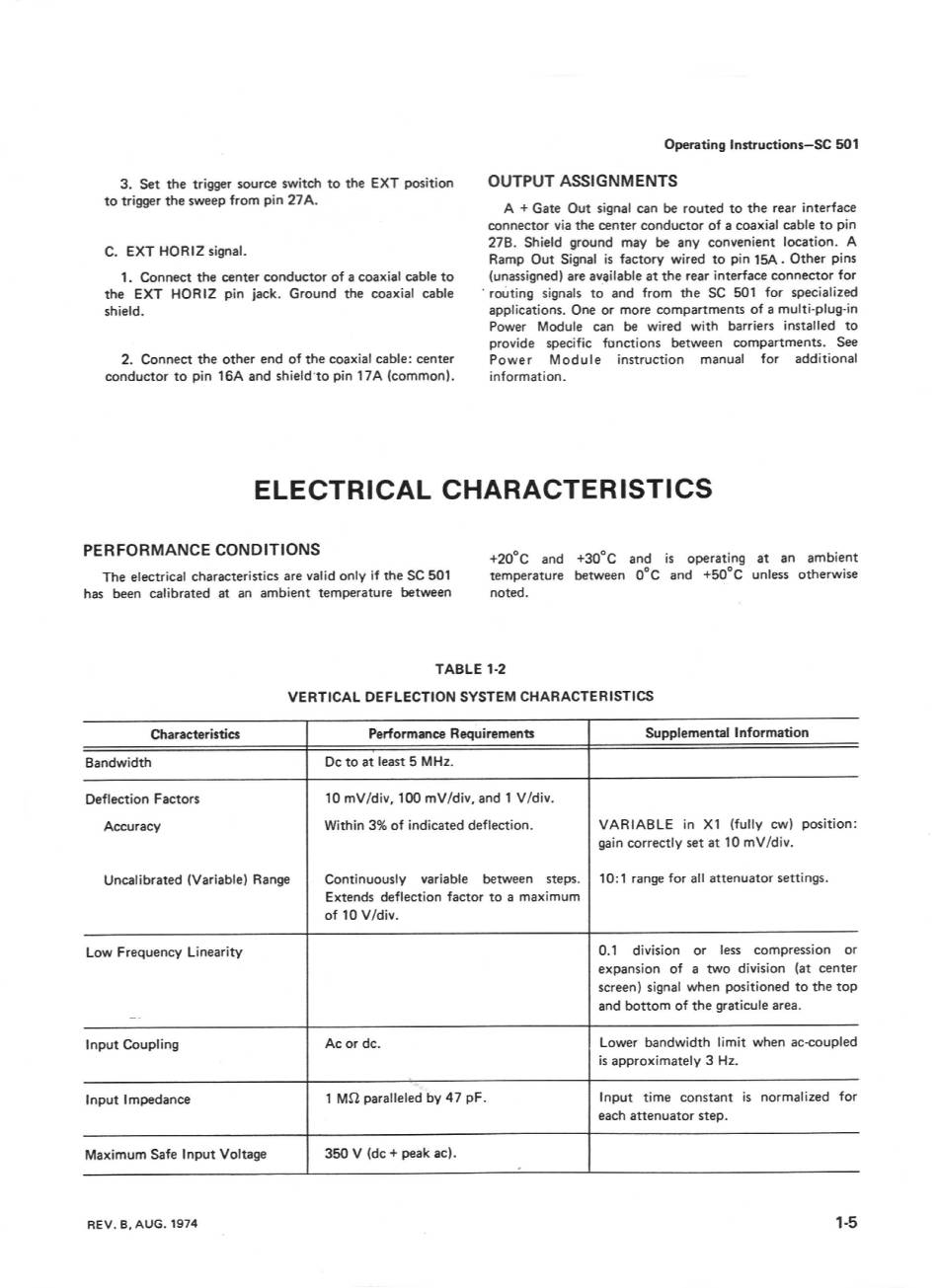

3. Set the trigger source switch to the EXT position
to trigger the sweep from pin 27A.
1. Connect the center conductor of a coaxial cable to
the EXT HORIZ pin jack. Ground the coaxial cable
shield.
2. Connect the other end of the coaxial cable: center
conductor to pin 16A and shield'to pin 17A (common).
Operating Instructions—SC 501
OUTPUT ASSIGNMENTS
A + Gate Out signal can be routed to the rear interface
connector via the center conductor of a coaxial cable to pin
27B. Shield ground may be any convenient location. A
Ramp Out Signal is factory wired to pin 15A . Other pins
(unassigned) are available at the rear interface connector for
"routing signals to and from the SC 501 for specialized
applications. One or more compartments of a multi-plug-in
Power Module can be wired with barriers installed to
provide specific functions between compartments. See
Power Module instruction manual for additional
information.
ELECTRICAL CHARACTERISTICS
PERFORMANCE CONDITIONS
has been calibrated at an ambient temperature between noted.
TABLE 1-2
VERTICAL DEFLECTION SYSTEM CHARACTERISTICS
Performance Requirements
10 mV/div, 100 mV/div, and 1 V/div.
Within 3% of indicated deflection.
Continuously variable between steps.
gain correctly set at 10 mV/div.
10:1 range for all attenuator settings.
of 10 V/div.
Low Frequency Linearity 0.1 division or less compression or
screen) signal when positioned to the top
and bottom of the graticule area.
Input Coupling Ac or de. Lower bandwidth limit when ac-coupled
is approximately 3 Hz.
Input time constant is normalized for
each attenuator step.
1-5
