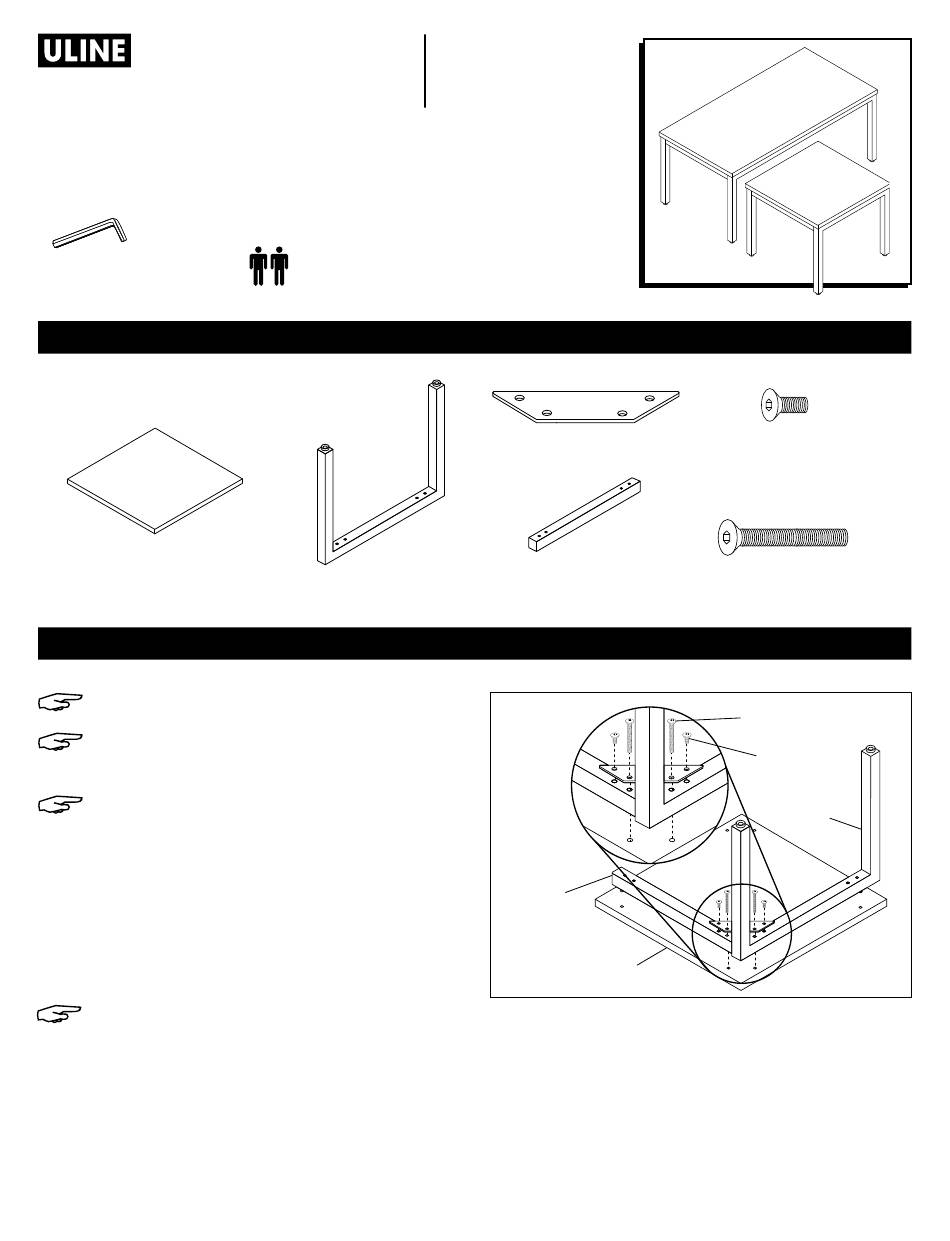

H-9769, H-9770
DOWNTOWN COLLECTION
RECEPTION TABLE
TOOL NEEDED
Allen Wrench
(included)
Tabletop x 1
NOTE: Use Allen wrench to tighten all bolts.
NOTE: Assemble table on a smooth, non-marring
surface to prevent scratching.
NOTE: Check that all parts are included.
1.
Place tabletop upside down with holes facing up.
2. Place one support rail and one leg rail together over
corresponding holes in the tabletop.
3. With second person holding support rail and leg rail
in place, use one corner bracket, two M6 x 12 mm
bolts and two M6 x 60 mm bolts to secure to tabletop.
(See Figure 1)
NOTE: Do not fully tighten bolts until assembly
is complete.
PAGE 1 OF 6
1-800-295-5510
uline.com
Two Person Assembly
Recommended
PARTS
Leg Rail x 2
ASSEMBLY
Pour le français, consulter les pages 5-6.
Corner Bracket x 4
Support Rail x 2
Figure 1
Support
Rail
Tabletop
Para Español, vea páginas 3-4.
M6 x 12 mm Bolt x 8
M6 x 60 mm Bolt x 8
(10 for H-9770)
M6 x 60 mm
Bolt
M6 x 12 mm
Bolt
Leg Rail
1223 IH-9769
Advertisement
Related Manuals for U-Line DOWNTOWN H-9770
Summary of Contents for U-Line DOWNTOWN H-9770
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-9769, H-9770 1-800-295-5510 uline.com DOWNTOWN COLLECTION RECEPTION TABLE TOOL NEEDED Two Person Assembly Allen Wrench Recommended (included) PARTS Corner Bracket x 4 M6 x 12 mm Bolt x 8 Tabletop x 1 Leg Rail x 2 Support Rail x 2...
- Page 2 ASSEMBLY CONTINUED 4. Repeat steps 2 and 3 for remaining leg rail and Figure 2 support rail. Use remaining corner brackets to secure opposite corners where rails and legs meet. (See Figure 1) M6 x 60 mm NOTE: For H-9770, use two remaining Bolt M6 x 60 mm bolts to secure leg rail to tabletop.
- Page 3 H-9769, H-9770 800-295-5510 uline.mx COLECCIÓN URBANA MESA DE RECEPCIÓN HERRAMIENTA NECESARIA Se Recomienda Armar Llave Allen Entre Dos Personas (incluida) PARTES 4 Soportes 8 Pernos M6 x 12 mm de Esquina Cubierta de la Mesa x 1 2 Rieles para Patas 2 Rieles de Gaveta 8 Pernos M6 x 60 mm (10 para el H-9770)
- Page 4 CONTINUACIÓN DEL ENSAMBLE 4. Repita los pasos 2 y 3 para el riel de soporte y el Diagrama 2 riel para pata restantes. Use los soportes de esquina restantes para asegurar las esquinas opuestas donde se encuentran los rieles y las patas. (Vea Diagrama 1) Perno M6 x 60 mm...
-
Page 5: Montage
H-9769, H-9770 H-9769, H-9770 1-800-295-5510 uline.ca COLLECTION DOWNTOWN TABLE D'ACCUEIL OUTIL REQUIS Montage à deux Clé Allen personnes recommandé (inclus) PIÈCES Support en cornière x 4 Boulon M6 x 12 mm x 8 Surface de table x 1 Barre de pied x 2 Barre de support x 2 Boulon M6 x 60 mm x 8 (10 pour H-9770) - Page 6 MONTAGE SUITE Répétez les étapes 2 et 3 pour les autres barres de Figure 2 pied et de support. Utilisez les autres supports en cornière pour fixer les coins opposés où les barres et les pieds se rejoignent. (Voir Figure 1) Boulon REMARQUE : Pour H-9770, utilisez les deux M6 x 60 mm...
