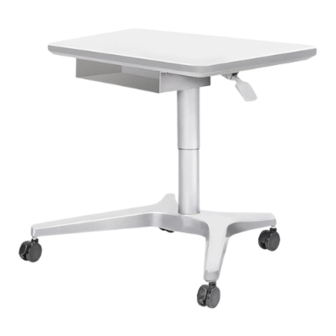

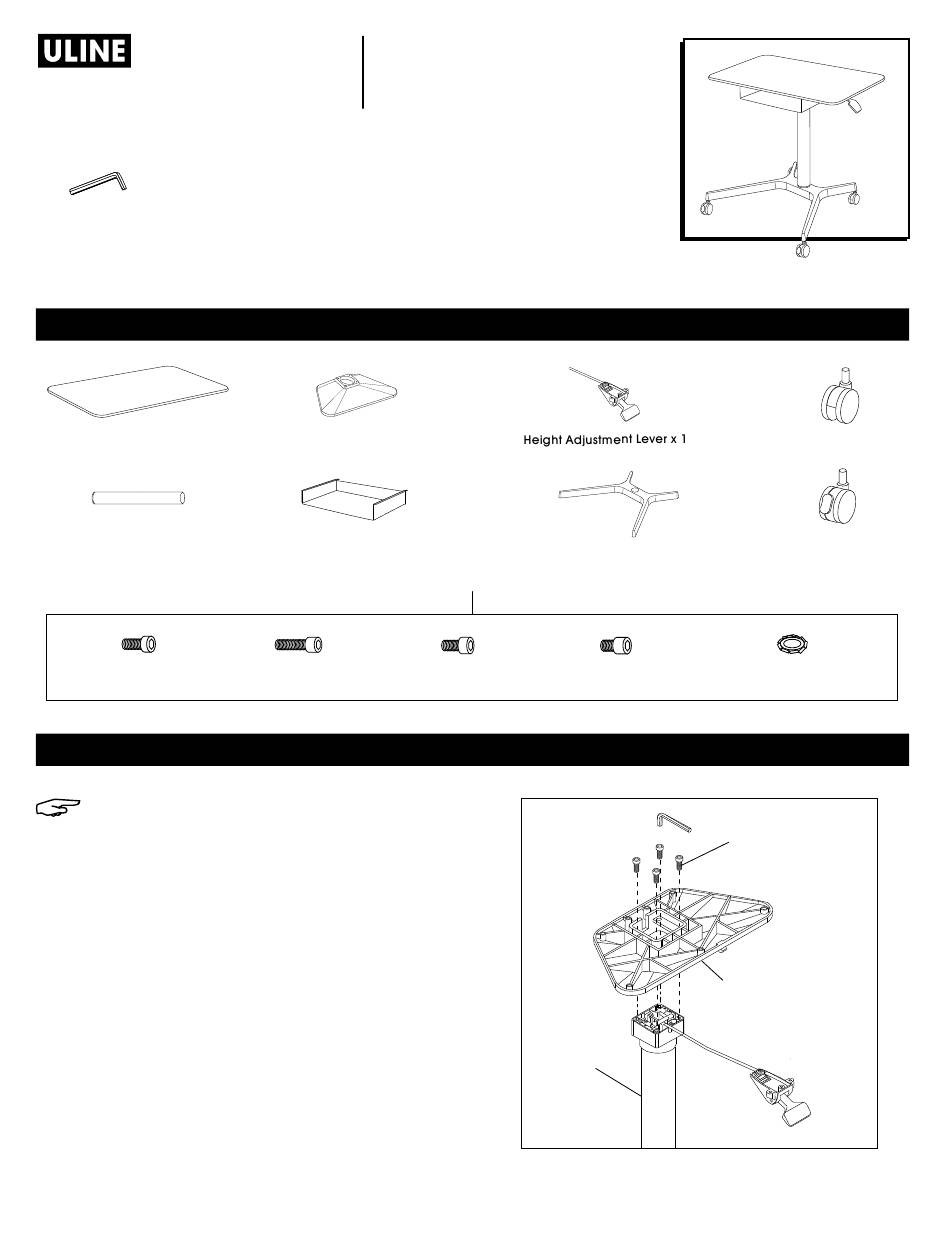

H-9014
SIT/STAND MOBILE DESK
TOOL NEEDED
5 mm Allen Wrench
6 mm Allen Wrench
(included)
Tabletop x 1
Center Post x 1
1
M8 x 15 mm Bolt x 4
NOTE: Count and inspect all pieces before
disposing of any carton or packing materials.
1.
Insert four M8 x 15 bolts (1) into plastic mount plate
to attach to center post. Tighten using 6 mm Allen
wrench. (See Figure 1)
PAGE 1 OF 6
1-800-295-5510
uline.com
Plastic Mount Plate x 1
Lower Shelf x 1
2
M6 x 20 mm Bolt x 7
M6 x 15 mm Bolt x 6
PARTS
Base x 1
Hardware Kit
3
4
M6 x 12 mm Bolt x 4
ASSEMBLY
Figure 1
Center
Post
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Swivel Caster x 2
Locking Caster x 2
5
7 mm Locking Washer x 3
M8 x 15 mm Bolt
Plastic Mount Plate
0723 IH-9014
