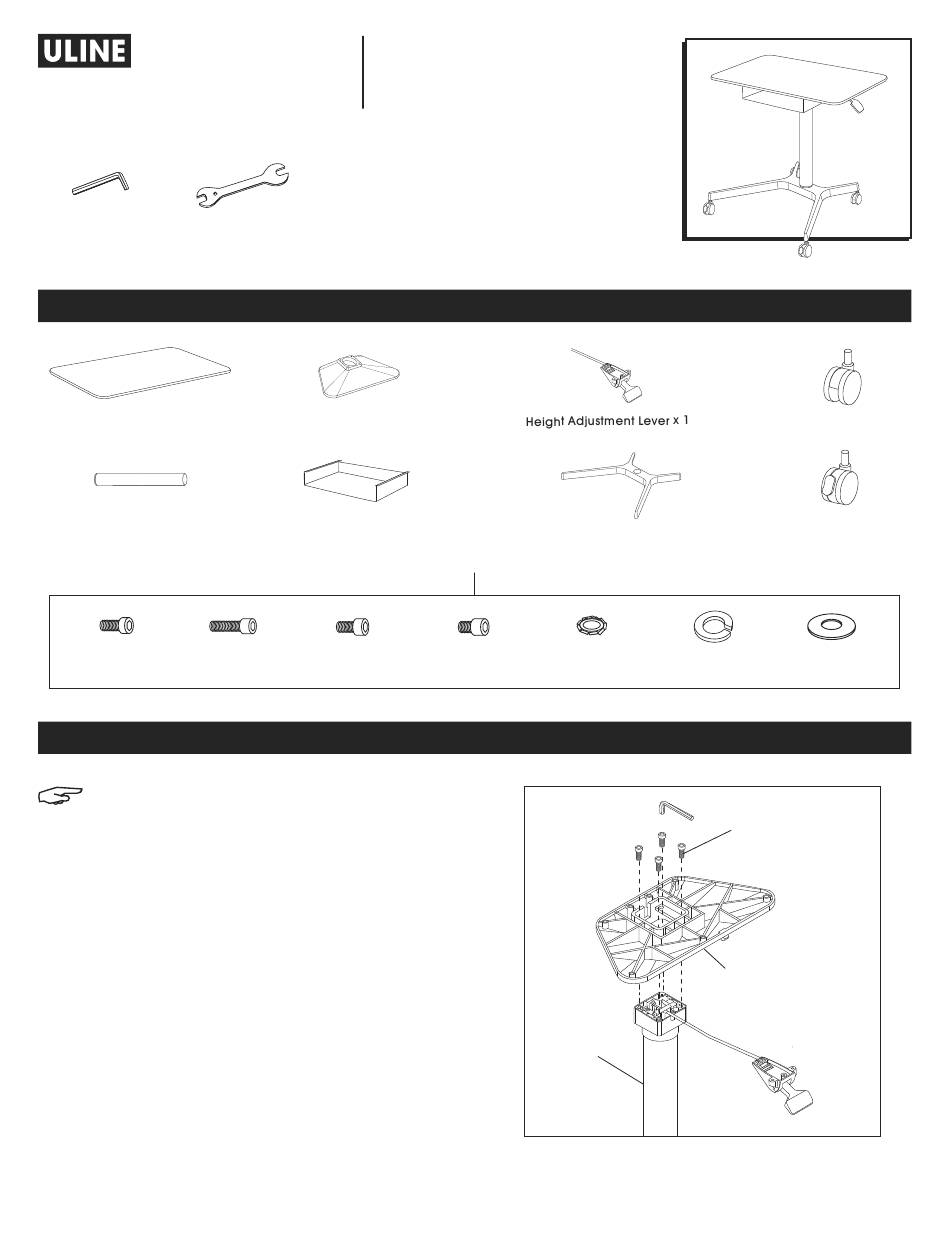

H-9014
SIT/STAND MOBILE DESK
TOOLS NEEDED
5 mm Allen Wrench
6 mm Allen Wrench
(included)
(included)
Tabletop x 1
Center Post x 1
1
2
M8 x 15 mm
M6 x 20 mm
Bolt x 7
Bolt x 4
NOTE: Count and inspect all pieces before
disposing of any carton or packing materials.
1.
Insert four M8 x 15 bolts (1) into plastic mount plate
to attach to center post. Tighten using 6 mm Allen
wrench. (See Figure 1)
PAGE 1 OF 6
1-800-295-5510
uline.com
Wrench
Plastic Mount Plate x 1
Lower Shelf x 1
3
M6 x 15 mm
Bolt x 6
PARTS
Base x 1
Hardware Kit
4
5
M6 x 12 mm
7 mm Locking
Bolt x 4
Washer x 3
ASSEMBLY
Figure 1
Center
Post
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Swivel Caster x 2
Locking Caster x 2
6
7
8 mm Locking
8 mm Washer
Washer x 4
x 4
M8 x 15 mm Bolt
Plastic Mount Plate
0221 IH-9014
Advertisement
Related Manuals for U-Line H-9014
Summary of Contents for U-Line H-9014
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-9014 1-800-295-5510 uline.com SIT/STAND MOBILE DESK TOOLS NEEDED 5 mm Allen Wrench Wrench 6 mm Allen Wrench (included) (included) PARTS Tabletop x 1 Plastic Mount Plate x 1...
- Page 2 ASSEMBLY CONTINUED 2. Place tabletop face down on non-marring surface, 4. Turn the base upside down and place it on the so the pre-drilled holes face up. Align holes on bottom of the center post. Match the three holes plastic mount plate with pre-drilled holes on on the bottom of the base with the three holes in tabletop and insert six M6 x 20 mm bolts (2) to the center post.
-
Page 3: Herramientas Necesarias
H-9014 800-295-5510 uline.mx ESCRITORIO MÓVIL PARA TRABAJAR DE PIE O SENTADO HERRAMIENTAS NECESARIAS Llave Allen de 5 mm Llave Llave Allen de 6 mm (incluida) (incluidas) PARTES 1 Cubierta 1 Placa de Instalación de Plástico 2 Ruedas Giratorias 1 Poste Central... - Page 4 CONTINUACIÓN DE ENSAMBLE 2. Coloque la cubierta bocabajo sobre una superficie 4. Voltee la base al revés y colóquela en la parte inferior que no deje marcas, para que los orificios del poste central. Acomode los tres orificios en la preperforados queden boca arriba.
-
Page 5: Outils Requis
H-9014 1-800-295-5510 uline.ca BUREAU MOBILE ASSIS/DEBOUT OUTILS REQUIS Clé Allen de 5 mm Clé (inclus) Clé Allen de 6 mm (inclus) PIÈCES Surface de table x 1 Plaque de fixation en plastique x 1 Roulette pivotante x 2 Montant central x 1 Tablette inférieure x 1... - Page 6 MONTAGE SUITE 2. Placez la surface de table à l'envers sur une 4. Tournez la base à l'envers et placez-la au bout du surface plane et non marquante pour que les trous montant central. Alignez les trois trous sous la base prépercés soient orientés vers le haut.
