H-9092A

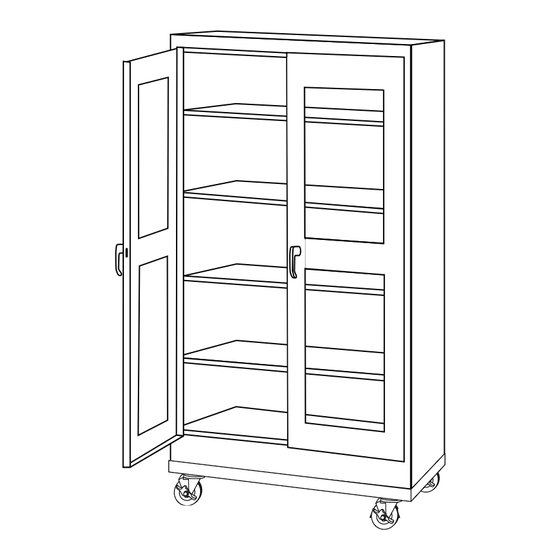

MOBILE CLEAR-VIEW
STORAGE CABINET – ASSEMBLED
TOOLS NEEDED
11/32" Nut Driver
14 mm Wrench
(included)
Base x 1
1. Align caster plate with bolt holes on base. Insert
four bolts through base into caster plate. Attach
bolts with lock washers and nuts. (See Figure 1)
2. Tighten nuts with 14 mm wrench.
3. Repeat for remaining casters.
PAGE 1 OF 6
1-800-295-5510
uline.com
MOBILE BASE PARTS LIST
Caster with Brake x 4
MOBILE BASE ASSEMBLY
Pour le français, consulter les pages 5-6.
Bolt x 16
Lock Washer x 16
Figure 1
Para Español, vea páginas 3-4.
Nut x 16
0624 IH-9092A
Advertisement
Related Manuals for U-Line H-9092A
Summary of Contents for U-Line H-9092A
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-9092A 1-800-295-5510 uline.com MOBILE CLEAR-VIEW STORAGE CABINET – ASSEMBLED TOOLS NEEDED 11/32" Nut Driver 14 mm Wrench (included) MOBILE BASE PARTS LIST Base x 1 Caster with Brake x 4...
- Page 2 CABINET TO BASE ASSEMBLY NOTE: Before setting storage cabinet on Figure 2 mobile base, ensure all contents are removed from cabinet. Engage brakes on all four casters of mobile base. 2. Using two people, carefully lift cabinet onto mobile base, ensuring cabinet rests within outer lip of base. (See Figure 2) 1-800-295-5510 uline.com...
-
Page 3: Tools Needed
H-9092A 800-295-5510 uline.mx GABINETE MÓVIL CON FRENTE TRANSPARENTE PARA ALMACENAMIENTO – ENSAMBLADO TOOLS NEEDED Llave de Tuercas de Llave de 14 mm 11/32" (incluida) LISTA DE PARTES DE LA BASE MÓVIL 1 Base 4 Ruedas Giratorias 16 Pernos 16 Rondanas de... - Page 4 ENSAMBLE DEL GABINETE Y LA BASE NOTA: Antes de colocar el gabinete de Diagrama 2 almacenamiento a la base móvil, asegúrese de vaciar el gabinete. Ponga los frenos a las cuatro ruedas de la base móvil. 2. Entre dos personas, levanten el gabinete con cuidado y colóquenlo sobre la base móvil, asegúrandose de que descanse dentro del borde exterior de la base.
-
Page 5: Outils Requis
H-9092A 1 800 295-5510 uline.ca ARMOIRE DE RANGEMENT MOBILE À PORTES TRANSPARENTES – ASSEMBLÉ OUTILS REQUIS Tournevis à douille de Clé de 14 mm 11/32 po (inclus) LISTE DES PIÈCES DE LA BASE MOBILE Base x 1 Roulette avec frein x 4... - Page 6 MONTAGE DE L'ARMOIRE SUR LA BASE REMARQUE : Avant d'installer l'armoire sur la Figure 2 base mobile, vérifiez que l'armoire a été vidée de son contenu. 1. Actionnez les freins sur toutes les quatre roulettes de la base mobile. 2. Avec l'aide d'une autre personne, soulevez et placez l'armoire avec soin tout en vous assurant qu'elle repose bien au-dedans de la base.
