U-Line H-9748 Quick Start Manual

H-9748, H-9749 H-9748, H-9749

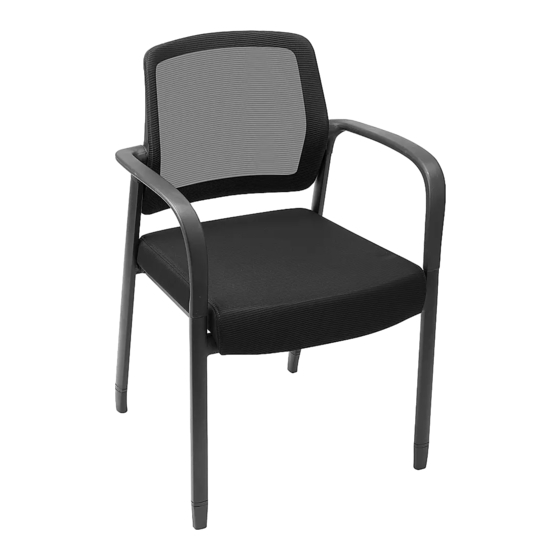

PINNACLE GUEST CHAIR PINNACLE GUEST CHAIR
Front Chair Glide x 2
1. For stationary guest chair (H-9748), insert front chair
glides (A) into two front legs. Insert back chair glides (B)
into two back legs. (See Figure 1)
Figure 1
B
A
PAGE 1 OF 3
1-800-295-5510
uline.com
A
(H-9748 only)
PARTS
B
Back Chair Glide x 2
(H-9748 only)
ASSEMBLY
2. For mobile guest chair (H-9749), insert casters (C)
into all four legs. (See Figure 2)
Figure 2
C
Para Español, vea página 2.
Pour le français, consulter les page 3.
C
Caster x 4
(H-9749 only)
1221 IH-9748
