U-Line H-5673 Quick Start Manual

H-5673

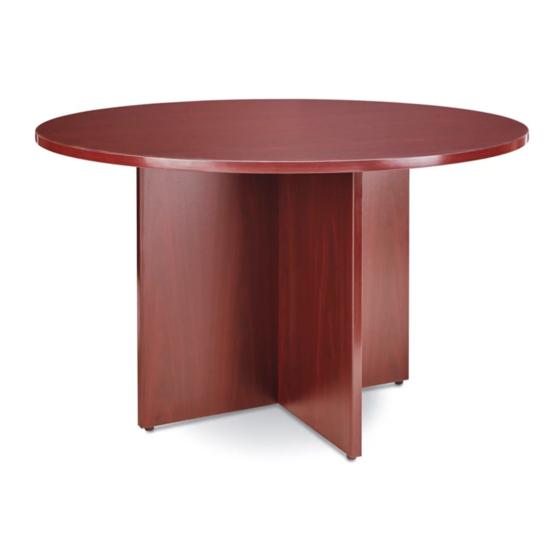

48" ROUND
CONFERENCE TABLE
TOOLS NEEDED
Phillips
Screwdriver
A B
Camlock Pin x 10 Camlock x 10
NOTE: Assemble on a smooth, non-marring
surface to avoid scratching the table.
• Check that all parts are included.
IMPORTANT: The arrow on the camlock (B) must
point toward the camlock pin (A) for proper
alignment. Turn camlock (B) clockwise until it
locks with pin (A).
IMPORTANT: Function of Cam
Make sure the arrow is pointing upwards
before inserting into the panel's hole.
1. Insert four camlocks (B) into holes on leg panel (2).
Insert four camlock pins (A) and two dowels (C) in
center leg (1). Fit center leg (1) and leg panel (2)
together and turn each camlock (B) clockwise until it
locks. Cover each camlock (B) with a deep camlock
cap (G). (See Figure 1)
PAGE 1 OF 6
1-800-295-5510
uline.com
Drill
(Optional)
C
Dowel x 3
1/4 Right Turn
for Locking
Two Person Assembly
Required
PARTS
D E
Floor Glide x 4
ASSEMBLY
2. Repeat to attach leg panel (3) to center leg (1).
(See Figure 1)
2
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
F
L-Bracket x 4 Screw x 29
#4 5/8"
3
1 2
2
1
C
G
Deep Camlock
Cap x 10
A
1
B
G
Figure 1
0421 IH-5673
