AEOTEC Engineering Specification
Pico Switch
(ZGA002)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZGA002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aeotec ZGA002

Summary of Contents for Aeotec ZGA002

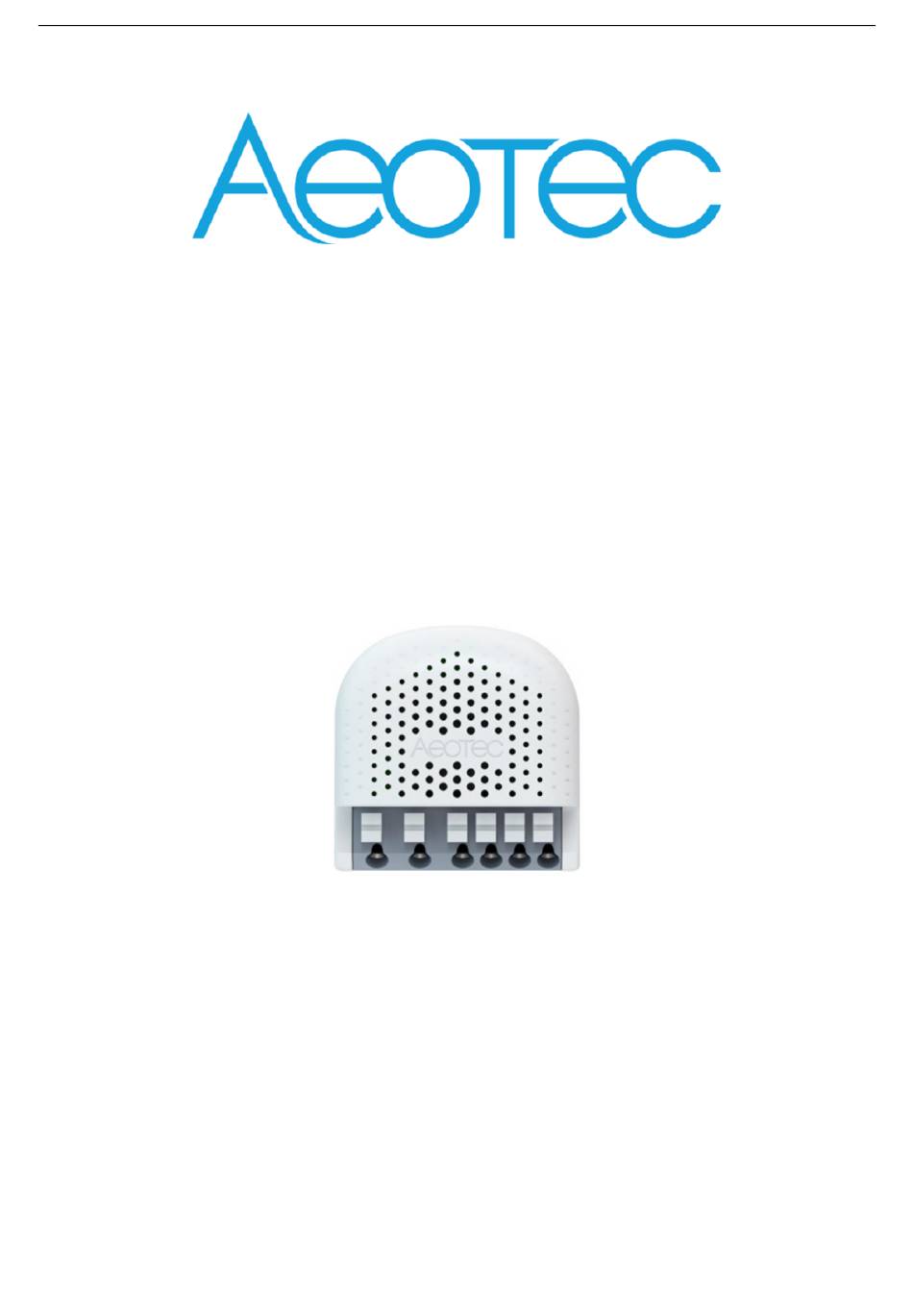

  • Page 1 AEOTEC Engineering Specification Pico Switch (ZGA002)
  • Page 2 AEOTEC Engineering Specification...

  • Page 3: Table Of Contents

    AEOTEC Engineering Specification Table of Content INTERFACES & ACCESSORIES5 FEATURES & SPECIFICATIONS6 Structural Characteristics6 Hardware Characteristics6 Software Characteristics6 PRODUCT QUICK START7 Important safety information7 How to install the product7 How to join the product into centralized network7 3.3.1 Using Action Button7 3.3.2...
  • Page 4 AEOTEC Engineering Specification 4.13 Simple Metering Cluster [0x0702]15 4.14 ZLL commissioning [0x1000]15 4.15 OTA Upgrade [0x00019]16 4.16 Switch Type Configuration [0xFD00]16...

  • Page 5: Interfaces & Accessories5

    AEOTEC Engineering Specification 1 INTERFACES & ACCESSORIES Terminology Description Action Button Used for networking, resetting, and other features. Indicator Light Used for indicating the current state of the product. Page 5...

  • Page 6: Features And Specifications

    AEOTEC Engineering Specification 2 FEATURES & SPECIFICATIONS Structural Characteristics Parameter Value Product Identifier ZGA002 Dimensions 44mm x 40mm x 21.5mm Color White Usage For indoor use. Operating Temperature 32~104°F (0~40°C) Relative Humidity 8%~80% Hardware Characteristics Parameter Value ZigBee Module EFR32MG21 RF TX Power Max: 17.02dBm...

  • Page 7: Product Quick Start7

    Please read this Engineering Specification carefully for correct and effective use. Failure to follow the recommendations set forth by AEOTEC Limited may be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and/or reseller will not be held responsible for any loss or damage resulting from not following any instruction in this guide or in other materials.

  • Page 8: How To Join The Product Into Zll Network (As A Touch Link Target)8

    AEOTEC Engineering Specification manufacturing. It’s used to encrypt the initial network key transported from the ZigBee network’s centralized Trust Center device (the coordinator) to the device being paired. The installation code can be thought of as similar to the PIN code on Bluetooth devices when two devices are paired.

  • Page 9: How To Into Identify Mode As A Find And Bind Target

    AEOTEC Engineering Specification 3.10 How to find and bind a device (as an initiator） 1. Click external switch 1 three times, endpoint 2 will enter bind initiator mode for 5 seconds, indicator light will turn on quickly and turns off slowly.

  • Page 10: Software Function Definition10

    AEOTEC Engineering Specification 4 SOFTWARE FUNCTION DEFINITION User Behavior Interaction 4.1.1 ZigBee Button User behavior outside network Inside network Power OFF Power ON 1, If external switch is a 2-state switch, the The status of the relays is determined by the...

  • Page 11: External Switch11

    AEOTEC Engineering Specification Press and hold Action No function, Touch Link initiator mode. Button Indicator Light will start breathing. Trigger the device to start Touch Link initiator mode. for [2, 5s) Indicator Light will turn on solid when held between 2-5s, and fades on slowly then off quickly 5x times when released.

  • Page 12: Basic Cluster [0X0000]12

    AEOTEC Engineering Specification 0x0003 (Identify) 0x0004 (Groups) 0x0005 (Scenes) 0x0006 (On/off) 0x0009 (Alarm) 0x0B04 (Electrical Measurement) 0x0702 (Simple Metering) Endpoint2 0x0830 0x0000 (Basic) 0x0003 (Identify) LO Non-color Scene Controller 0x0003 (Identify) 0x0004 (Groups) 0x1000 (ZLL Commissioning) 0x0005 (Scenes) 0xFD00 (switch type configuration)

  • Page 13: Device Temperature Configuration [0X0002]13

    AEOTEC Engineering Specification Third version . The third, 4 bits, numbers 0-15, test once, tv++ . tv counts from 0 Device Temperature Configuration [0x0002] Attributes for determining information about a device’s internal temperature, and for configuring under/over temperature alarms for temperatures that are outside the device’s operating range.
  • Page 14 AEOTEC Engineering Specification Identifier Name Type Range Access Default 0x4000 bool 0x00-0x01 Read Only 0x01 Global Scene Control 0x4001 On Time uint16 full-non Read Write 0x0000 0x4002 Off Wait Time uint16 full Read Write 0x0000 0x4003 Start up on off...
  • Page 15 AEOTEC Engineering Specification uint16 0x0000-0xFFFF Read Only Phase or Phase 0x0508 RMS Current 0x050b Active Power int16 -32768—32768 Read Only Measurements AC Formatting 0x0600 AC Voltage uint16 0x0001-0xFFFF Read Only Multiplier 0x0601 AC Voltage Divisor uint16 0x0001-0xFFFF Read Only uint16...
  • Page 16 AEOTEC Engineering Specification 4.15 Over the Air (OTA) Upgrade [0x00019] The main goal of Over The Air Upgrade cluster is to provide an interoperable mean for devices from different manufacturers to upgrade each other’s image. Additionally, the OTA Upgrade cluster defines a mechanism by which security credentials, logs and configuration file types are accessible by offering a solution that utilizes a set of optional and mandatory commands.
  • Page 17 AEOTEC Engineering Specification 0x00 control local disable 0x01 control local enable Page 17...
