Dual Nano Switch user guide (ZW132 and ZW140).
Modified on: Thu, 14 Mar, 2019 at 4:01 PM

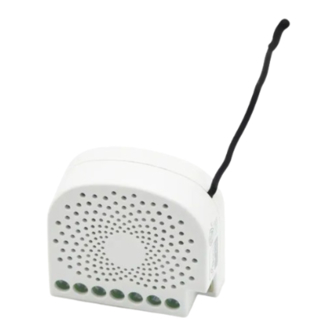

Aeotec Dual Nano Switch.
Aeotec Dual Nano Switch
(http://aeotec.com/z-wave-outlet-socket)
. It is powered by Aeotec's Gen5
plus)
To see whether Dual Nano Switch is known to be compatible with your Z-Wave system or not, please reference our Z-Wave gateway comparison
listing. The technical specifications of Dual Nano Switch can be viewed at this link.
gateways)
technical-specifications-)

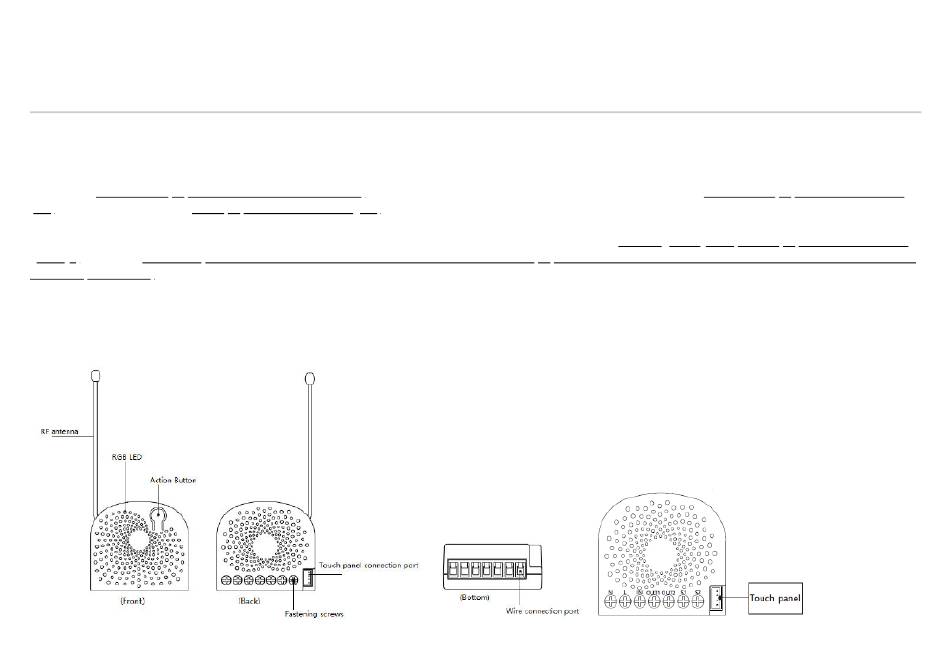

Familiarize yourself with your Dual Nano Switch (ZW132 or ZW140).
https://aeotec.freshdesk.com/support/solutions/articles/6000178928-dual-nano-switch-user-guide-zw132-and-zw140-
has been crafted to power connected sockets and switches using Z-Wave Plus
technology.
(http://aeotec.com/z-wave-gen5)
Dual Nano Switch user guide : Aeotec Group
(https://aeotec.freshdesk.com/solution/articles/6000193658-dual-nano-switch-
(http://aeotec.com/z-wave-
(http://aeotec.com/z-wave-
1/15
Advertisement
Related Manuals for Aeotec Dual Nano Switch Series
Summary of Contents for Aeotec Dual Nano Switch Series
- Page 1 8-7-2019 Dual Nano Switch user guide : Aeotec Group Dual Nano Switch user guide (ZW132 and ZW140). Modified on: Thu, 14 Mar, 2019 at 4:01 PM Aeotec Dual Nano Switch. Aeotec Dual Nano Switch has been crafted to power connected sockets and switches using Z-Wave Plus (http://aeotec.com/z-wave-outlet-socket)
-
Page 2: Important Safety Information
Important safety information. Please read this and other device guides carefully. Failure to follow the recommendations set forth by Aeotec Limited may be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and / or reseller will not be held responsible for any loss or damage resulting from not following any instructions in this guide or in other materials. - Page 3 8-7-2019 Dual Nano Switch user guide : Aeotec Group 2. Preparing connection wires 14 AWG power wires for Input / Output. 18 AWG copper wires for external manual switch. Use the wire stripper cut the metallic part of the connection wire and make sure the length of the metallic part is about 5mm.
- Page 4 8-7-2019 Dual Nano Switch user guide : Aeotec Group In some cases, you may have some loads just only can be used on the voltage of 24VDC and hope that it still can be controlled by the Dual Nano Switch, so please refer to the following diagram to achieve this: Wiring diagram of 120/230VAC power input connection to 24VDC power output.
- Page 5 8-7-2019 Dual Nano Switch user guide : Aeotec Group Note: The “IN” terminal should be connected to the “-” of 24VDC input. Warning: Dual Nano Switch ZW132 is not compatible with this configuration, you must use Dual Nano Switch ZW140 without energy reading.
- Page 6 8-7-2019 Dual Nano Switch user guide : Aeotec Group If the output loads should be only powered by AC120V or AC230V, you can change the wire connection as below: Wiring diagram of 24VDC power input to 120/230VAC power output. (Compatible to Dual Nano Switch without Energy Reading [ZW140] only).
- Page 7 8-7-2019 Dual Nano Switch user guide : Aeotec Group Note: The “IN” terminal should be connected to the “Live” of AC 120V/230V power wire. Warning: Dual Nano Switch ZW132 is not compatible with this configuration, you must use Dual Nano Switch ZW140 without energy reading.
- Page 8 8-7-2019 Dual Nano Switch user guide : Aeotec Group 3. Install Dual Nano Switch to the gang box. a. Live/Hot wire connection: Connect the Live/Hot wire to the “L” terminal on the Dual Nano Switch. b. Neutral wire connection: Connect the Neutral wire to the “N” terminal on the Dual Nano Switch.
- Page 9 8-7-2019 Dual Nano Switch user guide : Aeotec Group Note: This is the physical connection diagram for 120/230VAC power input. 1. Mounting the gang box. 2. Position all wires to provide room for the device. Place the Dual Nano Switch inside the gang box towards the back of the box.
-
Page 10: Quick Start
8-7-2019 Dual Nano Switch user guide : Aeotec Group Quick Start. Adding your Dual Nano Switch to a Z-Wave network. After your Dual Nano Switch is installed and powered on, you are now able to manually control the Dual Nano Switch to turn it On/Off directly via pressing your Dual Nano Switch’s Action Button, it is now time to add your Dual Nano Switch to the Z-Wave network. -
Page 11: Advanced Functions
8-7-2019 Dual Nano Switch user guide : Aeotec Group Yellow [7.5A, 13.5A) [13.5A, 15.5A) Green [0A, 5A) Yellow [5A, 9A) [9A, 10.5A) Green [0A, 5A) Yellow [5A, 9A) [9A, 10.5A) Removing Dual Nano Switch from a Z-Wave network. Your Dual Nano Switch can be removed from your Z-Wave network at any time. You’ll need to use your Z-Wave network’s main controller. To set your Z-Wave controller/gateway into removal mode, please refer to the respective section within your controller instruction manual. - Page 12 8-7-2019 Dual Nano Switch user guide : Aeotec Group Force the Nano to enter S1 external switch detection mode: 1. Tap the Nano button 4x times within 1-2 seconds which will force Nano to enter External Switch detection mode. (LED will flash blue) 2.
- Page 13 8-7-2019 Dual Nano Switch user guide : Aeotec Group Compatible external switches and their use case. Our Dual Nano Switch currently only supports 3 different external Wall Switches: 1. Standard Toggle Switch (2-way / 3-way / 4-way) - Toggle UP (high voltage) - toggles On.
- Page 14 Monitoring Energy Consumption. (ZW132 Model only) The Aeotec Dual Dual Nano Switch can report wattage energy usage or kWh energy usage to a Z-Wave control point when requested. If this function is supported by the control points, the energy consumption will be displayed in the user interface of the control points. (The specific Z-Wave commands supporting energy monitoring are the Meter Command Class.
- Page 15 8-7-2019 Dual Nano Switch user guide : Aeotec Group If you want your Dual Nano Switch as a non-secure device in your Z-Wave network, press the Action Button once on Dual Nano Switch when you pair it to your gateway.
