Aeotec ZW116 Manual

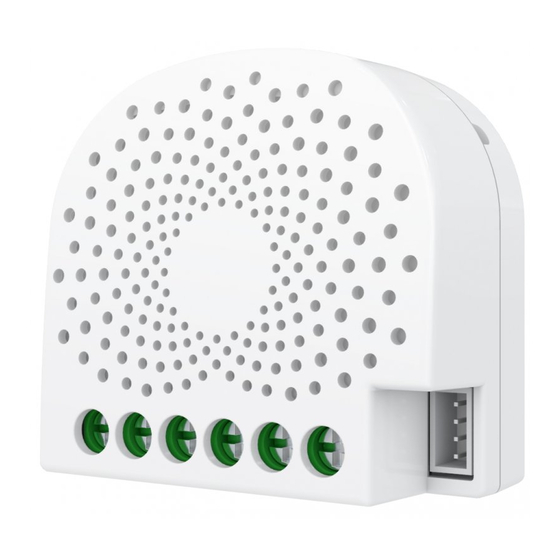

Single nano switch with measuring
Hide thumbs Also See for ZW116:
Table of Contents

Advertisement

Quick Links

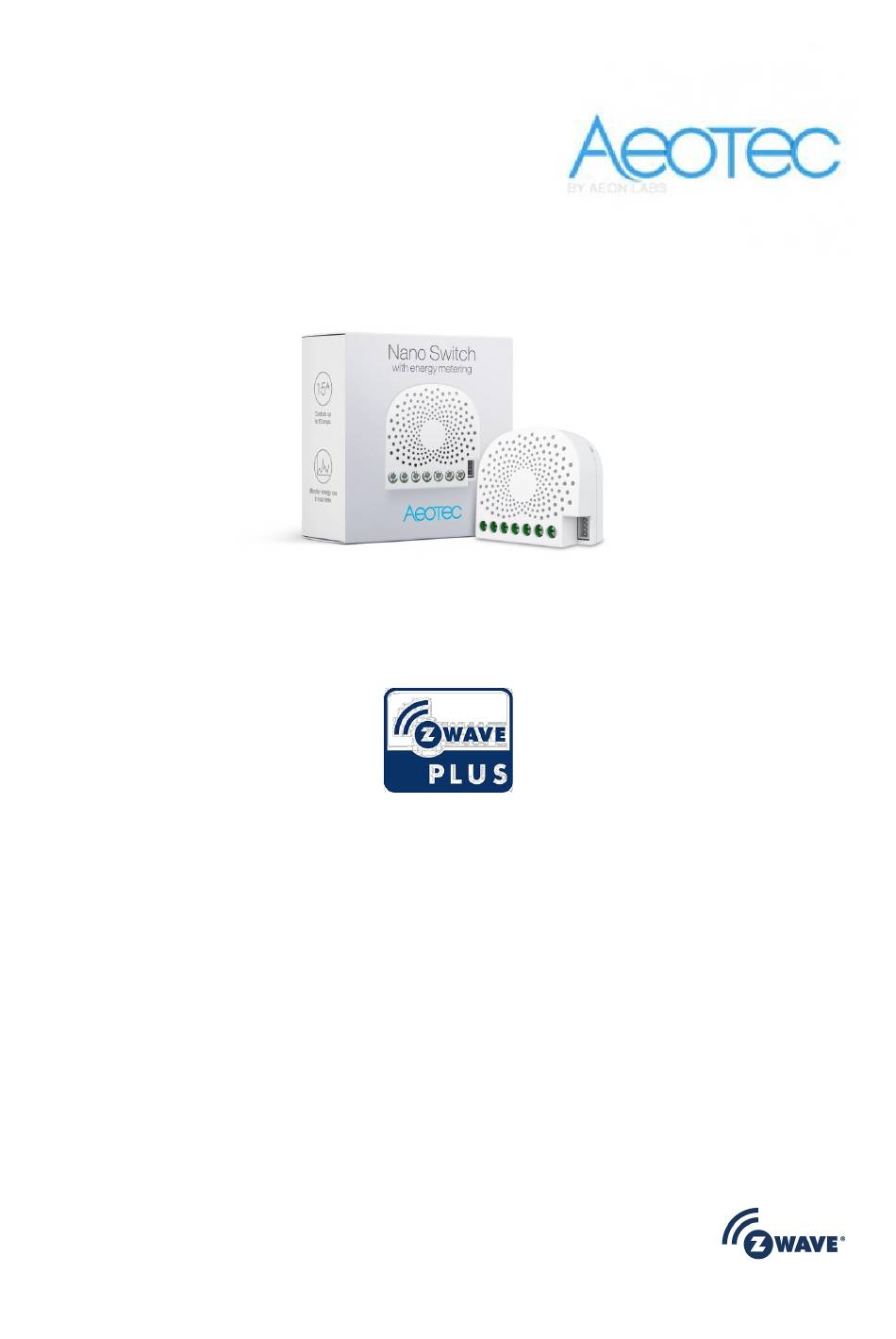

Single Nano Switch with measuring (ZW116)
Quickstart
This is a On/Off Power Switch for Europe. To run this device please connect it to your mains power supply. To
add this device to your network execute the following action:
1. Install the device according to the instructions.
2. Press the button 2 times quickly on the Nano Switch.
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or
may violate the law. The manufacturer, importer, distributor and seller shall not be liable for any loss or damage
resulting from failure to comply with the instructions in this manual or any other material. Use this equipment only
for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a
fire or near open heat sources.
What is Z-Wave?
Z-Wave is the international wireless protocol for communication in the Smart Home. This device is suited for use
in the region mentioned in the Quickstart section.
Z-Wave ensures a reliable communication by reconfirming every message (two-way
communication) and every mains powered node can act as a repeater for other nodes
(meshed network) in case the receiver is not in direct wireless range of the transmitter.
This device and every other certified Z-Wave device can be used together with any other

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZW116 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aeotec ZW116

Summary of Contents for Aeotec ZW116

  • Page 1 Single Nano Switch with measuring (ZW116) Quickstart This is a On/Off Power Switch for Europe. To run this device please connect it to your mains power supply. To add this device to your network execute the following action: 1. Install the device according to the instructions.

  • Page 2: Product Description

    For more information about Z-Wave technology, devices, white papers etc. please refer to www.z-wave.info. Product Description Aeotec Nano Switch is a low-cost Z-Wave Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches. It can report immediate wattage consumption or kWh energy usage over a period of time.

  • Page 3: Installation

    ATTENTION: only authorized technicians under consideration of the country-specific installation guidelines/norms may do works with mains power. Prior to the assembly of the product, the voltage network has to be switched off and ensured against re-switching. Installation Notes for the wire connection ports: N ? Power input for neutral L ? Power input for live IN ? Input for load power supply...
  • Page 4 In some cases, you may have some loads just only can be used on the voltage of DC24V and hope that it still can be controlled by the Nano Switch, so please refer to the following diagram to achieve this: Note: The ?IN? terminal should be connected to the ?-? of DC 24V input.

  • Page 5: Quick Troubleshooting

    Note: The ?IN? terminal should be connected to the ?Live? of AC 120V/230V power wire. All above wiring diagrams show that the Nano Switch uses 2-Way or momentary button switches as the external manual switch for 2-Way connection. The below diagram will show you that the Nano Switch uses the SPDT (Single-Pole Double-Throw) switches as the external manual switch for 3-Way connection.

  • Page 6: Configuration Parameters

    Association Groups: Maximum Group Number Description Nodes Z-Wave Plus Lifeline.When the load state of Nano Switch (on/off) is changed, the Hail CC, Switch Multilevel Report and Basic Report (configured by parameter 80) can be sent to the associated nodes in this group. Forward the Basic Set, Switch All, Scene Activation Set to associated nodes in Group 2 when the Nano Switch receives the Basic Set, Switch All, Scene Activation Set commands from main controller.
  • Page 7 Parameter 80: To set which notification would be sent to the associated devices (Group 1) To set which notification would be sent to the associated devices (Group 1) when the state of Nano Dimmers load is changed. Size: 1 Byte, Default Value: 0 Setting Description Send Nothing...
  • Page 8 The hour time of ON 16777216 - 16777276 Parameter 86: Set appointment 1 Set appointment 1 Size: 4 Byte, Default Value: 2293760 Setting Description 0 - 60 The minute value of ON time 256 - 316 The minute value of ON time The day value (Mon to Sun) 65536 - 65543 16777215...
  • Page 9 Parameter 100: Set parameter 101-103 to default value. Set parameter 101-103 to default value. Size: 1 Byte, Default Value: 0 Setting Description Reset the parameter 101-103 Parameter 101: To set which reports need to be sent in Report group 1. To set which reports need to be sent in Report group 1.
  • Page 10 Parameter 111: Set the interval of automatic report for Report group 1. Set the interval of automatic report for Report group 1. Size: 4 Byte, Default Value: 3 Setting Description The range of interval time is 1 to 2147483647. 1 - 2147483647 Parameter 112: Set the interval of automatic report for Report group 2.

  • Page 11: Technical Data

    Parameter 252: Lock/unlock configuration parameters Lock/unlock configuration parameters. Size: 1 Byte, Default Value: 0 Setting Description Unlock Lock Parameter 255: Reset the Nano Dimmer Reset the Nano Dimmer to factory default. Size: 4 Byte, Default Value: 0 Setting Description Reset all configuration parameters to factory default setting 1431655765 Reset to factory default setting and removed from the z-wave network Technical Data...

  • Page 12: Controlled Command Classes

     Meter  Association Grp Info  Device Reset Locally  Zwaveplus Info  Configuration  Alarm  Manufacturer Specific  Powerlevel  Firmware Update Md  Clock  Association  Version  Hail Controlled Command Classes  Hail Explanation of Z-Wave specific terms ...
