Aeotec NanoMote Quad Operating Manual

Hide thumbs Also See for NanoMote Quad:

Advertisement

Table of Contents

OPERATING MANUAL

NanoMote Quad
ZWA003-A/C
NanoMote Quad is a wireless, portable and rechargeable product. On one hand, it can be used to
control separate Z-Wave device, such as a smart Plug, smart Dimmer, Bulb, etc. through Z-Wave
Gateway. On the other hand, it can also be used to program a scene by Gateway app which groups
many smart nodes such as Plugs, Bulbs, and Siren... The scene may refer to sleep scene, movie
scene and entertainment scene, etc. as you created.
Features:
1. Z-Wave Plus certified for good compatibility (500 serials chipset)
2. Z-Wave S2 system
3. Support remote control anywhere and anytime
4. Program up to 4 customized scenes
5. The battery is rechargeable, will run for three months per charge
6. Support low battery alarm with buzzer
7. Support Child Lock function
8. Supporting firmware OTA
Ⅰ. GENERAL INFORMATION ABOUT NANOMOTE QUAD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NanoMote Quad and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aeotec NanoMote Quad

Summary of Contents for Aeotec NanoMote Quad

  • Page 1: Operating Manual

    NanoMote Quad ZWA003-A/C NanoMote Quad is a wireless, portable and rechargeable product. On one hand, it can be used to control separate Z-Wave device, such as a smart Plug, smart Dimmer, Bulb, etc. through Z-Wave Gateway. On the other hand, it can also be used to program a scene by Gateway app which groups many smart nodes such as Plugs, Bulbs, and Siren...

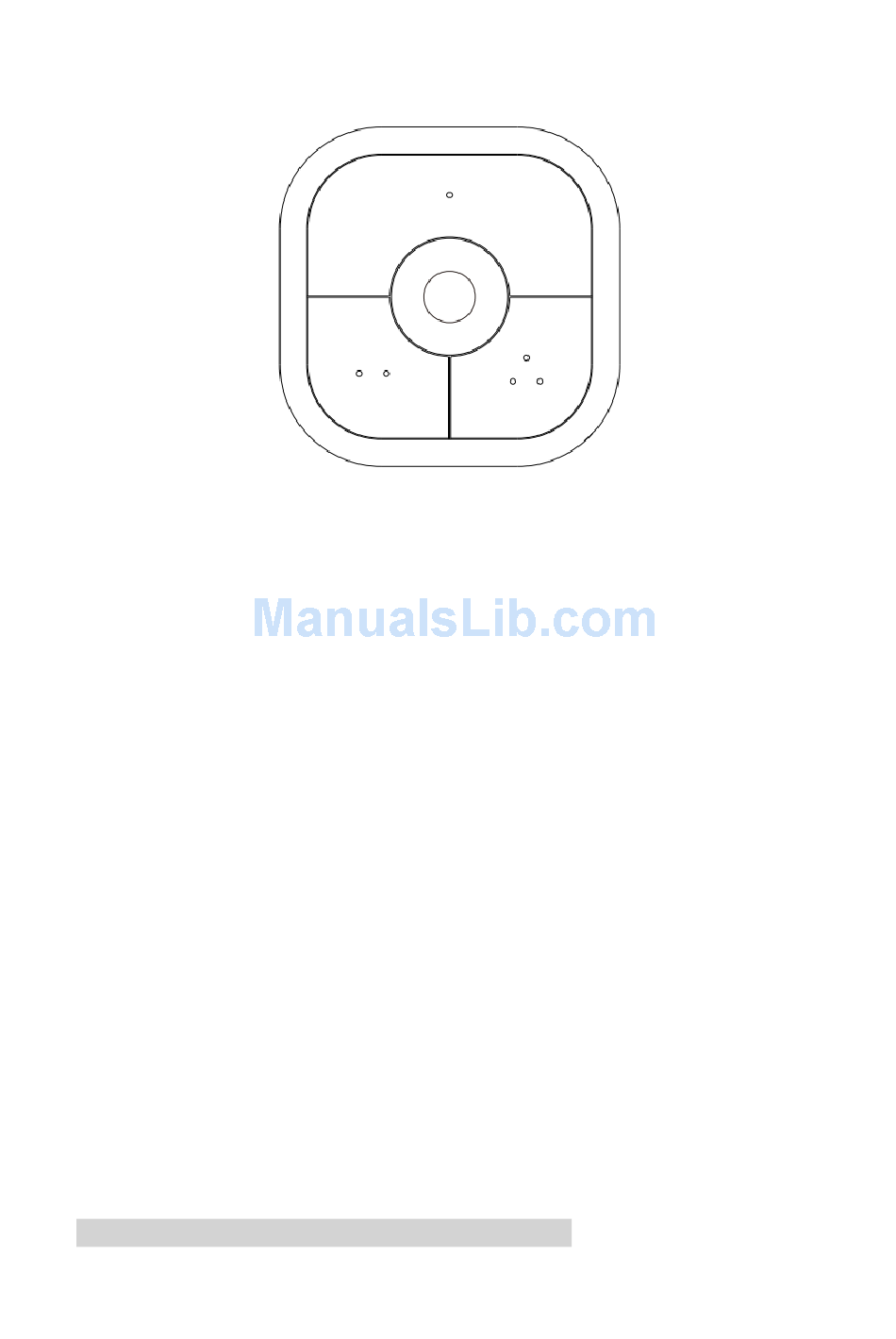

  • Page 2 1. Product layout 2. Specifications Power supply: 1 x LIR2450 3.6V Battery Storage environment: -10℃-50℃ 0%-85% Operational temperature: 0-40℃ Radio protocol: Z-Wave Radio frequency: 868.42MHz (EU) 908.42MHz (US) 921.42MHz(ANZ) Range: More than 100m outdoors About 30m indoors (depending on building materials) Dimensions: 50*50*14.5MM Working current:...
  • Page 3 Insert your battery and close the cover Ⅲ. Z-WAVE NETWORK INCLUSION NanoMote Quad can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
  • Page 4 6. Successful adding will be confirmed by the Z-Wave controller’s message. TIP: If you want your NanoMote Quad to be a security device that use secure/encrypted message to communicate in a Z-Wave network, then a security enabled Z-Wave controller is needed.

  • Page 5: Child Lock Function

    NanoMote Quad will send battery report to the lifeline group when button is triggered during the sleep mode. If the battery level of the NanoMote Quad is less than 20%, the NanoMote Quad will send a low battery alarm to the main controller.
  • Page 6 There is no relevant commands are available for mapping. ⅩⅢ. BATTERY COMMAND NanoMote Quad will send battery report to the lifeline group when Button is triggered during the sleep mode. If the battery level of the Scene Controller is less than 20%, the Scene Controller will beep 3 times when the button is pressed.
  • Page 7 Group 2 allows NanoMote Quad sends basic set command when the button 1 is triggered. Group 3 allows NanoMote Quad sends switch multilevel set, multilevel start level change and multilevel stop level change command when the button 1 is triggered.

  • Page 8: Button Function

    Button ID Group ID Action & notification Any button Press: Central scene notification ( Key Attributes=0) Hold: Central scene notification ( Key Attributes=2) Release: Central scene notification ( Key Attributes=1) Button 1 Press: Basic Set Hold: Reserve Release: Reserve Press: Switch multilevel set Hold: Multilevel start level change Release: Multilevel stop level change Button 2...

  • Page 9: Advanced Configuration

    Central scene notification command to the associated nodes. Multilevel stop level change command to the associated nodes. XVI. ADVANCED CONFIGURATION NanoMote Quad offers a wide variety of advanced configuration settings. Below parameters can be accessed from main controllers configuration interface. Parameter No.32 Level of low battery.
  • Page 10 0 - Disable. 1 –Enable. Default setting: 0 Parameter size: 1[byte] XVII. NOTES FOR OTA With reference to Wake-up operation (VI.WAKE UP) and Z-Wave controller's guidances to do OTA. XVIII. FCC NOTICE (for USA) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
