OPERATING MANUAL

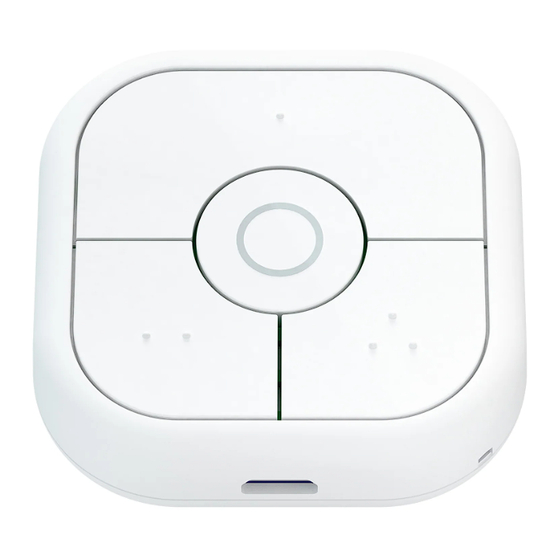

NanoMote Quad
ZWA003-S
NanoMote Quad is a wireless, portable and rechargeable product. On one hand, it can be used to
control separate Z-Wave device, such as a smart Plug, smart Dimmer, Bulb, etc. through Z-Wave
Gateway. On the other hand, it can also be used to program a scene by Gateway app which
groups many smart nodes such as Plugs, Bulbs, and Siren... The scene may refer to sleep scene,
movie scene and entertainment scene, etc. as you created.
Features:
1. Z-Wave Plus certified for good compatibility (500 serials chipset)
2. Z-Wave S2 system
3. Support remote control anywhere and anytime
4. Program up to 4 customized scenes
5. The battery is rechargeable, will run for three months per charge
6. Support low battery alarm with buzzer
7. Support Child Lock function
8. Supporting firmware OTA
Ⅰ. GENERAL INFORMATION ABOUT NANOMOTE QUAD

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZWA003-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aeotec ZWA003-S

Summary of Contents for Aeotec ZWA003-S

  • Page 1 OPERATING MANUAL NanoMote Quad ZWA003-S NanoMote Quad is a wireless, portable and rechargeable product. On one hand, it can be used to control separate Z-Wave device, such as a smart Plug, smart Dimmer, Bulb, etc. through Z-Wave Gateway. On the other hand, it can also be used to program a scene by Gateway app which groups many smart nodes such as Plugs, Bulbs, and Siren...

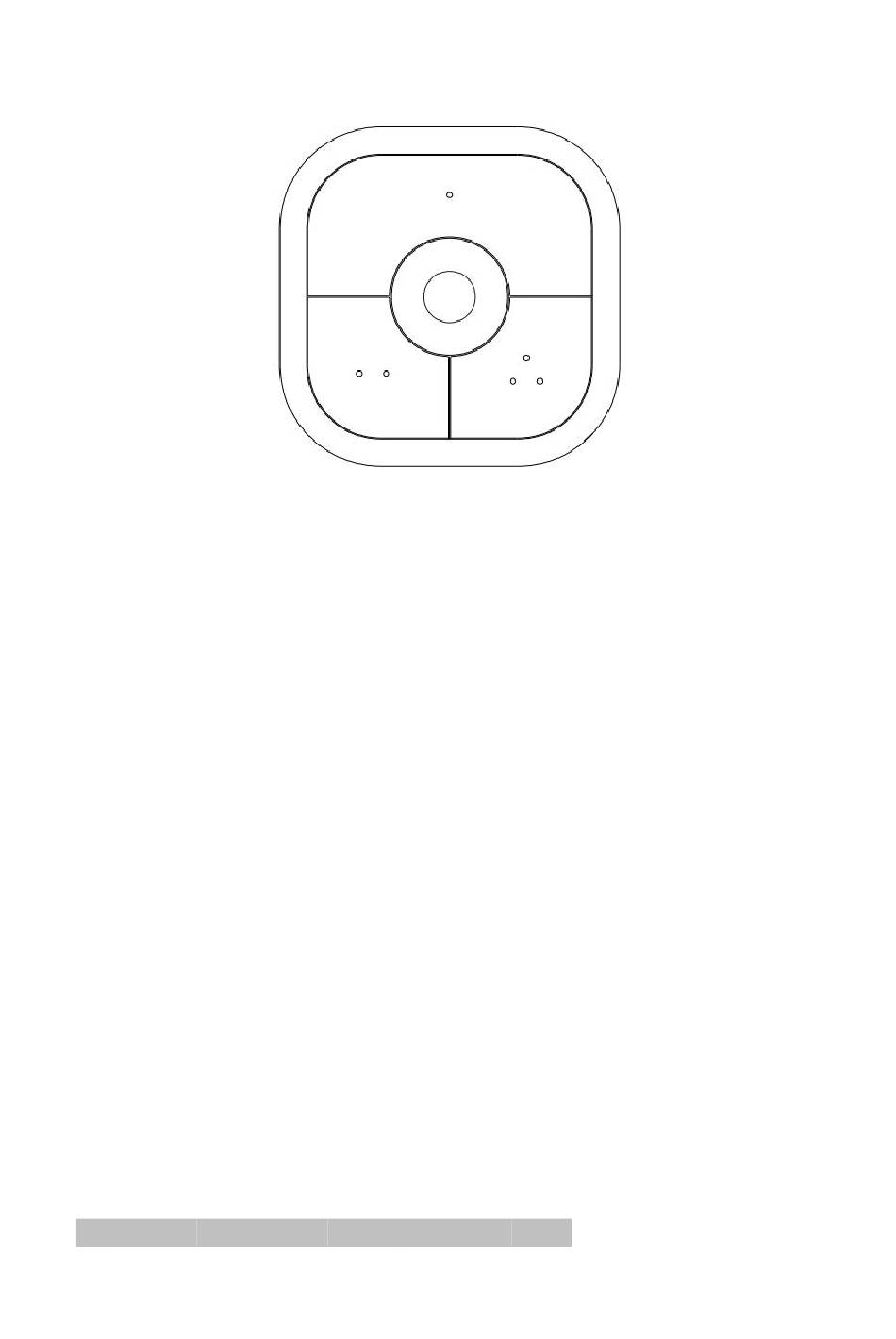

  • Page 2 1. Product layout 2. Specifications Power supply: 1 x LIR2450 3.6V Battery Storage environment: -10℃-50℃ 0%-85% Operational temperature: 0-40℃ Radio protocol: Z-Wave Radio frequency: 868.42MHz (EU) 908.42MHz (US) 921.42MHz(ANZ) Range: More than 100m outdoors About 30m indoors (depending on building materials) Dimensions: 50*50*14.5MM Working current:...
  • Page 3 Open the cover Insert your battery and close the cover Ⅲ. Z-WAVE NETWORK INCLUSION NanoMote Quad can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the...

  • Page 4: Child Lock Function

    network. 1. Insert the LIR2450 battery. 2. Place the device within the direct range of your Z-Wave controller. 3. Set the main controller’s adding mode (see the controller’s manual). 4. Double click the button quickly, the LED indicator should blink fast. 5.

  • Page 5: Battery Charging

    down the button. To switch on/off the Child Lock function, please press and hold the button for 10 seconds, the LED indicator will be solid on in red. Then release the button, the LED indicator will be continuously stay in red for 2 seconds. During this 2 seconds, please click the button once, the LED light will be blink fast in red for 2 seconds.
  • Page 6 of output DC 5V.The LED color is red during the charging process, and it will turn to green if the charging is finished. XI. ASSOCIATION Association allows the NanoMote Quad to control another Z-wave device directly, such as Smart Switch, Smart Dimmer, etc. NanoMote Quad supports three association groupings, every group relates to a specific button action.
  • Page 7 Button ID Group ID Action & notification Any button Press: Central scene notification ( Key Attributes=0) Hold: Central scene notification ( Key Attributes=2) Release: Central scene notification ( Key Attributes=1) Button 1 Press: Basic Set Hold: Reserve Release: Reserve Press: Switch multilevel set Hold: Multilevel start level change Release: Multilevel stop level change Button 2...
  • Page 8 NanoMote Quad offers three button action types, including short press, press and hold, release. Short press allows NanoMote Quad sends: Central scene notification commands to the associated nodes. Basic set command to the associated nodes. Switch multilevel set command to the associated nodes. Press and Hold (more than 2 seconds) allows NanoMote Quad sends: Central scene notification command to the associated nodes.
  • Page 9 0 - Disable. 1 –Enable. Default setting: 0 Parameter size: 1[byte] ⅩⅢ. NOTES FOR OTA With reference to Wake-up operation (VI.WAKE UP) and Z-Wave controller's guidances to do OTA. ⅩⅣ. FCC NOTICE (for USA) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
