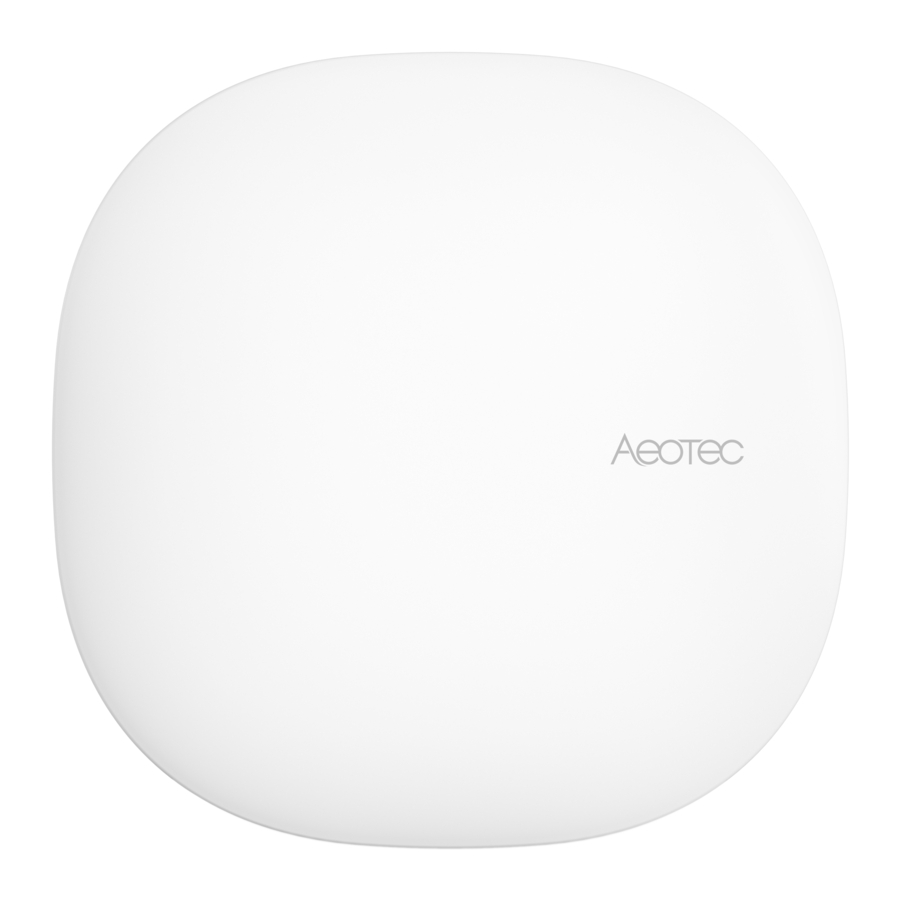

Aeotec Smart Home Hub SetUp Guide

Table of Contents

Contents

1 Setup
2 Works with SmartThings
3 Safety Instructions
4 Disclaimer
5 EU Certifications
6 Frequency / Maximum transmitting power
7 Important Note for mobile device use Radiation Exposure Statement
8 One (1) Year Limited Warranty
9 SmartThings Use of Free and Open-Source Software
10 Documents / Resources
- 10.1 References
- 10.2 Download manual

Setup

Connect the Smart Home Hub to the wall power using the supplied power cable.
Tip: The Smart Home Hub works best when placed in a central location in your home. It should not be placed on top of or immediately next to other wireless devices.
Download the free SmartThings app for Android or iOS, and create an account. (Not support setup using SmartThings Classic app).
Select the "Add device" or "+" icon ("Add device")
Select the "Aeotec" brand → "WiFi/Hub" category → "Smart Home Hub(IM6001-V3P)" product to connect your Smart Home Hub.
Follow the on-screen instructions in the SmartThings app to connect the Smart Home Hub to your WiFi network and complete setup.
Tip: You can also connect the Smart Home Hub to your Wi-Fi router using the supplied Ethernet cable.
※ If your ISP has configured static IP on your router you may face connection problems when onboarding the Smart Home Hub. Disable static IP before proceeding, you can re-enable it after onboarding.

If you have any difficulty setting up your Smart Home Hub, please visit Support. SmartThings.com for assistance.

Works with SmartThings

SmartThings works with a wide range of connected devices, including lights, cameras, locks, thermostats, sensors, and more.

Look for the Works with SmartThings label next time you're buying a connected device for your home, or visit Smartthings.com/product to see the full list of compatible devices.

Safety Instructions

Read, keep, and follow these instructions. Heed all warnings.

Clean only with a dry cloth.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not install inside or near to large metal objects, or near to sources of radio interference.
Only use attachments and accessories specified by the Manufacturer.
Read our Product Usage Guidelines at: www.SmartThings.com/Guidelines
The power adapter acts as the mains disconnect device so ensure that the Smart Home Hub is installed

Disconnect the network cable and power adapter or any other connected peripherals if any of the following conditions exist:

The power cable or connector is damaged or frayed.
You want to clean the Smart Home Hub (see Important Safety Instructions).
The Smart Home Hub or attached cables are exposed to rain, water/fluids, or excessive moisture.
The Smart Home Hub or its power adapter is damaged or has been dropped and you suspect it needs to be serviced.
Do not allow children or animals to chew or suck the device
Do not disassemble, modify or repair your device
Do not place anything on the device
Do not block or cover the vent
Do not use your device in a hospital, In potentially explosive environments, or in blasting areas
Avoid using your device within a 20cm range of a pacemaker, if possible, as your device can interfere with the pacemaker.
If you use medical equipment, contact the equipment manufacturer before using your device to determine whether or not the equipment will be affected by radio frequencies emitted by the device.

Disclaimer

Some content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal non-commercial use.

You may not use any content or services in a manner that has not been authorised by the content owner or service provider. Without limiting the foregoing, unless expressly authorised by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device.

EU Certifications

Hereby, Z-Wave Europe GmbH declares that the product models below are in compliance with the essential requirements and other relevant provisions of Directive RED 2014/53/EU. The full text of the EU DoC is available at the following internet address: smartthings.com/eu/compliance

Imported and officially distributed by Z-Wave Europe GmbH, Antonstrasse 3, 09337 Hohenstein-Ernstthal, Germany

Smart Home Hub: STH-ETH-301 (Family model name: IM6001-V3P22)

Frequency / Maximum transmitting power

Frequency Band(s)

BT:	2402 MHz ~ 2480 MHz
Zigbee:	2405 MHz ~ 2480 MHz
Z-Wave:	868.400 MHz, 868.420 MHz, 869.850 MHz
WLAN 2.4 GHz:	802.11b/g/n(HT20): 2412 MHz ~ 2472 MHz 802.11n(HT40): 2422 MHz ~ 2462 MHz
WLAN 5 GHz Band1:	802.11a/n(HT20)/ac(VHT20): 5180 MHz ~ 5240 MHz 802.11n(HT40)/ac(VHT40): 5190 MHz ~ 5230 MHz 802.11ac(VHT80): 5210 MHz
WLAN 5 GHz Band4:	802.11a/n(HT20)/ac(VHT20): 5745 MHz ~ 5825 MHz 802.11n(HT40)/ac(VHT40): 5755 MHz ~ 5795 MHz 802.11ac(VHT80): 5775 MHz

Output power

BT:	-0.84 dBm
Zigbee:	9.19 dBm
Z-Wave:	6.28 dBm
WLAN 2.4 GHz:	15.17 dBm
WLAN 5 GHz Band1:	19.16 dBm
WLAN 5 GHz Band4:	19.16 dBm

Important Note for mobile device use Radiation Exposure Statement

This equipment complies with radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

One (1) Year Limited Warranty

Z-Wave Europe GmbH (ZWE) warrants this product (the "Product") against defects in materials and/or workmanship under normal use for a period of ONE (1) YEAR from the date of purchase by the original purchaser ("Warranty Period").

Obtaining Service: Please contact directly the reseller of this product where you bought in your local area or service agent of reseller.

SmartThings Use of Free and Open-Source Software

The Aeotec Smart Home Hub contains the SmartThings Hub Software. This document contains licensing information relating to the use of free and open-source software (FOSS) with or within the SmartThings Hub software. Any terms, conditions, or restrictions on FOSS included within the SmartThings Hub software that are not included within the original FOSS licenses are offered and imposed by SmartThings alone. The authors, licensors, and distributors of the FOSS disclaim all express or implied conditions, representations, and warranties relating to the FOSS and any liability arising from use and distribution of the FOSS. A document containing the complete and current list of FOSS packages used in SmartThings Hub software and mobile applications can be found here: www.SmartThings.com/FOSS

The document at the URL above identifies the FOSS packages used in the SmartThings Hub software, the FOSS licenses that SmartThings believes govern those FOSS packages, and copyright and license notices associated with SmartThings's use of the FOSS. While SmartThings has sought to provide complete and accurate licensing information for each FOSS package, SmartThings does not represent or warrant that the licensing information provided herein is correct or error-free. Recipients of the product have the option to investigate the identified FOSS packages to confirm the accuracy of the licensing information provided herein. Recipients are also encouraged to notify SmartThings of any inaccurate information or errors found in these notices.

Certain FOSS licenses, such as the GNU General Public License, GNU Lesser (or Library) General Public License, and Mozilla Public License, require SmartThings to make available to recipients the source code corresponding to FOSS binaries distributed under those licenses. Users who would like to download source code used by SmartThings under those licenses can do so by logging in with their SmartThings account at SmartThings.com. Users with questions or concerns regarding SmartThings use of Free or Open-Source Software can contact us via email at: Support@SmartThings.com.

Deleting a Location (Home, Office, etc) in the SmartThings app will cause all Z-Wave devices to be disconnected from the Smart Home Hub, requiring them to be excluded and re-included.

Visit Support. SmartThings.com for more information.
