Summary of Contents for Elma Instruments Elma Laser R780 Combo
- Page 1 Manual Elma Laser R780 Combo English EAN: 5706445671052 2025 10:53:55...
-
Page 2: What Is Included

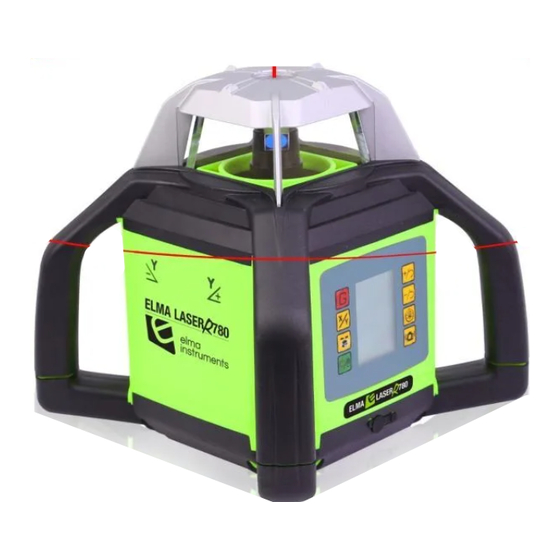

C. Remote Control D. Charger & Replaceable alkaline battery pack E. Magnetic Target F. Glasses G. Hard Case with Foam Insert 2 Find your way around Elma Laser R780 Combo Plumb up glass Laser module Handle Keypad panel Charge socket... -
Page 3: Horizontal Leveling
Elma Laser Combo R780 3 Setting up. Charging the Battery It is strongly recommended to fully charge the battery before initially using this instrument. Insert the charger into the mains and the Charging socket into the instrument or the battery pack. Turn on the power. -
Page 4: Vertical Lines
Elma Laser Combo R780 5 Sloping Leveling a) Set up the instrument to work horizontally as shown in stages a) to c) on the previous page b) Press the top left button [Slope] to get the “X” value flashing on the screen. c) Use the [Left spin] and [Right spin] buttons to get the required gradient in the “X”... -
Page 5: Troubleshooting
Elma Laser Combo R780 C. Plumb up and down beams a) The Instrument has both a plumb up beam and a plumb down beam. b) These will be Vertical when the instrument is set up Horizontal lines c) The spots cannot be picked up by a detector and must be visually located. D. -
Page 6: Specifications
Elma Laser Combo R780 Specifications Accuracy ±20"(± 3 mm @ 30 m) Slope range ±10.00% (Dual) Automatic self-leveling range ±5° Laser source Visible Laser Diode 635nm Classification Class II Operational range 500m dia. (with detector) Rotational head speed 60,120,300,600 R.P.M Approximate scan angles 10°;45°;90°;180°... - Page 7 20250213 v1 13-02-2025 10:53:55...
