www.ti.com
EVM User's Guide: LP5899QDYYEVM
LP5899 SPI-Compatible Connectivity Evaluation Module
for LP589x Device Family
Description
The LP5899 SPI-compatible connectivity evaluation
module enables the LP589x device family to be
controlled using a standard SPI controller. The
device features an internal oscillator to generate
the continuous clock required by the LP589x device
family. Jitter can be added to the continuous clock
for EMI enhancement. The transmitted data is
aligned to the continuous clock to maintain the
timing requirements of the CCSI interface. LP5899
incorporates reporting of faults in both the LP589x
daisy chain and LP5899 internal. Data transmission of
register and VSYNC commands to the LP589x daisy
chain is CRC protected by LP5899. In addition, the
data line is guarded by LP5899 for stuck-at faults.
SLVUD01 – NOVEMBER 2024
Submit Document Feedback
Features
Operating voltage VCC range: 2.5V to 5.5V
SPI peripheral
– Data transfer rate up to 20MHz
– Support multiple peripherals with one controller
Continuous Clock Serial Interface (CCSI)
Controller
– Data transfer rate up to 20MHz
– Programmable clock jitter for EMI enhancement
Diagnostics
– Open-drain FAULT pin
– SPI communication loss detection
– CRC for SPI communication
Data ready interrupt for availability of data

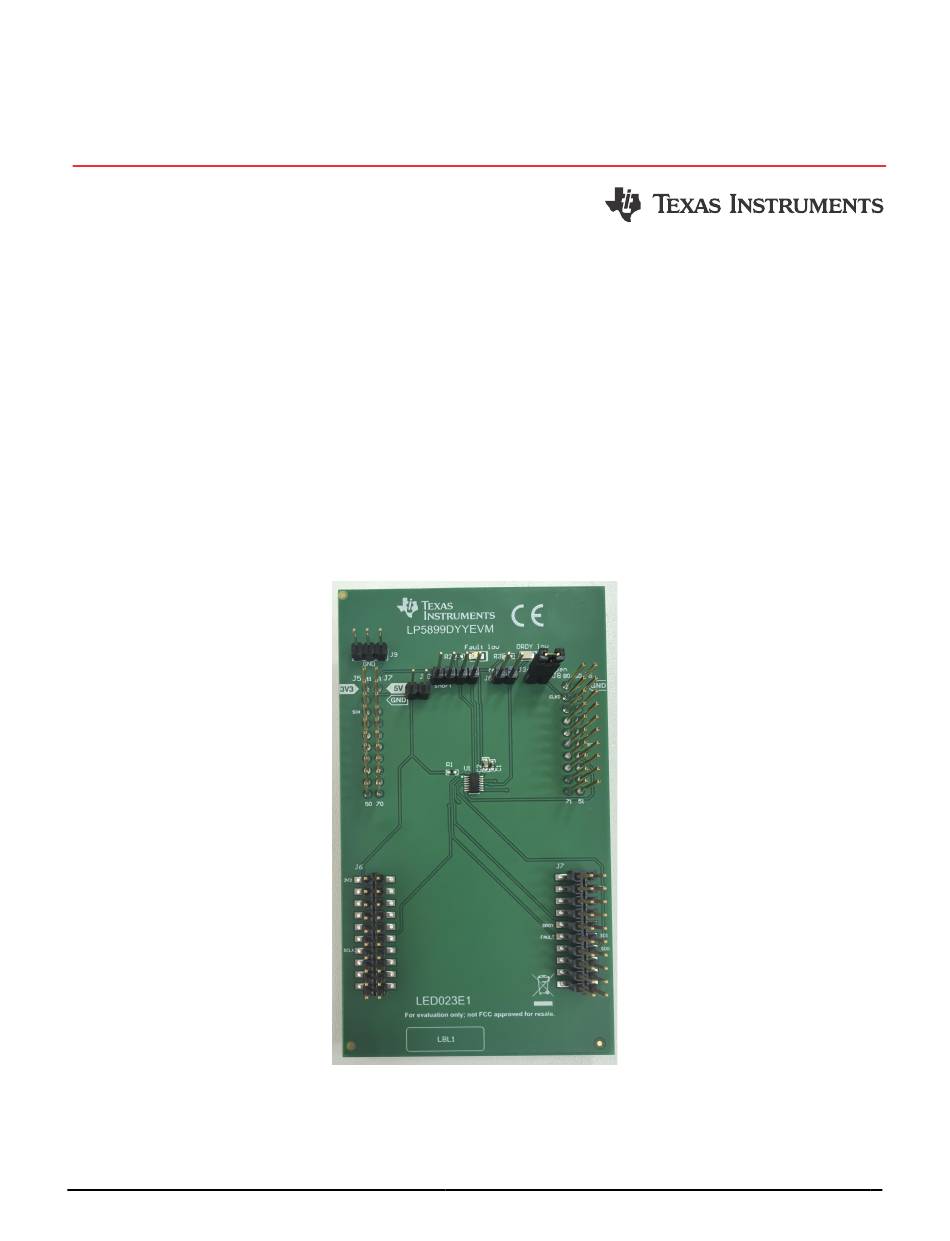

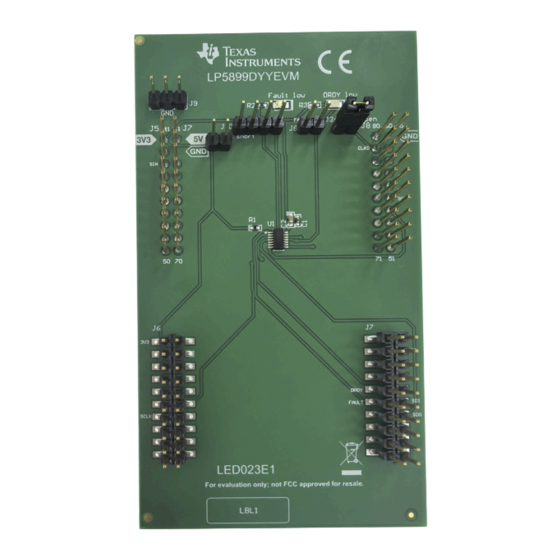

LP5899DYYEVM (Top View)
LP5899 SPI-Compatible Connectivity Evaluation Module for LP589x Device
Copyright © 2024 Texas Instruments Incorporated
Description
1
Family

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP5899QDYYEVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments LP5899QDYYEVM

  • Page 1 Data ready interrupt for availability of data data line is guarded by LP5899 for stuck-at faults. LP5899DYYEVM (Top View) SLVUD01 – NOVEMBER 2024 LP5899 SPI-Compatible Connectivity Evaluation Module for LP589x Device Submit Document Feedback Family Copyright © 2024 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    1.2 Kit Contents Table 1-1 provides kit contents. Table 1-1. List of Kit Contents Item Kit Content LP5899EVM Board LP5899 SPI-Compatible Connectivity Evaluation Module for LP589x Device SLVUD01 – NOVEMBER 2024 Family Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 3: Specification

    SPI compatible connectivity for LP589x LP5899 Device Family Red LED Display Fault Yellow LED Display Readback data ready SLVUD01 – NOVEMBER 2024 LP5899 SPI-Compatible Connectivity Evaluation Module for LP589x Device Submit Document Feedback Family Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 Single LP5891EVM can be quickly set up and tested by following these steps: 1. Following the jumper setting in Figure 2-1 Figure 2-2 Figure 2-1. LP5891EVM Jumper Connection LP5899 SPI-Compatible Connectivity Evaluation Module for LP589x Device SLVUD01 – NOVEMBER 2024 Family Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 (J5, J6, J7, J8) on the LP5899EVM with the BoosterPack connectors (J1, J2) on the LP5891Q1EVM as shown in the Figure 2-3. SLVUD01 – NOVEMBER 2024 LP5899 SPI-Compatible Connectivity Evaluation Module for LP589x Device Submit Document Feedback Family Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 5. Power the LAUNCHXL-F280039C through the USB cable. 6. Download the code into the LAUNCHXL-F280039C with TI Code Composer Studio ™ software. LP5899 SPI-Compatible Connectivity Evaluation Module for LP589x Device SLVUD01 – NOVEMBER 2024 Family Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 LED fault diagnostics, multiple CCSI buses, cascading devices, and animation control. SLVUD01 – NOVEMBER 2024 LP5899 SPI-Compatible Connectivity Evaluation Module for LP589x Device Submit Document Feedback Family Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 BoosterPack Headers Site 2 (Bottom) +3V3 DRDY FAULT SCLK TSM-110-01-L-DV TSM-110-01-L-DV DRDY SOUT FAULT CLKO Figure 4-2. LP5899EVM - Schematic 2 LP5899 SPI-Compatible Connectivity Evaluation Module for LP589x Device SLVUD01 – NOVEMBER 2024 Family Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9: Pcb Layouts

    Figure 4-4 show the EVM board layout. Figure 4-3. LP5899EVM Layout (Top View) Figure 4-4. LP5899EVM Layout (Bottom View) SLVUD01 – NOVEMBER 2024 LP5899 SPI-Compatible Connectivity Evaluation Module for LP589x Device Submit Document Feedback Family Copyright © 2024 Texas Instruments Incorporated...
  • Page 10: Bill Of Materials (Bom)

    Code Composer Studio ™ are trademarks of Texas Instruments. All trademarks are the property of their respective owners. LP5899 SPI-Compatible Connectivity Evaluation Module for LP589x Device SLVUD01 – NOVEMBER 2024 Family Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
